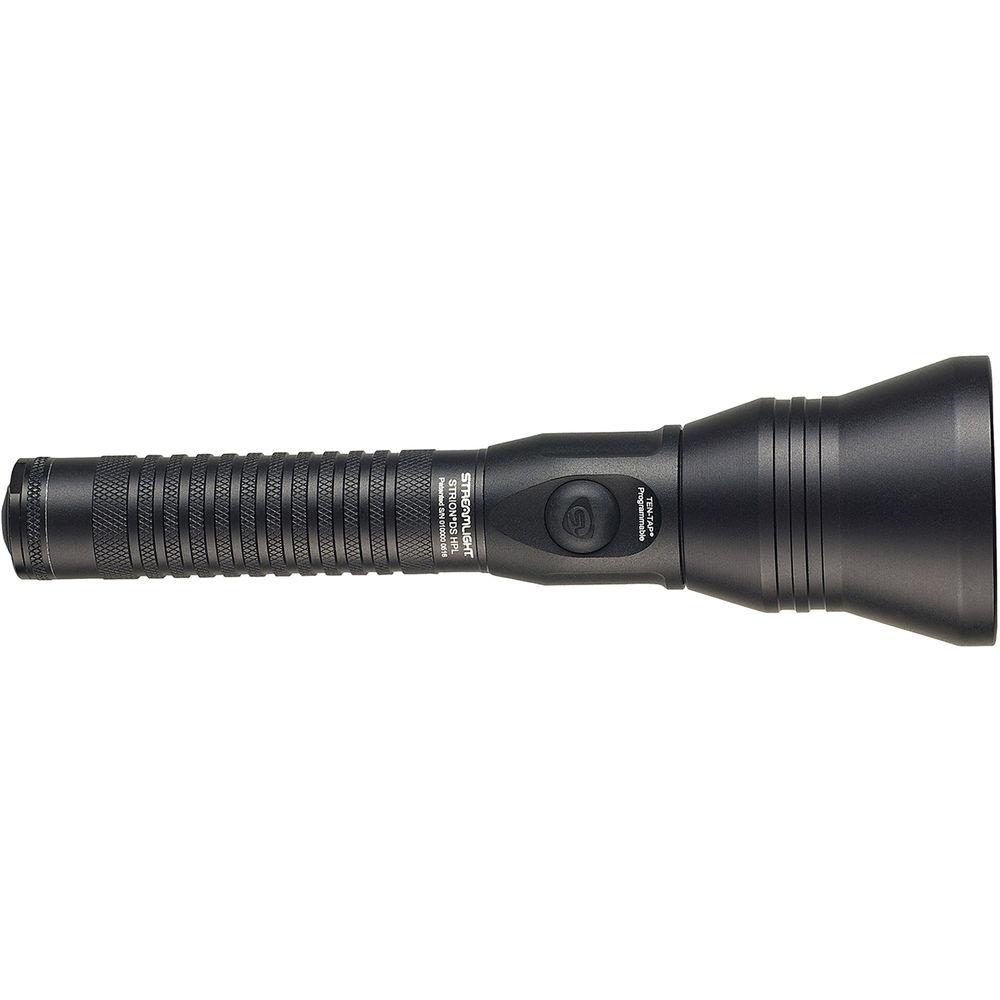

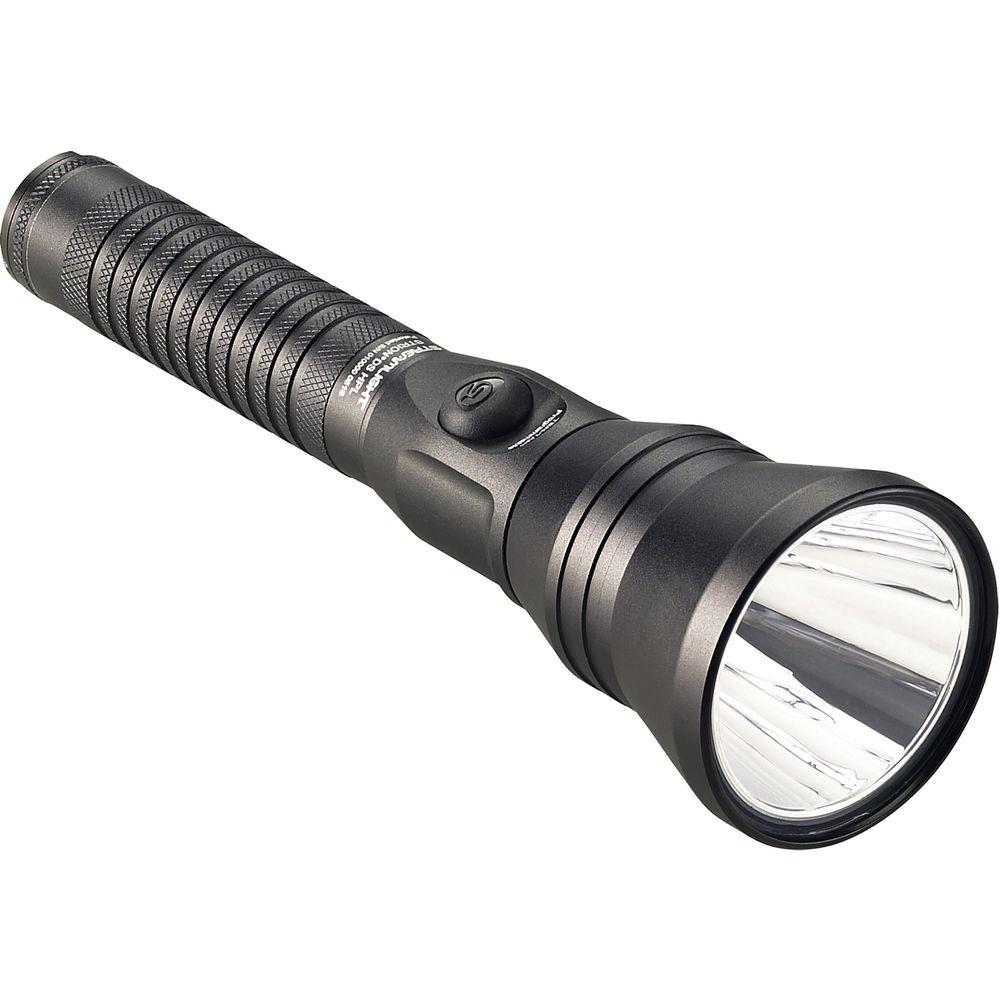

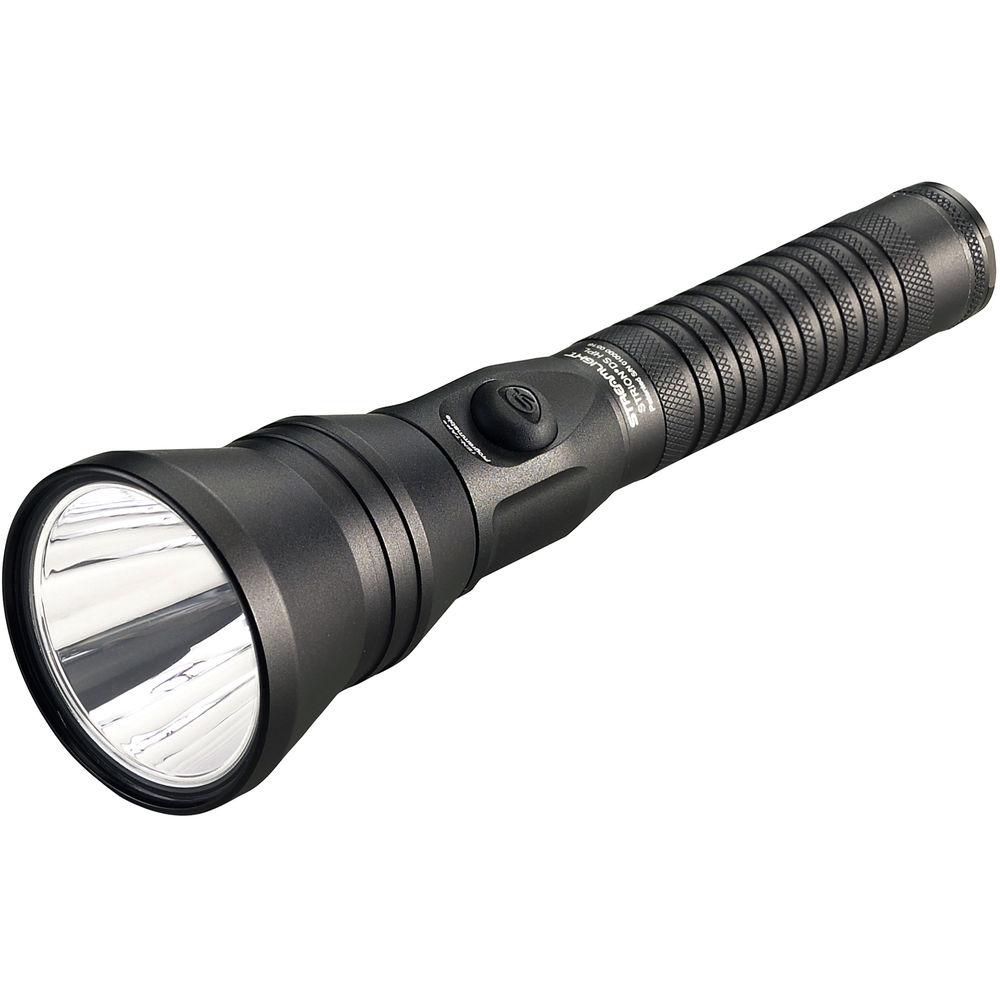

Product description With dual, independent switches providing options for holds and a powerful 700-lumen maximum output, the Streamlight Strion DS HPL Rechargeable LED Flashlight is a versatile tool for law enforcement, professional, recreational, and home use. Its C4 LED delivers brightness levels of 40, 300, and 700 lumens, with runtimes of 20, 3.3, and 1.3 hours, respectively, on a full charge. Push-button switches on the head and tailcap control power on a momentary- or constant-on basis, and the strobe setting can disorient an attacker or signal for help. Streamlight's TEN-TAP programming lets you choose from three modes to suit your needs—high/medium/low with strobe, high only, or high/medium/low.
The housing is made of lightweight and durable 6000 series machined aluminum with an impact-resistance rating of 6.6', an IPX4 water-resistance rating, and a lens of scratch- and impact-resistant polycarbonate. The light comes with a 120/100 VAC / 12 VDC wall-mountable charger bracket. - Light Performance
-
- 40/300/700 lumens
- Power-regulated C4 white LED
- Runtime 20, 3.3, 1.3 hours, respectively

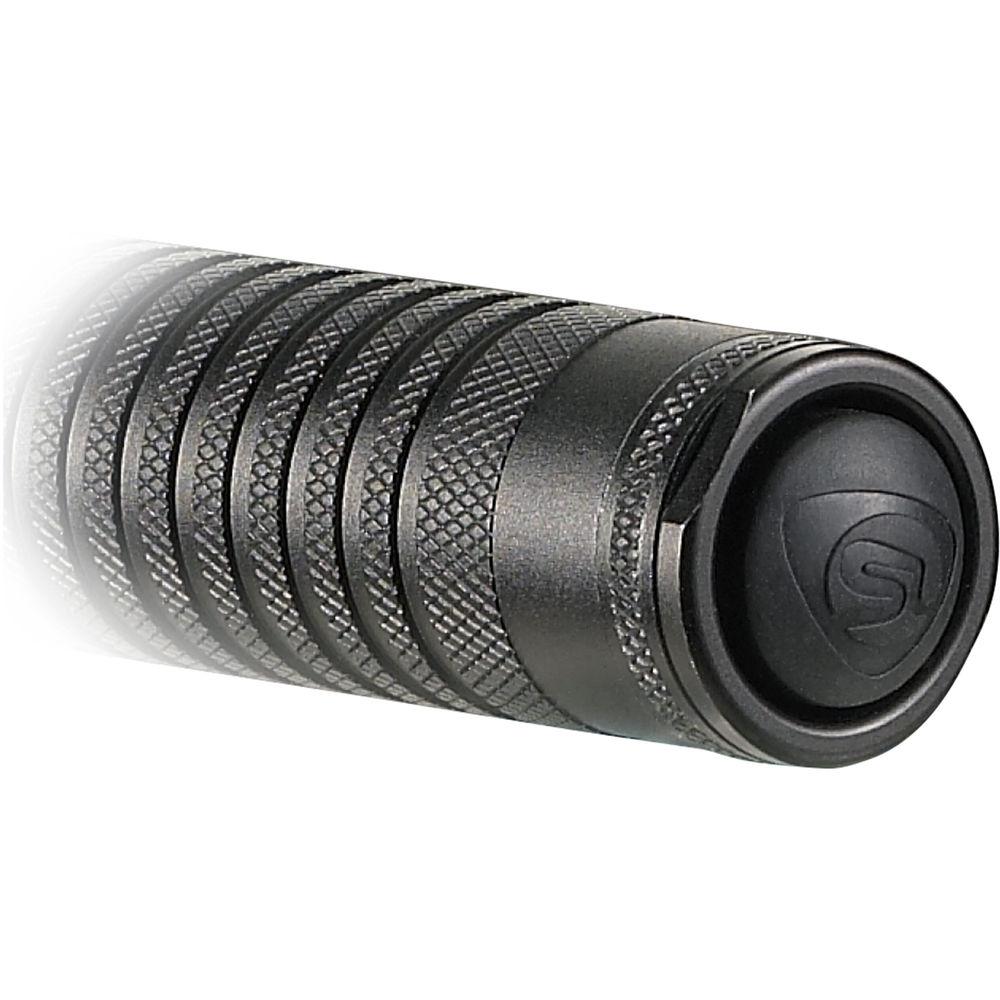

- Switching
-
- Dual, independent switches provide holding options
- Location: tailcap and head
- Type: push button
- Momentary- and constant-on activation
- TEN-TAP modes: high/medium/low with strobe, high only, or high/medium/low
- Construction Details
-
- 2.3" head diameter
- Scratch-resistant polycarbonate lens
- 6000 series aluminum housing
- IPX4 water resistant, gasket sealed
- Impact resistant to 6.6'
- 120/100 VAC / 12 VDC charger
- Charge time: 3 hours

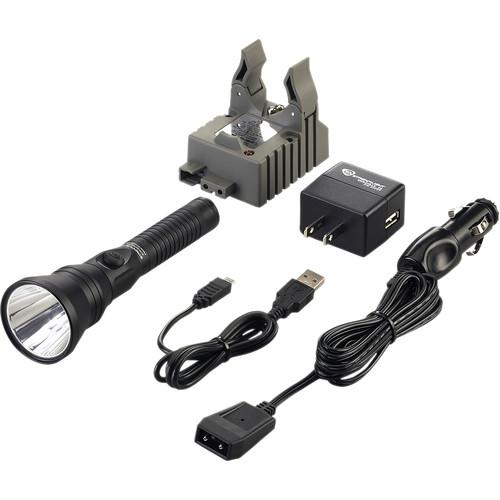

UPC: 080926748118 In the Box Streamlight Strion DS HPL Rechargeable LED Flashlight with 120/100 VAC / 12 VDC Charger Bracket 120/100 VAC / 12 VDC Charger Bracket Li-Ion Rechargeable Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Strion DS HPL Rechargeable LED Flashlight with 120 100 VAC 12 VDC Charger Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Strion DS HPL Specs | | | Lumen Output | High: 700 Lumens
Medium: 300 Lumens
Low: 40 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.3 Hours
Medium: 3.3 Hours
Low: 20 Hours
Strobe: 2.5 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | Internal Battery Capacity | 2200 mAh | | Charging Time | 3 Hours | | | | Lens Material | Polycarbonate | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Bezel Diameter | 2.2" / 55.9 mm | | Dimensions |
