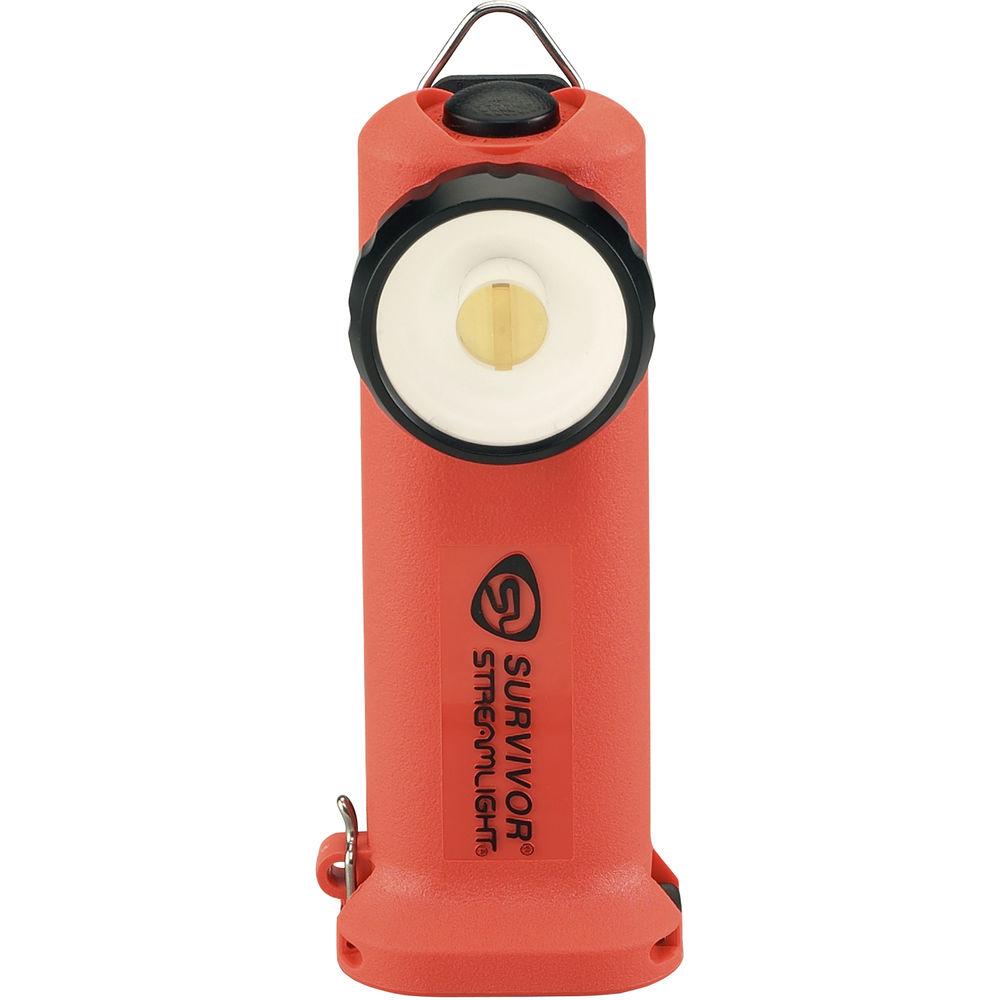

User Manual for Streamlight Survivor Right-Angle Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Streamlight Survivor Right-Angle Rechargeable LED Flashlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Survivor Right-Angle Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

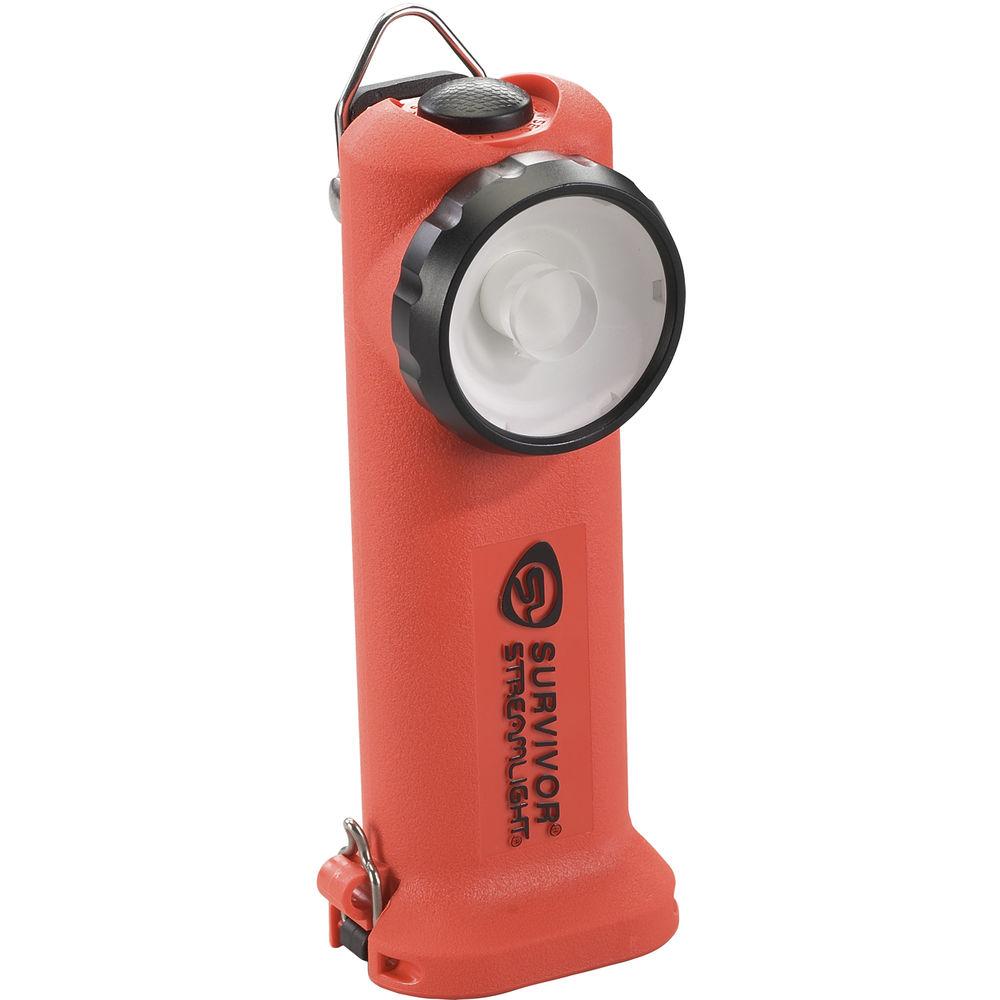

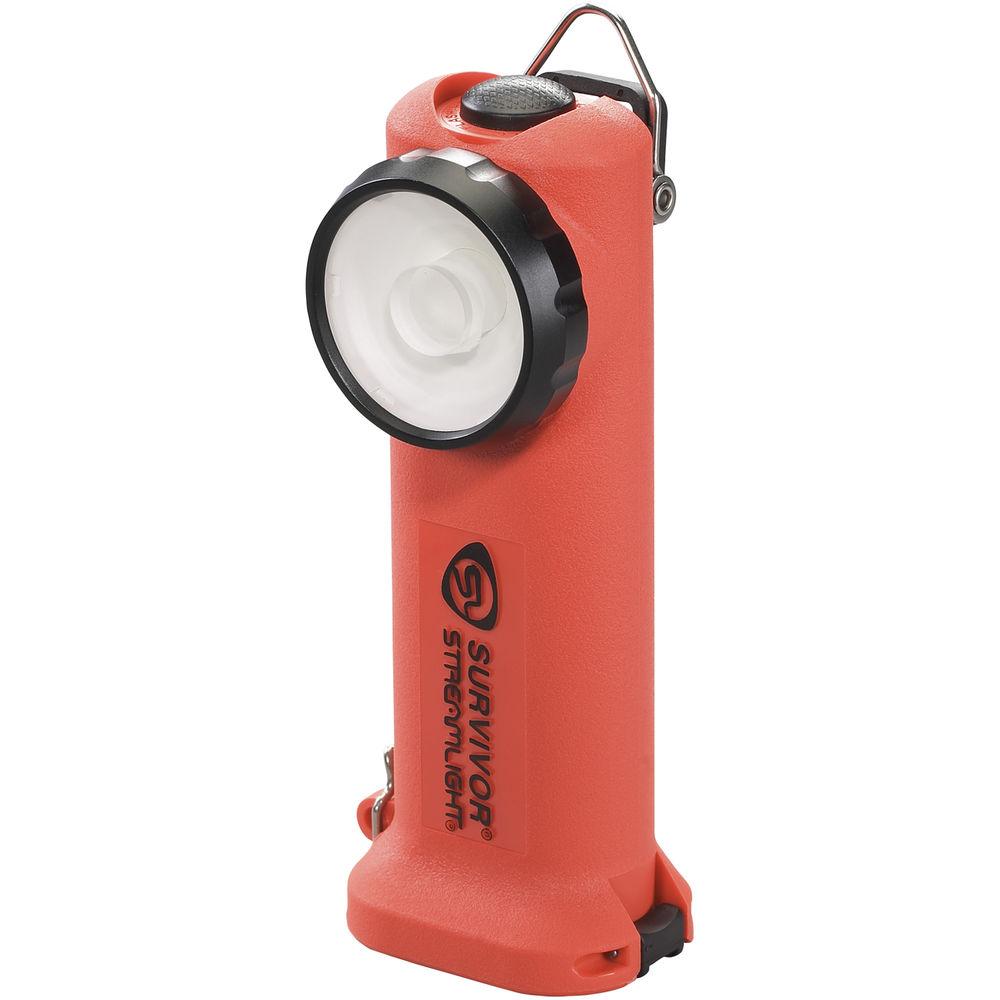

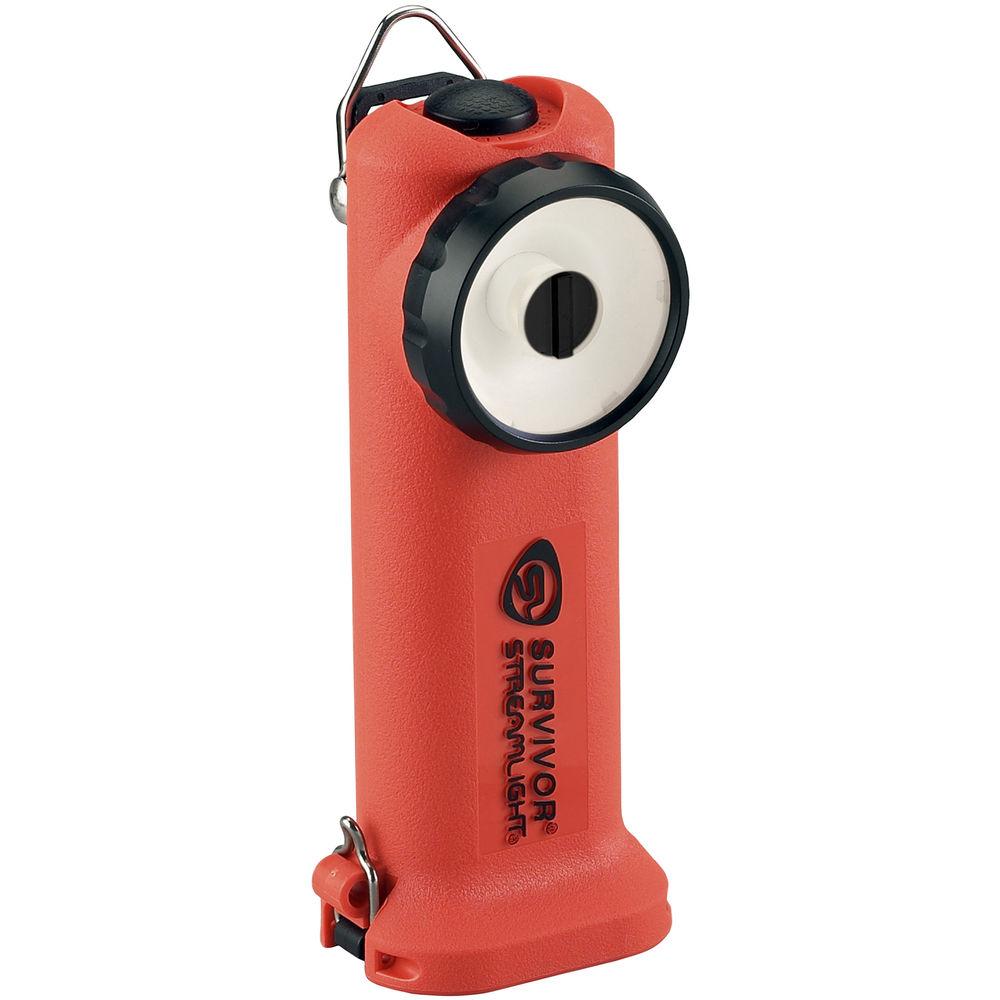

Product description Designed for firefighting with a low-profile bezel that minimizes interference with other gear, an adjustable beam, and a spring-loaded hook for pockets or harness straps, the intrinsically safe Streamlight Survivor Right-Angle Flashlight helps first responders and industrial professionals get the job done. Constructed of sturdy vented nylon, the Survivor features 60- and 175-lumen brightness levels, along with an emergency strobe and a moonlight setting that will run for 20 days. A spring-loaded clip holds the light securely to turnout gear pockets or harness straps, and there's also a D-ring for wearing or hanging options. The beam can be customized—pop in the black plug to cut peripheral light for a focused, smoke-cutting spot beam, use the amber plug for light that causes less eye fatigue, or go with the default Total Internal Reflection (TIR) beam for a spot with significant peripheral coverage. The rubber-dome push-button switch is easy to operate even when wearing heavy gloves. The charger is sold separately. - Light Performance
-
- High: 175 lumens
- Low: 60 lumens
- C4 LED
- Runtime: High 3.5 hours, low 13 hours, signal flash 8 hours, moonlight 20 days

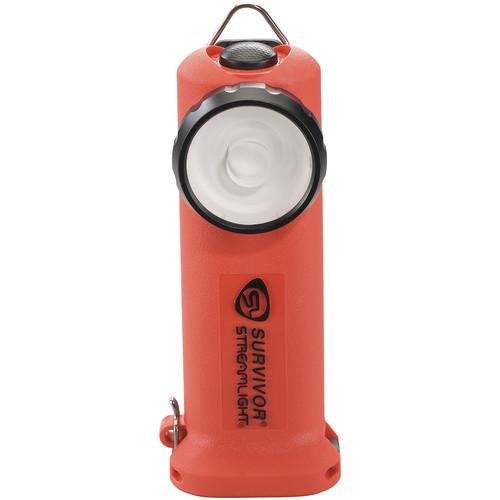

- TIR reflector with spot beam and optimal peripheral light

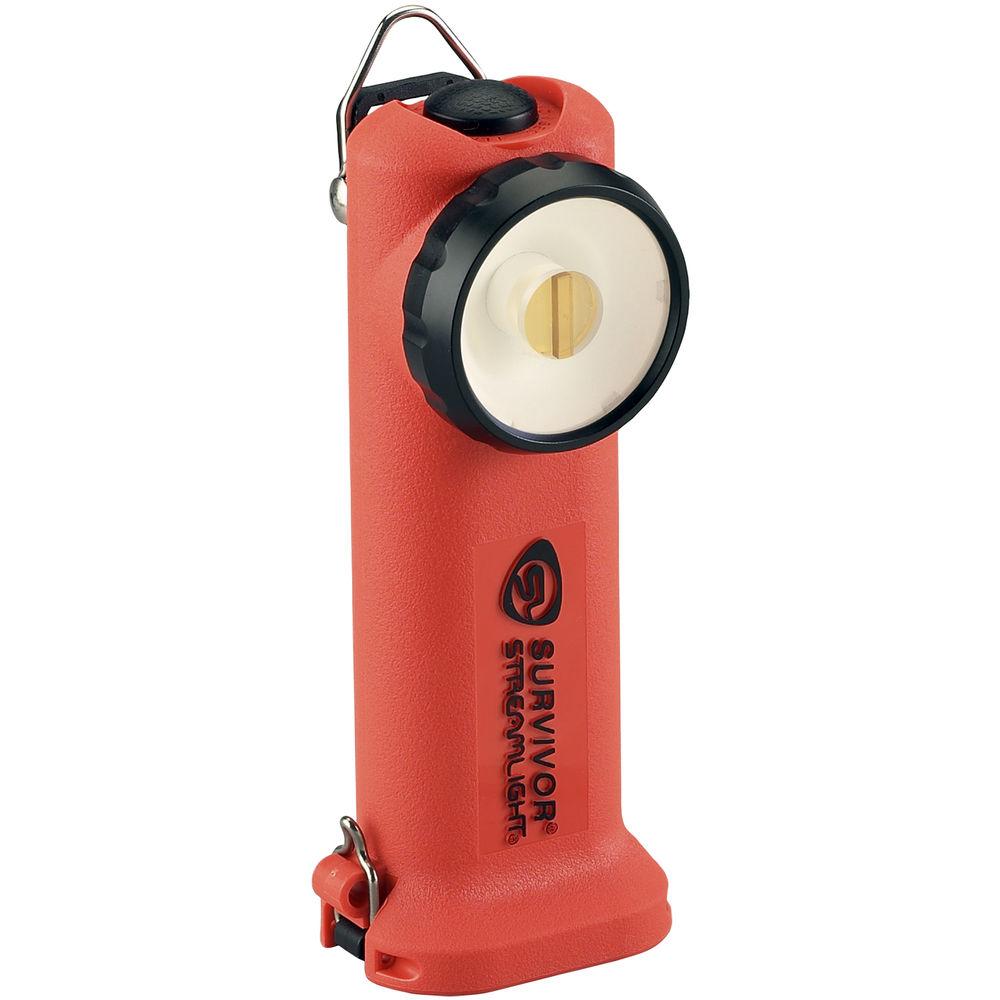

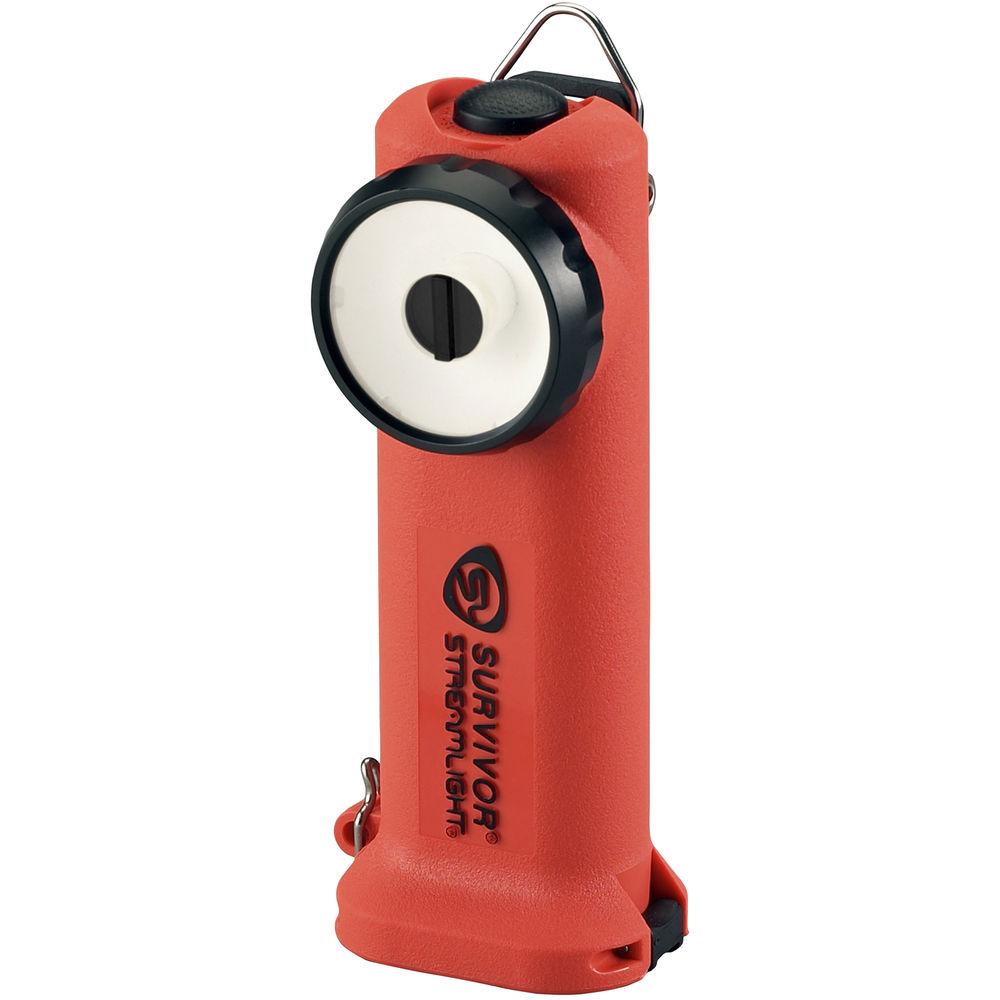

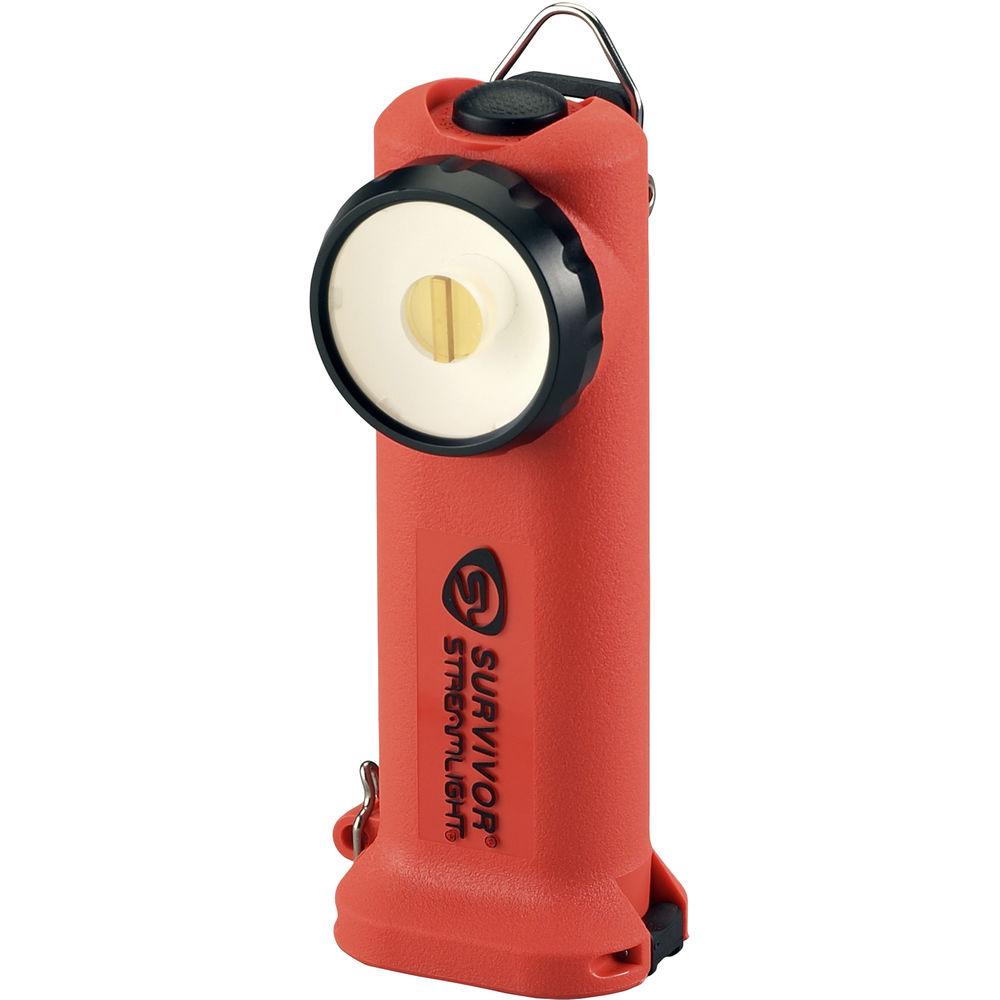

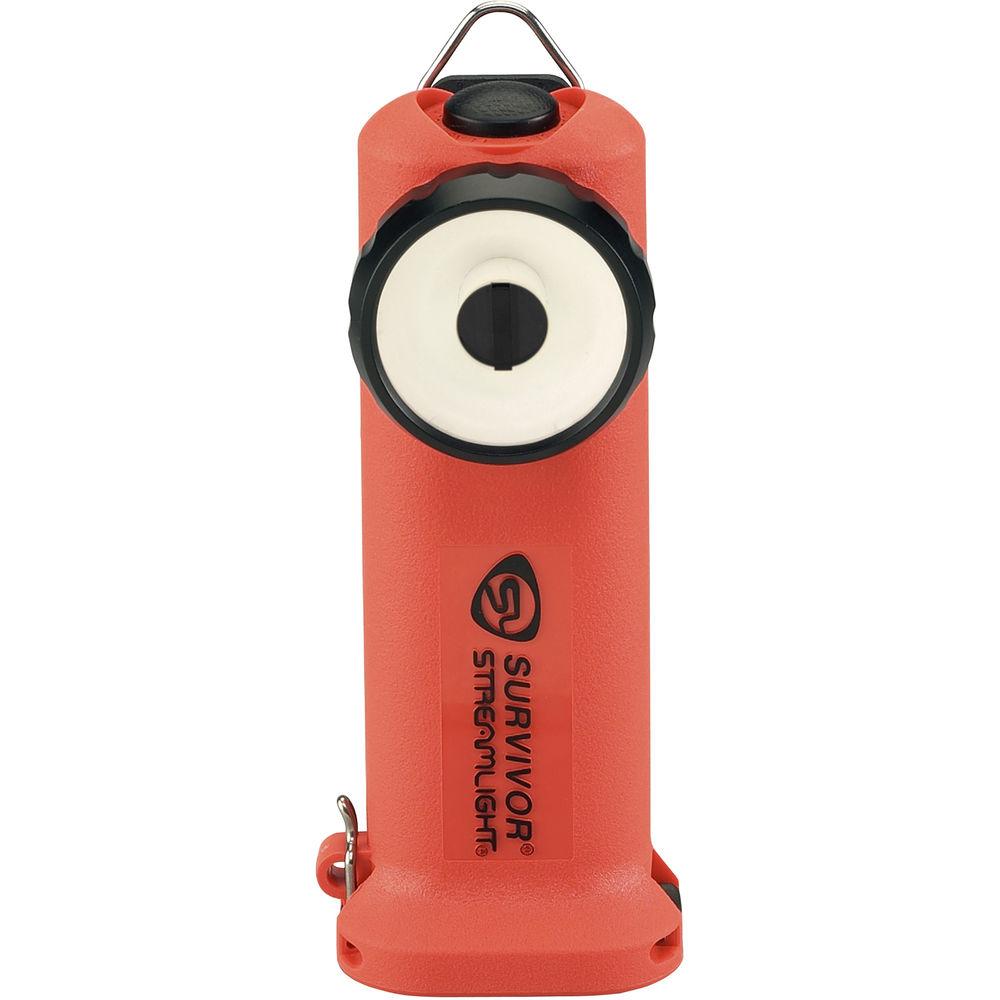

- Beam-customizing plugs for more focused spot or less eye strain
- Switching
-
- Location: top
- Type: rubber-domed push button
- Click for on/off and brightness level
- Construction Details
-
- Durable nylon vented polymer housing
- Polycarbonate lens
- Low-profile bezel reduces snag hazard

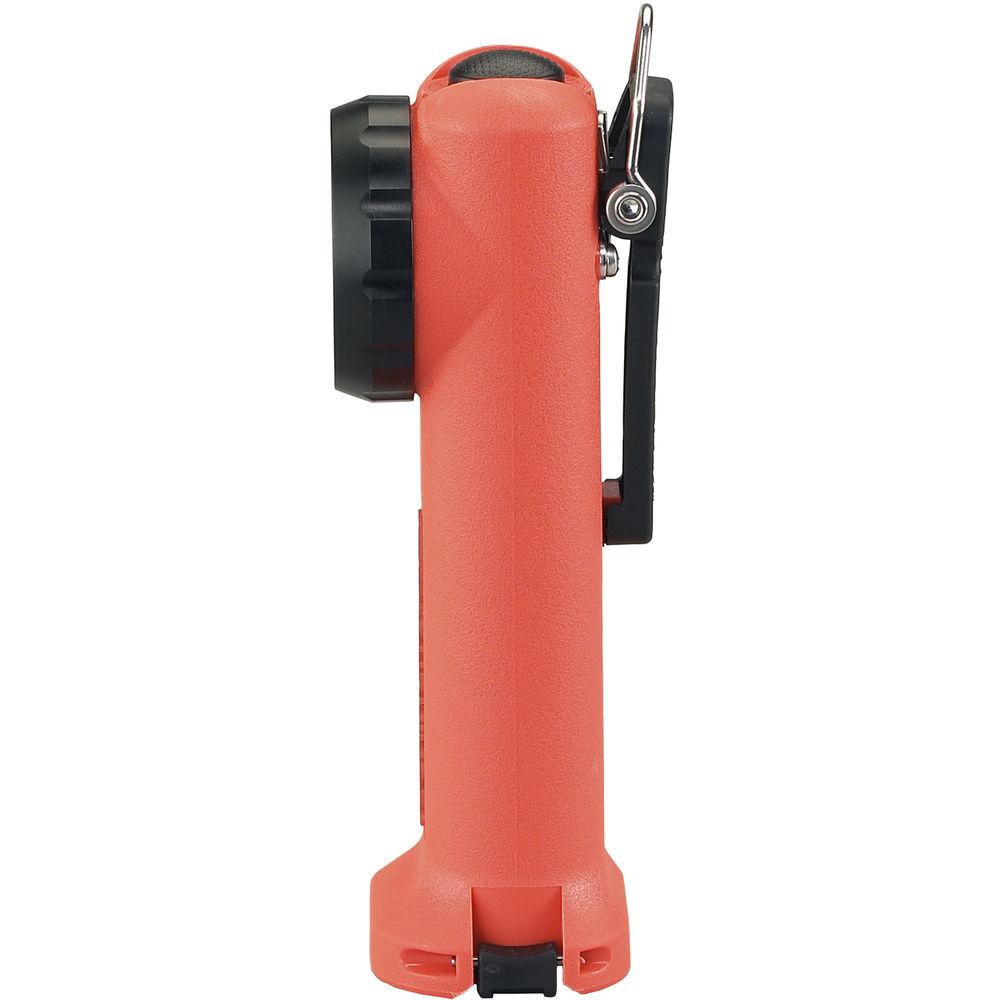

- Hanging hook and spring-loaded turnout gear clip
- IPX4-rated water resistant
- Impact resistant to 6.6'
- Safety Approvals
-
- Class I, II, Division 1, Groups C, D, E, F, G; Class III, T-Code: T4
- Class I, Division 2, Groups A, B, C, D; T-Code: T4
- Flashlight meets 500°F requirements of NFPA 1971-8.6 (2013)
- MSHA Permissible Flashlight, Approval No. 20-A150001-0
UPC: 080926905009 In the Box Streamlight Survivor Right-Angle Rechargeable LED Flashlight (Orange) Smoke-Cutter Beam Customization Plugs Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Survivor Right-Angle Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Survivor Specs | | | Lumen Output | High: 175 Lumens
Low: 60 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3.5 Hours
Low: 13 Hours
Strobe: 8 Hours
Minimum: 20 Days | | Battery Type | 1 x Built-In NiCd | | Internal Battery Capacity | 1800 mAh | | Output Voltage | 4.8 VDC | | | | Lens Material | Polycarbonate | | Material of Construction | Plastic | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Dimensions | H: 7.1 x W: 2.9 x L: 2.3" / H: 18.0 x W: 7.2 x L: 5.9 cm | | Weight | 18 oz / 510 g |
