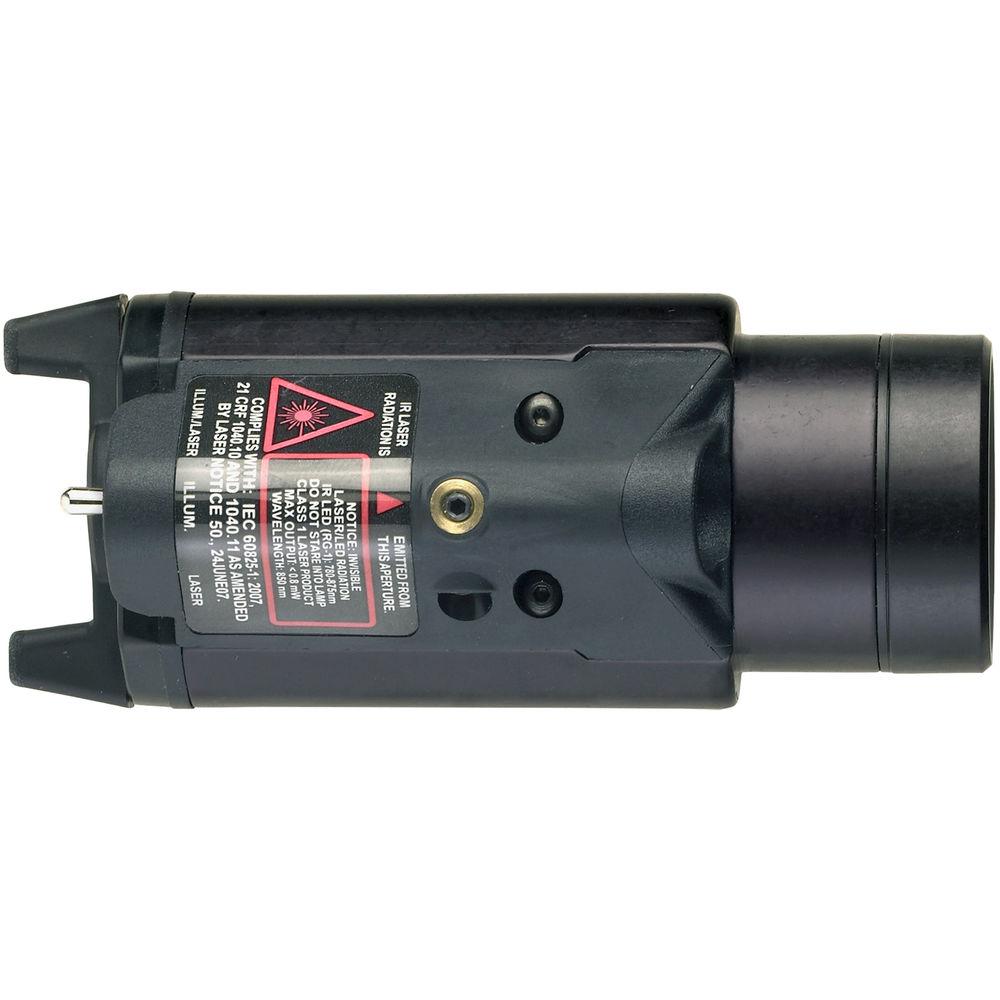

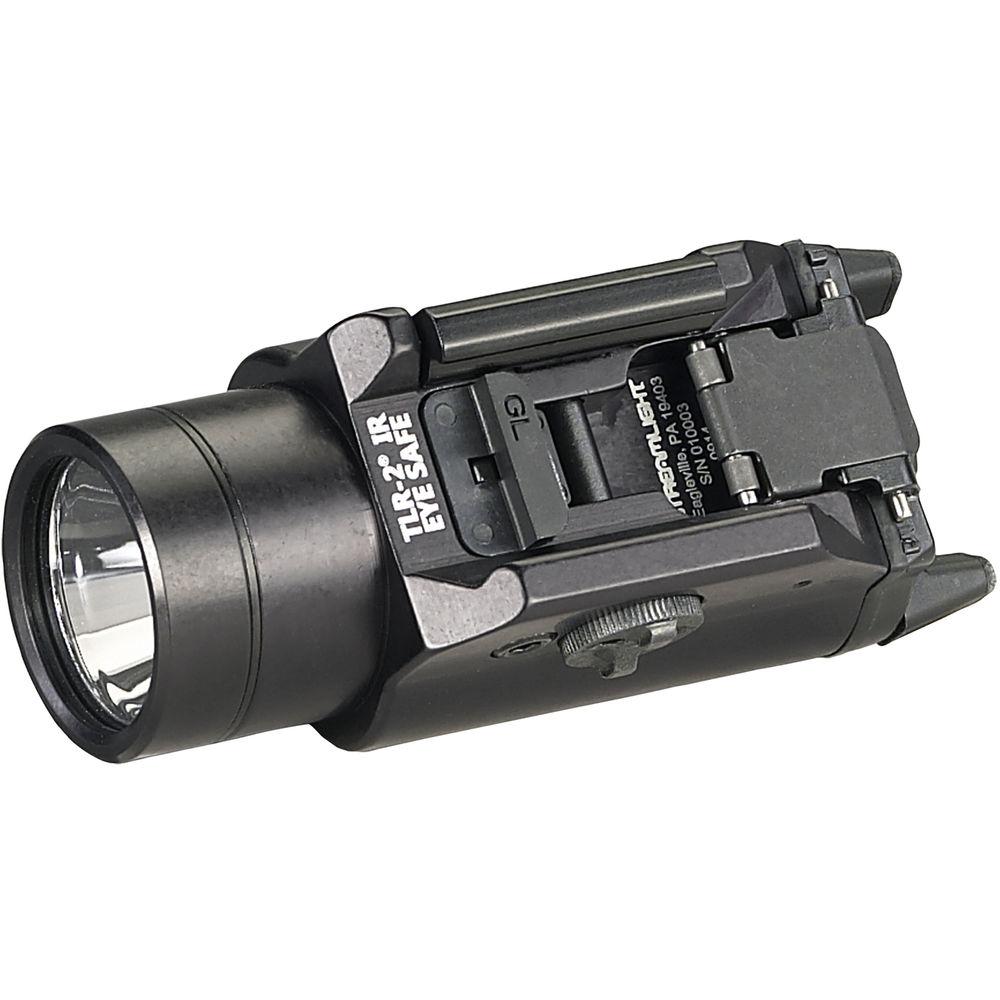

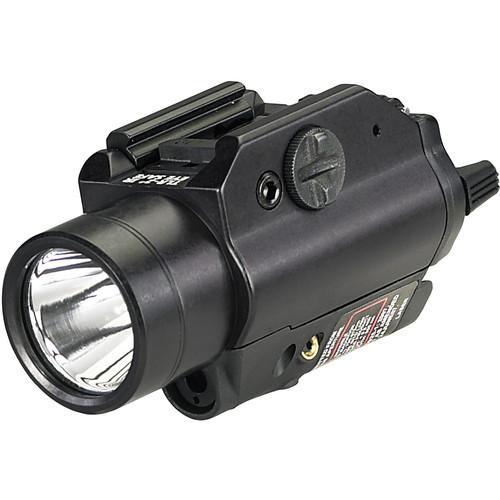

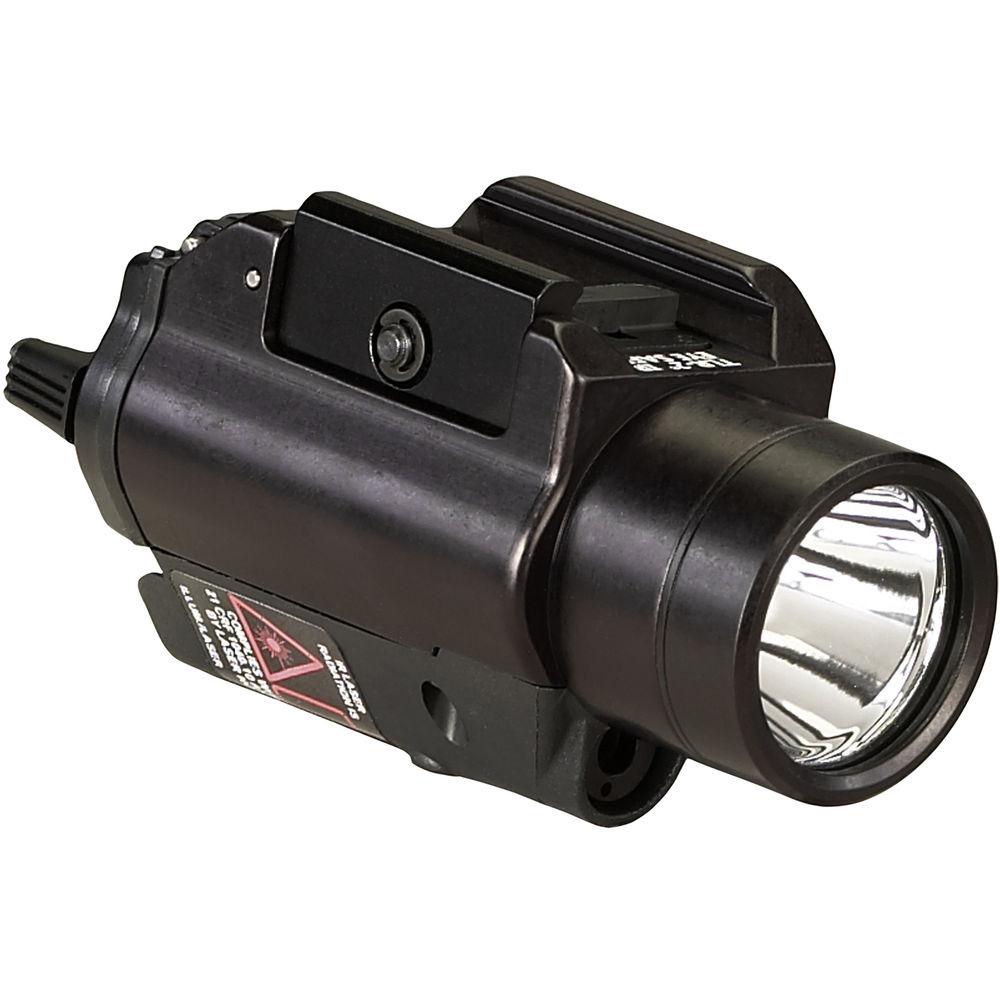

Product description Conquer night shooting with the TLR-2 Strobing IR Tactical Light from Streamlight. Designed for use with night vision goggles, this weapon-mounted light combines an 850nm IR LED with a Class 1 eye-safe 850nm IR aiming laser. The integrated rail-grip clamp system allows you to mount the light directly on a broad range of weapons while keeping your hands away from the muzzle.
The TLR-2 IR Eye Safe is equipped with an ambidextrous switch for momentary, steady, or strobe activation of the laser, the LED, or both simultaneously. It runs for about 7.5 hours in laser or laser-and-LED mode and over 45 hours in laser-only mode on two included 3V CR123A lithium batteries. Also included is a set of rail-locating keys for Glock-style, 1913 Picatinny, S&W 99/TSW, and Beretta 90two rails. - Performance
-
- High-power 850nm IR LED, impervious to shock, 20,000-hour lifetime
- Class 1 850nm IR laser with eye-safe output power less than 0.8mW
- IR LED total radiant flux greater than 125mW
- Deep-dish parabolic reflector produces a concentrated beam and peripheral illumination
- Switching
-
- Ambidextrous momentary/steady power paddle switch (rear)
- Three-position mode selector switch (IR laser only / IR LED only / IR laser and LED simultaneously)
- Instant access to strobe via paddle switch
- Construction
-
- 6000 Series machined aircraft aluminum
- Black anodized finish
- High-impact, chemical-resistant polymer laser housing
- BOROFLOAT glass lens
- Rail clamp for quick mounting to handguns with Glock-style rails and to all MIL-STD-1913 (Picatinny) rails (keys for Glock-style, Picatinny, Beretta 90two, S&W 99, and S&W TSW included)
- IPX4-rated water-resistant operation
- Extensively live-fire tested impact-resistant construction
- Windage and elevation adjustment screws mounted in brass bushings for dependable zero retention
- Runs on two 3V CR123A lithium batteries (included)
UPC: 080926691667 In the Box Streamlight TLR-2 Strobing IR Tactical Light with IR Laser Set of Rail Locating Keys 2 x CR123A Lithium Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight TLR-2 Strobing IR Tactical Light with IR Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight TLR-2 Specs | Compatibility | Compatibility list includes, but is not limited to, the models listed below.
Beretta: Cx4 Storm, Px4 Storm, Vertec
FN: 5.7 (with Picatinny-style rail)
Glock: All models with factory rails
Heckler & Koch: USP Full Size, USP Compact, HK P30
Kimber: TLE RLII (1911 with rail)
Ruger: KP345, SR-9
Sig Sauer: GSR, SP2022, 1911 style with flat-bottom rail
Smith & Wesson: TSW, 99, M&P
Springfield Armory: Operator (1911 with rail), XD (4" and 5" barrels)
Walther: 99 Full Size (2004 models) | | Light Source | 850 nm IR LED, 20,000-hour lifetime
850 nm class-1 eye-safe IR laser | | Materials | Main Body: 6000 Series machined aircraft aluminum with black anodized finish
Laser Housing: Polymer
Lens: BOROFLOAT glass | | Luminous Flux | IR LED: More than 125 mW | | Output Power | IR Laser: Less than 0.8 mW | | Controls | Ambidextrous momentary/steady power switch with access to strobing mode | | Runtime | LED-and-Laser: 7.5 hours
Laser Only: 45+ hours | | IP Rating | IPX4 | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 3.39 x 1.47 x 1.83" / 8.61 x 3.73 x 3.64 cm | | Weight | 4.72 oz / 133.8 g, with batteries |
