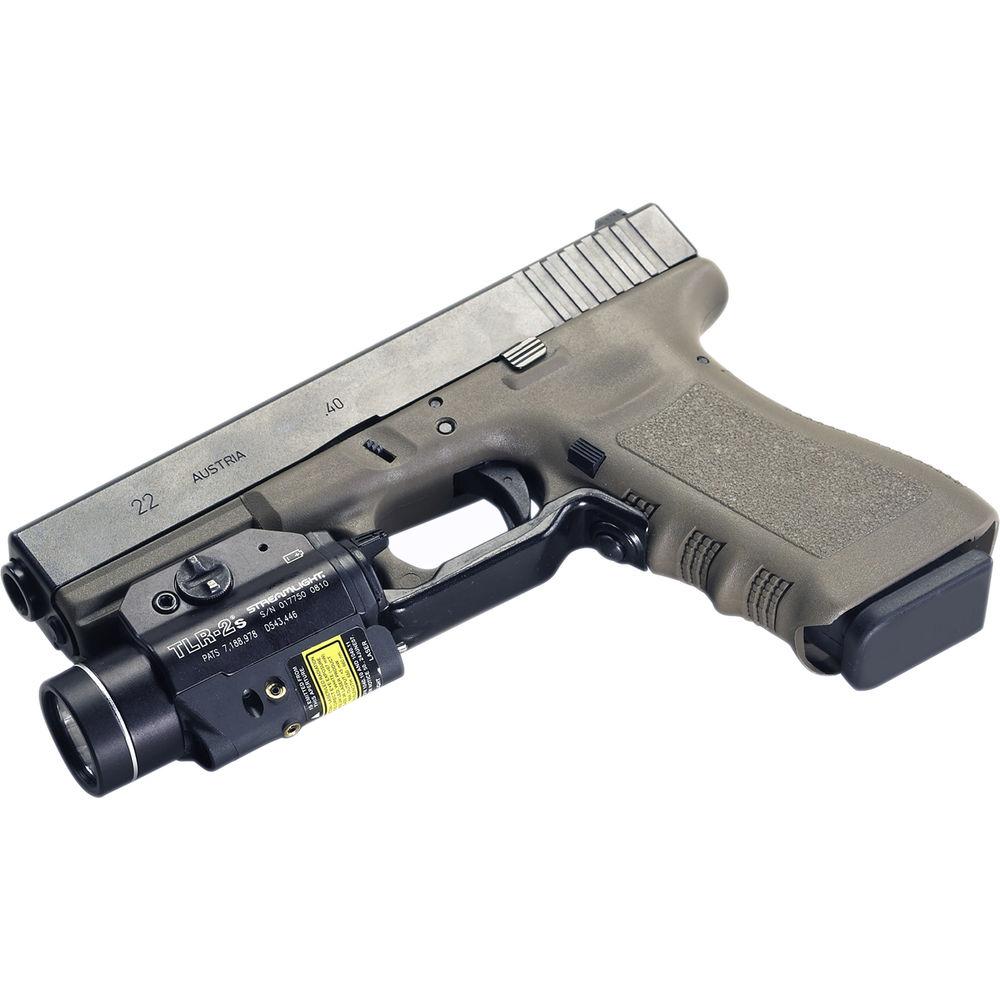

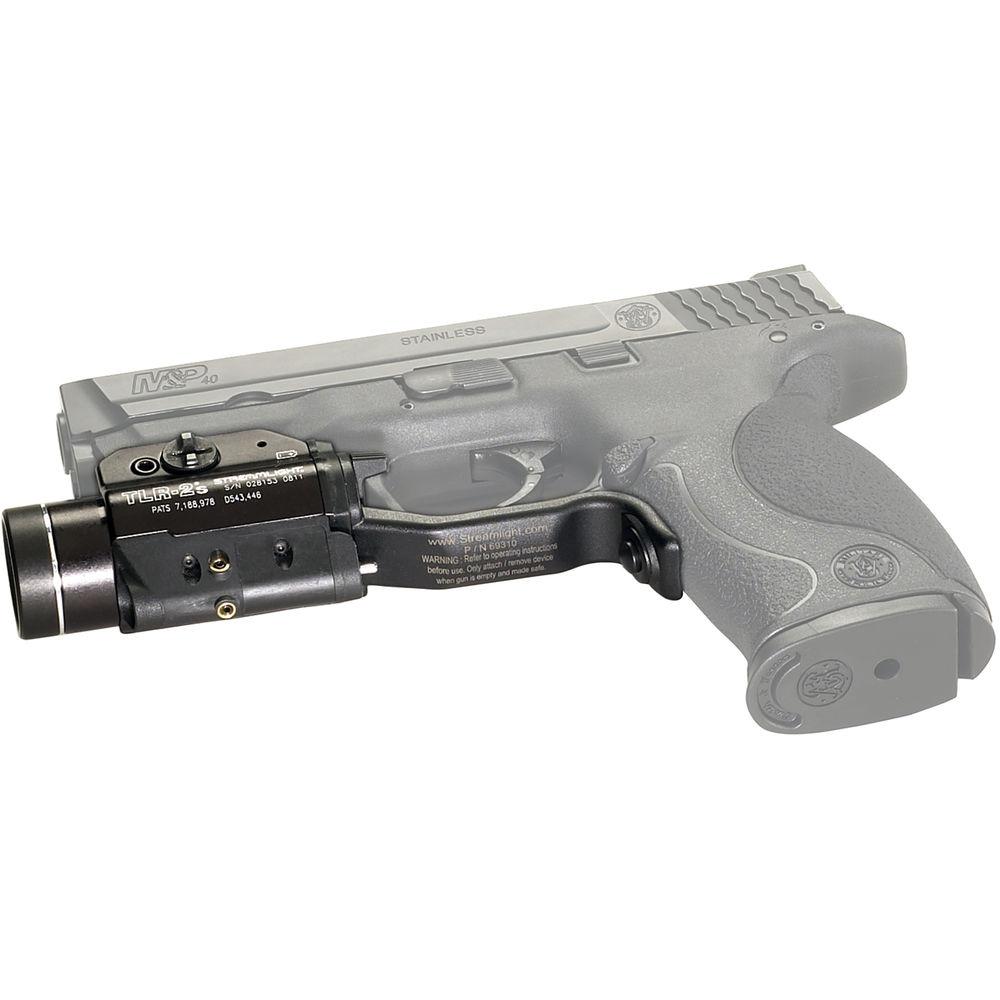

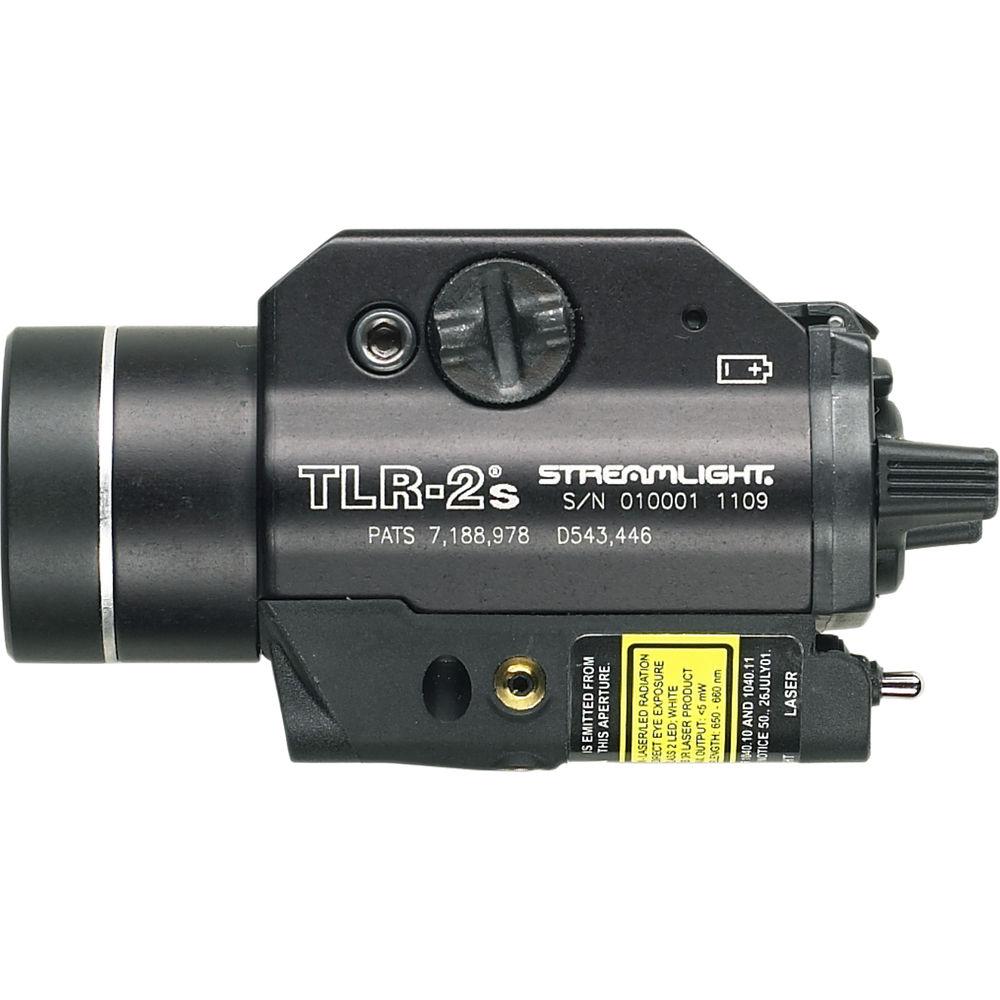

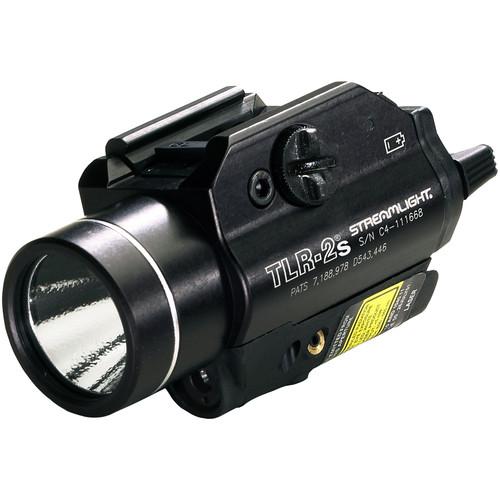

Product description Get a light and a red aiming laser on your gun with the TLR-2s Strobing Rail-Mounted Tactical Light from Streamlight. Featuring a rail grip clamp system, this tactical light can be mounted on almost any gun without tools and without putting your hands in front of the muzzle. The light's integrated paddle switch provides momentary, constant, or strobe activation of the laser, the LED, or both simultaneously. Bright and powerful, the TLR-2s runs for about 2.5 hours in LED-and-laser mode on two 3V CR123A lithium batteries (included). - Performance
-
- 300 lumens
- C4 white LED with 50,000-hour lifetime
- 650-660nm red laser
- Deep-dish parabolic reflector produces a concentrated beam and peripheral illumination
- Strobe mode (can be disabled)
- Switching
-
- Ambidextrous momentary/steady power paddle switch (rear)
- Three-position mode selector switch for laser-only, LED-only, or laser-and-LED operation (bottom rear)
- Instant access to strobe mode via momentary paddle
- Construction
-
- 6000 Series machined aircraft aluminum
- Black anodized finish
- High-impact, chemically resistant polymer laser housing
- BOROFLOAT glass lens

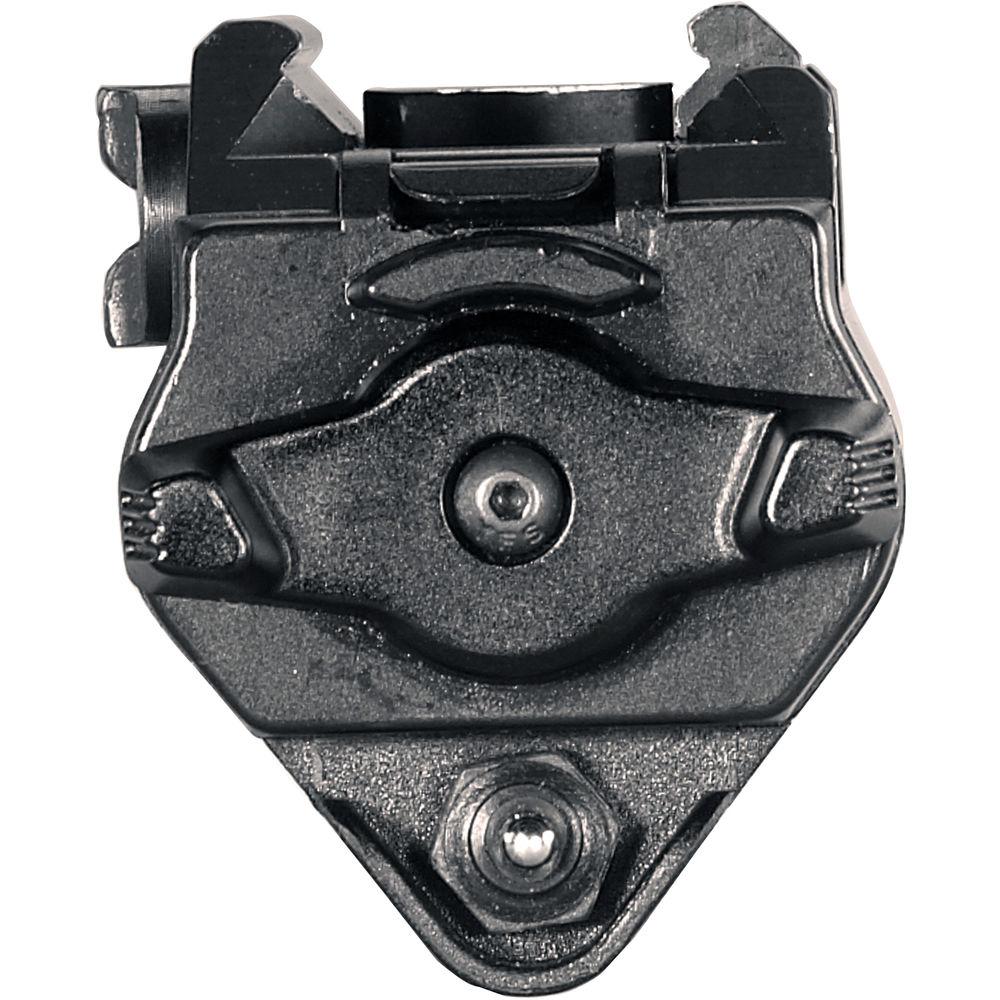

- Rail clamp for quick mounting to handguns with Glock-style rails and to all MIL-STD-1913 (Picatinny) rails (keys for Glock-style, Picatinny, Beretta 90two, S&W 99, and S&W TSW included)
- IPX4-rated for water resistance
- Extensively live-fire tested impact-resistant construction
- Windage and elevation adjustment screws mounted in brass bushings for long life and dependable zero retention
- Tethered battery door and latch mechanism prevents battery door loss while allowing easy battery replacement
- Runs on two 3V CR123A lithium batteries (included)
UPC: 080926692305 In the Box Streamlight TLR-2s Strobing Rail-Mounted Tactical Light with Red Laser (Boxed) Set of Rail Locating Keys 2 x CR123A Lithium Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight TLR-2s Strobing Rail-Mounted Tactical Light with Red Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight TLR-2s Specs | Light Source | C4 LED, 50,000-hour lifetime
650-660 nm red laser | | Materials | Main Body: 6000 series machined aircraft aluminum with black anodized finish
Laser Housing: High-impact, chemically resistant polymer
Lens: BOROFLOAT glass | | Light Output | 300 lumens | | Controls | Ambidextrous momentary/steady on/off switch
Double tap of momentary paddle within 0.4 seconds activates strobe
3-position mode switch | | Modes | Laser only
LED only
Laser and LED simultaneously | | Runtime | 2.5 hours in laser-and-LED mode
48 hours in laser-only mode | | IP Rating | IPX4 | | Operating Temperature | -40 to 120°F / -40 to 48.9°C | | Approvals | CE | | Dimensions | 3.39 x 1.47 x 1.83" / 8.61 x 3.73 x 4.64 cm | | Weight | 4.72 oz / 133.8 g, with batteries |
