User Manual for Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light with Red Aiming Laser Click to enlarge the picture
Contents of the user manual for the Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light
- Product category: Weapon & Tactical Lights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Weapon & Tactical Lights
 |
User manual for the Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

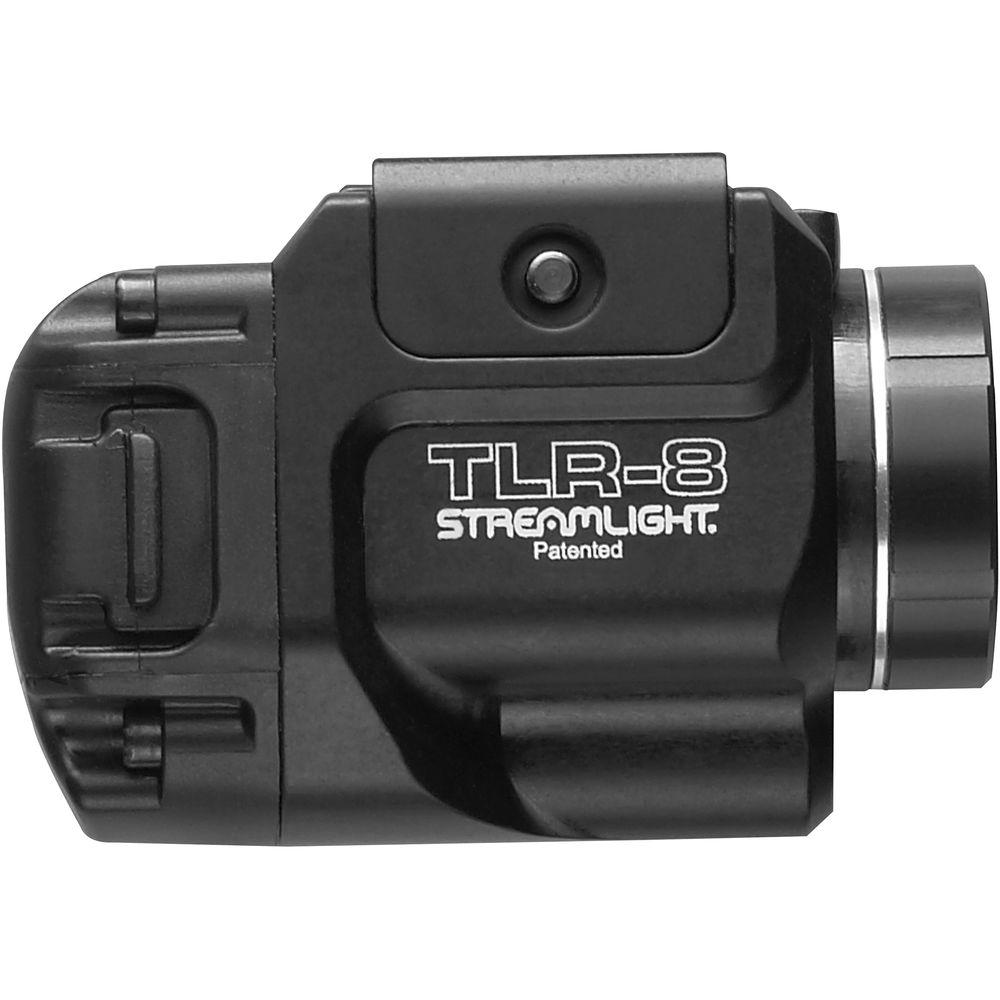

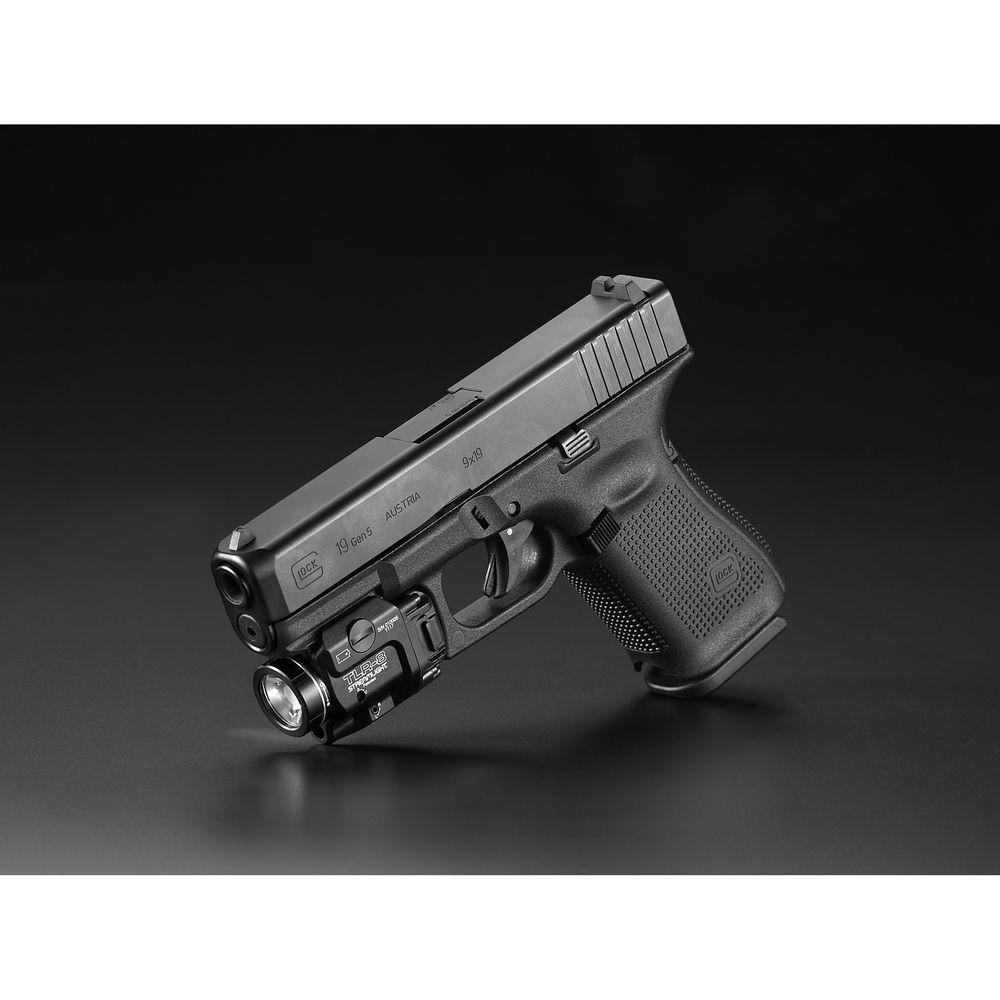

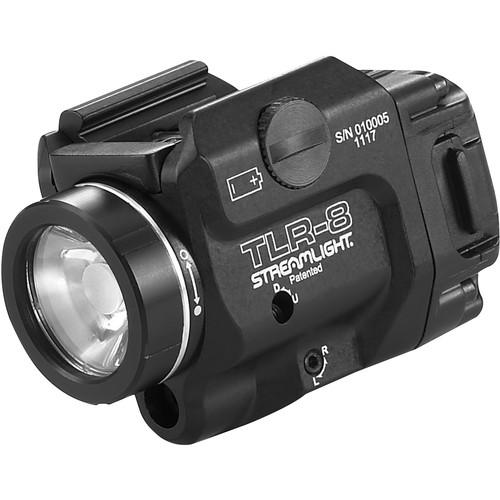

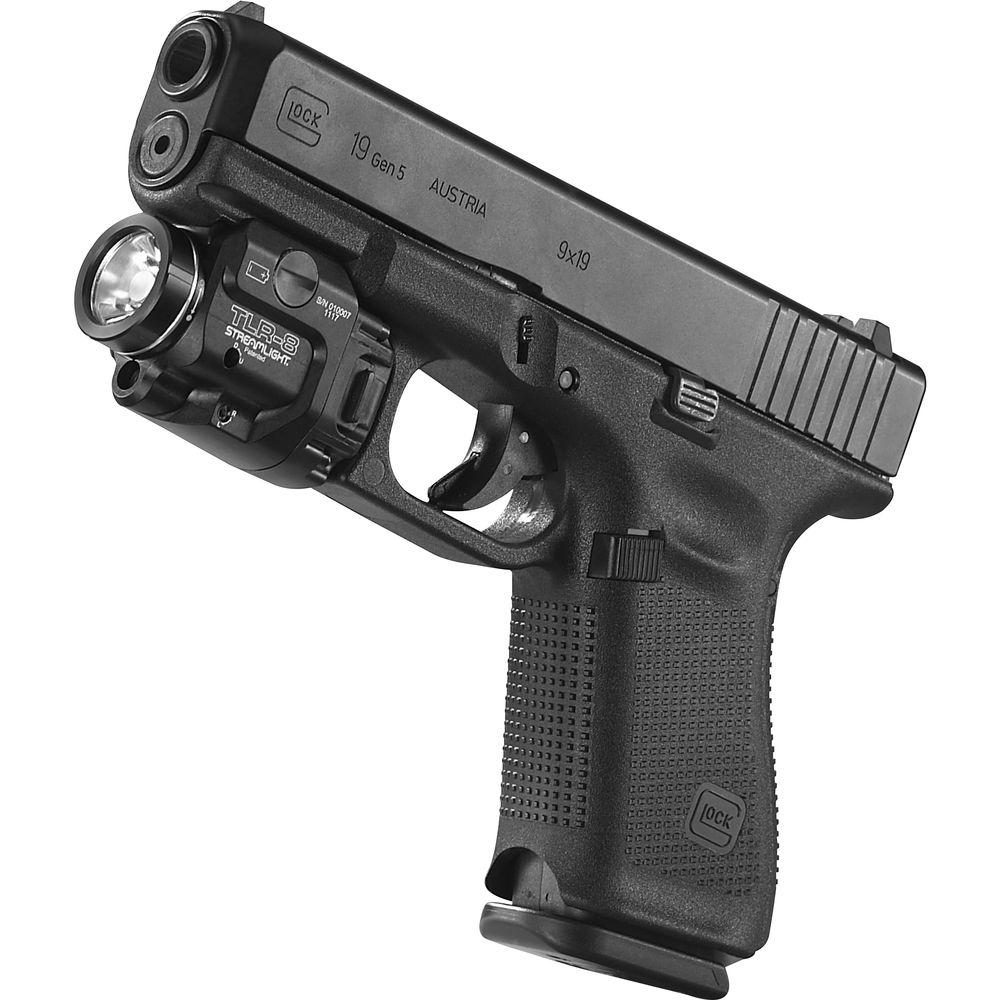

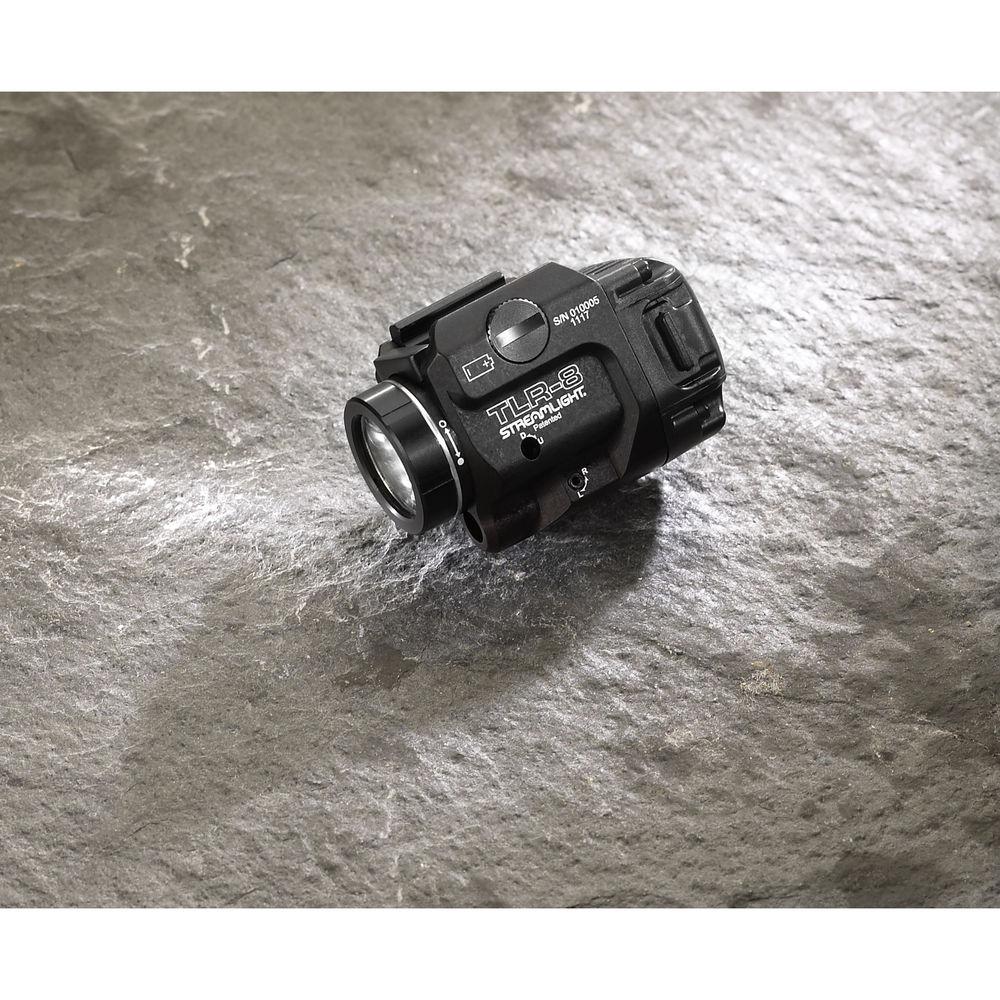

Product description See your target clearly and aim accurately with the TLR-8 Low-Profile, Rail-Mounted Tactical Light with Red Laser from Streamlight. Featuring a rail-grip clamp system, this tactical light can be mounted on a broad range of full-size and compact handguns without tools or any need to put your hands in front of the muzzle. The light's ambidextrous switch provides constant or strobe activation of the laser, the LED, or both simultaneously. The TLR-8 runs for about 1.5 hours in LED or LED-and-laser mode and for about 18 hours in laser-only mode on a single 3V CR123A lithium battery (included). - Performance
-
- 500 lumens
- C4 white LED with 50,000-hour lifetime
- 640-660nm red laser
- Total internal reflection (TIR) optics for concentrated beam plus peripheral illumination
- Strobe mode can be enabled/disabled
- Optimized electronics provide regulated intensity light
- Switching
-
- Ambidextrous multifunction push-button switch (side)
- Laser-only, LED-only, or laser-and-LED mode selection
- Instant access to strobe mode, if enabled
- Safe-off feature on bezel prevents accidental activation and saves battery power
- Construction
-
- 6000 Series machined aircraft aluminum
- Black anodized finish
- Impact- and chemical-resistant polymer switch housing with elastomeric overmold
- BOROFLOAT glass lens
- Rail clamp for quick mounting to a broad range of full-size and compact handguns (set of rail-locating keys included)
- IPX4-rated water resistance
- Extensively live-fire tested
- Runs on one 3V CR123A lithium battery with 10-year storage life (included)
- Serialized for positive identification
UPC: 080926694101 In the Box Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light with Red Aiming Laser Set of Rail Locating Keys CR123A Lithium Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light with Red Aiming Laser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight TLR-8 Specs | Compatibility | Wide range of full-size and compact handguns including, but not limited to, those listed below.
Glock: Most models up to Gen 4, 17, and 19 Gen 5
Sig Sauer: 320 Compact / Carry / Full Size, 1911 GSR, and P200 Series (220, 2022, etc.)
Smith & Wesson: TSW (with riveted rail), 99, and M&P Full Size
Beretta: 92 FS/M9A1, 90two, 92/96 A1, APX, and PX4 Storm Full Size
Springfield Armory: XD 9, 40, 45, and 9(M)
FN: FNS-40, Five-Seven, 509, and FNX
HK: VP 9 and P30
CZ: P-01, P-07, P-10, and 75 SP-01
Kimber: 1911 Custom
Ruger: SR-9 | | Light Source | C4 LED, 50,000-hour lifetime
640-660 nm red laser | | Materials | Main Body: 6000 series machined aircraft aluminum with black anodized finish
Switch Housing: Impact- and chemical-resistant polymer with elastomeric overmold
Lens: BOROFLOAT glass | | Light Output | 500 lumens | | Controls | Ambidextrous multi-function power switch
Double tap of either switch within 1.4 seconds activates strobe, if enabled
Mode selection by pressing both switches simultaneously | | Modes | Laser only
LED only
Laser and LED simultaneously | | Runtime | Laser-and-LED Mode: 1.5 hours to 10% output
Laser-Only Mode: 18 hours | | IP Rating | IPX4 | | Operating Temperature | -20 to 120°F / -28.9 to 48.9°C | | Approvals | CE | | Dimensions | 2.15 x 1.18 x 1.50" / 5.46 x 2.98 x 3.81 cm | | Weight | 2.64 oz / 75 g, with battery | | | | Package Weight | 0.33 lb | | Box Dimensions (LxWxH) | 6.45 x 4.15 x 1.65" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Streamlight TLR-8 Low-Profile, Rail-Mounted Tactical Light with Red Aiming Laser
| Subject: Streamlight tlr-8 user manual | | Date: 08.11.2022 04:55:48 | Name: Henry Jones | | Can't seem to download streamlight tlr-8 user manual. | | Post reply |
| Subject: Flashlight | | Date: 09.05.2022 13:45:03 | Name: Clifton F Reed | | Hello I have the TLR-8 with red lazer. The flashlight suddenly went dim. When I turn it on it starts out regular brightness then immediately reduces to a very dim light. Is there a way to trouble shoot this? | | Post reply |
