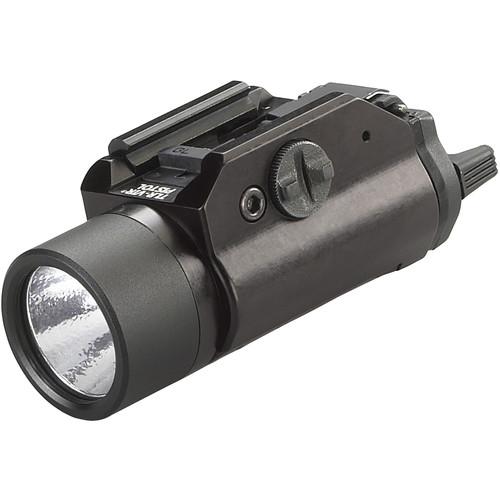

User Manual for Streamlight TLR-VIR White Light and IR LED Illuminator for Long Arms Click to enlarge the picture
Contents of the user manual for the Streamlight TLR-VIR White Light and IR
- Product category: Weapon & Tactical Lights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Weapon & Tactical Lights
|
User manual for the Streamlight TLR-VIR White Light and IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|
Product description Switch between white and IR light as needed without removing your eyes from your target or altering your firing grip with the TLR-VIR White Light and IR LED Illuminator from Streamlight. Combining a 300-lumen white LED with a deep-dish parabolic reflector, this compact weapon-mounted light produces a concentrated beam and ample peripheral light for illuminating your target and everything in your path. Additionally, the integrated 850nm IR LED emitter delivers effective night vision when combined with night vision goggles. The illuminator's integrated ambidextrous switch enables momentary, constant, or strobe activation of either the visible or the IR light.
The TLR-VIR's rail-grip clamp system allows you to mount the light directly on your weapon. The light runs for about 2.5 hours in visible light mode and about 20 hours in infrared mode on two included 3V CR123A lithium batteries. Also included are an opaque lens cap, a remote switch, and retaining clips. - Performance
-
- 300-lumen C4 white LED with 50,000-hour lifetime
- Deep-dish parabolic reflector produces a concentrated beam and peripheral illumination
- Integrated 850nm LED emitter with 20,000-hour runtime for use with separately available night vision goggles (NVGs)
- Strobe mode can be enabled/disabled
- Switching
-
- Ambidextrous momentary/steady power switch with plug port for momentary remote switch (rear)
- Recessed three-position mode selector switch: IR illumination / safe off / visible illumination (bottom)
- Instant access to strobe mode via paddle switch
- Remote switch included
- Construction
-
- 6000 Series machined aircraft aluminum
- Black anodized finish
- High-impact, chemical-resistant polymer housing
- BOROFLOAT glass lens with anti-reflective coating
- Rail clamp for quick mounting to long guns with MIL-STD-1913 rails
- IPX7 rated; waterproof to 3.3' for 30 minutes
- Extensively live-fire-tested impact-resistant construction
- Tethered battery door and latch mechanism prevents battery door loss while allowing easy battery replacement
- Runs on two 3V CR123A lithium batteries with 10-year storage life (included)
UPC: 080926691803 In the Box Streamlight TLR-VIR White Light and IR LED Illuminator for Long Arms Opaque Lens Cap and Retaining Clips Remote Switch 2 x 3V CR123A Lithium Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight TLR-VIR White Light and IR LED Illuminator for Long Arms in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight TLR-VIR Specs | Light Source | C4 white LED, 50,000-hour lifetime
850 nm IR LED emitter, 20,000-hour lifetime | | Materials | Main Body: 6000 Series machined aircraft aluminum with black anodized finish
Housing: Impact- and chemical-resistant polymer
Lens: BOROFLOAT glass with anti-reflective coating | | Light Output | Visible Light: 300 lumens
IR Light: 1000 mW/sr minimum | | Controls | Ambidextrous momentary/steady power switch
Double tap of paddle switch activates strobe (when enabled)
Recessed 3-position mode selector switch (IR illumination / safe off / visible illumination) | | Runtime | Visible Illumination: 2.5 hours
IR Illumination: 20 hours | | IP Rating | IPX7 | | Waterproof Capability | Waterproof to 3.3' / 1 m for 30 minutes | | Operating Temperature | -40 to 154°F / -40 to 67.8°C | | Dimensions | 3.82 x 2.03 x 1.47" / 9.70 x 5.16 x 3.73 cm
Width at Thumbscrew: 1.7" / 4.32 cm | | Weight | 6 oz / 170 g, with batteries, retained lens cap, and remote switch |
