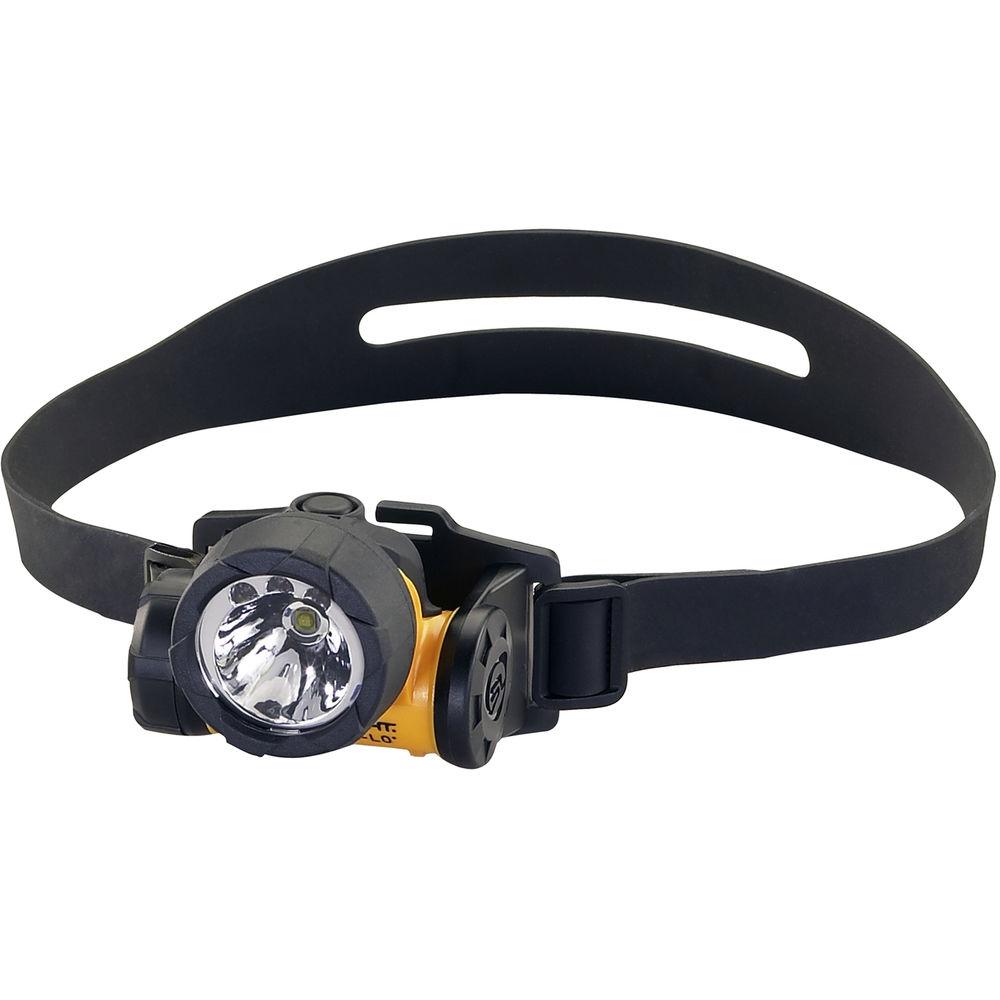

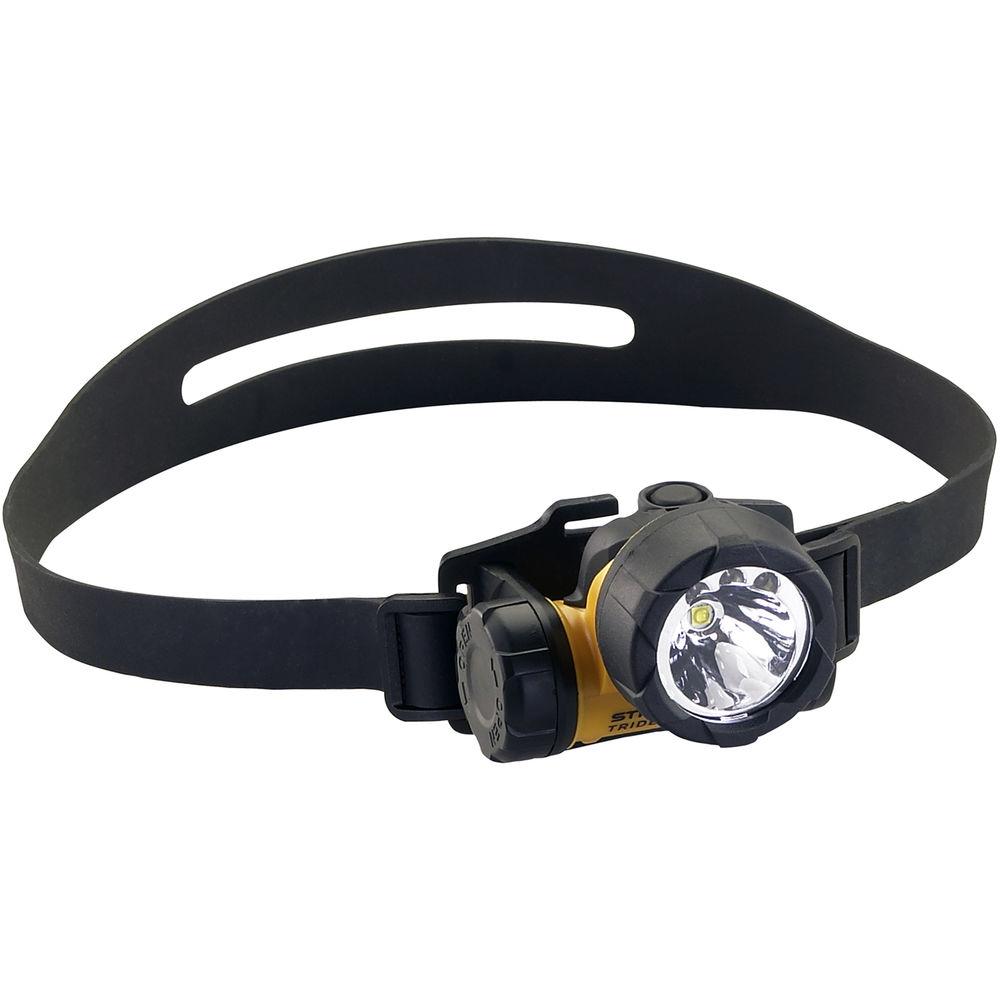

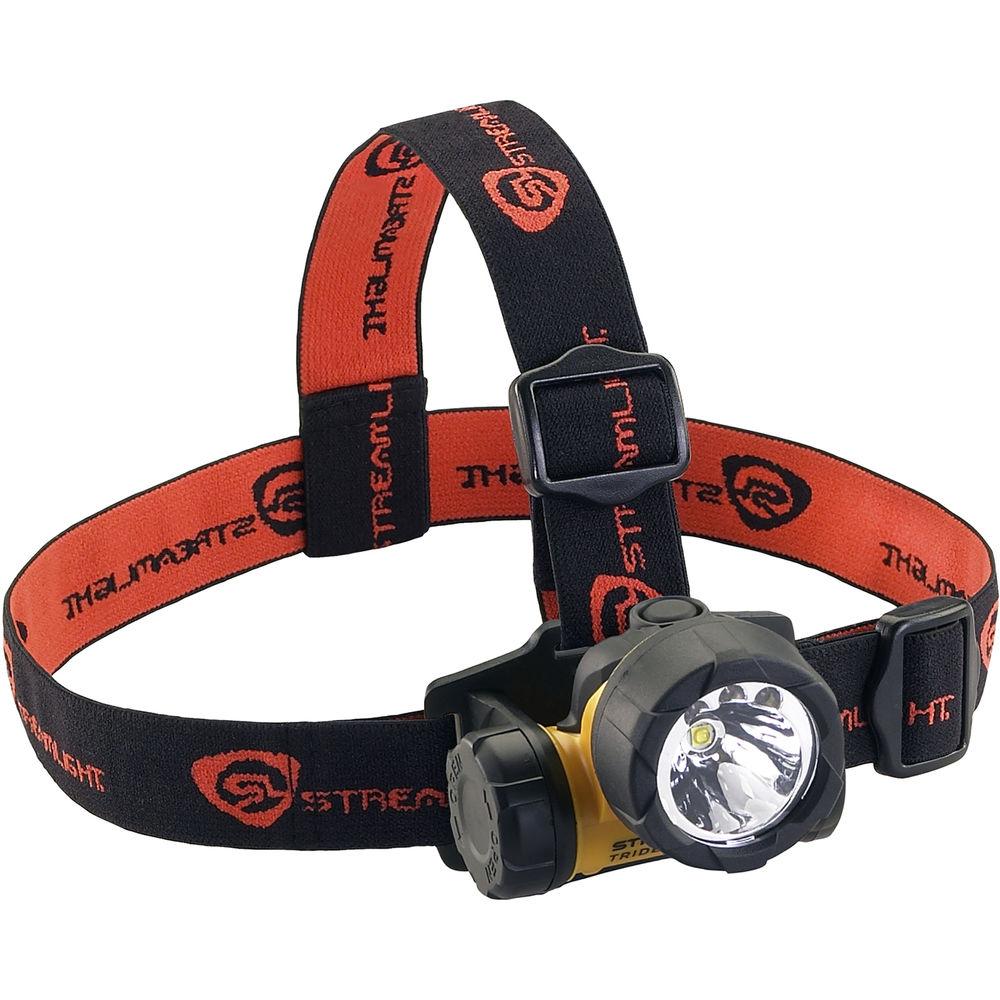

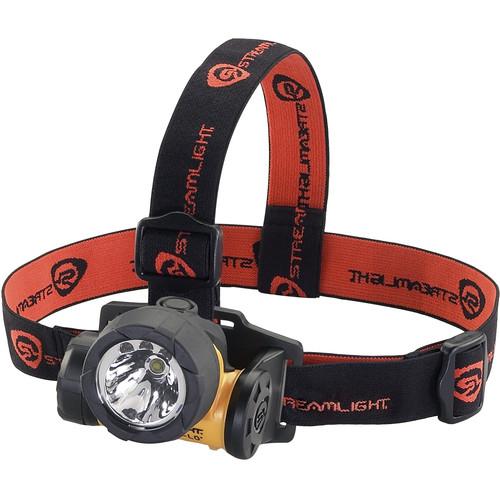

Product description Rated intrinsically safe and approved for Class1, Division 1 environments, the Streamlight Trident Haz-Lo LED Headlamp offers two brightness levels, durable construction, and a simple operation. Click the push-button switch on the top of the lamp housing once for the 30-lumen low setting or twice for the 85-lumen high setting. Runtime ranges from 8 hours on high to 24 hours on low. The high beam is produced by a C4 LED, while the low is produced by three 5mm secondary LEDs. The lamp tilts up to 90° for precise beam placement. The Trident's thermoplastic housing and polycarbonate lens are rated IPX4 splash-proof and impact resistant to 6.6'. The lamp comes with an elastic headband and a rubber hardhat strap. This item ships in clamshell packaging. - Light Performance
-
- High: 85 lumens
- Low: 30 lumens
- Runtime: 8 and 24 hours, respectively
- One C4 white primary LED
- Three 5mm white secondary LEDs
- Switching
-
- Location: Top of lamp
- Type: Push button
- Click once for low, twice for high
- Construction Details
-
- Head tilts 90° for precise beam placement
- Runs on three AAA batteries
- Battery power indicator light
- ABS thermoplastic housing and polycarbonate lens
- IPX4-rated splash-proof
- Impact resistant to 6.6'
- Includes elastic headband and rubber hardhat strap
- Safety Approvals
-
- Class 1, Division 1, Groups A,B,C,D; Class II, Division 1, Groups E,F,G; Class III; T-Class: T4 Exia (Approved using Energizer E92, Duracell MN2400, Rayovac No. 824, and Panasonic AM-4 alkaline batteries or Energizer EA92 and Energizer L92 lithium batteries)
- ITS 14 ATEX 28062; IECEx ETL 14.0038 II 1G Ex ia IIA T4 Ga; II 2G Ex ib IIB T4 Gb (Approved using: Rayovac No. 824 and Panasonic AM-4 alkaline batteries or Energizer EA92 and L92 lithium batteries)
UPC: 080926610255 In the Box Streamlight Trident Haz-Lo LED Headlamp (Yellow, Clamshell Packaging) Elastic Headband Rubber Hardhat Strap 3 x AAA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Trident Haz-Lo LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Haz-Lo Specs | Lumen Output | High: 85 Lumens Low: 30 Lumens | Illumination Source | 4 x White LED | Estimated Runtime | High: 8 Hours Low: 24 Hours | Battery Type | 3 x AAA | | Lens Material | Polycarbonate | Material of Construction | ABS Polycarbonate | Water Resistance | Water Resistant, IPX4 | Impact Resistance | Yes, 6.6' / 2.0 m | Dimensions | W: 2.7 x H: 2.4" / W: 6.9 x H: 6.1 cm | Weight | 5.5 oz / 156 g |
