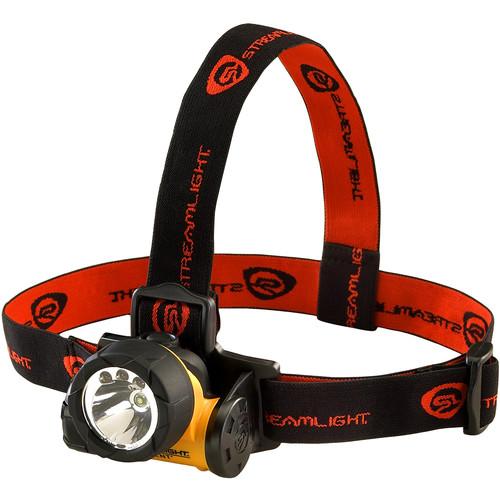

User Manual for Streamlight Trident LED Headlamp Click to enlarge the picture
Contents of the user manual for the Streamlight Trident LED Headlamp
- Product category: Headlamps Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Headlamps
 |
User manual for the Streamlight Trident LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|
Product description Industrial, recreational, and home users will find the Streamlight Trident LED Headlamp to be durable, reliable, and simple to use and maintain. Three brightness levels with a peak output of 80 lumens and runtime ranging from 5 to 53 hours make the Trident a good choice for camping, automotive, do-it-yourself, or emergency preparedness. The light runs on three widely available AAA batteries and is controlled by a single push-button switch on the top of the housing: click once for low, twice for medium, and three times for high. The peak beam is produced by a C4 LED, while the medium and low outputs are produced by the secondary white LEDs.
The lamp tilts up to 90° for precise beam placement. The Trident's thermoplastic housing and polycarbonate lens are rated IPX4 splash-proof and impact resistant to 6.6'. The lamp comes with an elastic headband and a rubber hardhat strap. This item comes in clamshell packaging. - Light Performance
-
- High: 80 lumens
- Medium: 35 lumens
- Low: 11 lumens
- Runtime: 5, 10, 53 hours, respectively

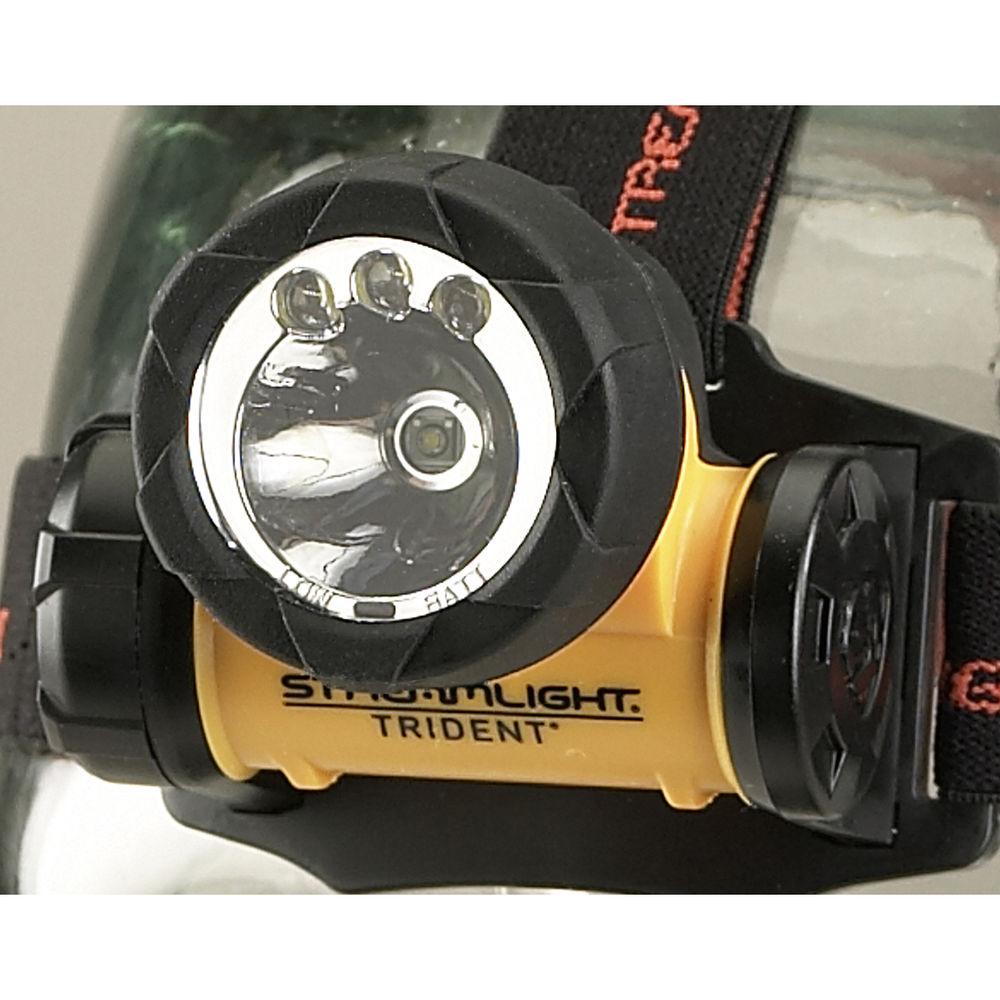

- One C4 white primary LED
- Three white secondary LEDs
- Switching
-

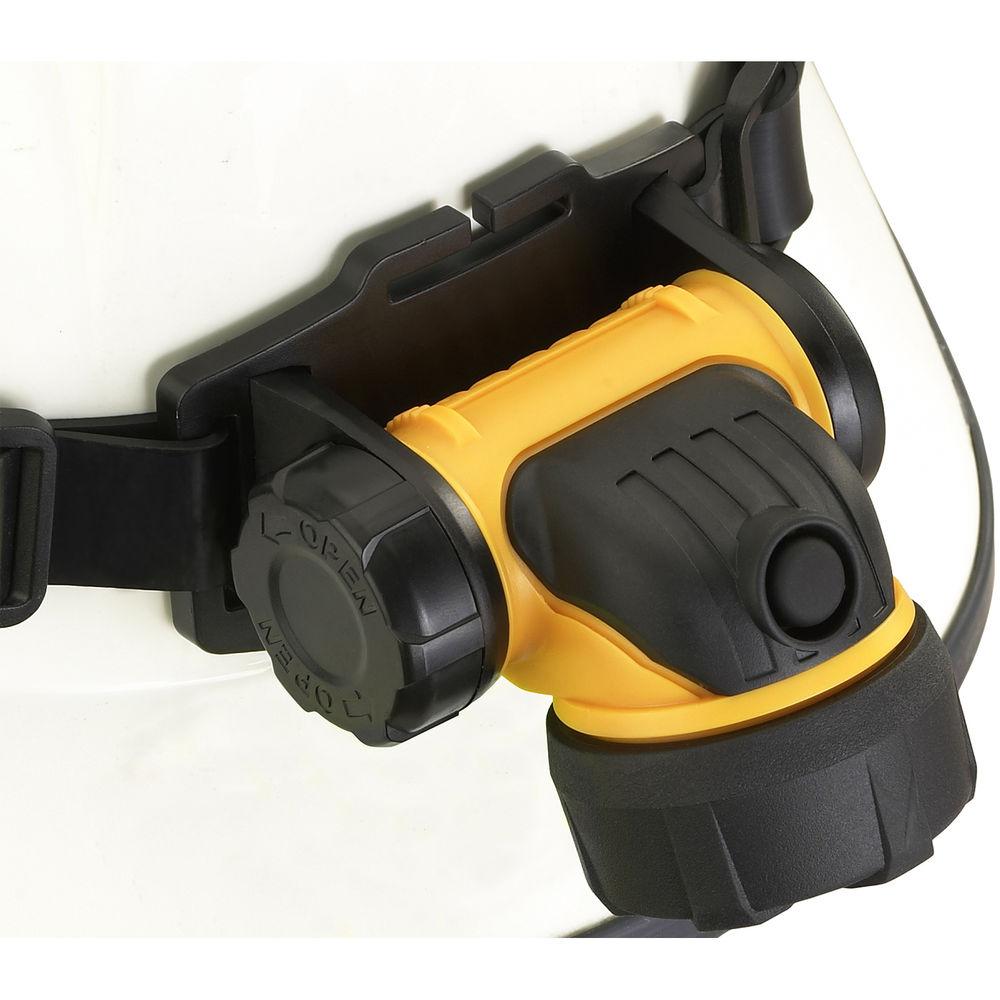

- Location: top of lamp
- Type: Push button
- Click once for low, twice for medium, three times for high
- Construction Details
-
- Head tilts 90° for precise beam placement
- Runs on three AAA batteries
- Battery power indicator light
- ABS thermoplastic housing and polycarbonate lens
- IPX4-rated splash-proof
- Impact resistant to 6.6'

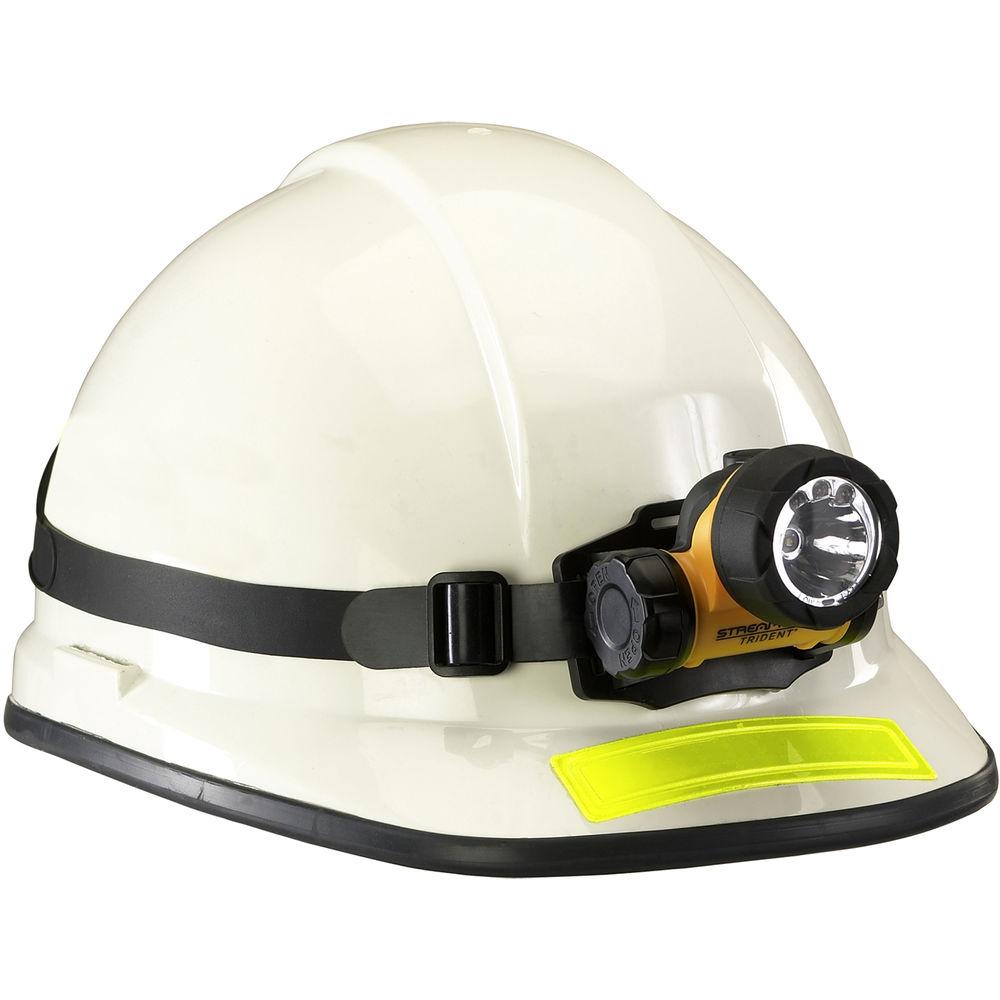

- Includes elastic headband and rubber hardhat strap
- Safety approvals: Class 1, Division 2, Groups A,B,C,D; Class II, Division 2, Groups F,G; Class III, Temp Code: T5
UPC: 080926610507 In the Box Streamlight Trident LED Headlamp (Yellow, Clamshell Packaging) Elastic Headband Rubber Hardhat Strap 3 x AAA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Trident LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Trident Specs | | | Lumen Output | High: 80 Lumens
Medium: 35 Lumens
Low: 11 Lumens | | Illumination Source | 4 x White LED | | Estimated Runtime | High: 5 Hours
Medium: 10 Hours
Low: 53 Hours | | Battery Type | 3 x AAA | | | | Lens Material | Polycarbonate | | Material of Construction | ABS Polycarbonate | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 6.6' / 2.0 m | | Dimensions | W: 2.7 x H: 2.4" / W: 6.9 x H: 6.1 cm | | Weight | 5.5 oz / 156 g |
