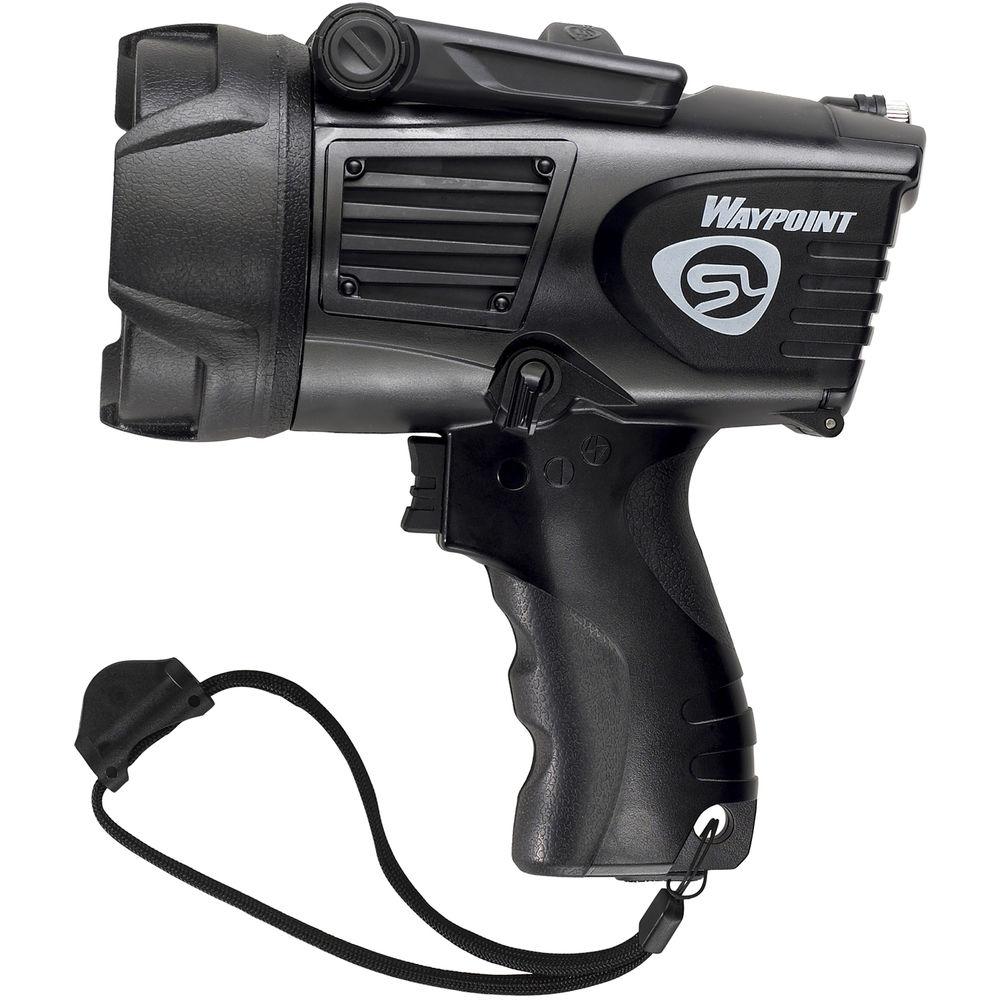

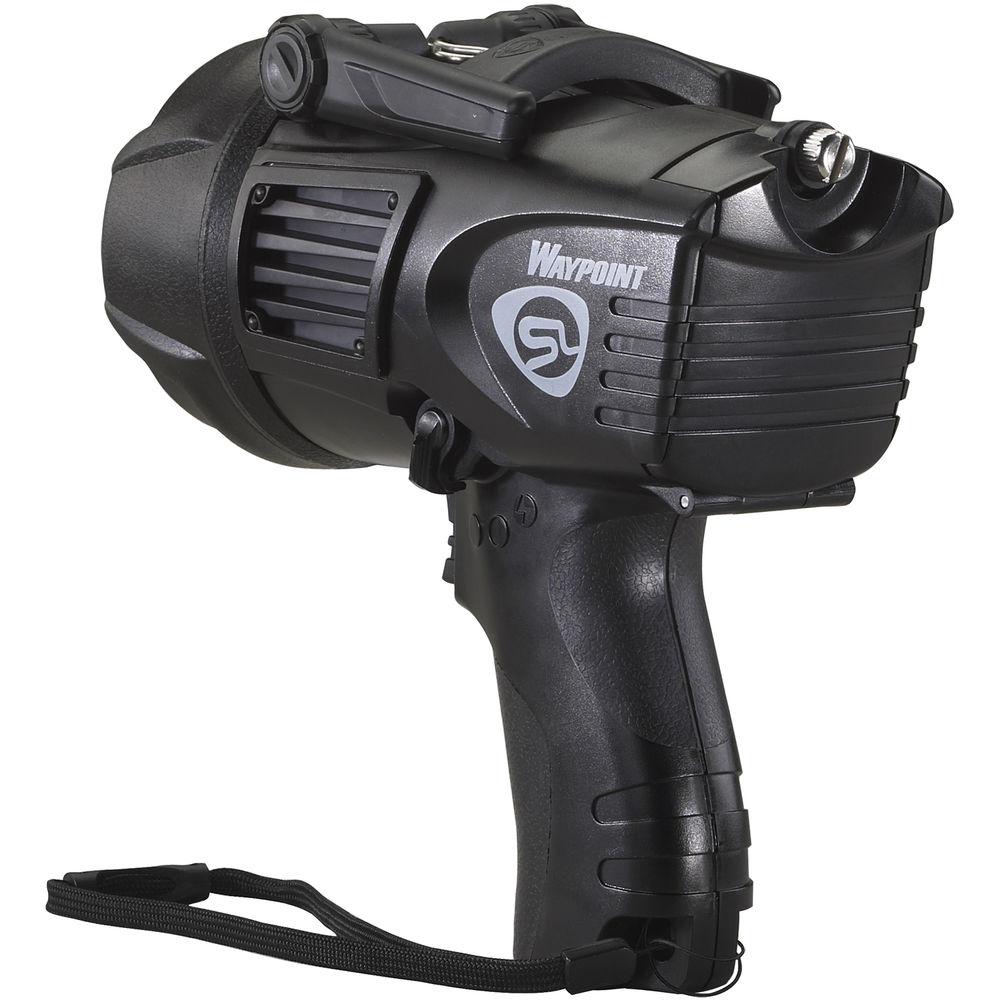

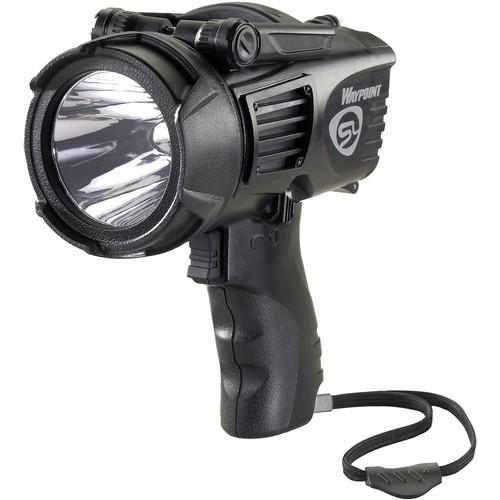

Product description With its ergonomic pistol-style handle, searchlight-like beam, and rugged construction, the black Streamlight Waypoint Pistol-Grip Spotlight is ideal for extensive search missions. The light boasts 550 lumens of maximum output that should provide enough light for most of your lighting needs. If you want to conserve battery life or if you need less light, this device also offers a low illuminating mode as well as emergency beacon mode. If your application or task requires hands-free stationary illumination, the spotlight also has a built-in retractable stand.
The impact-resistant C4 LED produces bright white light and has a power regulation circuit that maximizes brightness throughout battery runtime. Its parabolic reflector is optimal for creating a nearly parallel beam with a less bright peripheral cone of light. Use the trigger-style switch to turn on/off and the secondary rotary switch to change the modes.
The housing is made of lightweight yet durable polycarbonate. It is sealed with an O-ring to offer water-resistant performance. Beyond this, its shock proofing does not lag behind. Its housing and polycarbonate lens are extremely durable and resistant to drops from up to 3.3'. Also included is an adjustable hand lanyard. - Light Performance
-
- 40/550 Lumens
- C4 white LED emitter
- Low, high, and emergency modes
- Parabolic reflector creates a collimated beam with a peripheral cone of light
- Power-regulating circuit maximizes output brightness
- Construction Details
-
- Retractable stand for hands-free illumination
- Strong polycarbonate lens with a rubber bezel ring
- Trigger-style push button for turning on/off
- Secondary rotary switch changes lighting modes
- Lightweight and durable polycarbonate housing with cushioned grip handle
- O-ring sealed for water resistance
- Impact resistant to 3.3'
UPC: 080926449053 In the Box Streamlight Waypoint Pistol-Grip Spotlight (Black, Clamshell Packaging) 12 VDC Power Cord Wrist Lanyard Limited Lifetime Warranty Limited 2-Year Battery Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Waypoint Pistol-Grip Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight Waypoint Specs | Lamp Type | C4 LED
Impact-resistant, power-regulated, 50,000-hour life | | Output | Low: 40 lumens
High: 550 lumens | | Battery Requirements | 4 x C alkaline batteries | | Battery Runtime | High Mode: 10 h
Low Mode: 82 h
Emergency-Signal Mode: 82 h | | Construction | Housing: polycarbonate
Lens: polycarbonate | | Water Resistance | IPX4 rated | | Impact Resistance | Up to 3.3' / 1 m | | Dimensions | 7.1 x 6.8 x 3.5" / 18.1 x 17.2 x 8.9 cm | | Weight | 19.2 oz / 544 g without batteries
28.8 oz / 816 g with batteries |
