User Manual for Streamlight Waypoint Rechargeable Pistol-Grip Spotlight Click to enlarge the picture
Contents of the user manual for the Streamlight Waypoint Rechargeable Pistol-Grip Spotlight
- Product category: Handheld Flashlights Streamlight
- Brand: Streamlight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Streamlight Handheld Flashlights
 |
User manual for the Streamlight Waypoint Rechargeable Pistol-Grip Spotlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Streamlight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Streamlight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Streamlight product will considerably shorten its lifespan!
|

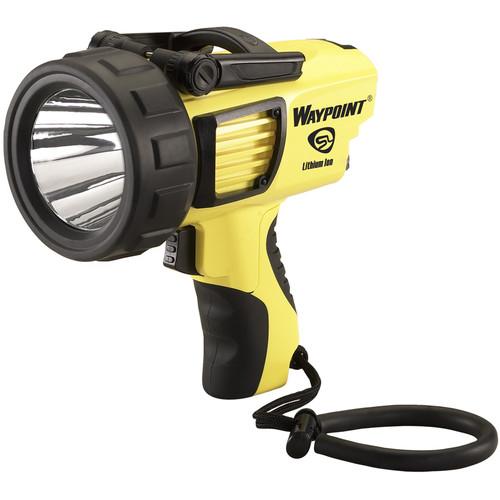

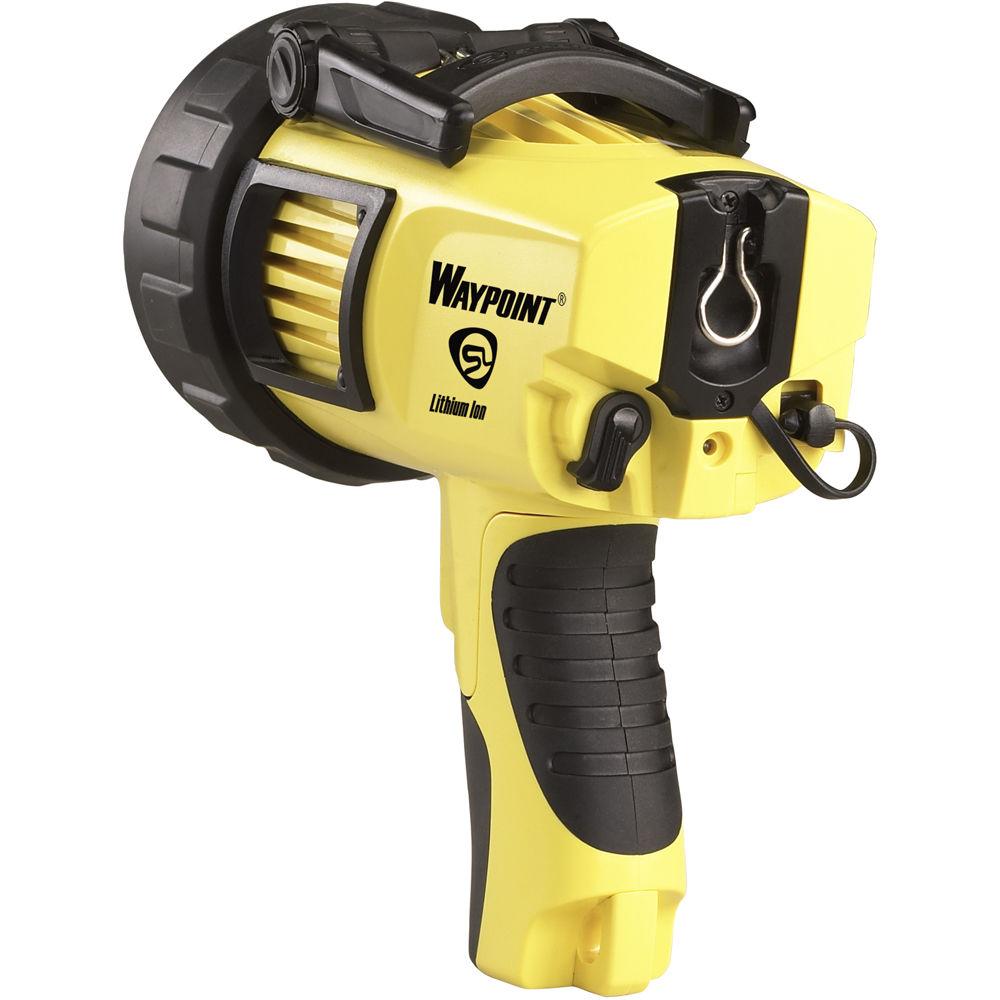

Product description With its ergonomic pistol-style handle, searchlight-like beam, and rugged construction, the yellow Streamlight Waypoint Rechargeable Pistol-Grip Spotlight is ideal for extensive search missions. The light boasts 1000 lumens of maximum output that should provide enough light for most of your lighting needs. If you want to conserve battery life or if you need less light, this device also offers low and medium illuminating modes as well as a momentary-on function. If your application or task requires hands-free stationary illumination, the spotlight has a built-in retractable stand.
The impact-resistant C4 LED produces bright white light and has a power regulation circuit that maximizes brightness throughout the battery's runtime. Its parabolic reflector is optimal for creating a nearly parallel beam with a less bright peripheral cone of light. Use the trigger-style switch to turn on/off and the secondary rotary switch to change the modes. The included charger has red and green charging status indicators, and the rechargeable Li-ion battery last for up to 800 cycles.
The housing is made of lightweight yet durable polycarbonate. It is sealed with O-rings to offer waterproof performance with a safe submersion depth of 3.3'. You should not worry if your drop this spotlight into a paddle, river, or a lake—it won't sink to the bottom and will float on the surface, ready to be picked up. Beyond this, its shock proofing does not lag behind. Its housing and polycarbonate lens are extremely durable and resistant to drops from 3.3'. Also included is an adjustable hand lanyard. - Light Performance
-
- 35/550/1000 Lumens
- C4 white LED emitter
- Low, medium, high, and momentary-on modes
- Parabolic reflector creates a collimated beam with a peripheral cone of light
- Power-regulating circuit maximizes output brightness
- Use and Handling
-
- Charger has red and green status indicators
- Li-ion battery is rechargeable up to 800 times
- Construction Details
-

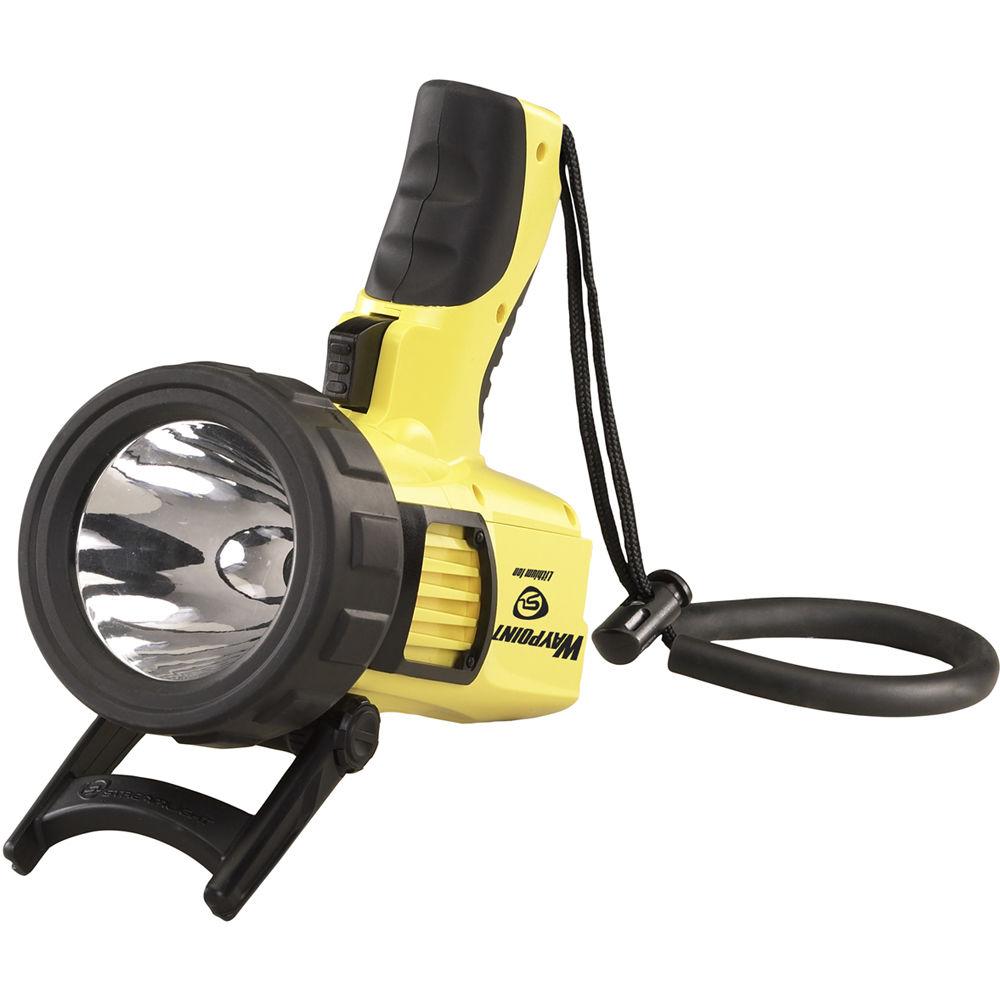

- Retractable stand for hands-free illumination
- Strong polycarbonate lens with a rubber bezel ring
- Trigger-style push button for turning on/off
- Secondary rotary switch changes lighting modes
- Lightweight and durable polycarbonate housing with rubberized handle
- O-ring sealed waterproof and submersible to 6.6'
- Buoyant design prevents sinking in deep waters
- Impact resistant to 3.3'
UPC: 080926449107 In the Box Streamlight Waypoint Rechargeable Pistol-Grip Spotlight (Yellow) AC Charger Li-Ion Rechargeable Battery Limited Lifetime Warranty Limited 2-Year Battery Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Streamlight Waypoint Rechargeable Pistol-Grip Spotlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStreamlight 44910 Specs | | | Lumen Output | High: 1000 Lumens
Medium: 550 Lumens
Low: 35 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 3 Hours
Medium: 6 Hours
Low: 80 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | Charging Time | 4 Hours | | | | Lens Material | Polycarbonate | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | H: 7.1 x W: 6.8 x L: 3.6" / H: 18.0 x W: 17.2 x L: 9.2 cm | | Weight | 24.4 oz / 691 g | | | | Package Weight | 2.465 lb | | Box Dimensions (LxWxH) | 8.45 x 8.4 x 4.2" |
