User Manual for Studio Assets 3-Way Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Studio Assets 3-Way Pan Tilt Head
- Product category: Tripod Heads Studio Assets
- Brand: Studio Assets
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Studio Assets Tripod Heads
 |
User manual for the Studio Assets 3-Way Pan Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Studio Assets product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Studio Assets user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Studio Assets product will considerably shorten its lifespan!
|

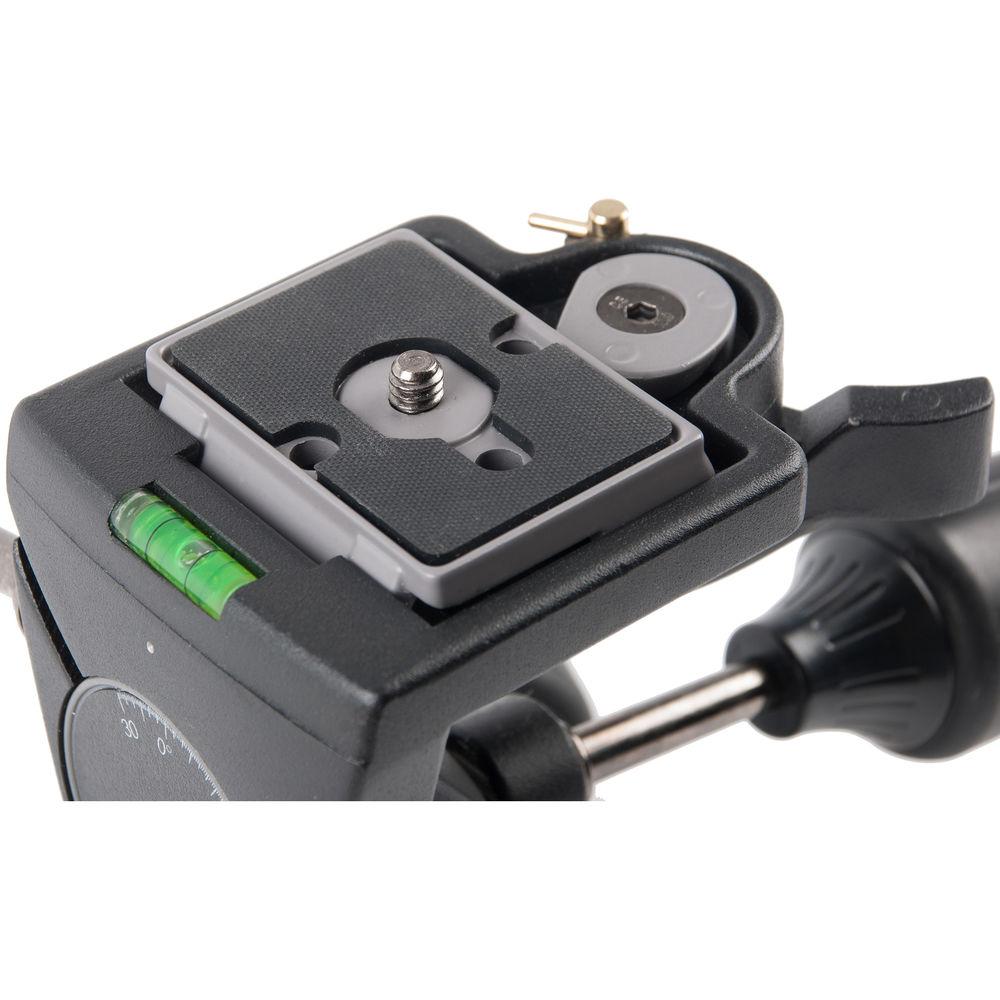

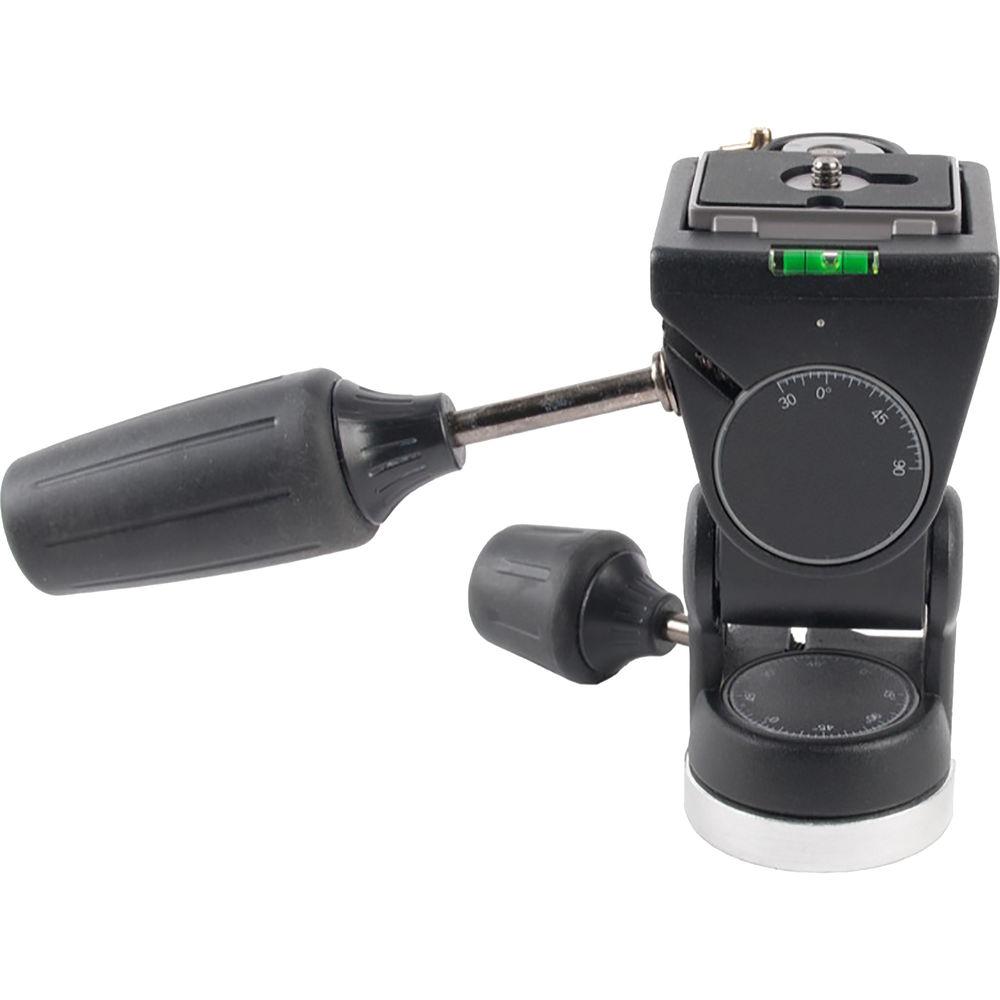

Product description The 3-Way Pan/Tilt Head from Studio Assets is designed for still photographic applications and can handle digital or 35mm SLR cameras with short to medium focal-length lenses as well as medium format cameras. The head offers a maximum load capacity of 7.5 lb. It features individual forward and side tilt locks, and a pan-locking knob for precise camera placement. The head also offers the convenience of a built-in quick release adapter that features a safety lock and a spirit level. The included quick release plate has a 1/4"-20 screw. UPC: 854022003194 In the Box Studio Assets 3-Way Pan/Tilt Head Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Assets 3-Way Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudio Assets SA1420 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 7.5 lb / 3.40 kg | | Number of Bubble Levels | 1 | | Material | Magnesium | | | | Dimensions | W: 4.0 x L: 5.0" / W: 101.6 x L: 127.0 mm | | Weight | 1.6 lb / 725.7 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.7 x 4.9 x 3.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
