User manual
Studio Essentials 100W LED Monolight 2-Light

User Manual for Studio Essentials 100W LED Monolight 2-Light Kit with Stands and Softboxes

• Product category: LED Lights Studio Essentials
• Brand: Studio Essentials
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Studio Essentials LED Lights

Product description

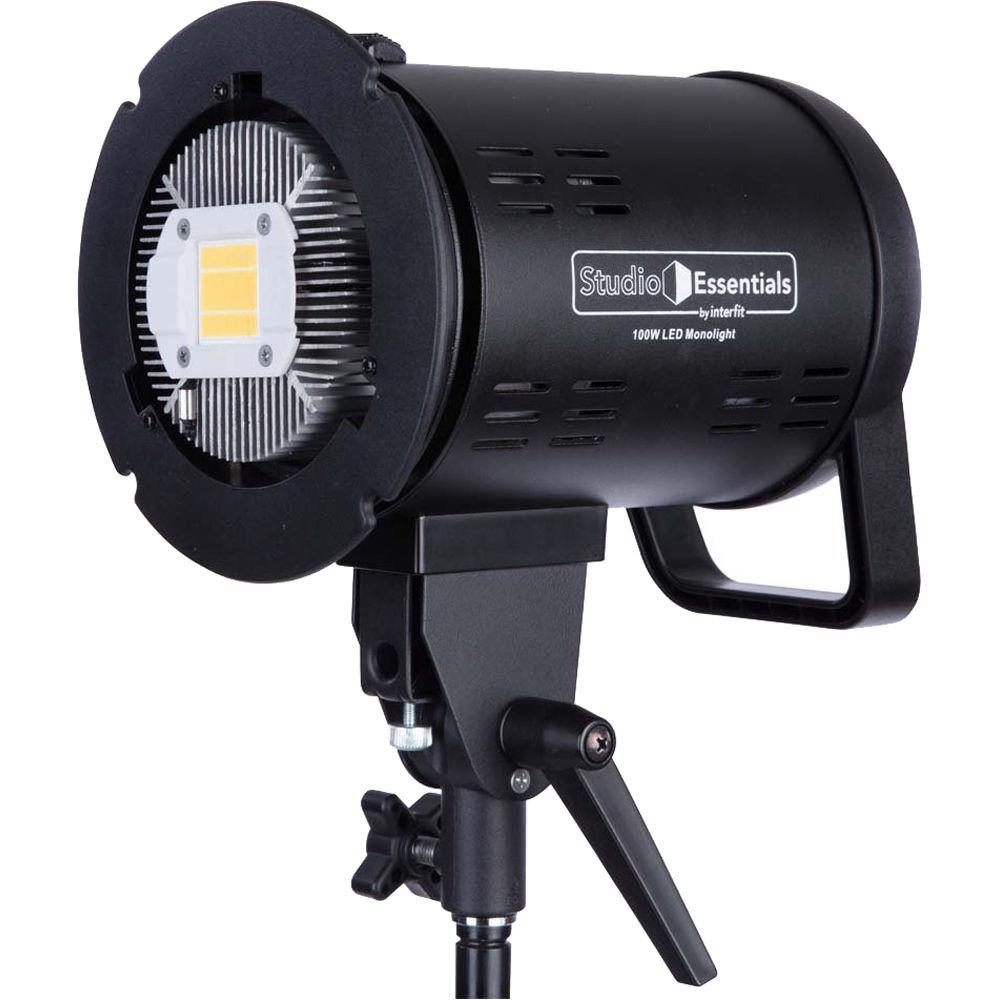

• 100W LED Monolight A versatile fixture with an easy-to-use form factor, the 100W LED Monolight from Studio Essentials is a 5600K daylight-balanced light source that uses a COB LED to output the equivalent of a 500W tungsten flood light. The output is flicker-free, allowing high frame rates and is dimmable from 0-100% while maintaining a high 95+ CRI, which is an indication of accurate and consistent color. The monolight employs a Bowens S-Type front accessory mount that makes it compatible with both Studio Essential and Interfit modifiers, as well as those from the many manufacturers that use this mount. To take the edge off the bright LEDs, a convenient speedring is integrated into the design of the 100W LED Monolight to accept the included pop-up softbox.
  Accurate Color
  • The Studio Essentials 100W LED Monolight has a 95+ CRI, meaning accurate, vibrant colors and less time spent in post-production.
  Flicker-Free
  • The Studio Essentials 100W LED Monolight is flicker-free, meaning filmmakers can shoot in 4K or 120 fps slow-motion.
  Dimmable

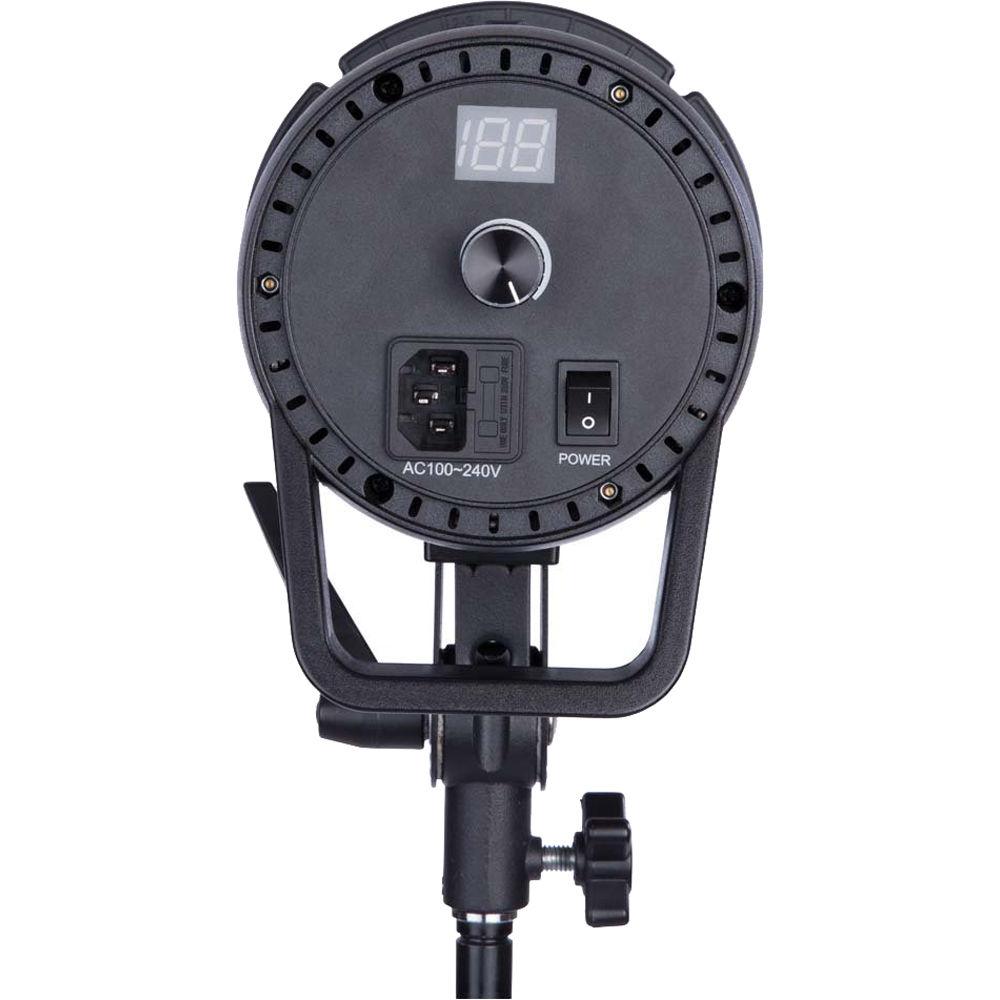

  • The light is dimmable from 100% down to 0% in stepless increments. Power output is displayed on the LCD screen, allowing you to note power levels in order to recreate lighting ratios.
  Versatile Modifier Mount
  • The Studio Essentials 100W LED Monolight utilizes the popular Bowens S-Type modifier mount, making it compatible with the same modifiers as all Studio Essentials and Interfit flashes. In addition, this light also features a built-in softbox ring for use with pop-up style softboxes that are popular with speedlight shooters, allowing them to use some of the existing modifiers they may already have purchased for their speedlights.
• 7.5' Value Light Stand A sturdy support at an attractive price, the 7.5' Value Light Stand from Studio Essentials rises to a maximum height of 7.5', has a minimum working height of 27.5", and can support gear mounted on its 5/8" top stud weighing up to 6.6 lb. The stand gently lowers your equipment when making height adjustments thanks to spring cushioning. It folds down to 27.5" in length and weighs 3.3 lb.
  Benefits
  • Lightweight construction for added portability
  • Sure-Twist section locks
  • Spring cushioning
  • Supports up to 6.6 lb

• 24" Pop-Up Softbox

• Inner & Outer Diffusers

• Protective Cap

• Power Cable

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• 2 x Pop-up Softboxes
• Kit Bag
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 100W LED Monolight

  Color Temperature	5600K ± 200K
  Color Accuracy Standard	CRI 95 at 5600K
  Cooling System	Fan
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Photometrics	5600K: 71.2 fc / 767 lux at 3.28' / 1 m 23 fc / 246 lux at 6.56' / 2 m 11.2 fc / 121 lux at 9.8' / 3 m

  Battery Plate	None
  DMX Connector	None

  Reflector Mount	Bowens S-Type

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	110 VAC, 60 Hz
  Max Power Consumption	100 W

  Box Dimensions (LxWxH)	15.8 x 10.5 x 8.9"

• 7.5' Value Light Stand

  Load Capacity	6.6 lb / 2.99 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	7.5' / 2.3 m
  Minimum Working Height	27.5" / 69.8 cm
  Collapsed Height	27.5" / 69.8 cm
  Footprint Diameter	27.5" / 69.85 cm
  Leg Shape	Round
  Accepts Wheels	No
  Reverse Legs	No
  Finish	Black
  Weight	3.3 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	28.3 x 3.4 x 3.0"
