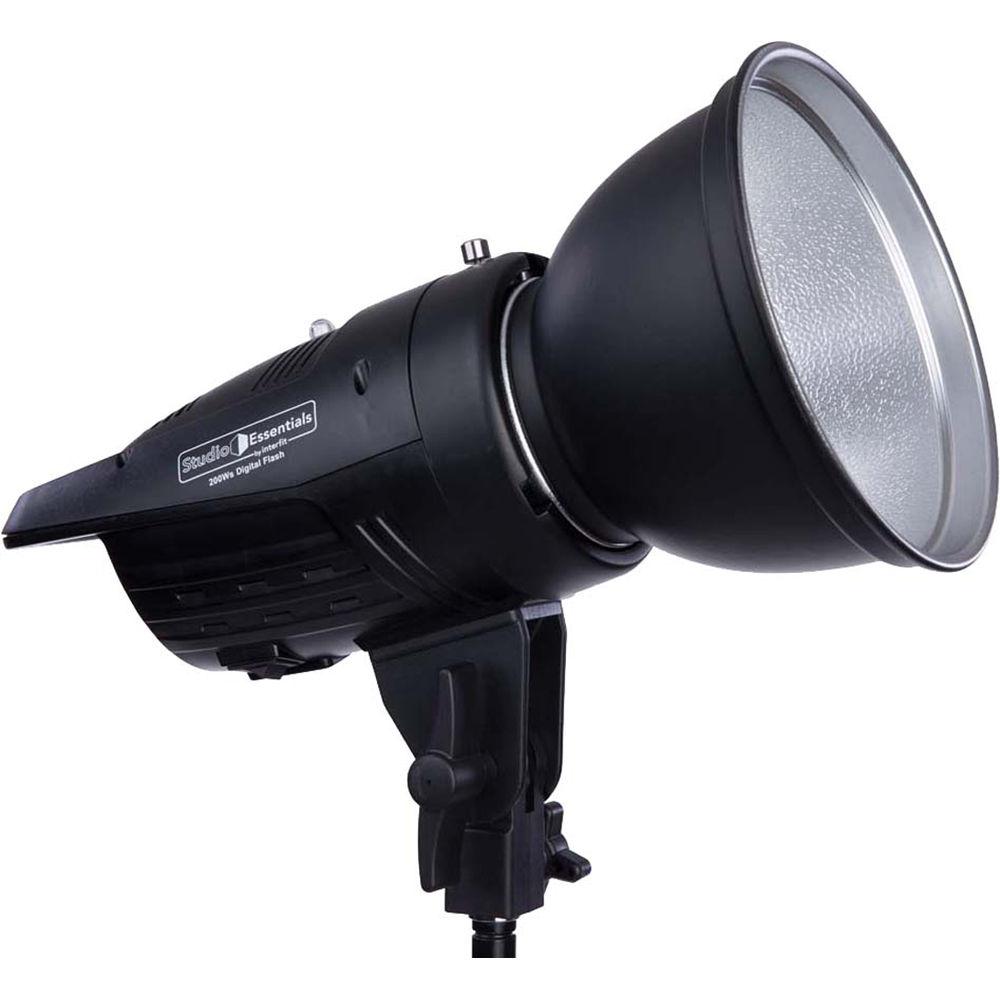

User Manual for Studio Essentials 200Ws Value Flash Head 2-Light Kit with Umbrellas and Wireless Remote Click to enlarge the picture
Contents of the user manual for the Studio Essentials 200Ws Value Flash Head
- Product category: Monolights Studio Essentials
- Brand: Studio Essentials
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Studio Essentials Monolights
 |
User manual for the Studio Essentials 200Ws Value Flash Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Studio Essentials product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Studio Essentials user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Studio Essentials product will considerably shorten its lifespan!
|

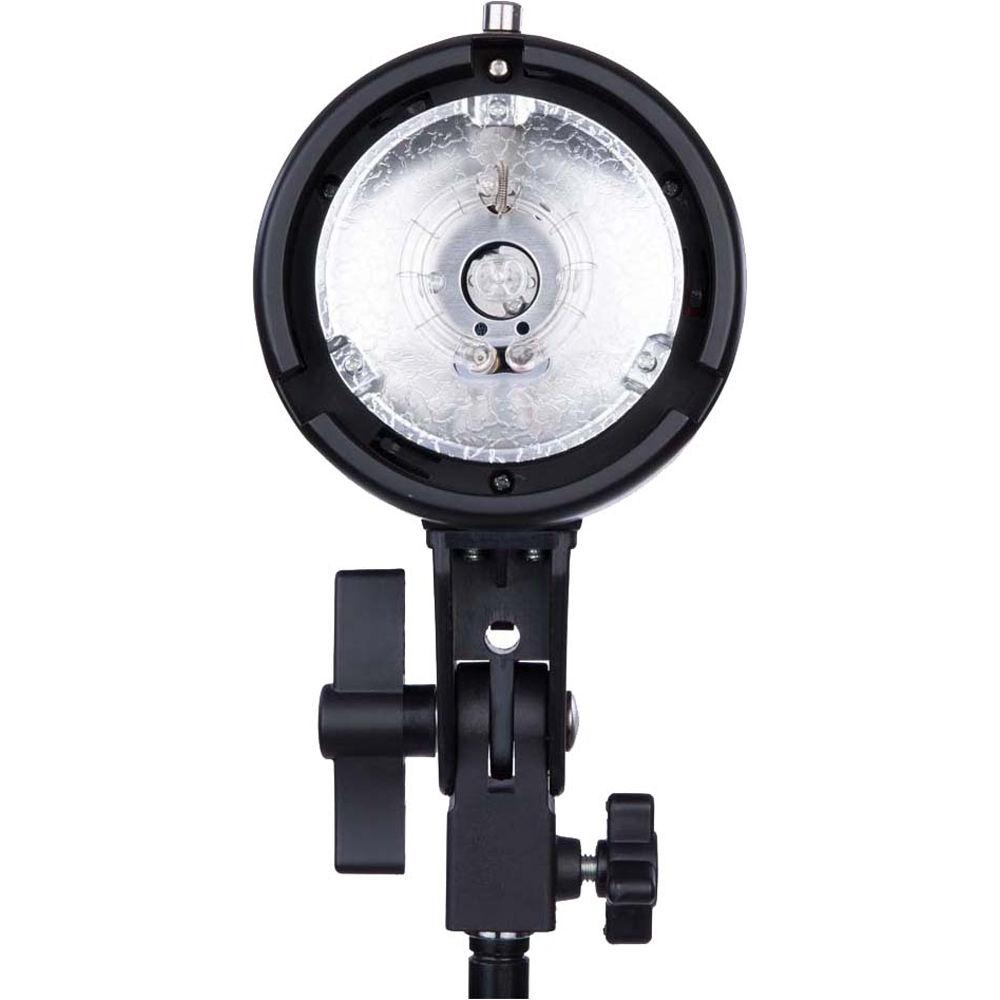

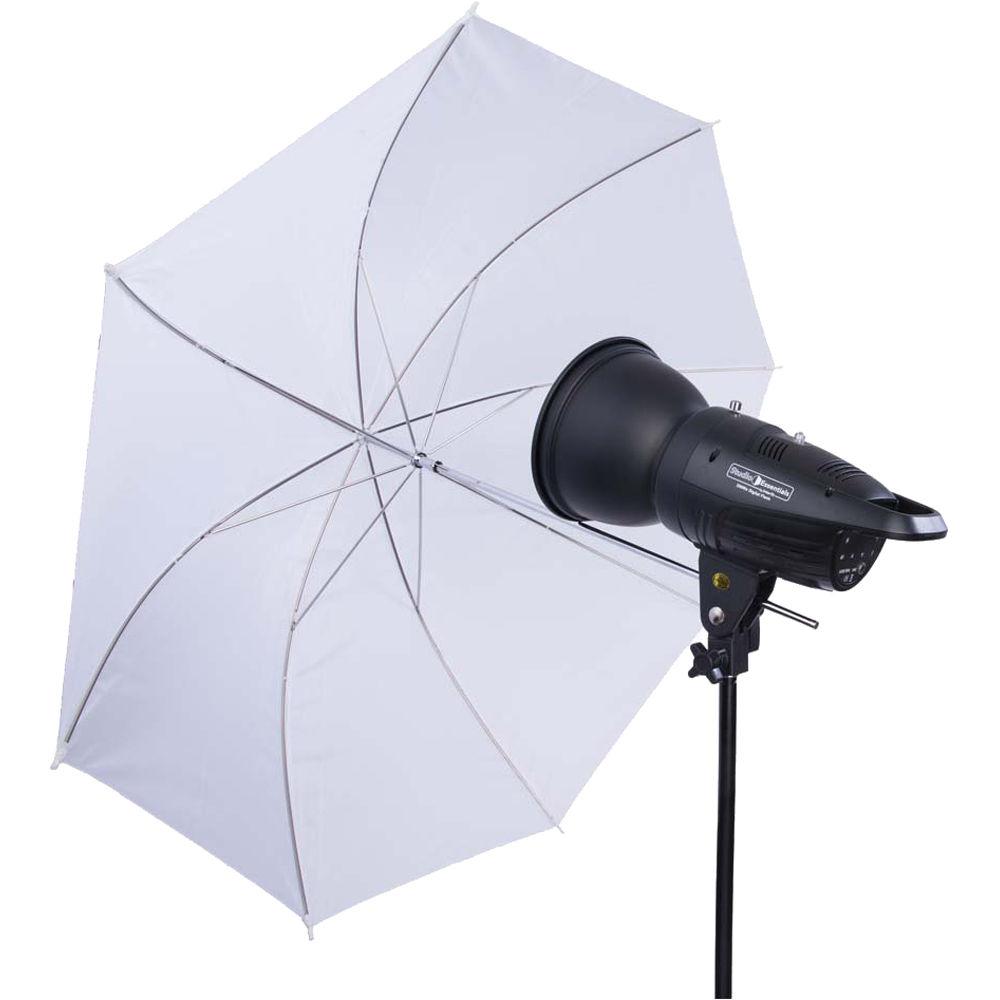

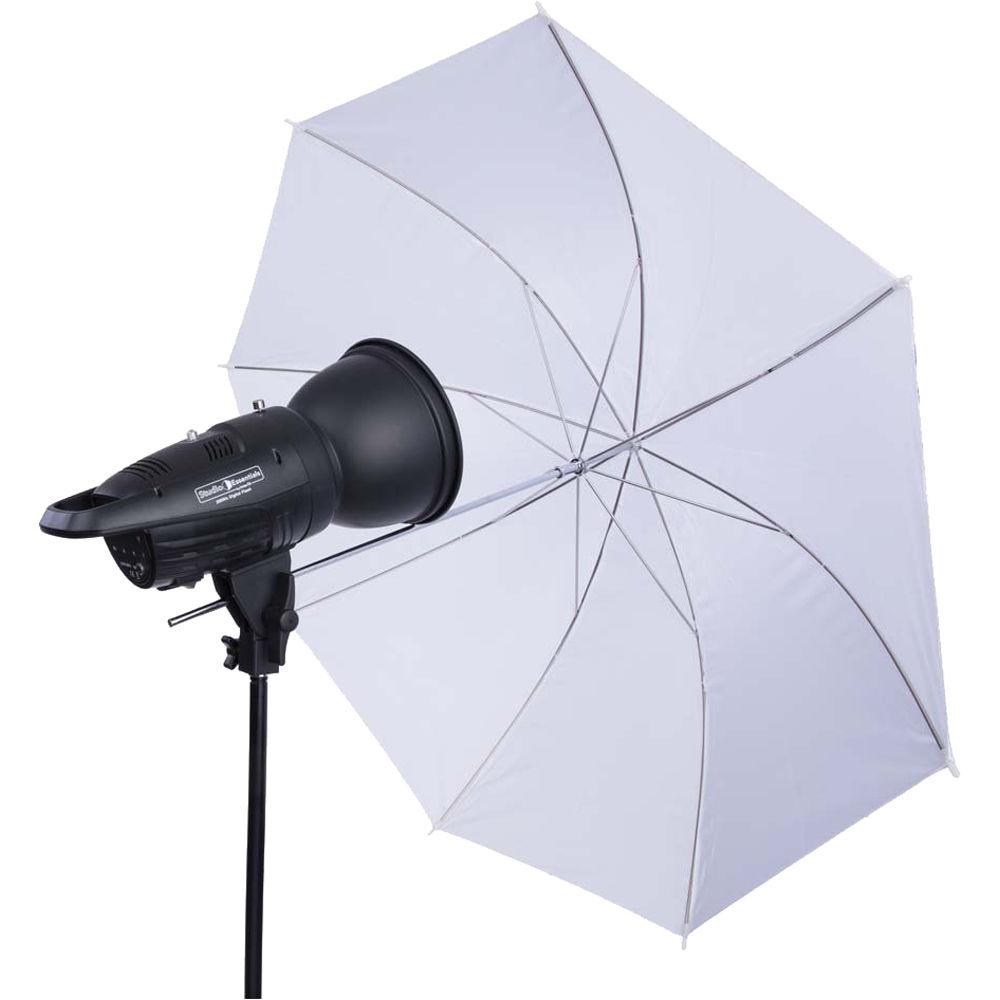

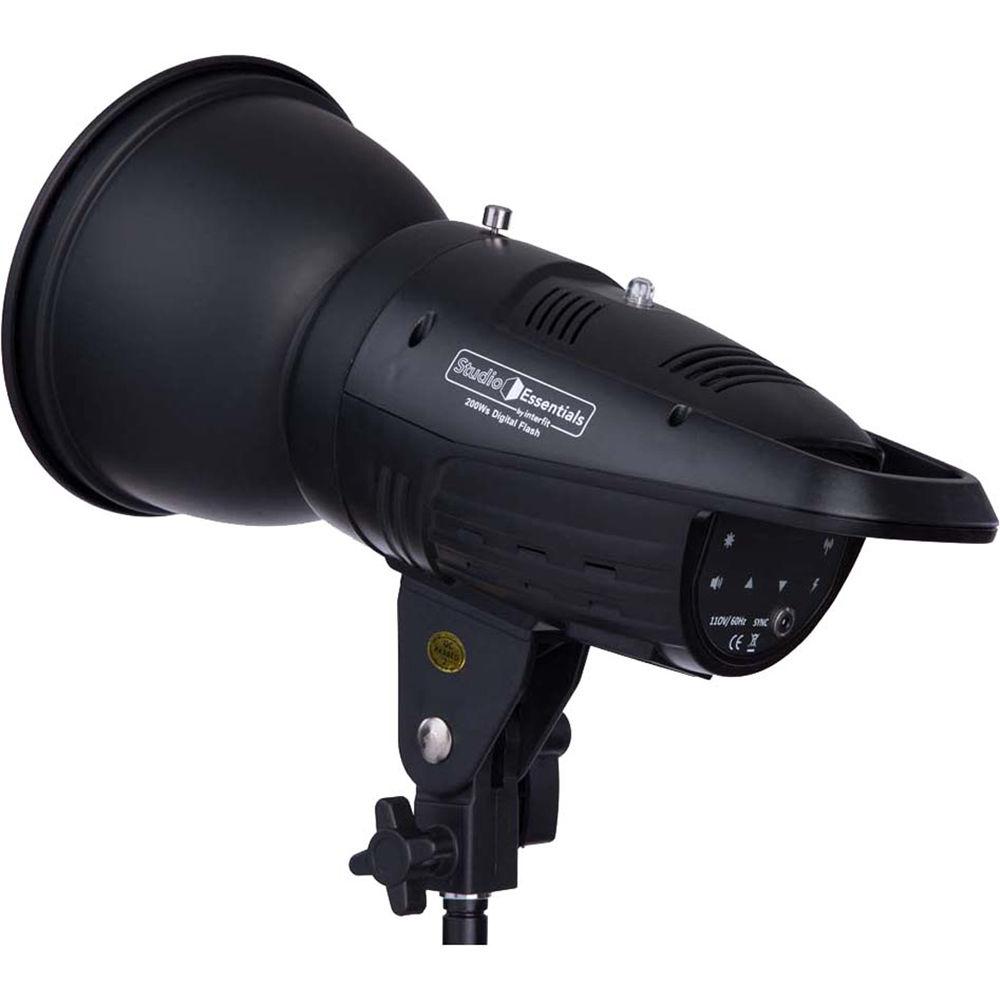

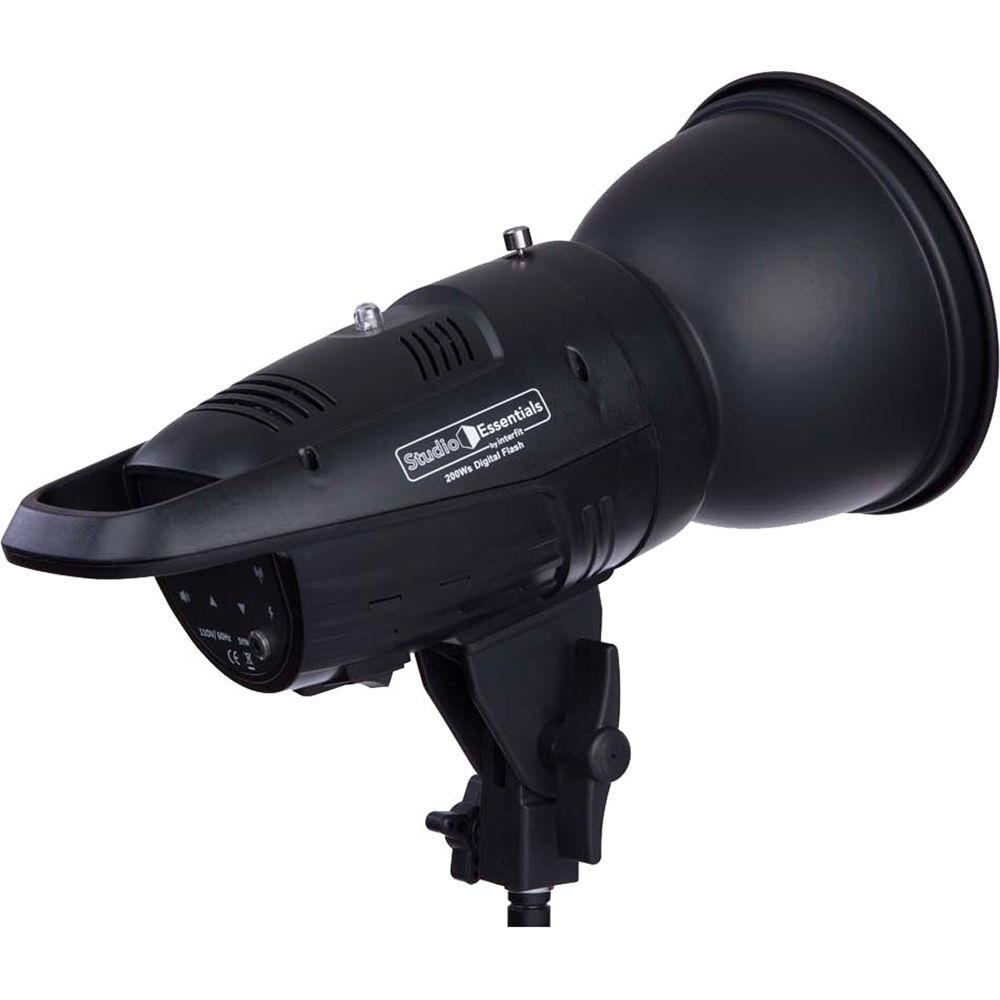

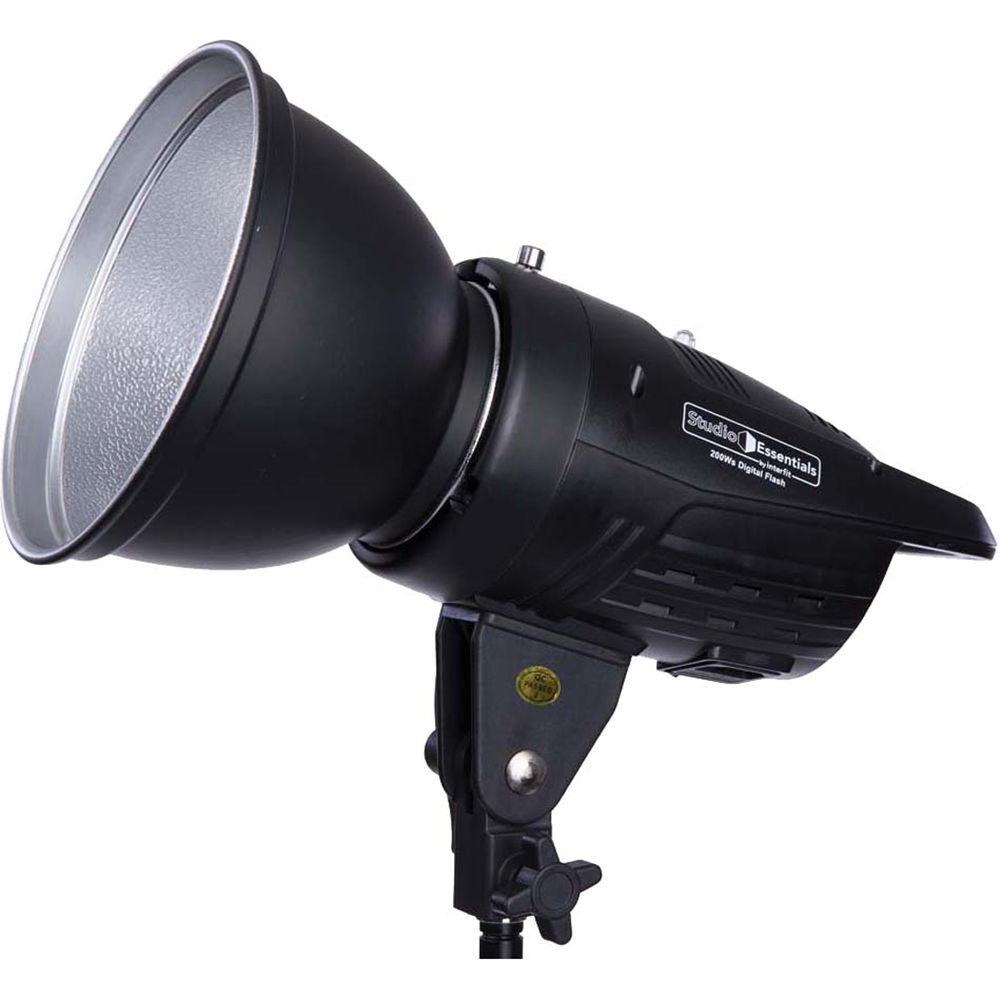

Product description The 200Ws Value Flash Head 2-Light Kit with Umbrellas and Wireless Remote from Studio Essentials is an all-purpose setup, suitable for in-house or location shooting. The kit includes two 200Ws Value Flash Heads with a 5-stop power range, each with a reflector, white translucent 33" umbrella, and a 7.5" light stand. A transmitter is included for wireless triggering of the flash heads. - 200Ws Value Flash Head The 200Ws Value Flash Head from Studio Essentials is a straightforward light source with solid core features that make it a good starter flash or addition to a kit you may already own. The flash recycles in 2 sec to offset waiting between shots. Flash power is variable from 12.5 to 200Ws, while the 75W halogen modeling light can be set to proportional to match the strobe power in use and let you preview the finished shot. The head comes with a sync cable for hard-wiring to it, but it also has a built-in wireless radio transmitter that will permit you to trigger the Value Flash from a distance. The head employs a Bowens S-Type front modifier mount that allows you to use both Studio Essentials and Interfit accessories as well as those from the many manufacturers that adopt this popular mount.
- Power Range

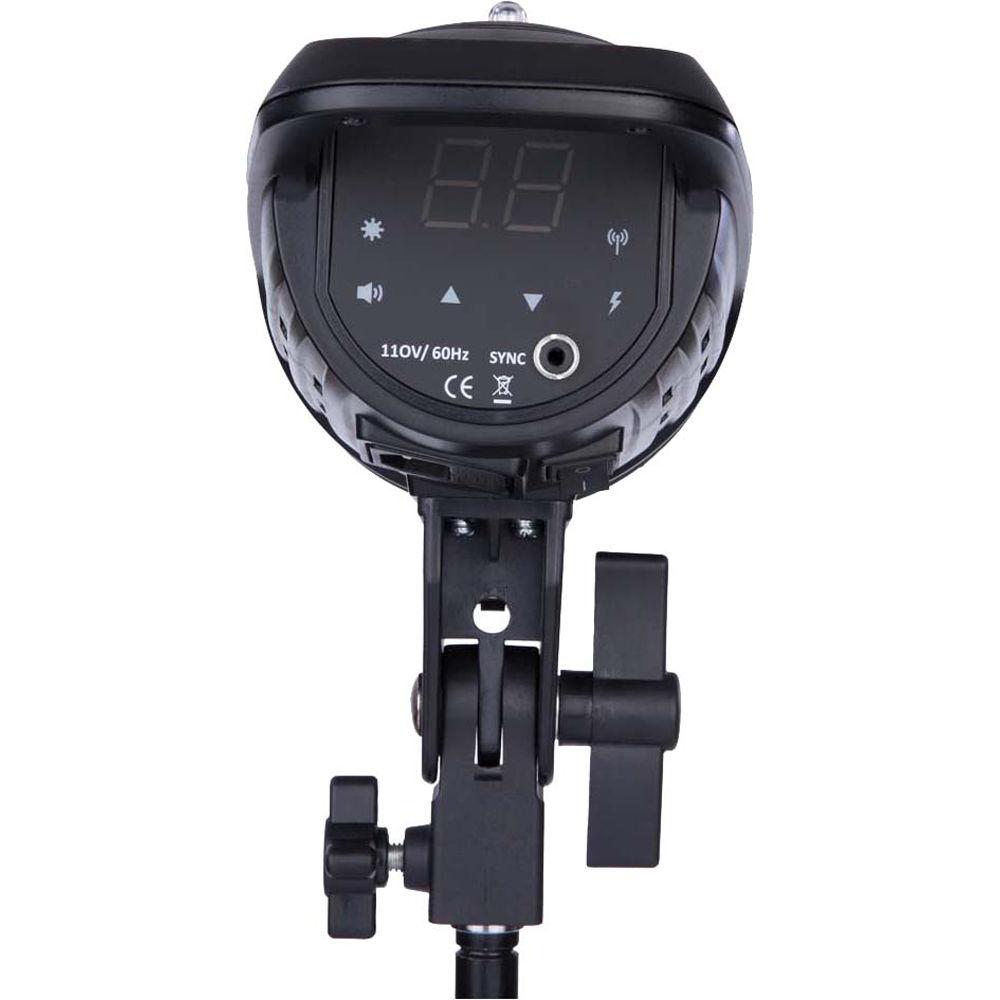

- The Studio Essentials 200Ws Value Flash has a 5-stop power range. Power can be adjusted from 200Ws down to 12.5Ws in 1/10th of a stop increments for precise exposure. Power output is displayed on the LCD screen on the back of the light and ranges from 6.0 (full power) to 2.0 (low power).
- Modeling Lamp
- Modeling lamps are vital tools for studio photographers that allow you to see where your flash will fall on your subject. The 200Ws Value Flash features a 75W halogen modeling lamp. The modeling lamp can be set to adjust proportionately to the flash power, or to full power.
- Built-in Radio Receiver
- The Studio Essentials 200Ws Value Flash features a built-in radio receiver. When used with the optional Studio Essentials Remote, this allows you to trigger the flash without the need for a sync cable, optical slave flash, or third-party radio system.
- Bowens S-Type Modifier Mount
- The flash utilizes the popular Bowens S-Type modifier mount, making it compatible with all Studio Essentials and Interfit modifiers. This is also the same modifier mount used on the Interfit Honey Badger, S1, and S1a, meaning you won't have to purchases new modifiers as you upgrade in the future.

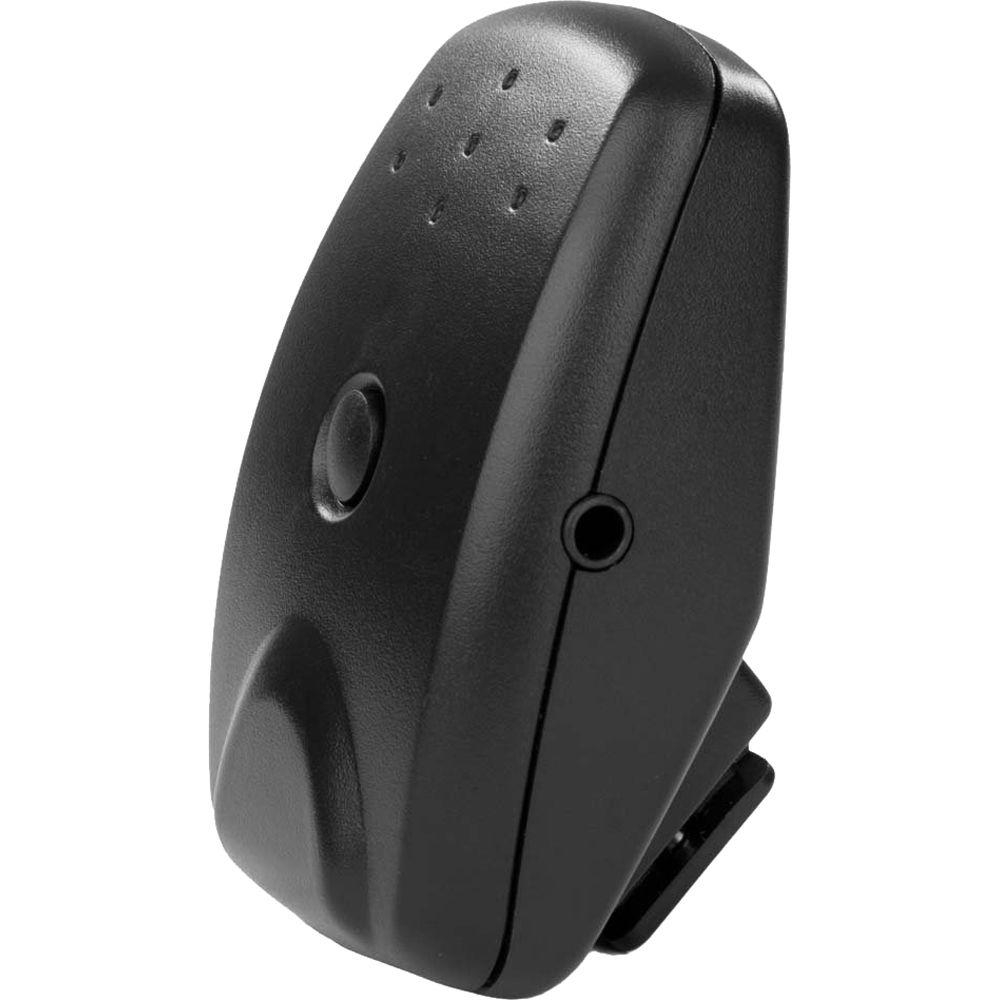

- Remote for FLA200 Flash The Wireless Remote for FLA200 Flash from Studio Essentials allows you to trigger the flash head without using a sync cord or optical slave. The 4-channel remote runs on the 433 MHz frequency and allows a maximum sync speed of 1/250 sec.
- 7.5' Value Light Stand A sturdy support at an attractive price, the 7.5' Value Light Stand from Studio Essentials rises to a maximum height of 7.5', has a minimum working height of 27.5", and can support gear mounted on its 5/8" top stud weighing up to 6.6 lb. The stand gently lowers your equipment when making height adjustments thanks to spring cushioning. It folds down to 27.5" in length and weighs 3.3 lb.
- Benefits
-
- Lightweight construction for added portability
- Sure-Twist section locks
- Spring cushioning
- Supports up to 6.6 lb
In the Box Bundle Items 2 x 200Ws Value Flash Head bfsfqddaruztxassdydybty Remote for FLA200 Flash 2 x 7.5' Value Light Stand
Also Includes - 2 x White 33" Umbrellas
- 2 x Reflectors
Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Essentials 200Ws Value Flash Head 2-Light Kit with Umbrellas and Wireless Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 200Ws Value Flash Head
| | | Maximum Power | 12.5 to 200 Ws | | Power Control | 5 Stops | | Recycle Time | 2 Sec (Full Power) | | Color Temperature | 5600K ± 200K | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 75 W | | | | Sync Type | Radio | | Wireless Frequency Bands | 433 MHz | | | | AC Input Voltage | 110 VAC, 60 Hz | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | Yes | | | | Box Dimensions (LxWxH) | 32.25 x 15.5 x 8.75" | - Remote for FLA200 Flash
| Compatibility | FLA200 flash | | Frequency | 433 MHz | | Max Sync Speed | 1/250 sec | | Channels | 4 | | Battery | 23A | | | | Box Dimensions (LxWxH) | 3.5 x 3.5 x 2.75" | - 7.5' Value Light Stand
| Load Capacity | 6.6 lb / 2.99 kg | | Mounting Options | 1/4"-20 Male Thread
5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 7.5' / 2.3 m | | Minimum Working Height | 27.5" / 69.8 cm | | Collapsed Height | 27.5" / 69.8 cm | | Footprint Diameter | 27.5" / 69.85 cm | | Leg Shape | Round | | Accepts Wheels | No | | Reverse Legs | No | | Finish | Black | | Weight | 3.3 lb / 1.5 kg | | Warranty Length | Limited 1-Year Warranty | | | | Box Dimensions (LxWxH) | 28.3 x 3.4 x 3.0" |
