Product description

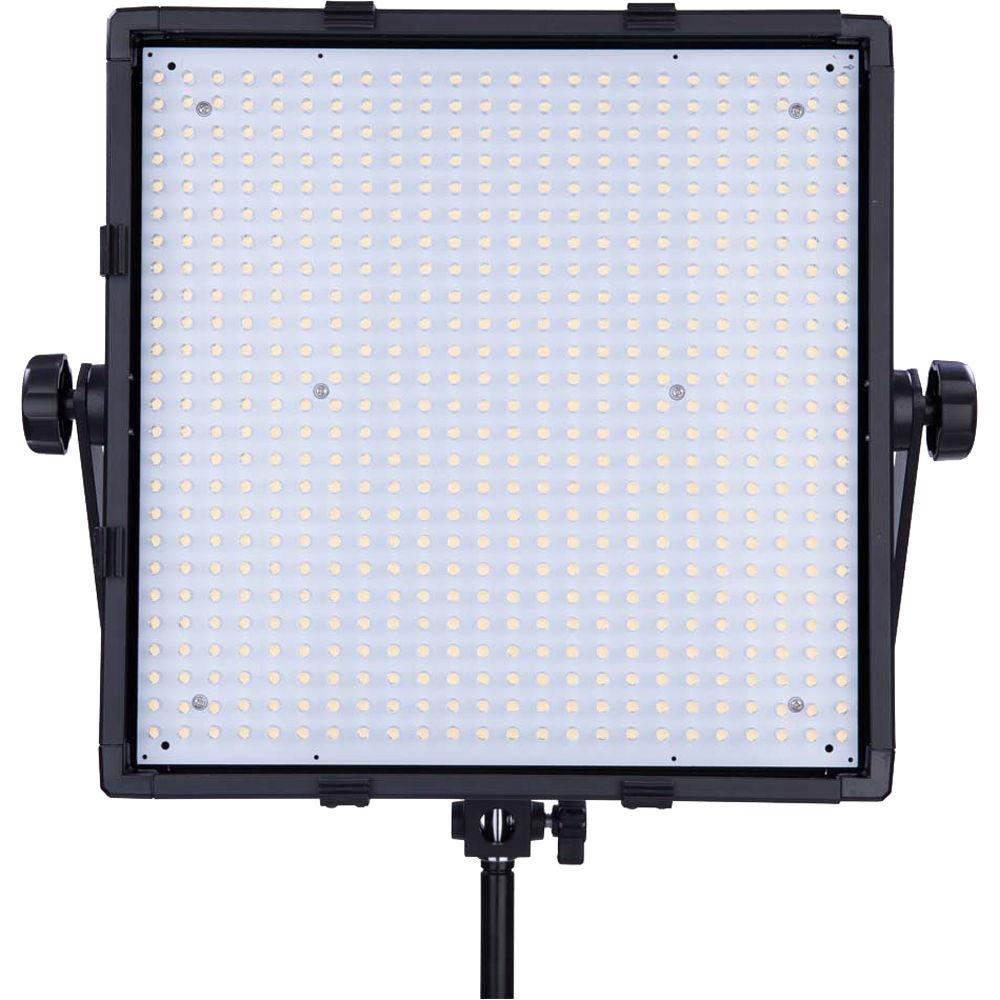

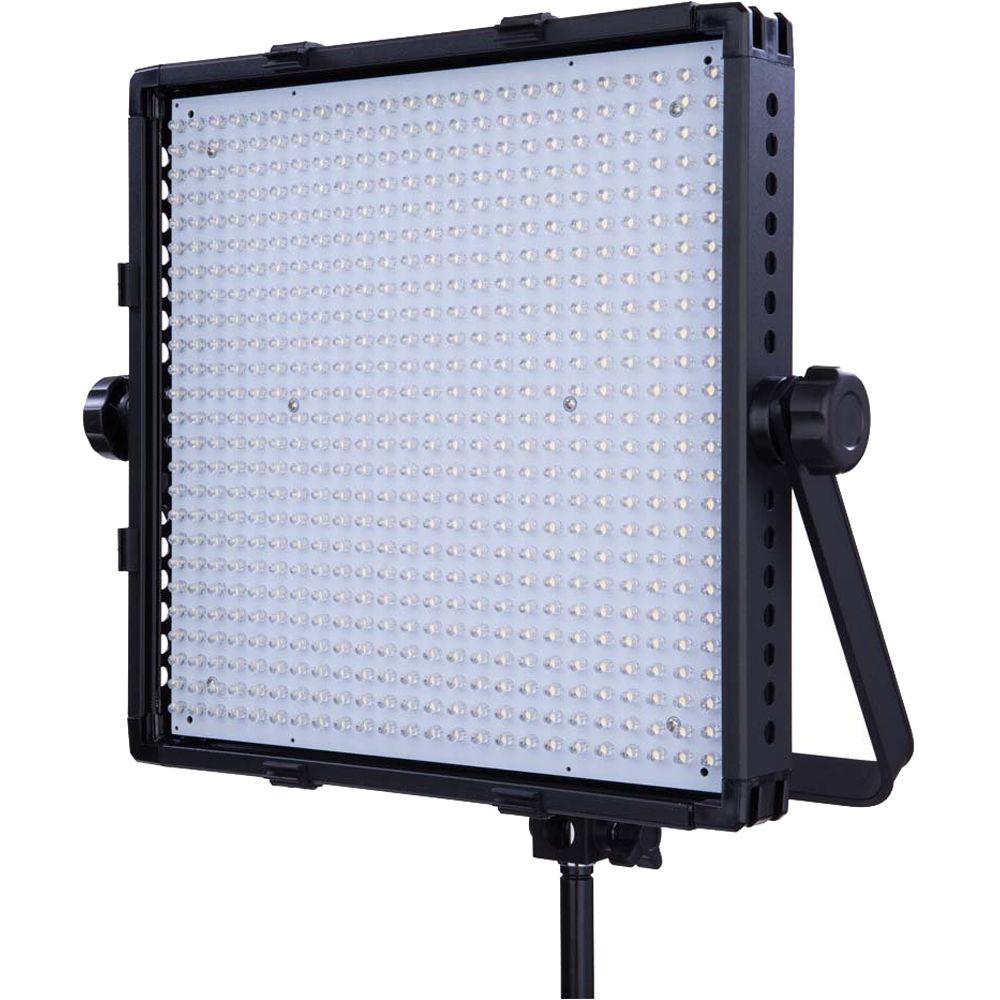

• 600 Bi-Color LED Panel A versatile fixture with solid features, the 600 Bi-Color LED Panel from Studio Essentials is a valuable lighting tool for image-makers, offering color, light intensity, and power options. Color temperature is adjustable from 3200 to 5600K to meet ambient light challenges, match other light sources, or just for creative effects. The light's high CRI rating of 95+ indicates a true and accurate rendition of color. Instead of jockeying the light back and forth for the right illumination level, the fixture is fully dimmable from 0 to 100%. The output is flicker-free at any dimming setting allowing shooting at high frame rates. Like all LEDs, this one generates negligible heat making a fan unnecessary, which is an asset in sound-sensitive environments. It also makes for a cool studio, comfortable talent, and with the light's low power consumption, a rapid return on investment. Light control is provided by the included 4-way barndoors. Swinging one or more leaves into the path of the 45-degree beam allows selective lighting of your subject. The light offers power options, too. The unit's 100-240 VAC power adapter makes it ready for worldwide use but you can also run the fixture on optional batteries, thanks to the built-in V-mount battery plate. The 600 Bi-Color LED Panel comes with a filter set and a carry bag for storage and transport.
  Bi-Color
  • Bi-color LEDs allow users to adjust the color temperature of the light from 3200 to 5600K. The ability to control the color of your light source gives you the ability to match the color of your ambient light, creating a more natural feel to your shots without the need for color correction gels. Bi-color LEDs are also ideal for matching other fixtures or just for creative effects.
  Accurate Color
  • The 600 Bi-Color LED Panel has a high CRI, meaning accurate, vibrant colors and less time spent in post-production.
  Flicker-Free
  • The panel is flicker-free, meaning filmmakers can shoot in 4K or 120 fps slow-motion.
  Dimmable
  • The light is dimmable from 100% down to 0% in stepless increments.

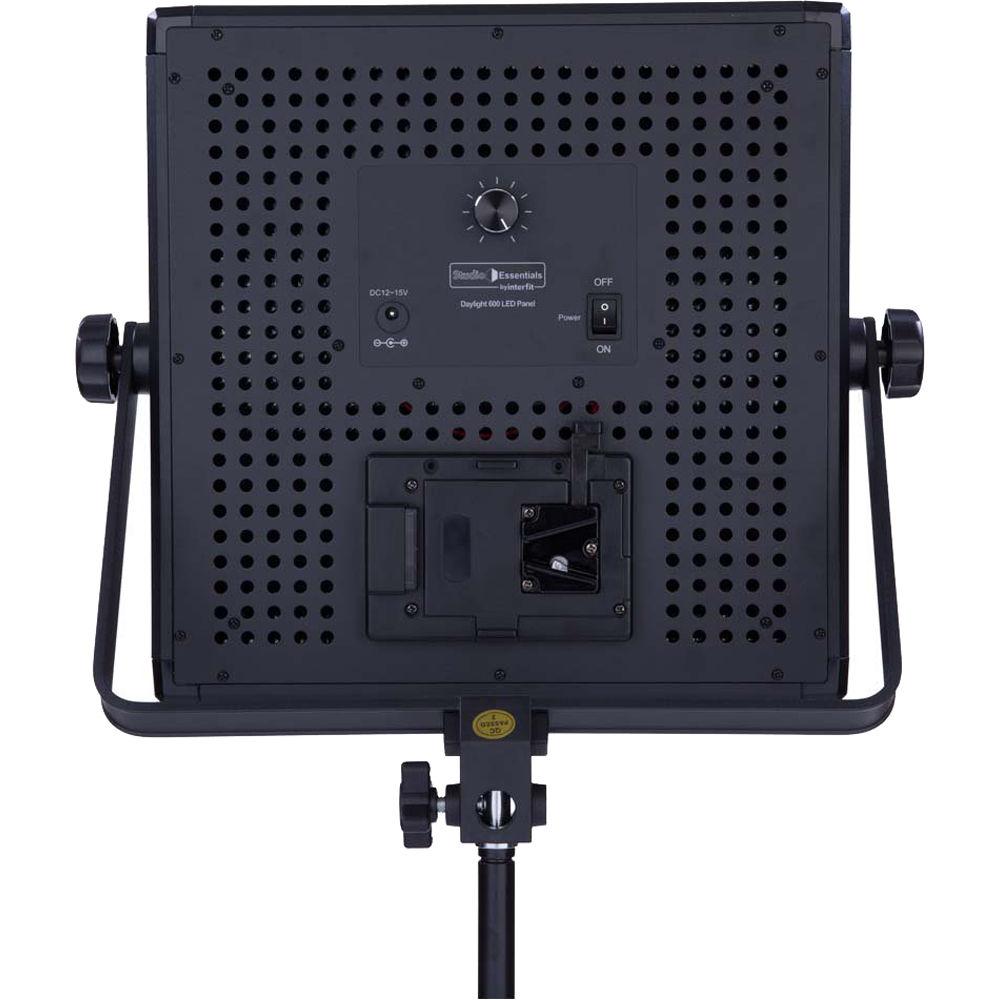

  V-Mount Battery Plate
  • The Studio Essentials 600 Bi-Color LED Panel includes a built-in V-mount battery plate. This allows you to use optional V-mount batteries when mains power is unavailable.

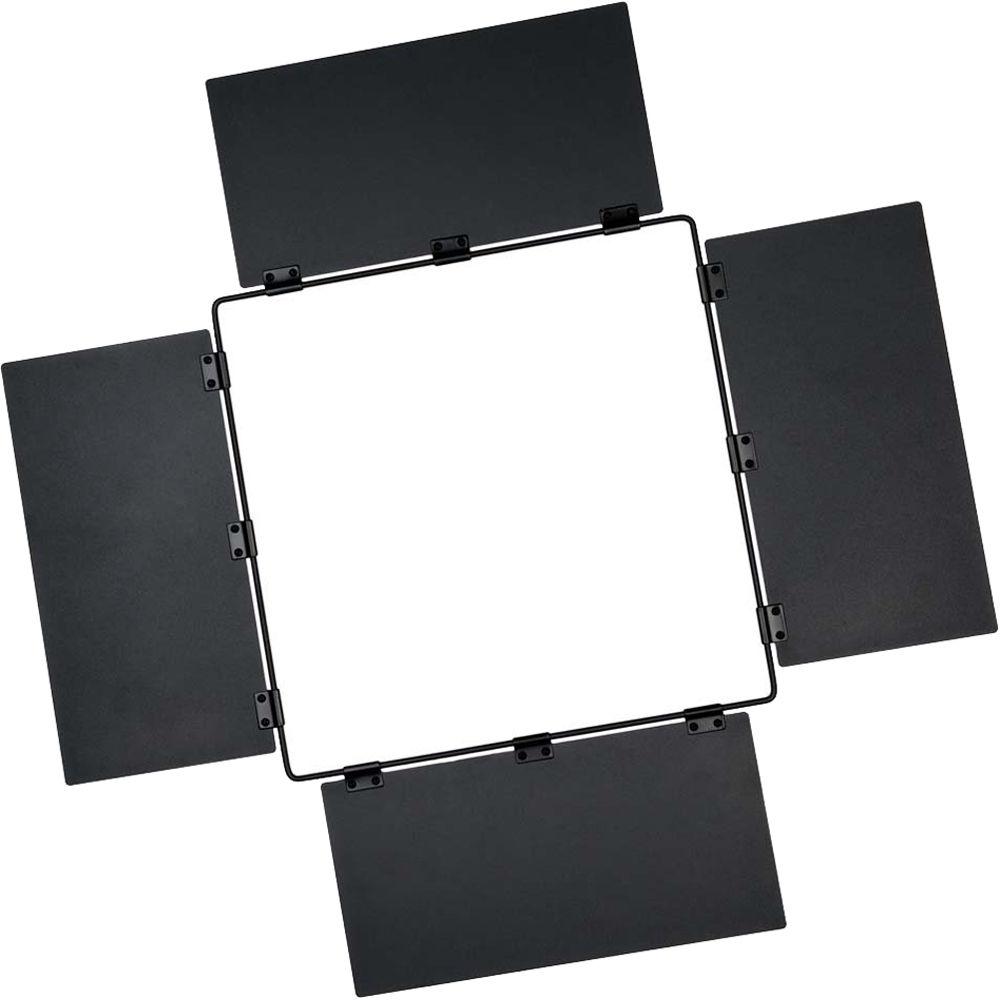

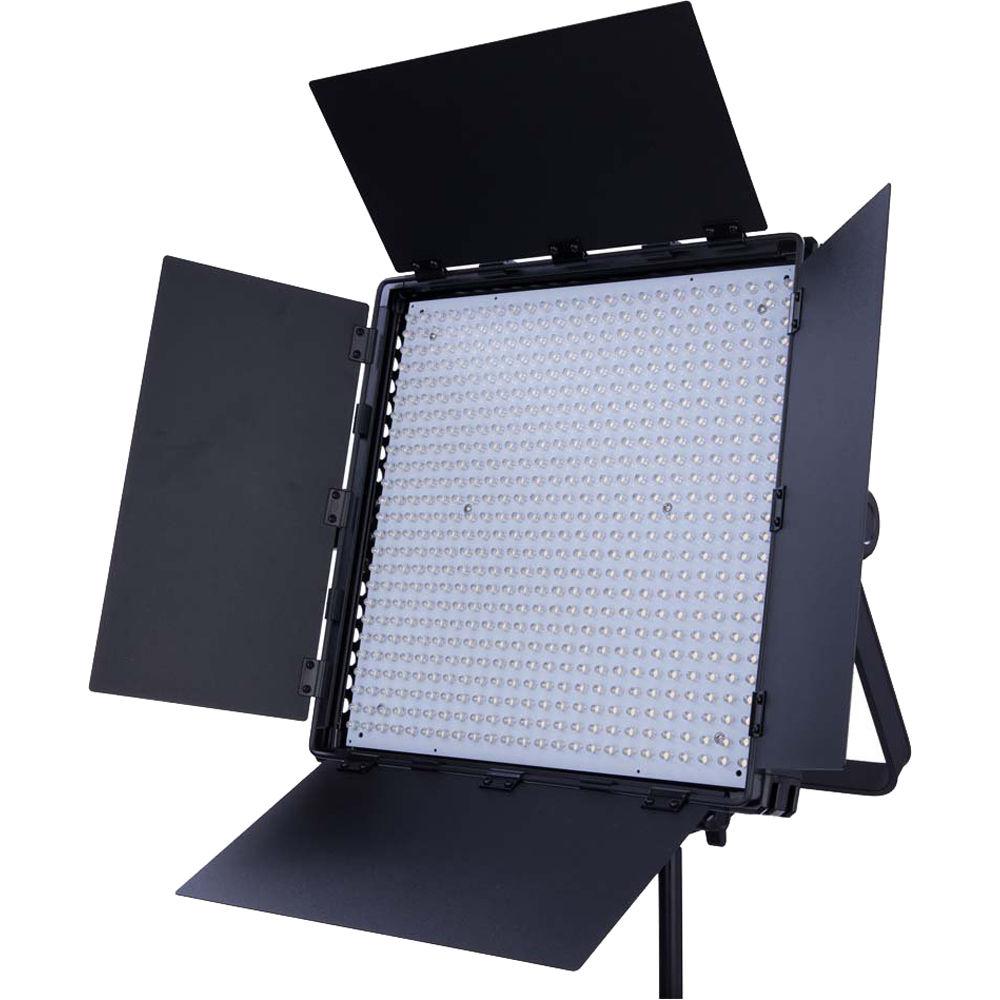

  Removable Barndoors
  • Every Studio Essentials LED Panel includes a set of removable 4-leaf barndoors. This valuable accessory allows users to shape the light by reducing the spread. Each individual leaf can be tightened, should it become loose over prolonged use.
  Energy Efficient
  • LED's use only 20% of the energy as traditional tungsten lights, making them a much more efficient lighting option. Not only are LEDs kind to the electric bill, they also don't generate much heat. This makes filming for long periods of time much more bearable for your subject. In addition, low heat also means no need for a cooling fan, which is an advantage in sound-sensitive situations.

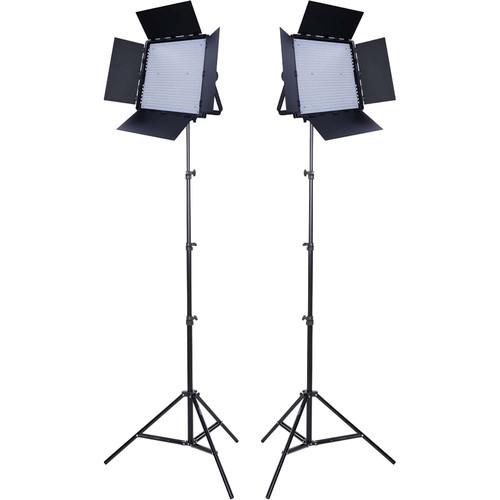

• 7.5' Value Light Stand A sturdy support at an attractive price, the 7.5' Value Light Stand from Studio Essentials rises to a maximum height of 7.5', has a minimum working height of 27.5", and can support gear mounted on its 5/8" top stud weighing up to 6.6 lb. The stand gently lowers your equipment when making height adjustments thanks to spring cushioning. It folds down to 27.5" in length and weighs 3.3 lb.
  Benefits
  • Lightweight construction for added portability
  • Sure-Twist section locks
  • Spring cushioning
  • Supports up to 6.6 lb

• Removable 4-Way Barndoors

• Yoke with 5/8" Stand Mount

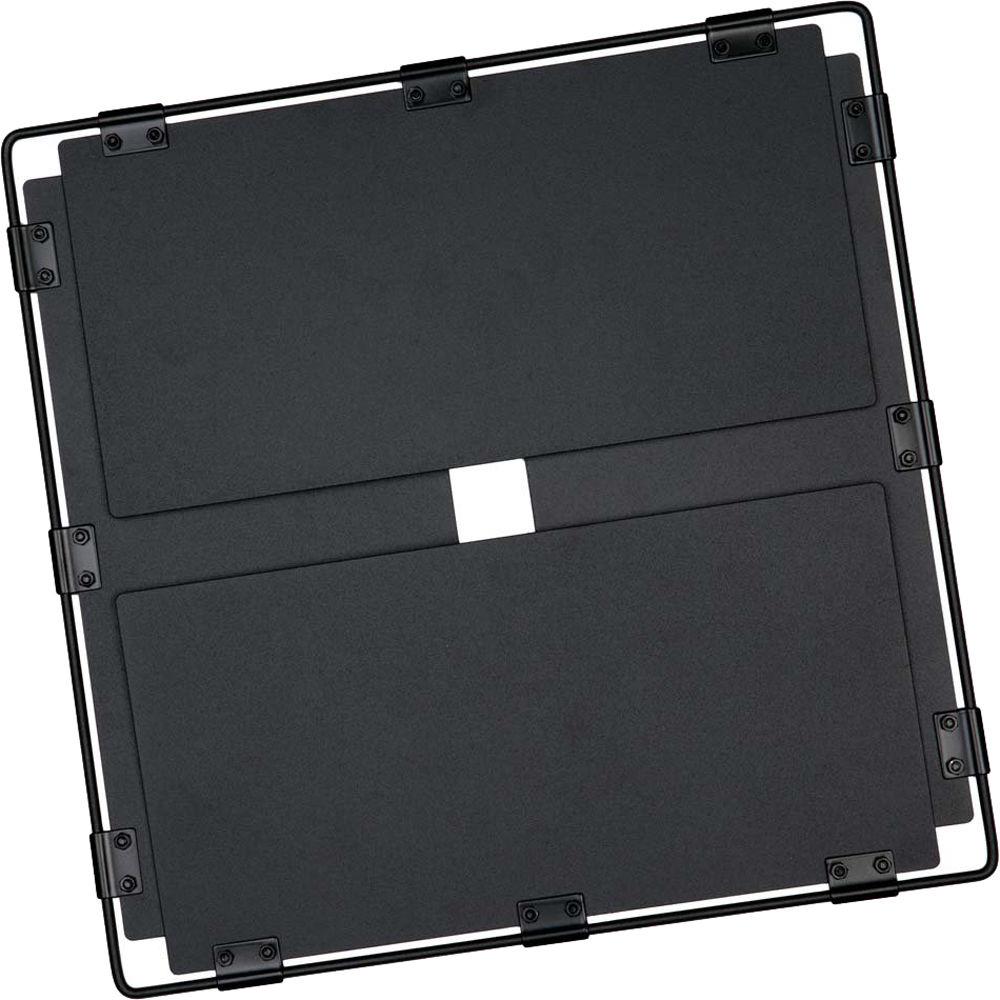

• Filter Set

• AC Power Adapter

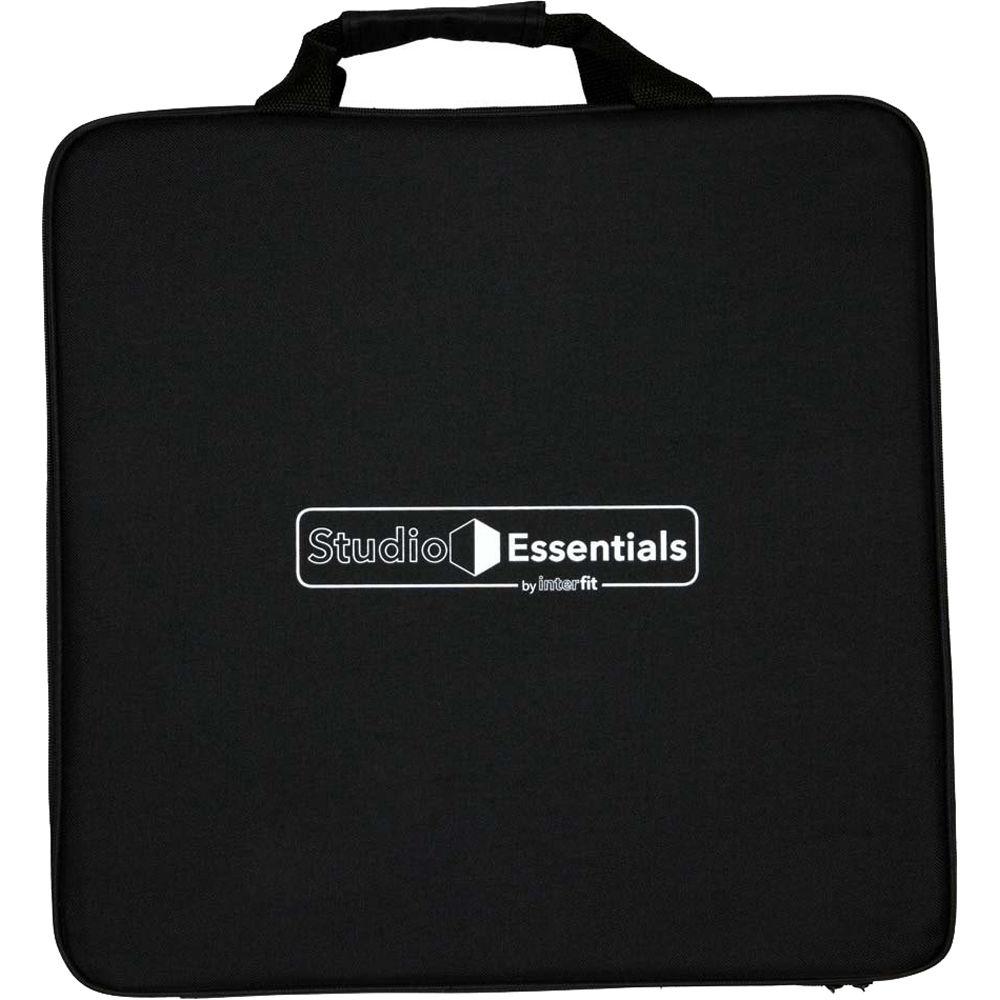

• Carry Bag

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 600 Bi-Color LED Panel

  Beam Angle	45°
  Color Temperature	3200 to 5600K ± 200K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100% (Continuous)
  Display	None
  Photometrics	45°: 482 fc / 5190 lux at 3.28' / 1 m 45°: 133 fc / 1430 lux at 6.56' / 2 m 45°: 59.5 fc / 641 lux at 9.8' / 3 m
  Fixture Dimensions	13.0 x 11.0 x 2.5" / 33.0 x 27.9 x 6.3 cm

  Battery Plate	1 x V-Mount

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery
  Max Power Consumption	36 W

  Box Dimensions (LxWxH)	18.9 x 18.8 x 5.0"

• 7.5' Value Light Stand

  Load Capacity	6.6 lb / 2.99 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Maximum Working Height	7.5' / 2.3 m
  Minimum Working Height	27.5" / 69.8 cm
  Collapsed Height	27.5" / 69.8 cm
  Footprint Diameter	27.5" / 69.85 cm
  Leg Shape	Round
  Accepts Wheels	No
  Reverse Legs	No
  Finish	Black
  Weight	3.3 lb / 1.5 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	28.3 x 3.4 x 3.0"
