User Manual for Studio Network Solutions EVO 16TB 16-Bay Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Studio Network Solutions EVO 16TB 16-Bay
- Product category: Network Attached Storage Drives Studio Network Solutions
- Brand: Studio Network Solutions
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Studio Network Solutions Network Attached Storage Drives
|
User manual for the Studio Network Solutions EVO 16TB 16-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Studio Network Solutions product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Studio Network Solutions user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Studio Network Solutions product will considerably shorten its lifespan!
|

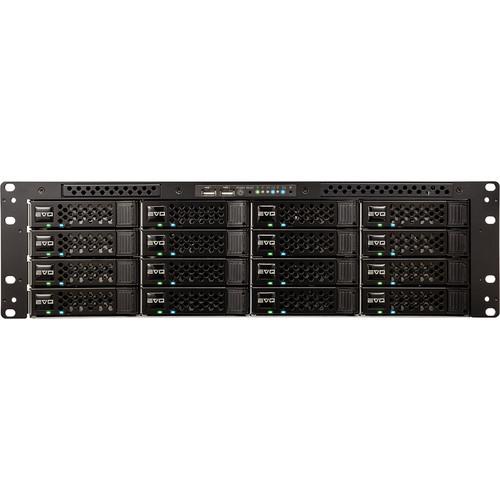

Product description The EVO 16TB (4 x 4TB) 16-Bay Expansion Chassis from Studio Network Solutions is compatible with the 8 and 16-bay EVO Shared Media Storage Server. This expansion chassis connects directly to each storage server and does not rely on a Fibre Channel or Ethernet connection. The 8-bay EVO is able to support one expansion chassis for a total of up to 24 drives, while the 16-bay EVO is able to support up to four expansion chassis, for a total of up to 80 drives.
This expansion chassis includes 4 x 4TB drives for an initial capacity of 16TB. However, this only uses four of the system's 16 SATA III 6 Gb/s bays, leaving 12 open for additional drives to be installed. This chassis also has a height requirement of 3U and operates using 100-240 VAC at 47-63 Hz. It is powered by an 860W redundant power supply that is comprised of dual 860W modules with a maximum load of 13-6.5A. In the Box Studio Network Solutions EVO 16TB (4 x 4TB) 16-Bay Expansion Chassis Power Cord Dual Redundant 860W Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Network Solutions EVO 16TB 16-Bay Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudio Network Solutions 16EXP4X4TB-14A Specs | | | Total Raw Capacity | 16 TB | | Included Drives | 4 x 4 TB 3.5" HDD | | | | Form Factor | Rackmount (3 RU) | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6.5 to 13 A | | PSU Wattage | 2 x 860 W | | | | Operating Temperature | 40 to 72°F / 4.4 to 22.2°C | | | | Dimensions | 5.3 x 19.0 x 28.5" / 13.3 x 48.3 x 72.4 cm | | Weight | 85.0 lb / 38.5 kg |
