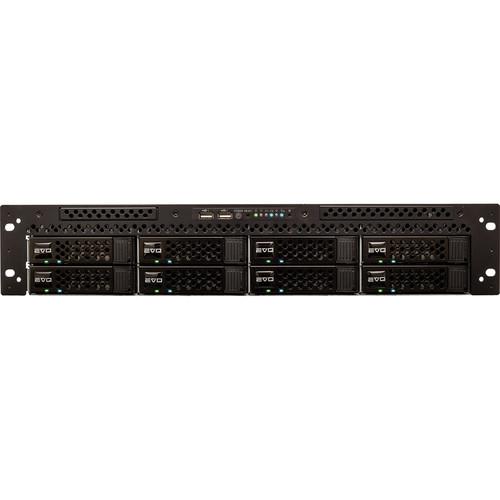

User Manual for Studio Network Solutions EVO 16TB 8-Bay Short-Depth NAS Server Click to enlarge the picture
Contents of the user manual for the Studio Network Solutions EVO 16TB 8-Bay
- Product category: Network Attached Storage Drives Studio Network Solutions
- Brand: Studio Network Solutions
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Studio Network Solutions Network Attached Storage Drives
|
User manual for the Studio Network Solutions EVO 16TB 8-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Studio Network Solutions product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Studio Network Solutions user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Studio Network Solutions product will considerably shorten its lifespan!
|
Product description The EVO 16TB 8-Bay Short-Depth NAS Server from Studio Network Solutions is fast, easily expandable, and an ideal fit for businesses looking for a shared media storage server. It features a total of 8 bays and comes with eight 2TB hard drives pre-installed for a total capacity of 16TB. The EVO not only supports hard drives in RAID 0, 1, 4, 5, and 6 configurations, but also solid-state drives in JBOD or RAID 0 only. With a max sustained system throughput of roughly 2.5 GB/s, the EVO is capable of supporting demanding video such as 6K, 4K, 10-bit uncompressed HD, and stereoscopic 3D, all over 10GbE Ethernet or Fibre channel. Should you need to expand, you can purchase an expansion unit for additional capacity. - Workflow
- The EVO offers project sharing, bin sharing, file sharing, and SAN & NAS for professional media applications. You'll have access to multi-user write workspaces for sharing projects and bins, in addition to high performance SAN volumes for multi-cam and uncompressed workflows.
- Connectivity
- The EVO supports plenty of Ethernet and Fibre Channel ports to directly connect every computer in your workgroup. It supports up to a max of 24 GbE ports, 4 10GbE Optical Ports, 4 10GbE Base-T ports, and 4 Fibre channel ports.
- Performance
- Caching helps to handle more video streams per array, so you can do more with a fewer amount of disks for a less expensive and more reliable storage solution. Multipathing increases transfer speed by taking advantage of both Fibre or Ethernet paths and combining them for a higher SAN throughput.
- Expansion
- With a total capacity of 8 drives, the EVO has room to grow as your business expands. When you need more, you can connect additional expansion units to hold up to a total of 24 disks. Up to 24 users can be directly attached to the EVO at once, and if you need to support more, you can connect any available Fibre channel or Ethernet port to a switch.
- ShareBrowser Desktop Client
- ShareBrowser is a unified file/project/asset management interface for macOS and Windows systems. It's similar to the Finder/Explorer tab but is designed by SNS specifically to help media teams work and collaborate more efficiently.
- NAS Recycle Bin
- With the EVO's recycle bin, you can easily restore deleted files and even configure when the trash should be completely removed.
- USB Storage Docking
- Plug in USB drives and card readers directly to the EVO's on-board USB ports and they'll show up automatically to your users.
- Cloud Integration
- Add additional storage that can be accessed just like any other workspace using Cloud services such as Dropbox and Adobe Creative Cloud.
- LDAP/AD
- The EVO can connect to a remote authentication server to get access user names and groups. You can then assign permissions based on these accounts for easier management.
In the Box Studio Network Solutions EVO 16TB 8-Bay Short-Depth NAS Server (8 x 2TB) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Network Solutions EVO 16TB 8-Bay Short-Depth NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudio Network Solutions 8BASESD-8X2TB-16A Specs | | | Number of Bays | 8 x 2.5"/3.5" | | Connections | 2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA III | | Form Factor | Rackmount (4 RU) | | RAID Modes | RAID 0, 1, 10, 4, 5, 6, JBOD | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 9 A | | PSU Wattage | 2 x 650 W | | | | Operating Temperature | 40 to 72°F / 5 to 22°C | | | | Dimensions | 7.0 x 17.0 x 18.0" / 177.8 x 431.8 x 457.2 mm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
