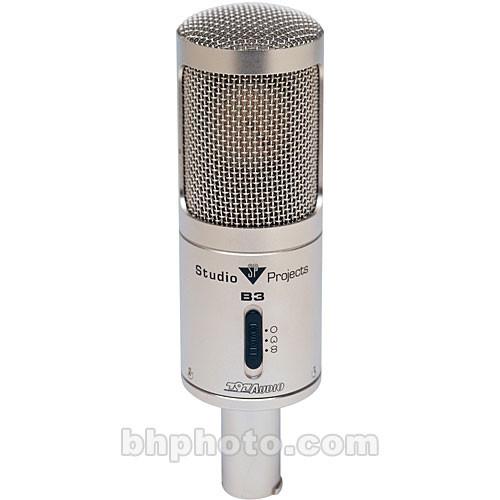

User Manual for Studio Projects B3 Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Studio Projects B3 Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser Studio Projects
- Brand: Studio Projects
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Studio Projects Large Diaphragm Condenser
|
User manual for the Studio Projects B3 Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Studio Projects product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Studio Projects user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Studio Projects product will considerably shorten its lifespan!
|
Product description The Studio Projects B3 is a large-diaphragm condenser microphone with switchable omnidirectional, cardioid and figure-8 polar patterns. The B3 is a low-cost solution for recording vocals and instruments in project and home recording studios. The wide frequency response results in accurate reproduction of vocals and general instruments with great detail and accuracy. - Switchable Patterns
- Omnidirectional, figure-8 and cardioid polar patterns are all user-selectable.
- -10dB Pad Switch
- A -10dB Pad switch provides added headroom and minimizes noise due to peak overload and distortion.
- Wide Frequency Response
- The wide, linear frequency response ensures accurate detailed audio reproduction for vocals and instruments.
- Low-Cut Filter
- A low-cut filter switch minimizes noise and low-frequency rumble.
UPC: 850207000125 In the Box Studio Projects B3 Multi-Pattern Condenser Microphone Shockmount Zippered Bag Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Projects B3 Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudio Projects B3 Specs | | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 137 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Cardioid: 18 mV/Pa at 1000 Hz
Figure 8: 16 mV/Pa at 1000 Hz
Omnidirectional: 14 mV/Pa at 1000 Hz | | Low-Cut Filter | 6 dB/Octave @ 150 Hz | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 48 V ± 4 V | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 14.8 x 8.2 x 3.4" |
