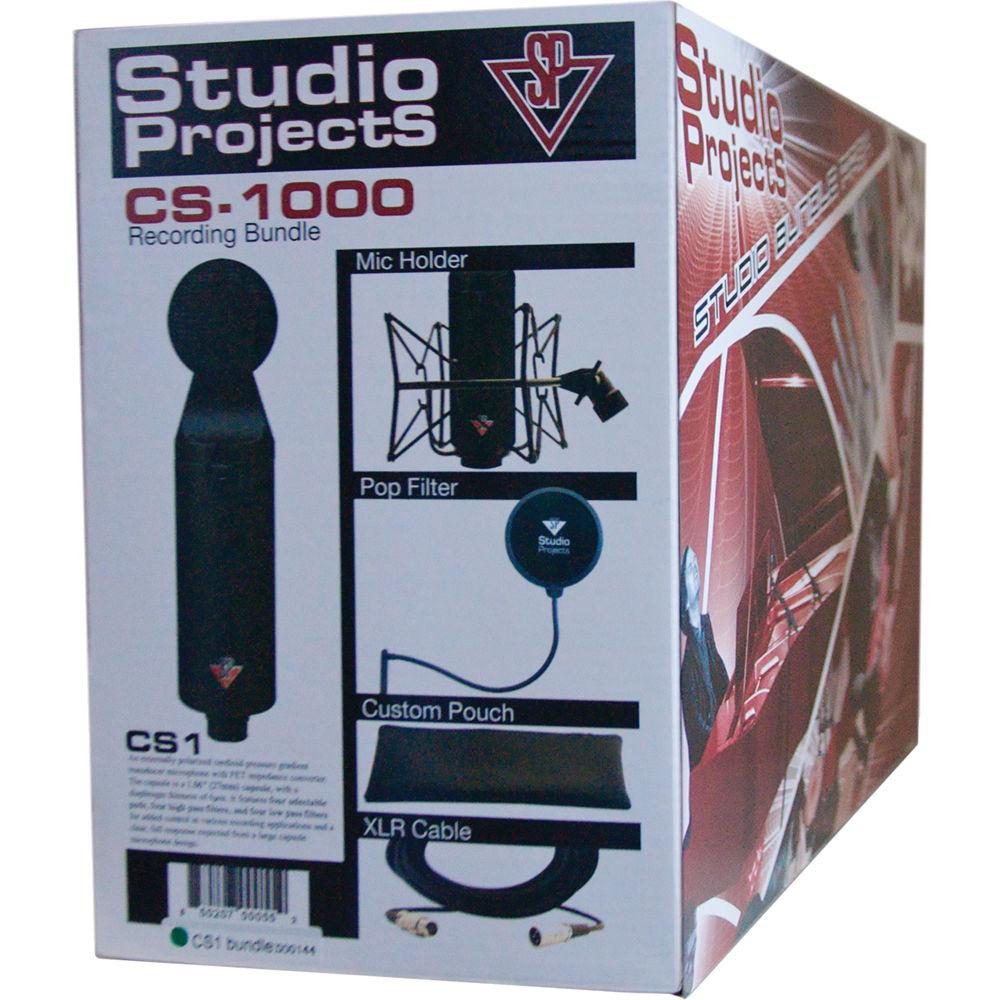

Product description The CS1000 Recording Bundle is a recording package from Studio Projects that contains a Studio Projects CS1 microphone, an XLR cable, a windscreen, a shock mount, and a storage pouch and case. The CS1 is an externally polarized cardioid pressure gradient transducer microphone with a FET impedance converter. The mic has a 1.06" (27mm) capsule, with a diaphragm thickness of 6µm. It features four selectable pads, four high pass filters, and four low pass filters for added control in various recording applications. - Pressure-Gradient Transducer: 1.06" (27mm) 6um mylar diaphragm
- Switchable -5dB, -10dB, -15dB, and -20dB Pads
- Switchable 50Hz, 75Hz, 150Hz, and 300Hz High Pass Filters @ 6dB/octave
- Switchable 15kHz, 7kHz, 5kHz, and 3kHz, Low Pass Filters @ 6dB/octave
- Shockmount, windscreen and case included

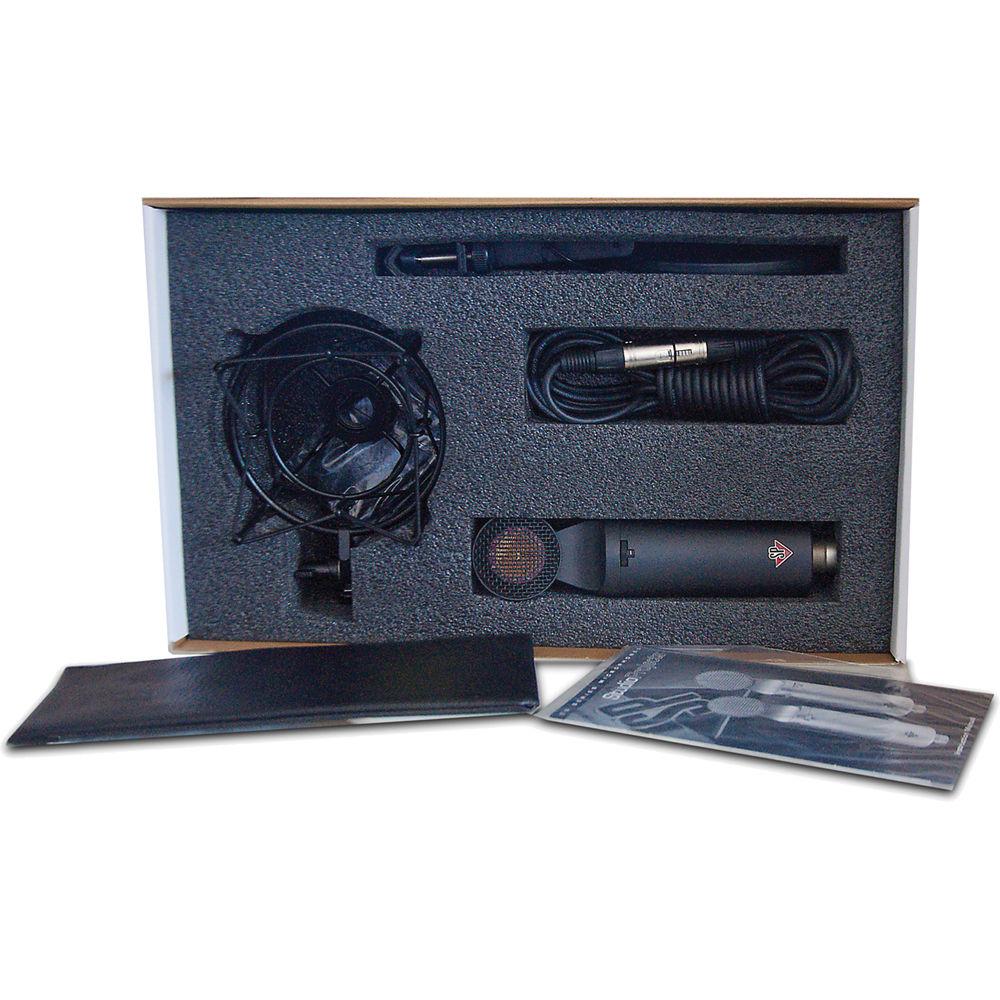

UPC: 850207000552 In the Box Studio Projects CS1000 Recording Bundle XLR Cable Windscreen Shock mount Pouch Storage Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Studio Projects CS1000 Recording Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudio Projects CS1000 Specs | Type | Pressure gradient transducer microphone | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz - 20 kHz | | Sensitivity | 14mV/Pa=-32dB(0dB=1V/Pa) | | Output Impedance | <200 Ohm | | Load Impedance | >1000 Ohm | | Maximum SPL | 134 dB SPL for 1% THD @1000Hz (0dB SPL=0.00002Pa) | | Noise | 10 dB-A (A-weighted per IEC268-15) | | Signal to Noise Ratio | 84 dB-A | | Pads | -5dB, -10dB, -15dB, and -20dB selectable | | Low-Pass Filter | 15kHz, 7kHz, 5kHz, and 3kHz 6dB/Octave | | High-Pass Filter | 50Hz, 75Hz, 150Hz, and 300Hz 6dB/Octave | | Power Requirement | 48 +/- 4V | | Current Consumption | <4mA | | Connector | Gold-plated 3-pin XLR | | Circuit | JFET driven, discrete balanced output | | Dimensions | Not Specified by the Manufacturer | | Weight | Not Specified by the Manufacturer | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 17.7 x 10.5 x 7.3" |
