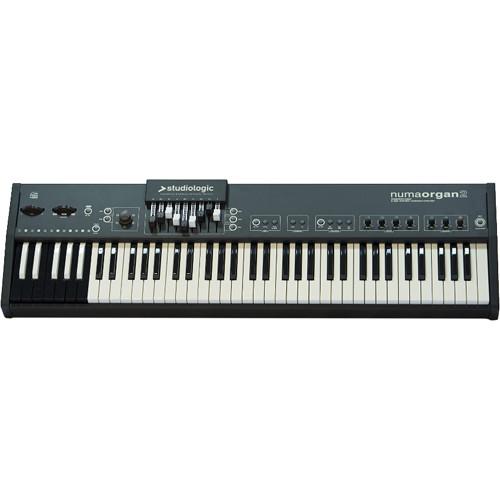

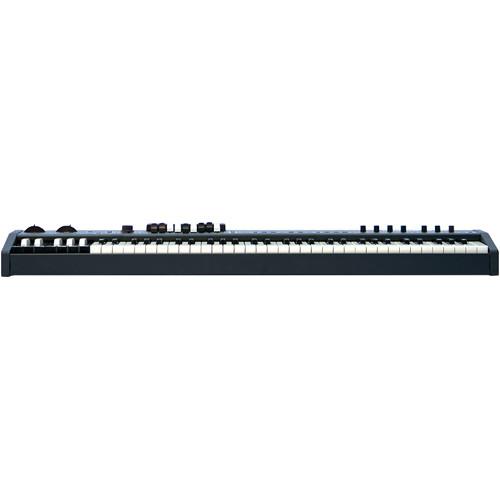

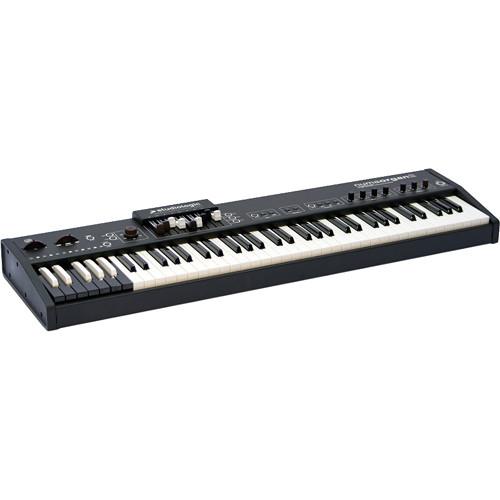

Product description The Numa Organ 2 from StudioLogic is a an organ sound modeling synthesizer designed to provide a wide range of sounds based on some of the most popular organ sounds. The seventy-three key keyboard provides a reverse octave for additional control and for selecting between seven different sound models that include tone wheel organs, electric organs, and church diapason.

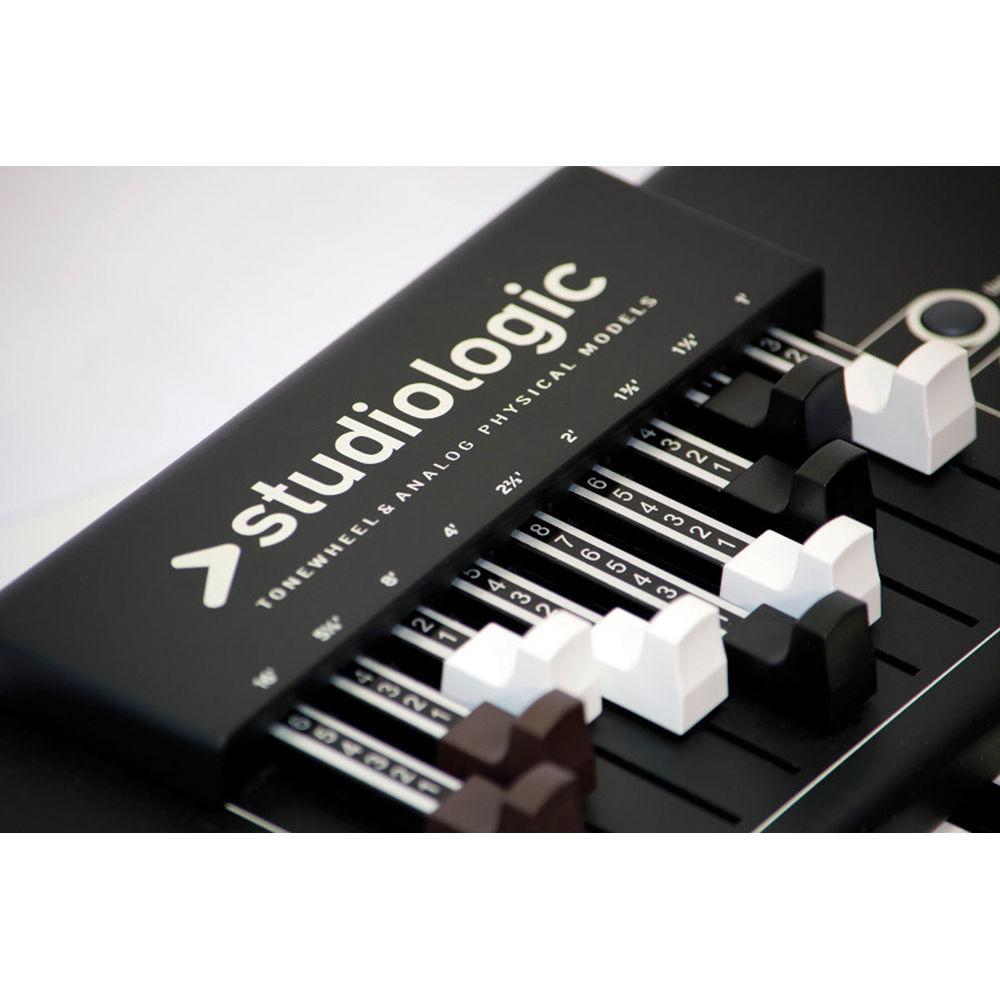

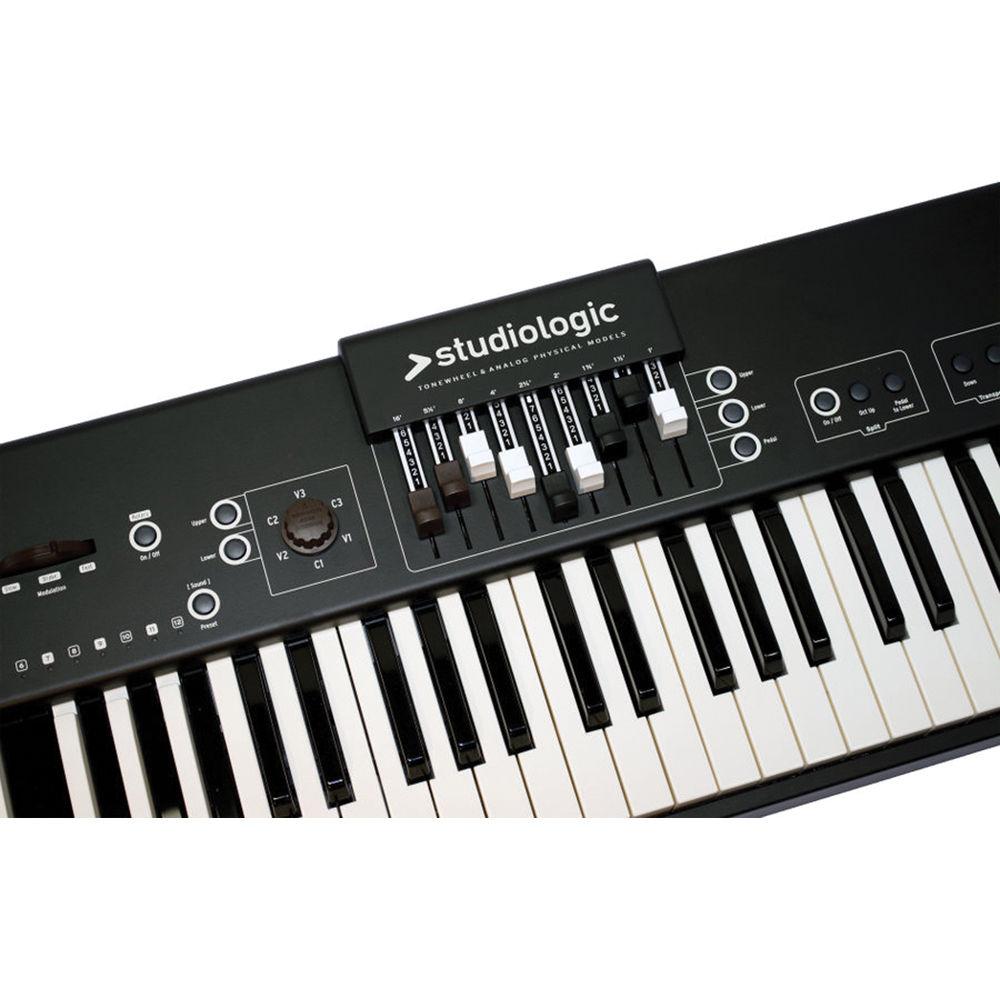

Nine drawbars are included among the extensive controls, along with the appropriate effects. Connection and control of a real Leslie speaker can be accomplished via an 11-pin connector, and MIDI control of the unit or other MIDI devices is enabled via the three dedicated MIDI connectors. Dual USB ports allow for USB MIDI operation or for updates. Jacks are provided for a sustain pedal, expression pedal, and two headphones. - Seven different organ sound models
- Select between tone wheel organs, electric organs, and church diapason
- Extended control panel provides more than thirty physical controls including nine drawbars
- Vibrato, chorus, rotary, reverb, drive, click, and leakage effects
- Connect and control a real Leslie via 11-pin port
In the Box StudioLogic Numa Organ 2 - Organ Synthesizer AC Power Cable Two (2) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StudioLogic Numa Organ 2 - Organ Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudioLogic NUMA-ORGAN-2 Specs | Keyboard | 61 + 12 Keys
TP/8O semi-weighted action, organ waterfall | | Sound Engine | Physical modeling synthesis
7 x Organ sound models
12 x Presets
Effects processor | | Controls | 9 x Drawbars
Pitch wheel
Rotary/Modulation wheel

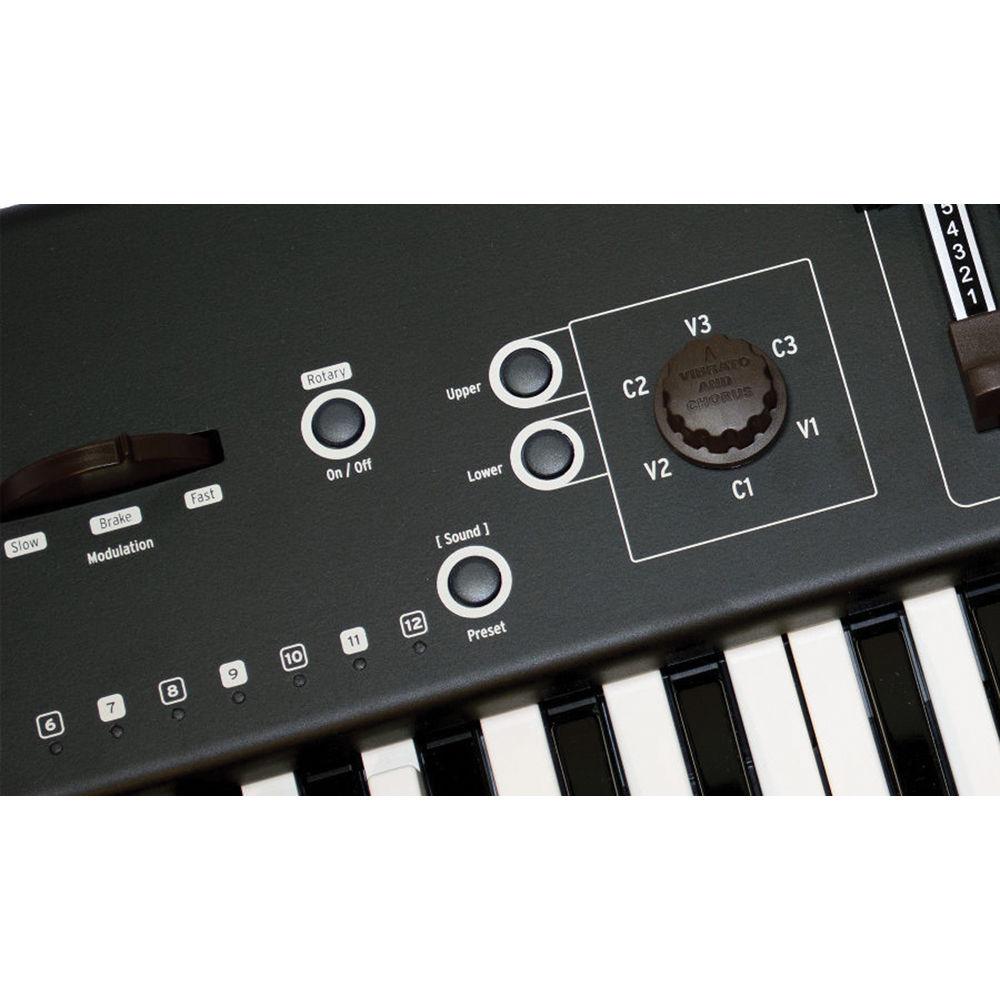

Chorus/Vibrato knob
Preset/Sound
Split
Transpose/Tune
Percussion
Effects (reverb, drive, key click, leakage)
Output volume/EQ

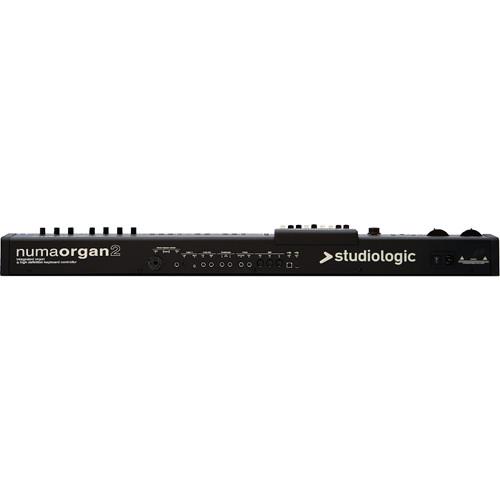

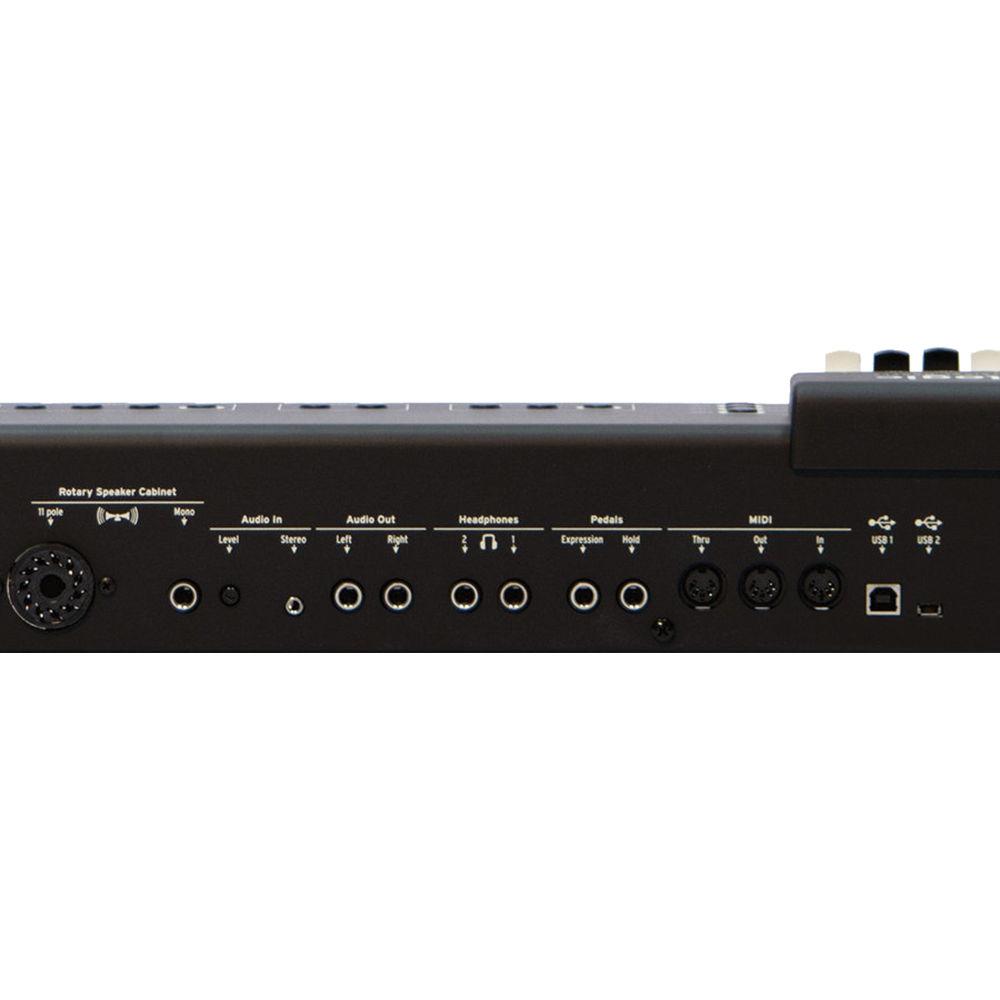

dynamic TOUCH/MIDI | | Connectors | 2 x 1/4" TS Audio Out
1 x 1/4" TS Direct Out
2 x 1/4" TRS Headphone Out
1 x 1/8" TRS stereo mini Audio In
1 x USB Type B
1 x Mini USB Type B
3 x 5-pin DIN MIDI In, Out, Thru
1 x 1/4" TS Sustain Pedal (pedal not included)
1 x 1/4" TRS Expression Pedal (pedal not included)
1 x 11-pin Rotary Speaker | | Power Requirements | 100~240 VAC, 50/60 Hz | | Dimensions (WxDxH) | 41.6 x 11.8 x 4.1" (1055 x 300 x 105 mm) | | Weight | 24.3 lb (11 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 45.5 x 17.2 x 10.0" |
