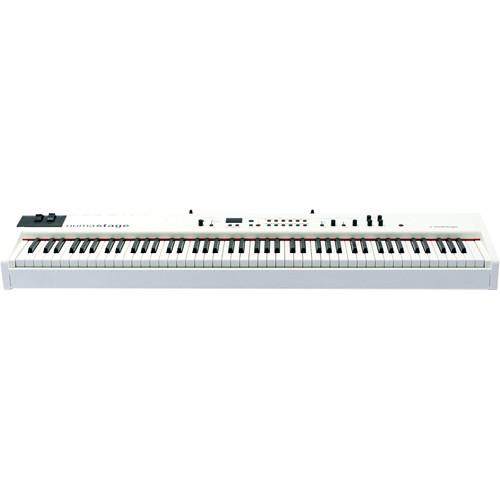

Product description The Numa Stage from Studiologic is an 88-key digital piano that combines the heritage of the Numa Piano with a fully featured MIDI master keyboard. The premium hammer action keyboard features a triple switch detection system (three contacts per key) and allows for playing with accurate dynamic control and response, and with a fast repeating rate. Sound generation is based on the company's Studiologic TrS (True Sound) technology, with a floating point DSP that includes stereo multi-sampled sound, and 2- or 4-pole digital filters with resonance.
The Concert Grand and Stage Grand sounds are complemented by physical models of the piano strings, their sympathetic resonance, and the soundboard, making for a very natural piano sound suitable for a variety of musical styles. The sounds are supported by a DSP processor, with four modulation effects and three types of reverbs that are also available separately in split or layer modes, with dedicated amount and mix knobs.

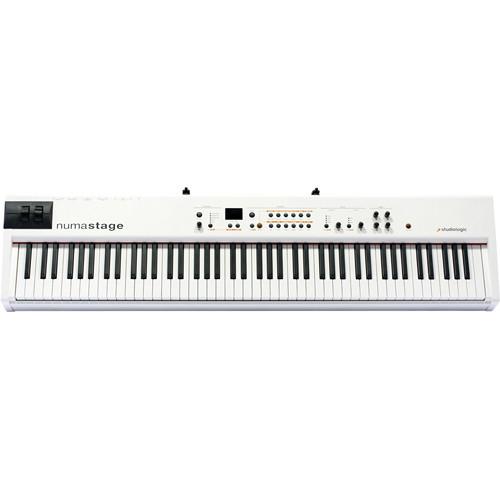

The control panel is designed to provide direct access to all functions during a performance without the need of complex programming, menu pages, or external editing. The MIDI section allows for control of the two separate zones, with direct selection of all the main MIDI parameters. Twelve sound categories are available, including vintage electric pianos, organs, pads and bass sounds, with a maximum 128-voice polyphony.
An Autopreset function stores all modulation and effect edits instantly, automatically memorizing the selected effect and the related modulation sources. In addition, the instrument's entire configuration, including all the MIDI module parameters, can be stored in fifty programmable presets. - 88-key Premium Hammer Action keyboard (TP/100LR)
- Triple switch detection system
- Fast and accurate dynamic control and response
- Three velocity curves, plus editable fixed value and Fatar Touch
- Ten velocity curves with Fatar Touch system
- Concert Grand and Stage Grand enhanced by a complete physical model of strings, soundboard and sympathetic resonance
- Sound generation based on Studiologic TrS (True Sound) technology, with internal floating point DSP featuring stereo multi-sampled sound with 2- or 4-pole digital filters with resonance
- DSP post processor, with four different modulation effects and three types of reverb can be added to any sound
- Two keyboard zones for split/layer operation
- Two separate MIDI zones either in split or layer mode, with direct selection of all main MIDI parameters for the two zones
- Dedicated MIDI In, Out and Thru connectors in addition to USB MIDI I/O
- Autopreset function stores all modulation effect edits instantly, memorizing the selected effects for each sound and the related modulation (such as control via the modulation wheel)
In the Box StudioLogic Numa Stage - Professional Live Performance Digital Piano AC Power Cable VFP1/10 Piano Style Sustain Pedal ubsrsvfd Music Stand CD-ROM Operation Manual Two (2) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StudioLogic Numa Stage - Professional Live Performance Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudioLogic Numa Stage Specs | Keyboard | 88 keys, Premium Weighted Hammer Action
Triple switch detection system
3 x Factory velocity curves + editable fixed value + Fatar Touch
10 x Velocity curves with Fatar Touch System | | Sound Engine | Stereo Multi-Sample DSP with TrS (True Sound) technology
128-voice maximum polyphony
Full physical modeling of strings, soundboard and sympathetic resonance for a natural piano sound | | Sounds | Section on/off switch
12 x Sounds - concert grand, stage grand, electric piano 1, electric piano 2, electric piano 3, clavi, pad 1, pad 2, organ 1, organ 2, bass 1, bass 2
Layer and split functions with programmable split point | | MIDI | On/Off switch
MIDI volume knob
MIDI zone A (lower) and B (upper) independent on/off controls and editing
5 x MIDI parameters - program change, LSB bank, MSB bank, channel, octave | | Functions | 12 x Editable functions - transpose, octave lower, octave upper, master tune, velocity, strings resonance, panic, hold (layer assign), expression (layer assign), system, store, demo
50 x User preset memories (24 factory restorable) | | Processing | Modulation FX - off, chorus, phaser, rotary, tremolo, amount knob
Reverb FX - off, room, hall, delay, mix knob
Equalizer - bass, high knobs
Layer/split balance knob

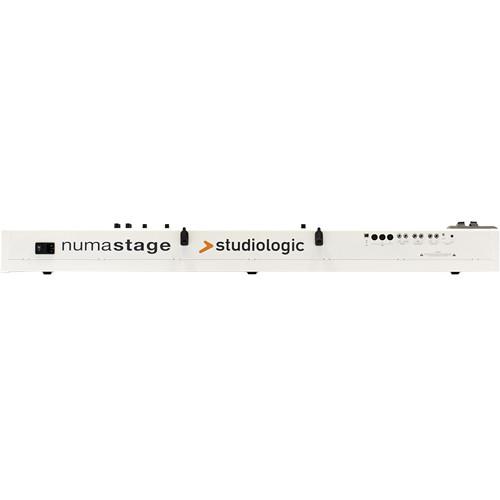

Master volume knobs | | Connections | 2 x 1/4" TS Line Out
1 x 1/8" TRS stereo mini Audio Input
2 x 1/4" TRS Headphone
2 x 1/4" TRS Hold and Expression Pedals
3 x 5-pin DIN MIDI In, Out, Thru
1 x USB Type B to Host | | Power Requirements | 110~240 VAC, 50/60 Hz | | Dimensions (WxDxH) | 51.2 x 12 x 4.8" (1300 x 305 x 120 mm) | | Weight | 28.7 lb (13 kg) | | | | Package Weight | 38.5 lb | | Box Dimensions (LxWxH) | 55.0 x 17.0 x 9.5" |
