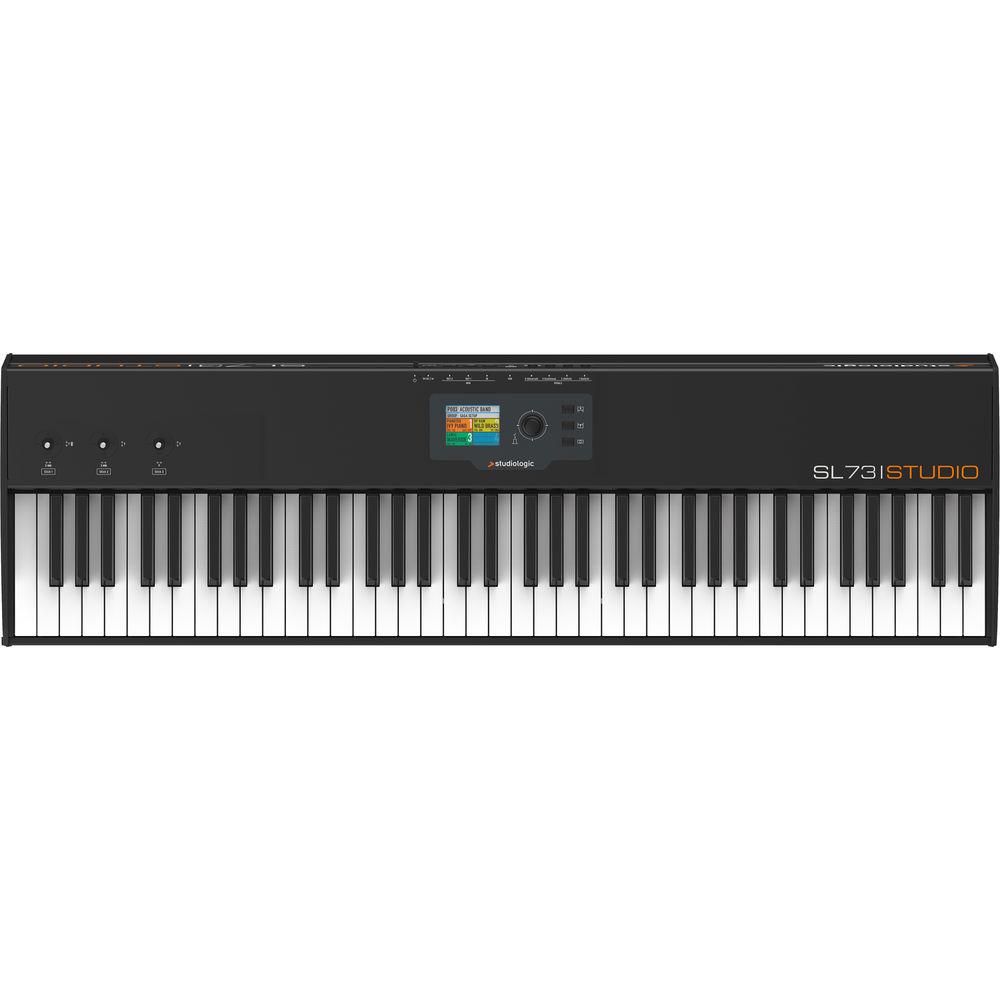

Product description Part of the company's SL line of controllers, the StudioLogic SL73 Studio is a portable, 73-key, hammer-action USB/MIDI keyboard controller, which delivers a piano-like playing experience in a compact package. It combines Fatar TP/100LR fully weighted keybed technology with a triple-switch detection system on each key and aftertouch information, offering pianists an expressive instrument with versatile touch and playability, for stage or studio applications. The SL73 Studio is ideal for the gigging musician. Lightweight (at 25.3 lb), it is equipped with a rugged, full-metal casing and sculptured endcaps that help shield the keybed, while providing a safe grip when handling and transporting. Located at the center of the front panel, the simple and intuitive UI features a large TFT LCD color display that is easy to read in low-light environments. The friendly layout comes with an encoder knob to quickly navigate through all functions. Three programmable stick controllers give you direct control and manipulation of any desired sound parameter during live performances. To get the most from your instrument, the SL Editor software (free download available separately) enables you to edit all available SL73 Studio parameters from a Mac/Windows computer, via USB. The software lets you program the keyboard feel with soft, medium, hard, or custom velocity curves. It also provides a database and a backup system to maintain and organize your projects. The SL73 Studio ships with a PS100 switch pedal and a power adapter. - Features
-
- SL line, 73-key MIDI keyboard controller with piano-touch feel
- Four programmable zones
- Keyboard feel is programmable for soft, medium, hard, and custom velocity curves
- 250 programs, 12 programs groups
- Two MIDI ports separately assignable
- 5-pin MIDI connectors—In, Out 1, Out 2
- USB port for USB to host, MIDI, and USB power connections
- Includes PS100 switch pedal and power adapter
- Authentic Piano Touch
-
- Light, TP/100LR hammer-action keybed technology from Fatar provides piano-like playing experience
- Triple-switch detection system on each key
- Velocity and aftertouch information for expressive performance
- Portable Form Factor
-
- Compact profile
- Portable professional controller unit
- Stage and studio ready with rugged full-metal casing
- Sculptured endcaps made of a highly resistant synthetic material help shield the keybed and provide a safe grip when handling and transporting

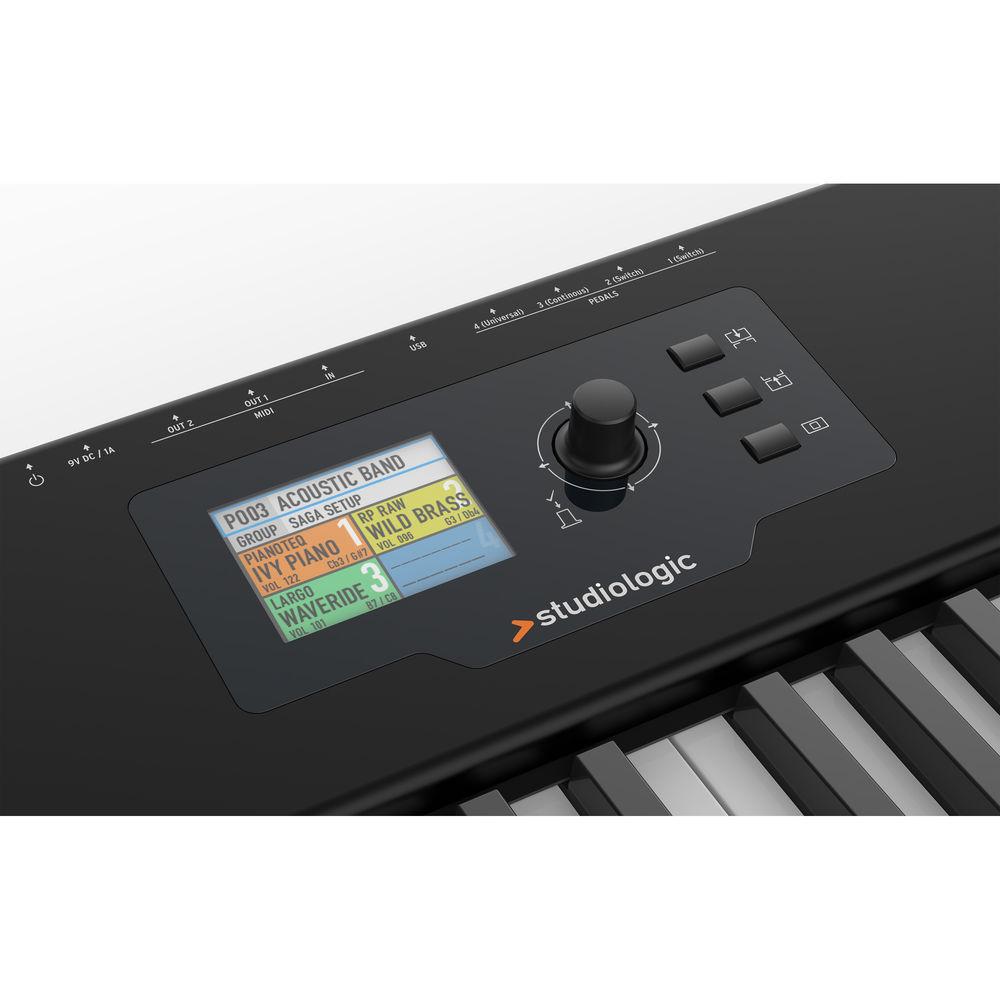

- Ease of Operation
-
- Simple and intuitive UI with friendly layout
- Large TFT LCD color display in the center of the instrument
- Six-way, encoder knob lets you navigate through all functions quickly and easily
- Three buttons to the right of the encoder knob bring you back to the top-level from any location in the system with just one push

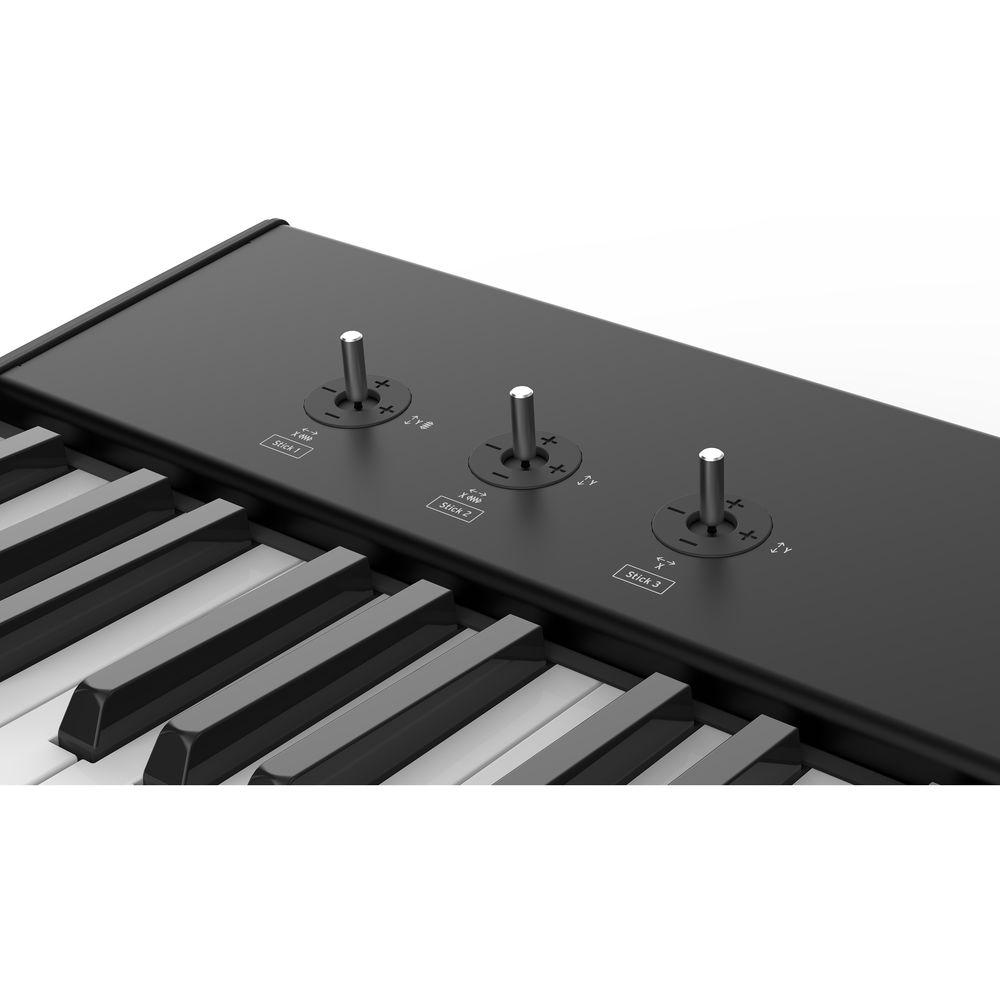

- Real-Time Control
-
- Three programmable stick controllers for direct control and manipulation of any desired sound parameter
- Stick 1 is spring-loaded for both X/Y directions, typically used for pitch and modulation control
- Stick 2 is spring-loaded in the X direction only
- Stick 3 is free in both X and Y directions—ideal for panning, cross-fading, and parameter control
- All sticks feature an aluminum shaft that feels balanced and expressive
- Magnetic Rail System
-
- Magnetic Rail System at the rear of the keyboard for mounting an optional SL Music Stand or SL Computer Plate—holds written notes, sheet music, laptop, or tablet
- SL Editor
-
- SL Editor software enables you to edit all available SL73 Studio parameters with an intuitive and interactive user interface from a Mac/Windows computer, via USB—free download available separately
- Communication is set in real time and all editing is transmitted to the unit directly, with no need of any offline action
- Works as a database and a backup system for your SL controller to maintain and organize your projects
- Change, load, or modify the internal velocity curves according to your setup and playing preferences
- Draw your personal velocity curves to control the relation between key speed and output value in all details
- Key-Balance function lets you change the response of each key, draw new balance curves, or balance the black/white keys with a single control
In the Box StudioLogic SL73 Studio - 73 Key USB/MIDI Keyboard Controller PS100 Switch Pedal Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StudioLogic SL73 Studio - 73 Key USB MIDI Keyboard Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStudioLogic SL73-STUDIO Specs | | | Keyboard | 73 Keys, Hammer Action with Aftertouch and Velocity | | MIDI Control Surfaces | 3 x Joysticks (Assignable)
1 x Rotary Encoder
3 x Buttons | | Performance Functions | Multi-Zone Programming | | | | I/O | 2 x 1/4" (6.3 mm) TS Pedal Input
1 x 1/4" (6.3 mm) TRS Continuous Pedal Input
1 x 1/4" (6.3 mm) TRS Pedal Input
1 x 5-Pin MIDI Input
2 x 5-Pin MIDI Output
1 x USB Type-B Bus-Power/Host Connection/MIDI | | OS Compatibility | macOS 10
Windows | | | | Power Options | AC/DC Power Adapter (Included) | | AC/DC Power Adapter | 9 VAC at 1 A (Included) | | | | Display | Color LCD | | Dimensions (W x D x H) | 41.0 x 12.2 x 4.9" / 104.1 x 31.0 x 12.4 cm | | Weight | 25.3 lb / 11.5 kg | | | | Package Weight | 33.7 lb | | Box Dimensions (LxWxH) | 46.0 x 17.5 x 9.0" |
