User Manual for Stylophone GEN X-1 Portable Analog Synthesizer Click to enlarge the picture
Contents of the user manual for the Stylophone GEN X-1 Portable Analog Synthesizer
- Product category: Synthesizer Modules Stylophone
- Brand: Stylophone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Stylophone Synthesizer Modules
|
User manual for the Stylophone GEN X-1 Portable Analog Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Stylophone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Stylophone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Stylophone product will considerably shorten its lifespan!
|

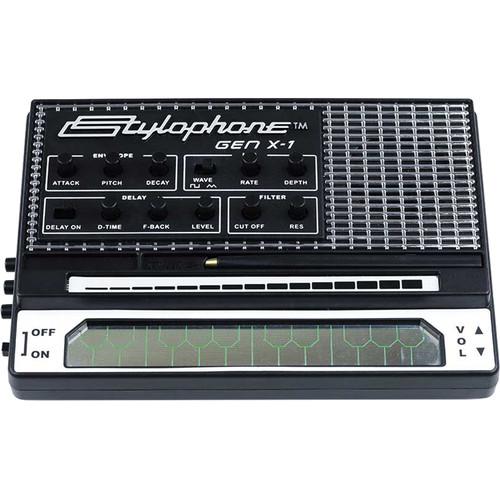

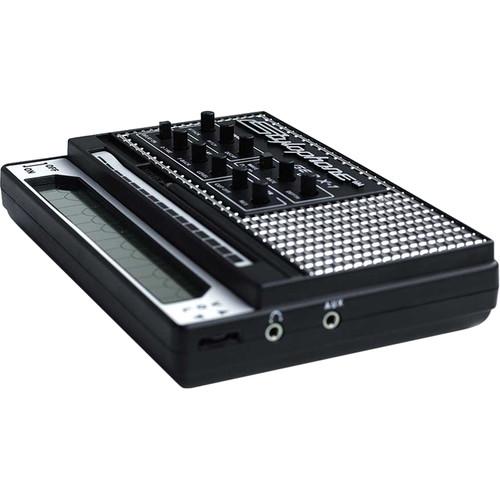

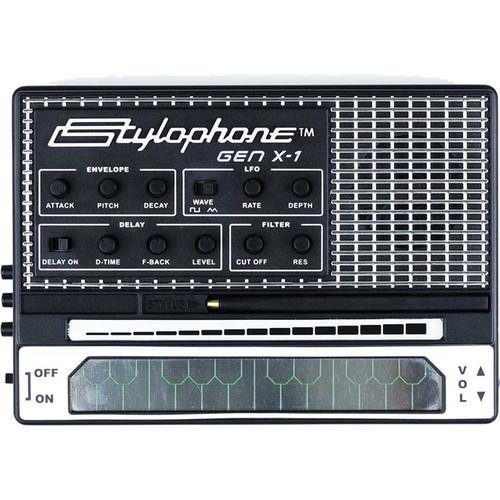

Product description The next generation Stylophone GEN X-1 is a retro-styled portable analog synthesizer, well suited for music enthusiasts, professional musicians, and producers, as well as anyone looking to create quirky beats or haunting melodies in the palm of their hand. The GEN X-1 features the classic retro design with a chromed grill, a nickel-plated keyboard played with a brass-tipped stylus, a soundstrip for sliding notes, and a built-in speaker. The instrument also features a 3.5mm line input and a 3.5mm headphone/line output. The GEN X-1 provides classic analog synthesizer controls including a square wave oscillator with a PWM button along with buttons to generate a sub-oscillator at either one or two octaves below the main tone. A low-pass filter with cutoff and resonance controls, an envelope generator with attack and decay controls, and an LFO with a triangle/square wave selector, rate, and depth controls are available to help you sculpt the sound. Additionally, the envelope section also offers pitch, allowing the Env circuit to shape the oscillator pitch over time. The analog delay section provides echo and features delay time (D-Time) to set the time between echoes, feedback (F-Back) for controlling the number of repeats, and a level (E-Level) control. Other notable features include a pitch dial for fine tuning the GEN X-1 to other instruments, and a trim dial for calibrating the instrument should the instrument's tuning drift. The Stylophone GEN X-1 is powered by four AA batteries (not included). -
- Playability:
- Keyboard: makes distinct notes with included stylus
- Sound Strip: slides between notes on a scale
- Portability:
- Battery operated
- Built-in speaker

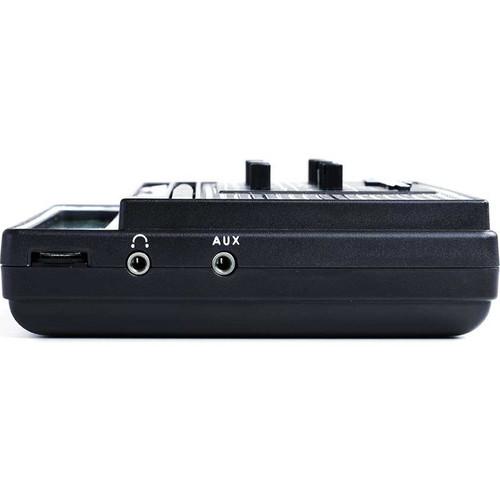

- Audio line out for headphones and/or external speaker.
- Analog Synth Features:
- LFO with square and triangle waves
- Low pass filter with cutoff and resonance controls
- Envelope attack, decay, and pitch controls

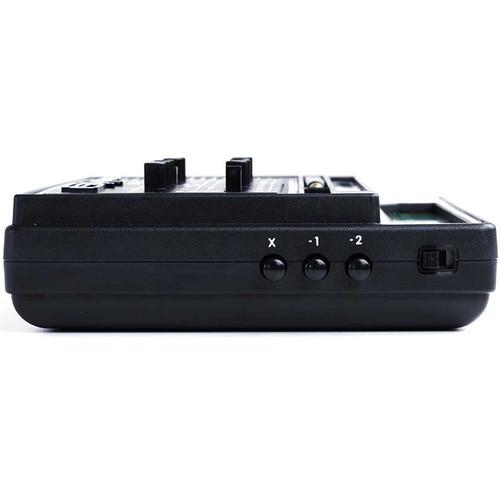

- Sub Octaves -1 & -2 Switch: adds a second frequency below source sound
- Pulse Width Modulation (PWM): button for creating a chorus-like effect
- Analog Delay:
- Delay time, feedback, and level
- Audio in to use as an effects unit
UPC: 634114002577 In the Box Stylophone GEN X-1 Portable Analog Synthesizer Stylus Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Stylophone GEN X-1 Portable Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStylophone Gen X-1 Portable Synth Specs Voice | Classic Analog Synthesizer | Interface | Nickel-Plated Keyboard Played with Brass-Tipped Stylus Soundstrip | Built-in Speaker | Yes | Controls | Envelope Attack Knob Release Knob Pitch Knob LFO Square/Triangle Wave Select Switch Rate Knob Depth Knob Low Pass Filter Cutoff Knob Resonance Knob PWM and Sub-Octave X (PWM) Button -1 Button -2 Button Tune Pitch Dial | Effects | Analog Delay | Headphone Jack | 1/8" / 3.5 mm | Audio Input | 1/8" / 3.5 mm | Power Requirement | 4 x AA batteries | Dimensions | 7.5 x 5.0 x 1.8" / 190.5 x 127.0 x 44.5 mm | Weight | 11.4 oz / 323.2 g | | Package Weight | 1.5 lb | Box Dimensions (LxWxH) | 16.0 x 12.5 x 9.0" |
