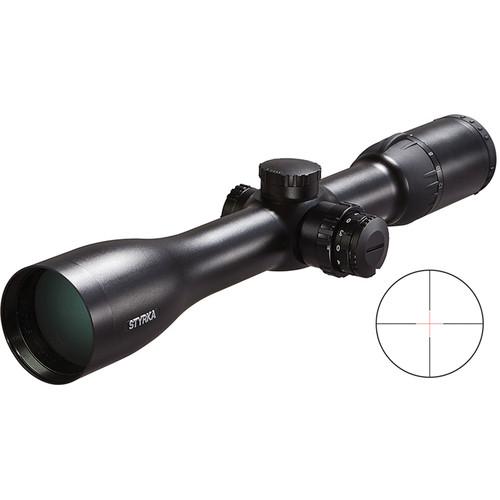

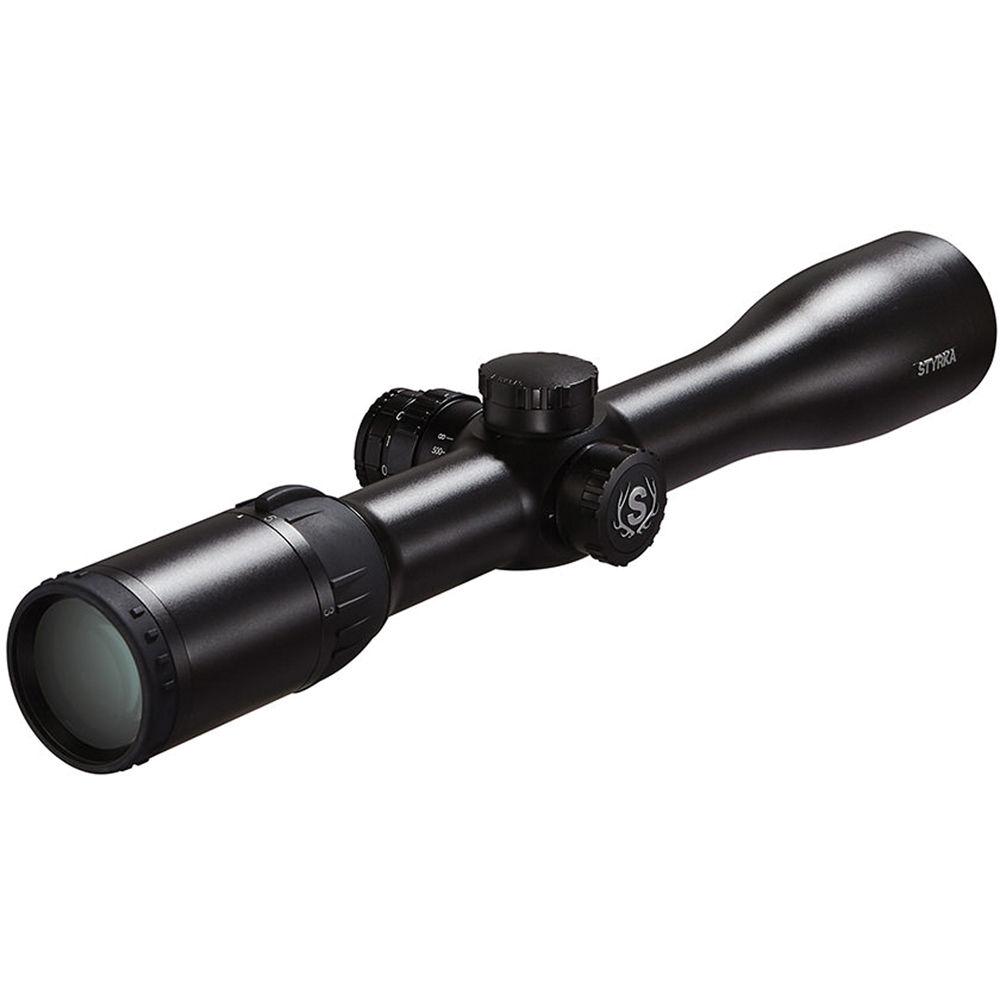

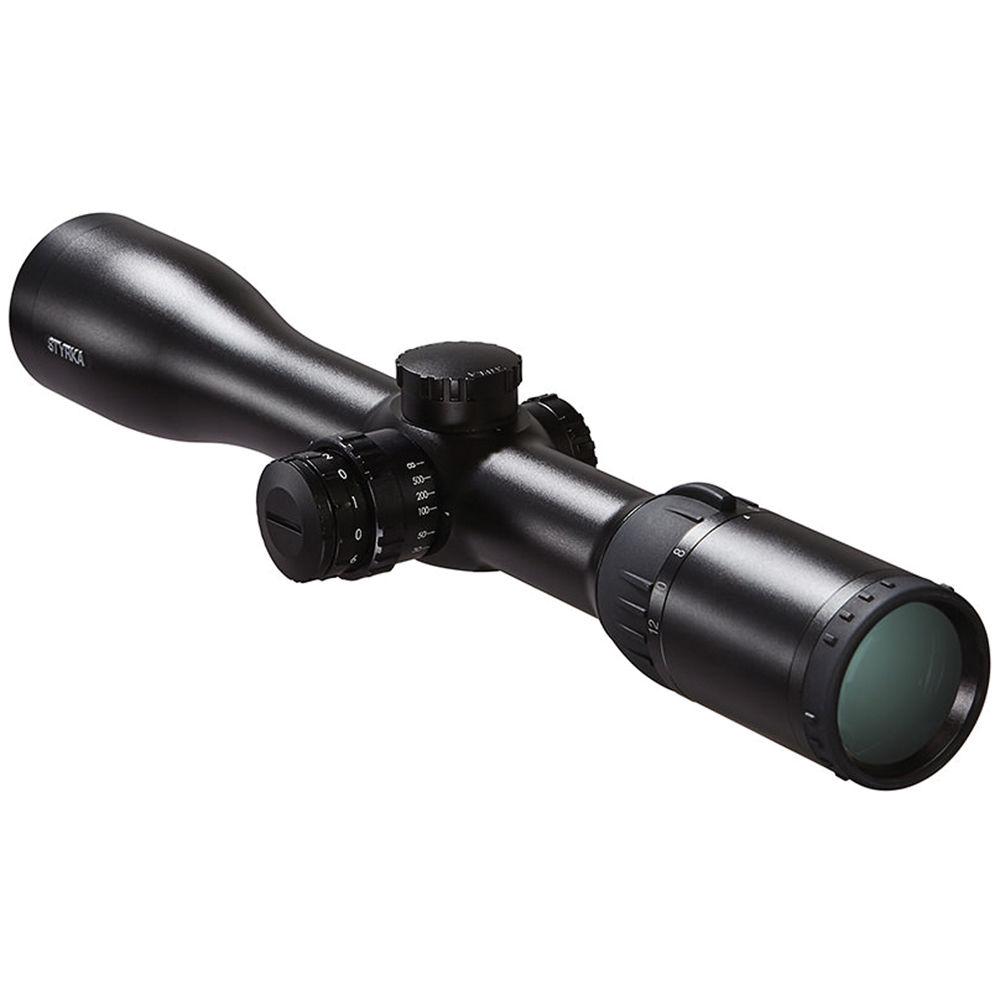

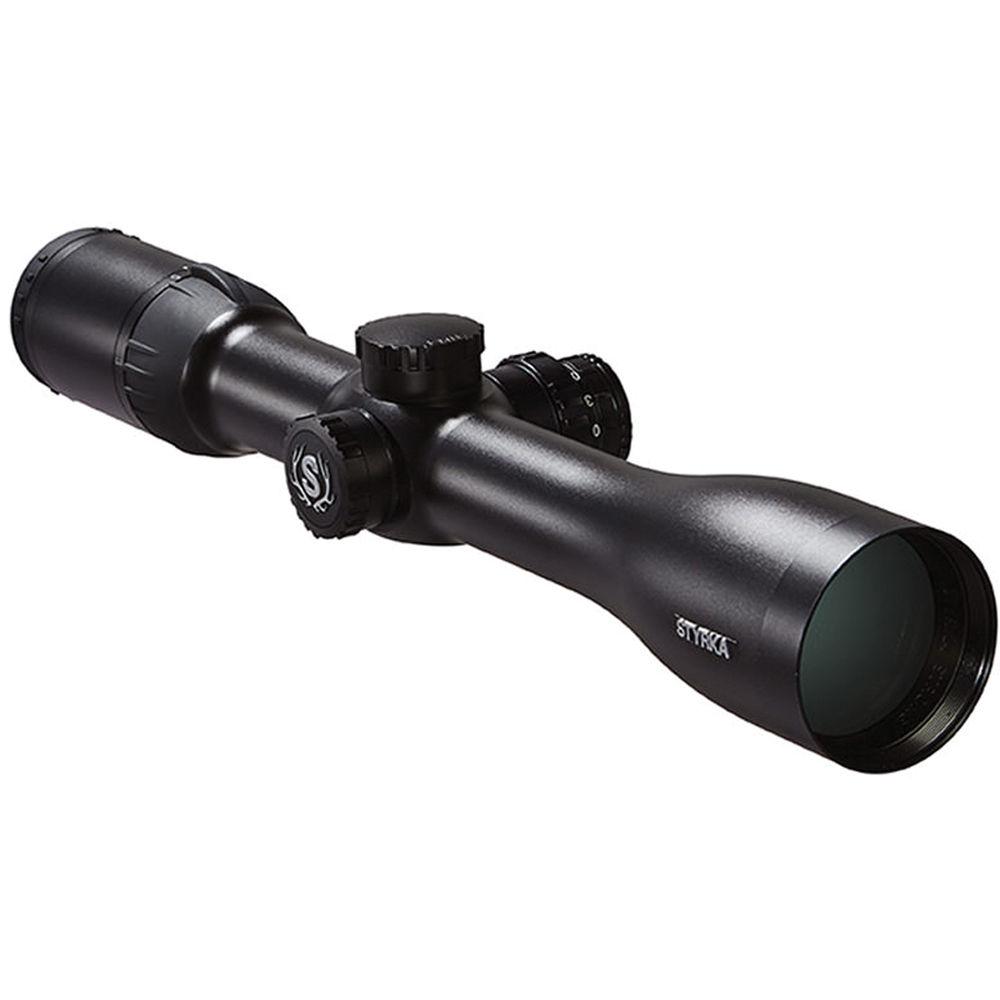

User Manual for Styrka 3-12x42 S7 Side Focus Parallax Riflescope Click to enlarge the picture
Contents of the user manual for the Styrka 3-12x42 S7 Side Focus Parallax
- Product category: Riflescopes Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Riflescopes
 |
User manual for the Styrka 3-12x42 S7 Side Focus Parallax contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|
Product description Delivering a compact, lightweight, and rock-solid optic with excellent performance, STYRKA's black semi-gloss 3-9x40 S3 Riflescope nails down all the main points while shedding off all the secondary ones. One definite highlight is STYRKA's proprietary SXL-MAX broadband anti-glare full multi-coatings, which increase transmission spectrum and improve true color, sharpness, and contrast. Bumping up image contrast and resolution to a new level of performance, the optical elements are designed with blackened edges to reduce unwanted rays that cause glare and speckles. Located in the 2nd focal plane is the graceful Illuminated Plex reticle with ultra-fine features that emphasize the scenery while also delivering precision and accuracy for target placement.
The housing design stands out of the ordinary as well - featuring a strong 6061-T6 aluminum alloy body with a 30mm single-piece maintube and a unique black semi-gloss finish. With the precision erector system, machined from brass, the scope delivers a high level of accuracy, precision, and repeatability between shots. It is purged and filled with nitrogen for fog proofing and sealed to provide a submersible waterproof performance, rated IPX7. To eliminate the parallax effect while aiming, this riflescope also features a Side Focus Parallax corrector knob. - Illuminated Plex Reticle
-

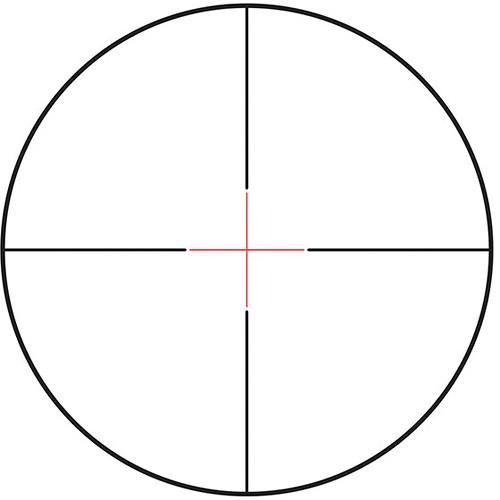

- 2nd focal plane
- Ultra-fine center crosshair with MOA subtensions
- At maximum magnification (12x):
- Crosshair is 0.16 MOA thick and 23.88 MOA wide
- Four long, fine tapered posts are 0.54 MOA thick
- 0.62 MOA gaps between the posts and the crosshair lines
- Brilliant red illumination with adjustable brightness
- Parallax-free performance from 10 yd to infinity
- Optical Performance
-
- 3 - 12x magnification
- 42mm objective lens diameter
- Styrka SXL-MAX Broadband Full Multi-Coating maximizes transmitted spectrum, true color, and contrast
- Blackened lens edges reduce glare and improve contrast
- Linear field of view: 34.6 - 8.4' at 100 yards
- Long eye relief of 3.9"
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm single-piece maintube
- Fast-focus eyepiece with low-profile lever
- Side Focus Parallax corrector knob
- Rubberized knurled eyecup and zoom ring provide a secure grip
- Machined brass erector system provides durability, accuracy, and repeatability
- Waterproof, submersible to 3.3' for 30 minutes

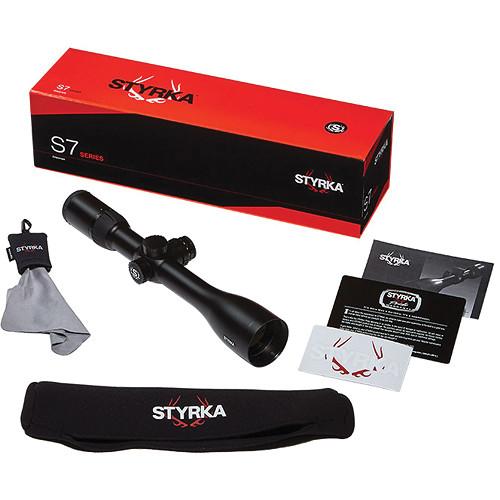

UPC: 889151950217 In the Box Styrka 3-12x42 S7 Side Focus Parallax Riflescope (Illuminated Plex Reticle, Semi-Gloss Black) - CR-2032 Battery
- Neoprene Scope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka 3-12x42 S7 Side Focus Parallax Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-95021 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 34.6' @ 100 yd / 11.5 m @ 100 m
12x: 8.4' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 3x: 12.7 mm
12x: 3.5 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof to 3.3' / 1 m, IPX7 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.9" / 32.8 cm
Height: 2.6" / 6.6 cm
Width: 2.2" / 5.6 cm | | Weight | 22 oz / 623.7 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 16.5 x 4.7 x 4.3" |
