Styrka 3-12x42 S7 Side Focus Parallax

Search your instruction manual in PDF to download

User Manual for Styrka 3-12x42 S7 Side Focus Parallax Riflescope

Click to enlarge the picture
Styrka 3-12x42 S7 Side Focus Parallax Riflescope Contents of the user manual for the Styrka 3-12x42 S7 Side Focus Parallax
  • Product category: Riflescopes Styrka
  • Brand: Styrka
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Styrka Riflescopes

Styrka 3-12x42 S7 Side Focus Parallax Riflescope Styrka 3-12x42 S7 Side Focus Parallax Riflescope Styrka 3-12x42 S7 Side Focus Parallax Riflescope Styrka 3-12x42 S7 Side Focus Parallax Riflescope
User manual for the Styrka 3-12x42 S7 Side Focus Parallax contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Styrka product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!



Product description

Delivering a compact, lightweight, and rock-solid optic with excellent performance, STYRKA's black semi-gloss 3-9x40 S3 Riflescope nails down all the main points while shedding off all the secondary ones. One definite highlight is STYRKA's proprietary SXL-MAX broadband anti-glare full multi-coatings, which increase transmission spectrum and improve true color, sharpness, and contrast. Bumping up image contrast and resolution to a new level of performance, the optical elements are designed with blackened edges to reduce unwanted rays that cause glare and speckles. Located in the 2nd focal plane is the graceful STYTKA Hunting (SH-BDC) Reticle reticle with ultra-fine features that emphasize the scenery while also delivering precision and accuracy for target placement. The reticle is designed for hunting from 100 to 600 yard ranges and has a full-field thin crosshair and ballistic and wind holdover lines. It is compatible with the STYRKA ballistic calculator, which allows users to use complex personalized firearm and ammunition data to generate precise calculations to predict trajectories. The calculator is available as an App for iOS or Android mobile devices as well as in a web-based form for use on desktop computers.

The housing design stands out of the ordinary as well - featuring a strong 6061-T6 aluminum alloy body with a 30mm single-piece maintube and a unique black semi-gloss finish. With the precision erector system, machined from brass, the scope delivers a high level of accuracy, precision, and repeatability between shots. It is purged and filled with nitrogen for fog proofing and sealed to provide a submersible waterproof performance, rated IPX7. To eliminate the parallax effect while aiming, this riflescope also features a Side Focus Parallax corrector knob.

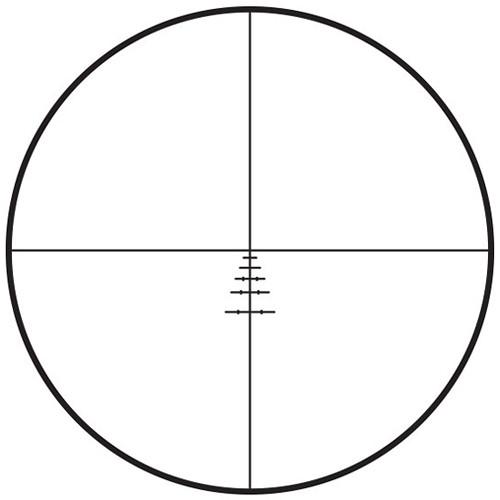

    STYTKA Hunting (SH-BDC) Reticle Reticle
    • 2nd focal plane
    • For hunting from 100 to 600 yards
    • Full-field thin crosshair
    • Horizontal holdover bars for ballistics and wind
    • Wind lines have half-wind hold hashes
    • Compatible with STYRKA Ballistic Calculator
    • Parallax-free performance from 10 yd to infinity
      Optical Performance
      • 3 - 12x magnification
      • 42mm objective lens diameter
      • Styrka SXL-MAX Broadband Full Multi-Coating maximizes transmitted spectrum, true color, and contrast
      • Blackened lens edges reduce glare and improve contrast
      • Linear field of view: 34.6 - 8.4' at 100 yards
      • Long eye relief of 3.9"
        Use and Handling
        • 1/4 MOA impact point correction
        • 60 MOA windage and elevation adjustment range
          Construction Details
          • 6061-T6 aluminum housing
          • 30mm single-piece maintube
          • Fast-focus eyepiece with low-profile lever
          • Side Focus Parallax corrector knob
          • Rubberized knurled eyecup and zoom ring provide a secure grip
          • Machined brass erector system provides durability, accuracy, and repeatability
          • Waterproof, submersible to 3.3' for 30 minutes
          UPC: 889151950255 In the Box Styrka 3-12x42 S7 Side Focus Parallax Riflescope (SH-BDC Reticle, Semi-Gloss Black)
        • Neoprene Scope Cover
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Styrka 3-12x42 S7 Side Focus Parallax Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Styrka ST-95025 Specs

Magnification 3 to 12x
Objective Lens Diameter 42 mm
Field of View 3x: 34.6' @ 100 yd / 11.5 m @ 100 m
12x: 8.4' @ 100 yd / 2.8 m @ 100 m
Exit Pupil Diameter 3x: 12.7 mm
12x: 3.5 mm
Eye Relief 3.9" / 99 mm
Reticle Type SH-BDC Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Windage Adjustment 60 MOA
Elevation Adjustment 60 MOA
Parallax Correction Yes, 10 yd / 9.1 m to Infinity
Water Resistance Waterproof to 3.3' / 1 m, IPX7
Fogproof Yes, Nitrogen Filled
Maintube Diameter 30 mm
Battery None
Dimensions Length: 12.9" / 32.8 cm
Height: 2.6" / 6.6 cm
Width: 2.2" / 5.6 cm
Weight 21.4 oz / 606.7 g
