Styrka 3-9x40 S3 Riflescope

Search your instruction manual in PDF to download

User Manual for Styrka 3-9x40 S3 Riflescope

Click to enlarge the picture
Styrka 3-9x40 S3 Riflescope Contents of the user manual for the Styrka 3-9x40 S3 Riflescope
  • Product category: Riflescopes Styrka
  • Brand: Styrka
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Styrka Riflescopes

Styrka 3-9x40 S3 Riflescope Styrka 3-9x40 S3 Riflescope Styrka 3-9x40 S3 Riflescope Styrka 3-9x40 S3 Riflescope
User manual for the Styrka 3-9x40 S3 Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Styrka product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!



Product description

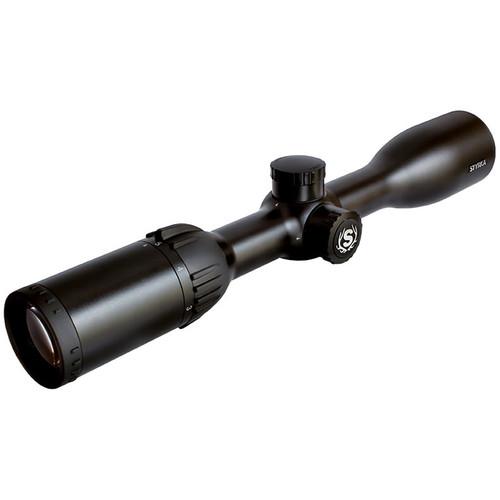

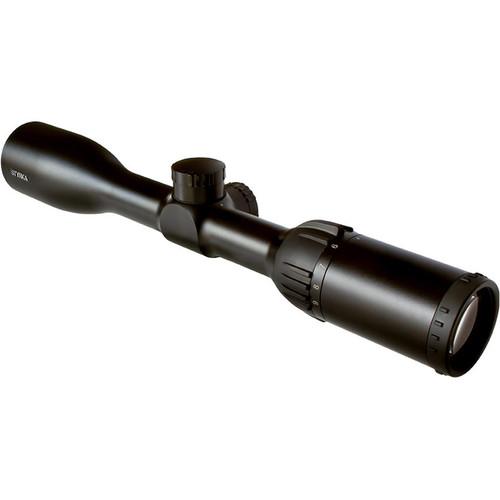

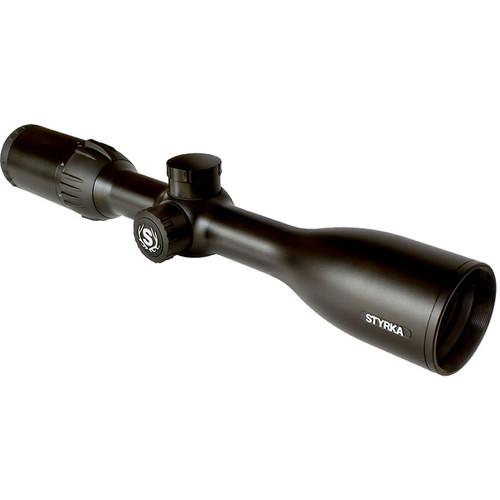

Delivering a compact, lightweight, and rock-solid optic with excellent performance, STYRKA's black semi-gloss 3-9x40 S3 Riflescope nails down all the main points while shedding off all the secondary ones. The optical system features their proprietary STYRKA SXL anti-glare multi-coatings that maximize transmission and improve color, sharpness, and contrast. Bumping up image contrast and resolution to a new level of performance, the optical elements are engineered with blackened edges to help reduce unwanted rays that cause glare and speckles. Located in the 2nd focal plane is the graceful STYTKA Hunting (SH-BDC) reticle with ultra-fine features that emphasize the scenery while also delivering precision and accuracy for target placement. The reticle is designed for hunting from 100 to 600 yard ranges and offers a full-field, thin crosshair and ballistic with wind holdover lines. It is compatible with the STYRKA ballistic calculator, which allows users to use complex, personalized firearm and ammunition data to generate precise calculations to predict trajectories. The calculator is available as an App for iOS or Android mobile devices as well as in a web-based form for use on desktop computers.
The housing design stands out of the ordinary as well - featuring a strong, 6061-T6 aluminum alloy body with a 1" single-piece maintube and a unique semi-glossed black finish. With the precision erector system, the scope delivers a high level of accuracy, precision, and repeatability between shots. It is purged and filled with nitrogen for fog proofing and sealed to provide a submersible waterproof performance, rated IPX7.

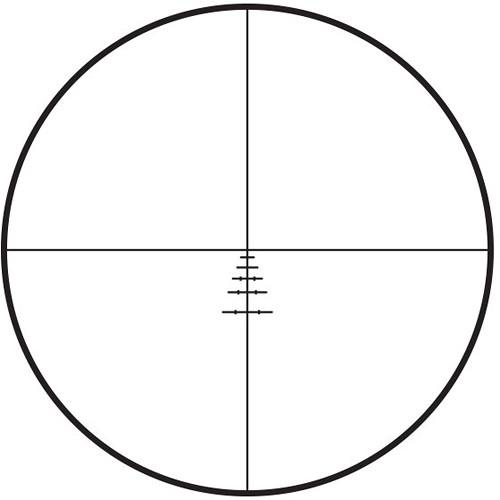

    STYTKA Hunting (SH-BDC) Reticle
    • 2nd focal plane location
    • For hunting from 100 to 600 yards
    • Full-field thin crosshair
    • Horizontal holdover bars for ballistics and wind
    • Wind lines have half-wind hold hashes
    • Compatible with STYRKA Ballistic Calculator
    • Provides values for specific firearms, ammo, and other variables
    • Parallax-free at 100 yd
      Optical Performance
      • 3 - 9x magnification
      • 40mm objective lens diameter delivers bright images in most lighting conditions
      • Styrka SXL Full Multi-Coating improve brightness, color, sharpness, and contrast
      • Blackened lens edges reduce glare and improve contrast
      • Linear field of view: 37.2 - 12.3' at 100 yards
      • Long eye relief of 4.4 - 3.8"
        Use and Handling
        • 1/4 MOA impact point correction
        • 60 MOA windage and elevation adjustment range
          Construction Details
          • 6061-T6 aluminum housing
          • 1" single-piece diameter
          • Fast-focus eyepiece with low-profile lever
          • Rubberized knurled eyecup and zoom ring provide a secure grip
          • Precision erector system provides more holding force to withstand recoil
          • IPX7-rated, submersible to 3.3' for 30 minutes
          UPC: 889151910211 In the Box Styrka 3-9x40 S3 Riflescope (SH-BDC Reticle, Semi-Gloss Black)
        • Neoprene Scope Cover
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Styrka 3-9x40 S3 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Styrka ST-91021 Specs

Magnification 3 to 9x
Objective Lens Diameter 40 mm
Field of View 3x: 37.7' @ 100 yd / 12.6 m @ 100 m
9x: 12.3' @ 100 yd / 4.1 m @ 100 m
Exit Pupil Diameter 3x: 13.3 mm
9x: 4.4 mm
Eye Relief 3.8 to 4.4" / 97 to 111 mm
Reticle Type SH-BDC Reticle (Second Focal Plane)
Impact Point Correction 1/4 MOA per Click
Windage Adjustment 60 MOA
Elevation Adjustment 60 MOA
Parallax Correction Yes, 100 yd / 91.4 m
Water Resistance Waterproof to 3.3' / 1 m, IPX7
Fogproof Yes, Nitrogen Filled
Maintube Diameter 1"
Battery None
Dimensions Length: 12.3" / 31.2 cm
Width: 2.2" / 5.6 cm
Height: 2.2" / 5.6 cm
Weight 17.4 oz / 493.3 g
