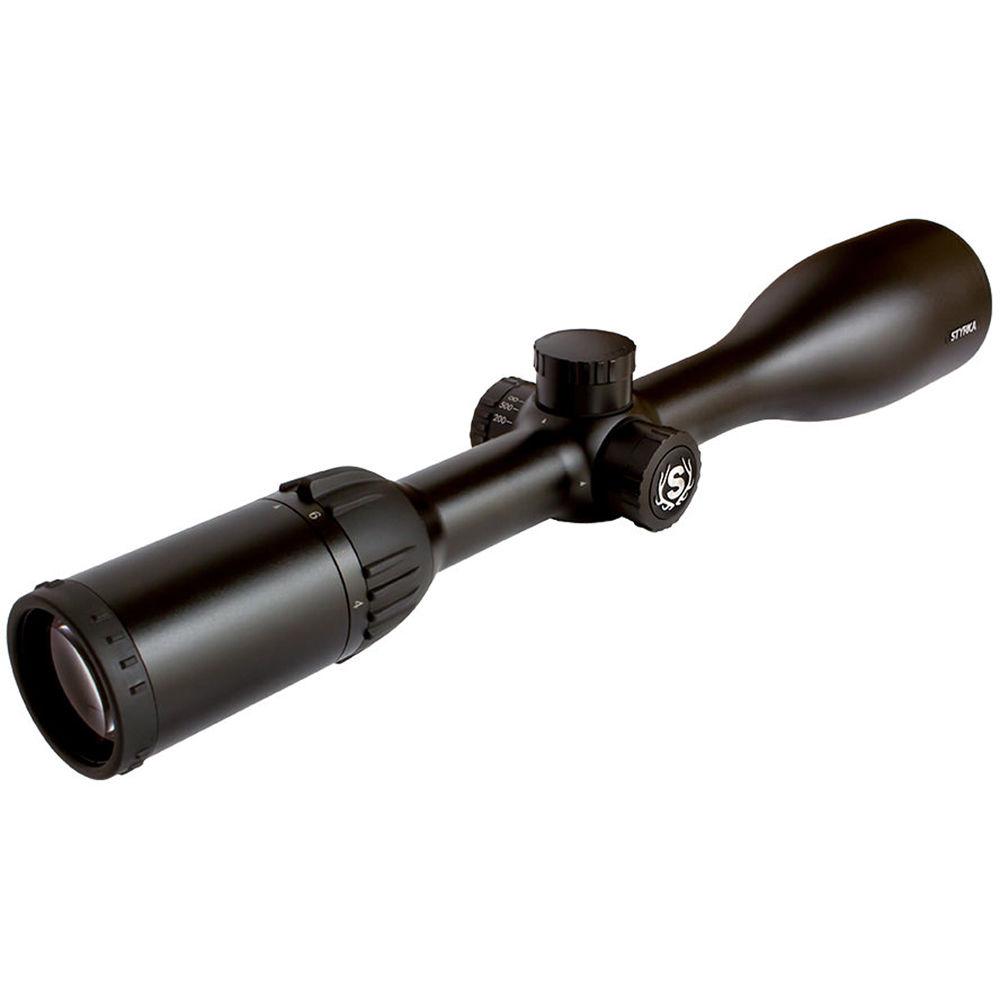

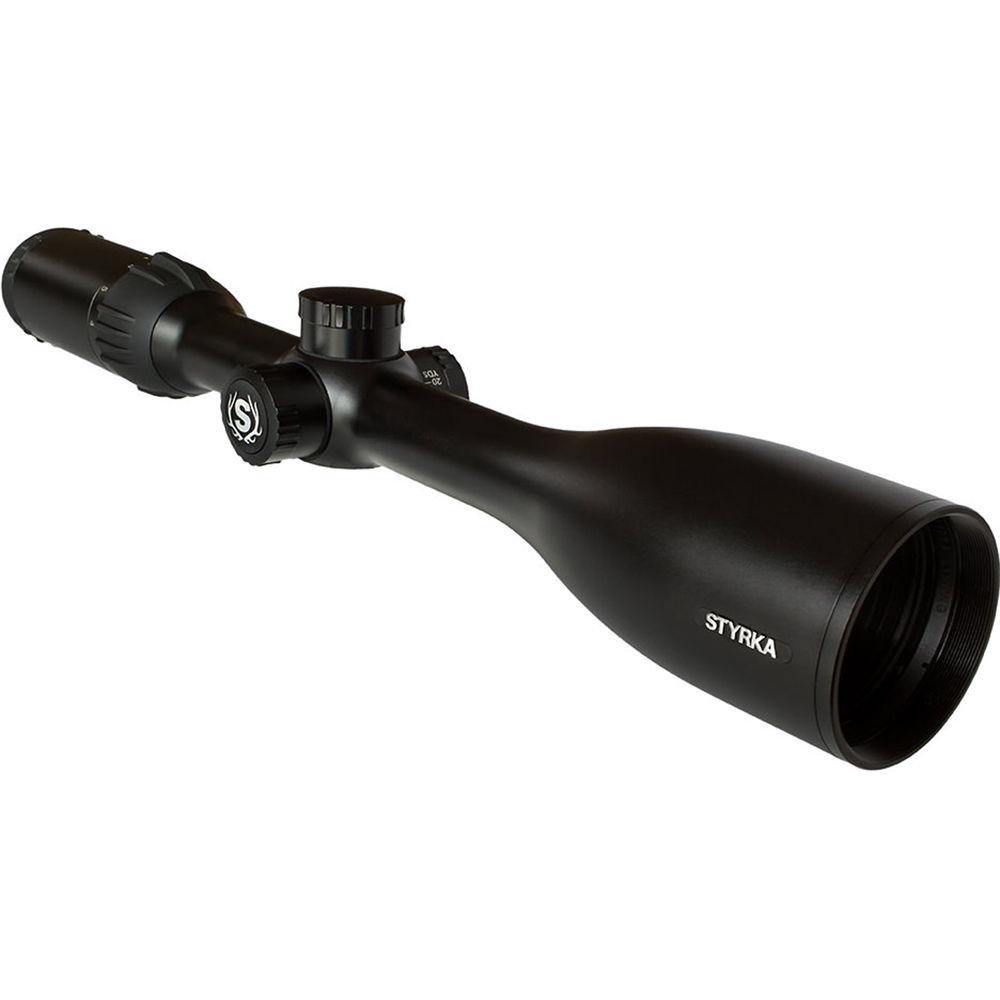

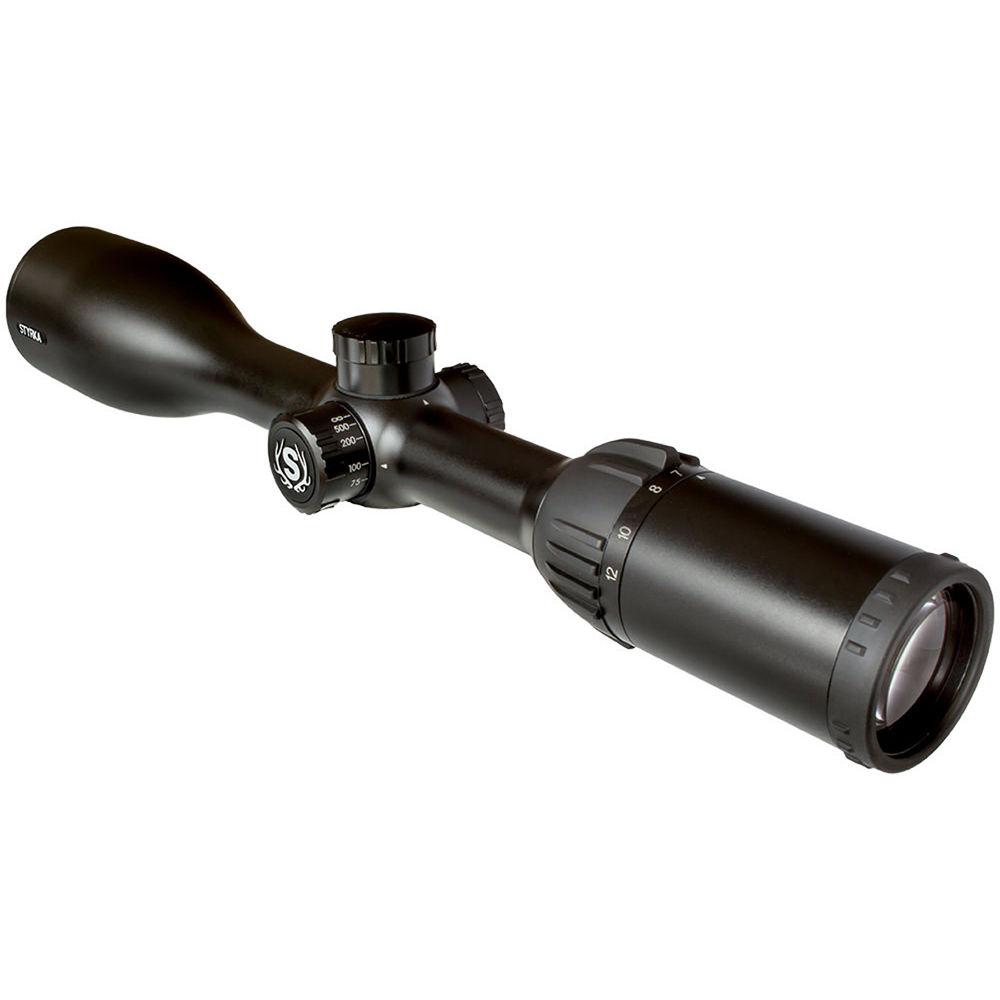

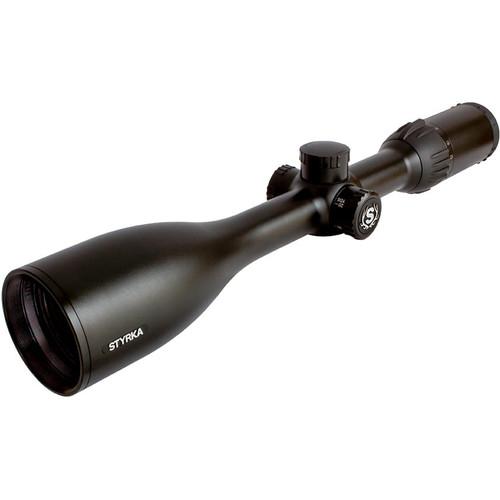

Product description Delivering a compact, lightweight, and rock-solid optic with excellent performance, STYRKA's black semi-gloss 3-9x40 S3 Riflescope nails down all the main points while shedding off all the secondary ones. One of the central highlights of the optical system is the proprietary STYRKA SXL anti-glare multi-coating that maximizes transmission and improves color, sharpness, and contrast. Bumping up image contrast and resolution to a new level of performance, the optical elements are engineered with blackened edges to help reduce unwanted rays that cause glare and speckles. You can also push the limits and extend your activities beyond daylight hours, thanks to the wide, 50mm objective that is designed for challenging lighting conditions. Located in the 2nd focal plane is the graceful Plex reticle with ultra-fine features that emphasize the imagery while also delivering precision and accuracy for target placement.

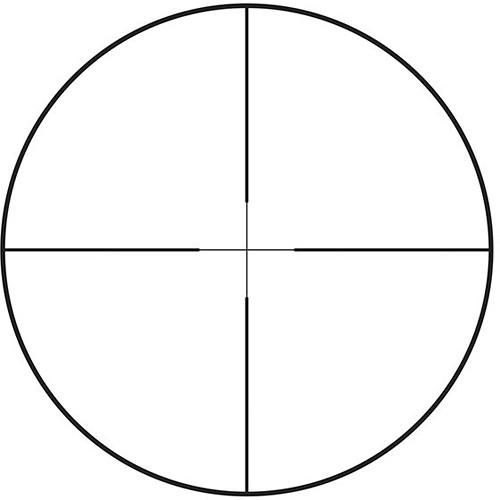

The housing design stands out of the ordinary as well - featuring a strong, 6061-T6 aluminum alloy body with a 1" single-piece maintube and a gleaming unique black semi-gloss finish. With the precision erector system, this scope delivers a high level of accuracy, precision, and repeatability between shots. It is purged and filled with nitrogen for fog proofing and sealed to provide a submersible waterproof performance, rated IPX7. - Plex Reticle
-
- 2nd focal plane
- Ultra-fine center crosshair
- Four long, fine tapered posts
- Parallax-free operation from 20 yd to infinity
- Optical Performance
-
- 4- 12x magnification
- 50mm objective diameter delivers brightest images possible in low-light conditions
- Styrka SXL Full Multi-Coating improve brightness, color, sharpness, and contrast
- Blackened lens edges reduce glare and improve contrast
- Linear field of view: 26.8 - 8.8' at 100 yards
- Long eye relief of 4.1 - 3.9"
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
- Construction Details
-
- 6061-T6 aluminum housing
- 1" single-piece maintube
- Side focus parallax corrector knob
- Fast-focus eyepiece with low-profile lever
- Rubberized knurled eyecup and zoom ring provide a secure grip
- Precision erector system provides accuracy
- IPX7-rated, submersible to 3.3' for 30 minutes
UPC: 889151910402 In the Box Styrka 4-12x50 S3 Side Focus Parallax Riflescope (Plex Reticle, Semi-Gloss Black) - Neoprene Scope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka 4-12x50 S3 Side Focus Parallax Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-91040 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 26.8' @ 100 yd / 8.9 m @ 100 m
12x: 8.8' @ 100 yd / 2.9 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
12x: 4.2 mm | | Eye Relief | 3.9 to 4.1" / 99 to 104 mm | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 20 yd / 18.3 m to Infinity | | | | Water Resistance | Waterproof to 3.3' / 1 m, IPX7 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 14" / 31.2 cm
Width: 2.5" / 6.4 cm
Height: 2.3" / 5.8 cm | | Weight | 21.1 oz / 598.2 g |
