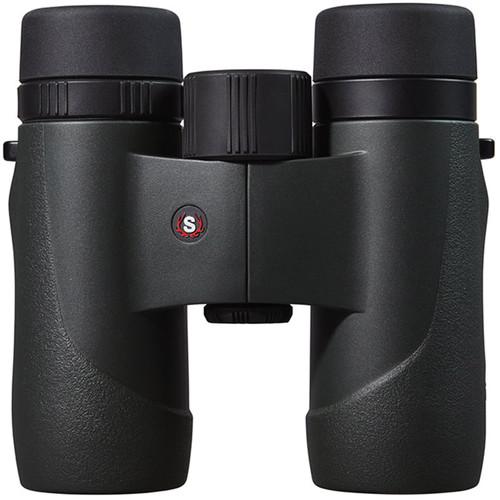

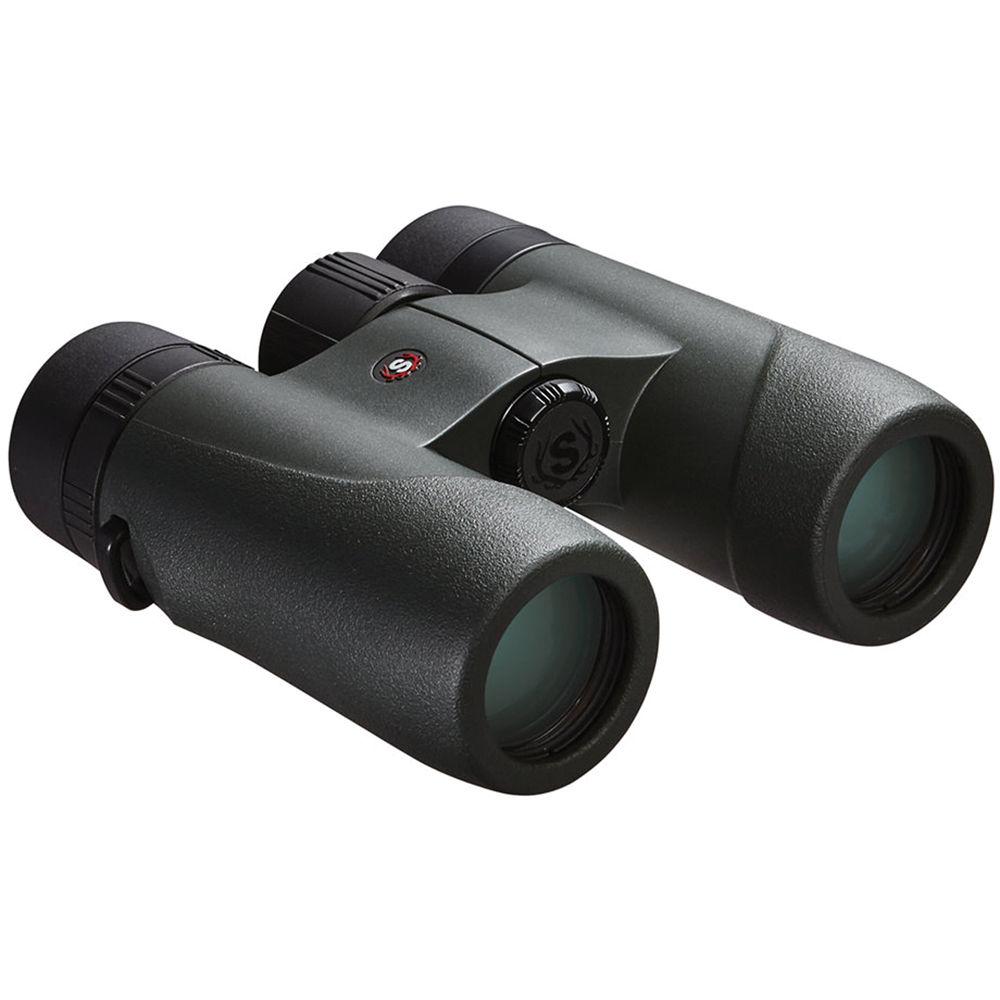

User Manual for Styrka 8x30 S7-Series Binocular Click to enlarge the picture
Contents of the user manual for the Styrka 8x30 S7-Series Binocular
- Product category: Binoculars Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Binoculars
 |
User manual for the Styrka 8x30 S7-Series Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Engineered with a compact form factor without compromising critical optical performance, Styrka designed their 8x30 S7-Series Binocular as an instrument that combines optical performance with rugged construction to give hunters a valuable advantage in all weather and lighting conditions without bogging them down. Styrka employs multiple technologies to overcome the intrinsic issues common on smaller objective binoculars to produce bright, crisp and clear images with accurate color representation not normally associated with compact optics of this size.First, they use extra-low dispersion (ED) glass elements and phase-corrected BAK4 roof prisms. This combination corrects chromatic aberration for rich and true color rendition. To increase light transmission, and enhance image brightness and contrast, are fully multicoated optics using the proprietary SXL-MAX anti-reflection coatings and dielectric prism coatings. The optical coatings are engineered to maximize light transmission across the entire visible spectrum which further increases the color accuracy, while the prism coatings reduce light loss through them to virtually zero. Its 8x magnification provides users with a larger field of view and angle of view over higher-power binoculars for a more immersive viewing experience, while the smaller objectives keep the size and weight down so as not to be overly cumbersome during a long day with a pack of full gear.Complimenting their optical performance are construction details that make it an ideal companion in all weather and conditions. The housing is nitrogen filled to make them fogproof with extreme changes in temperatures, and O-ring sealed to give them an IPX7 rating allowing them to be submerged to a depth of 3.3' for up to 30 minutes. Rugged armoring protects the binocular from drops and impacts while providing a slip-resistant grip - especially in cold and wet weather. A large center focusing wheel enables precise control even while wearing gloves, and tethered objective covers and ocular rainguard ensure that you won't lose them in the field during use. - Optical Performance
-
- 8x magnification
- 30mm objectives
- BAK4 roof prism optical path
- Extra-low dispersion (ED) optical glass provides tack-sharp images and enhanced color correction while increasing clarity in low-light conditions
- Highly reflective dielectric prism coatings increase contrast and light transmission
- Phase-corrected prisms improve image quality and color rendition
- Broadband fully multicoated optics with SXL-MAX anti-reflective coatings to increase image brightness, sharpness and contrast with true color rendition across the entire visible spectrum
- 436' field of view at 1000 yd
- Wide 66° apparent angle of view
- Use and Handling
-
- Closed bridge configuration
- Large ribbed center focus wheel
- ±4 right-eye dioptric correction
- Twist-up rubber eyecups
- 56-73mm interpupillary distance
- 15.1mm long eye relief
- 3.75mm exit pupil
- Construction Details
-
- Rubber armoring provides external protection and a secure grip
- IPX7-rated and nitrogen-filled for water and fogproof performance
- Submersible to 3.3' for up to 30 minutes
- Tethered objective lens covers and ocular rainguard
- Tripod mountable with optional adapter
- Weight: 17 oz

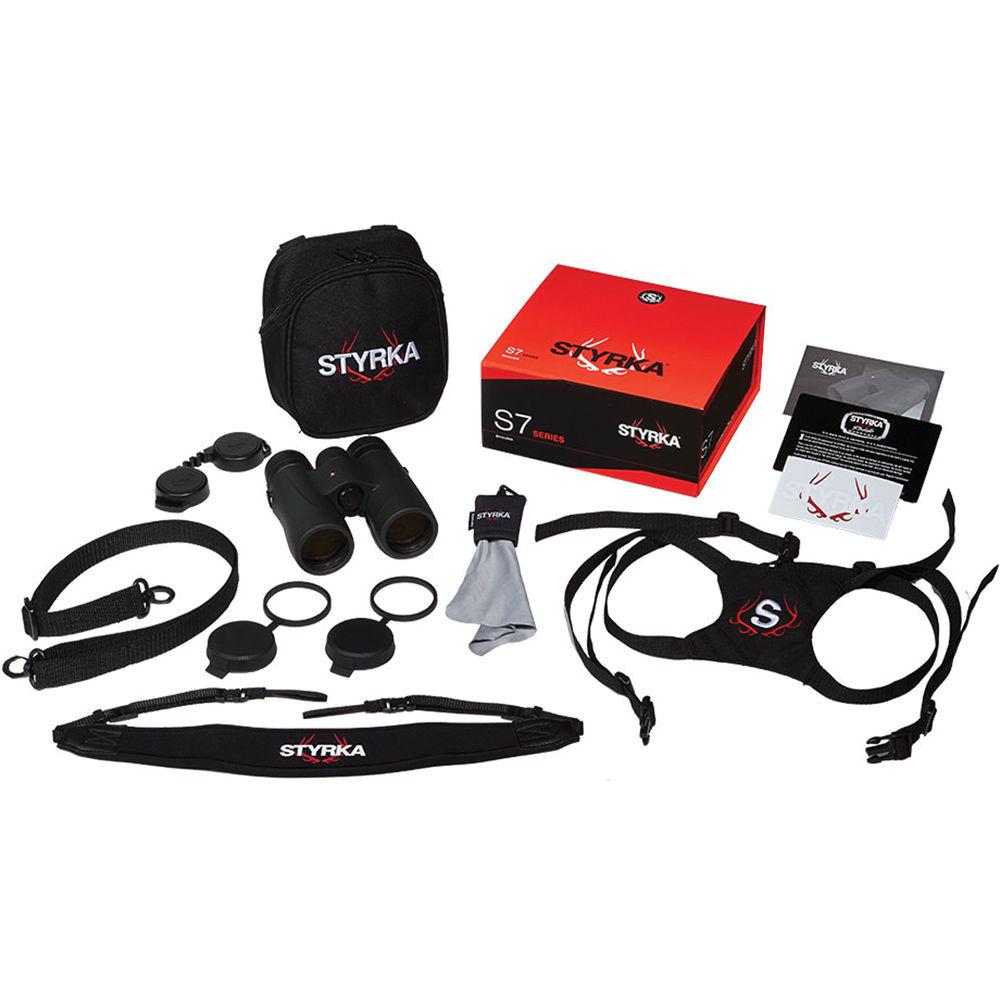

UPC: 889151355203 In the Box Styrka 8x30 S7-Series Binocular 2 x Tethered Objective Lens Covers Tethered Ocular Rainguard Padded Neck Strap Lens Cleaning cloth Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 549.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka 8x30 S7-Series Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-35520 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 30 mm | | Angle of View | 8.3° (actual) | | Field of View | 435.7' @ 1000 yd / 145.2 m @ 1000 m | | Minimum Focus Distance | 52.8' / 16.1 m | | Exit Pupil Diameter | 3.75 mm | | Eye Relief | 15.1 mm | | Interpupillary Adjustment | 8.7 to 11.3 mm / 22 to 28.7" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.6 x 4.8 x 1.2" / 11.7 x 12.2 x 3.0 cm | | Weight | 17.0 oz / 482.0 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 8.4 x 7.8 x 3.8" |
