User Manual for Styrka 8x42 S3-Series Binocular Click to enlarge the picture
Contents of the user manual for the Styrka 8x42 S3-Series Binocular
- Product category: Binoculars Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Binoculars
 |
User manual for the Styrka 8x42 S3-Series Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|

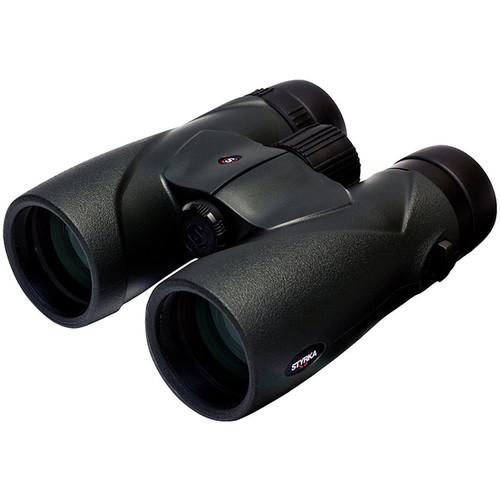

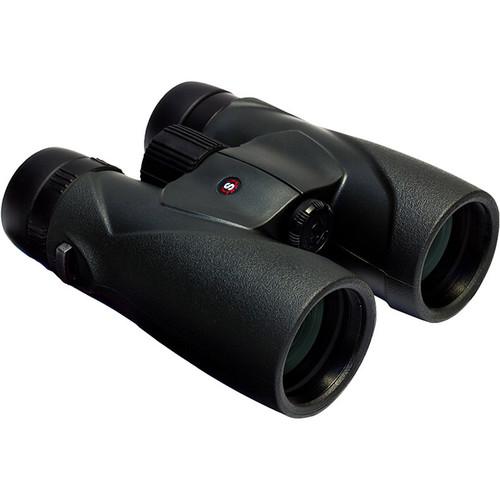

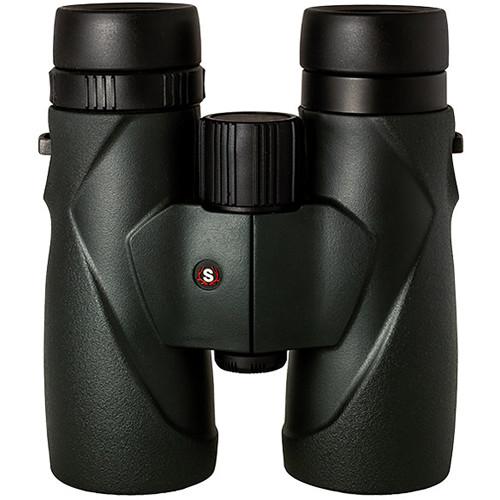

Product description The B&H Binocular Buying Guide Read More Styrka's 8x42 S3-Series Binocular is engineered with complementary technologies to produce an optic that is built to perform in the harshest conditions. Its BAK4 roof prisms are phase-corrected and dielectric coated which limit internal light loss and diffraction, reduce chromatic aberration and halos, while improving image contrast. The optical path is fully multi-coated with their proprietary SXL anti-reflection coatings to further increase light transmission, image contrast and sharpness, and provide true color rendition. This all translates to bright and clear high-contrast images with accurate color across the entire wide field of view. The wide view, combined with the moderate magnification, produces an expansive and immersive observational experience.To hold up to a lifetime of outdoor use, the optical tubes are nitrogen-filled and O-ring sealed to make them not only fogproof when moving between extreme temperatures, but also waterproof and submersible to 3.3' for up to 30-minutes. The exterior has black rubberized armor that protects against knocks and drops, and offers a slip-resistant grip for sure handling in cold and wet conditions. Styrka includes a one-piece ocular rainguard and tethered objective lens covers, plus a binocular harness that keeps the binocular close to the body while moving to eliminate snags and swing, and relieve neck strain by redistributing the weight to the shoulders. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- Proprietary anti-reflection SXL fully multi-coated optics improve light transmission, color fidelity, and image contrast
- Phase-corrected prism coatings increase contrast while eliminating color fringing and halos
- Dielectric coated prisms reduce internal light diffraction and improve light transmission through the prismatic light path
- 425' field of view at 1000 yards
- Wide 65° apparent angle of view
- Long 17.2mm eye relief
- Comfortable 5.25mm exit pupil
- Use and Handling
-
- Closed-bridge configuration
- Large center focusing wheel
- ±4 right-eye dioptric correction
- 56-75mm interpupillary adjustment range
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Slip resistant black rubberized armoring
- Nitrogen-filled provide fogproof performance when moving between extreme temperature changes
- IPX7-rated, O-ring sealed to be submersible to 3.3' (1m) for 30 minutes
- Includes 1-piece ocular rainguard and two tethered objective lens covers
- Weight: 24.7 ounces
UPC: 889151333102 In the Box Styrka 8x42 S3-Series Binocular (Black) Lens Cloth Styrka Sticker Binocular Harness Padded Neck Strap Carrying Case with Strap One-Piece Ocular Rainguard 2 x Tethered Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 yfxcufbsvuybrydfzabqzzvda Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka 8x42 S3-Series Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-33310 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 8.1° (actual) | | Field of View | 425.2' @ 1000 yd / 141.7 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 17.2 mm | | Interpupillary Adjustment | 56 to 75 mm / 2.2 to 3" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.6 x 5.0 x 2.2" / 14.2 x 12.7 x 5.6 cm | | Weight | 24.7 oz / 700.2 g |
