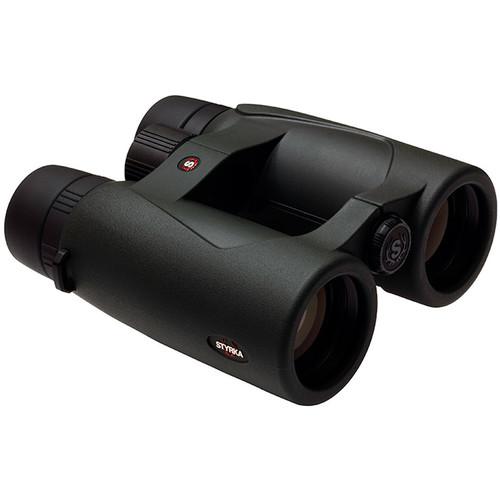

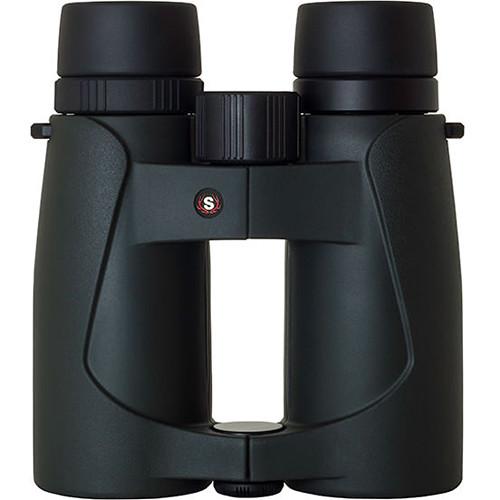

User Manual for Styrka 8x42 S9-Series ED Binocular Click to enlarge the picture
Contents of the user manual for the Styrka 8x42 S9-Series ED Binocular
- Product category: Binoculars Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Binoculars
 |
User manual for the Styrka 8x42 S9-Series ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Styrka's flagship optic series, the 8x42 S9-Series ED Binocular is engineered with complementary technologies to produce and optic that is built to perform well in low-light conditions and in the harshest environments. First is the use of extra low-dispersion (ED) glass in the lens elements to correct chromatic and spherical aberrations. Next are high-density glass SK15 roof prisms that have a high refractive index that limits internal light diffraction to boost contrast and brightness. The prisms are also phase-corrected and dielectric coated, which further limit internal light loss and diffraction, improving image contrast. The optical path is fully multi-coated with their proprietary SXL-MAX anti-reflection coatings which increase light transmission, image contrast and sharpness, and provide true color rendition. This all translates to an immersive observational experience showing bright and clear high-contrast images with accurate color across the entire wide field of view - especially at low light such as dawn and dusk, and heavily overcast skies.The chassis is built with an open-bridge/dual-hinge design which offers more gripping surface without sacrificing strength, and helps to reduce the overall weight. Made for a life outdoors, the optical tubes are nitrogen-filled and O-ring sealed to make them not only fogproof when moving between extreme temperatures, but also waterproof and submersible to 3.3' for up to 30-minutes. The exterior has black textured rubberized armor that protects against knocks and drops, and offers a slip-resistant grip for sure handling in cold and wet conditions. Styrka includes a one-piece ocular rainguard and tethered objective lens covers, plus a binocular harness that keeps the binocular close to the body while moving to eliminate snags and swing, and relieve neck strain by redistributing the weight to the shoulders. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- High-density SK15 roof prisms
- Extra low-dispersion glass reduces chromatic and spherical aberrations for increased contrast and improved color rendition and sharpness without distortion across the entire field of view
- High refractive index SK15 prism glass greatly reduces internal light reflection to increase clarity and contrast
- Proprietary broadband anti-reflection SXL-MAX fully multi-coated optics improve light transmission and color fidelity across the entire visual spectrum, and image contrast
- Phase-corrected prism coatings increase contrast, clarity, and sharpness
- Dielectric coated prisms reduce internal light diffraction and improve light transmission through the prismatic light path
- 394' field of view at 1000 yards
- Wide 60° apparent angle of view
- Long 18mm eye relief
- Wide 5.25mm exit pupil
- Use and Handling
-
- Open-bride/Dual-hinge configuration provides more gripping surface versus closed-bridge designs
- Large center focusing wheel
- ±3 right-eye dioptric correction
- 58-74mm interpupillary adjustment range
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction Details
-
- Open-bridge/Dual-hinge design reduces weight without sacrificing strength
- Slip-resistant black rubberized armoring
- Nitrogen-filled provide fogproof performance when moving between extreme temperature changes
- IPX7-rated, O-ring sealed to be submersible to 3.3' (1m) for 30 minutes
- Includes 1-piece ocular rainguard and two tethered objective lens covers
- Weight: 30 ounces
UPC: 889151399108 In the Box Styrka 8x42 S9-Series ED Binocular (Black) Lens Cloth Styrka Sticker Binocular Harness Padded Neck Strap Carrying Case with Strap One-Piece Ocular Rainguard 2 x Tethered Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka 8x42 S9-Series ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-39910 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 58 to 74 mm / 2.3 to 2.9" | | Dioptric Correction | ±3 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.0 x 5.1 x 2.4" / 15.2 x 12.9 x 6.1 cm | | Weight | 30.4 oz / 861.8 g |
