User Manual for Styrka S5 1.75-5x32 Riflescope Click to enlarge the picture
Contents of the user manual for the Styrka S5 1.75-5x32 Riflescope
- Product category: Riflescopes Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Riflescopes
 |
User manual for the Styrka S5 1.75-5x32 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|

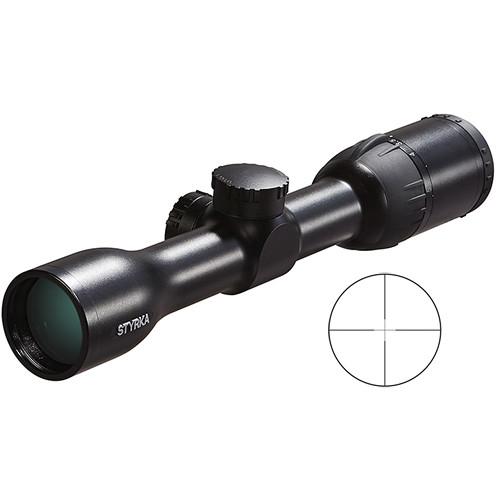

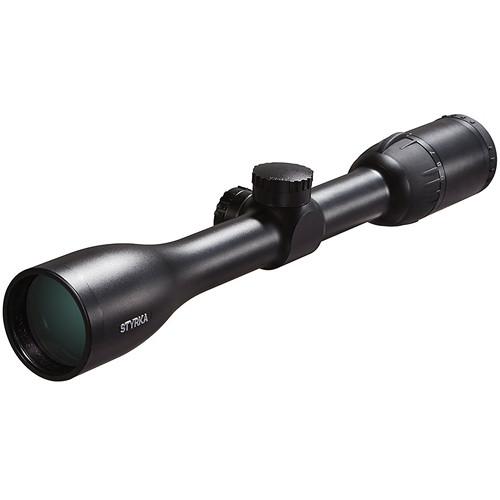

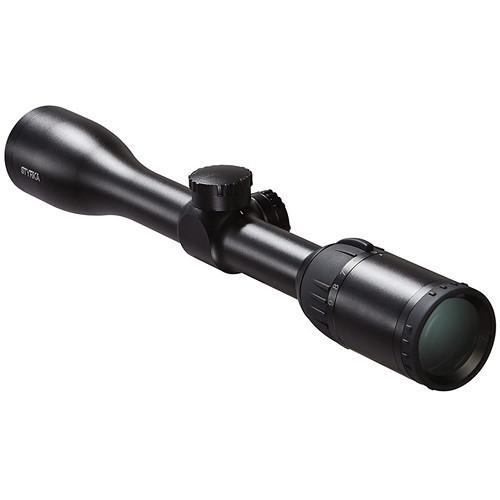

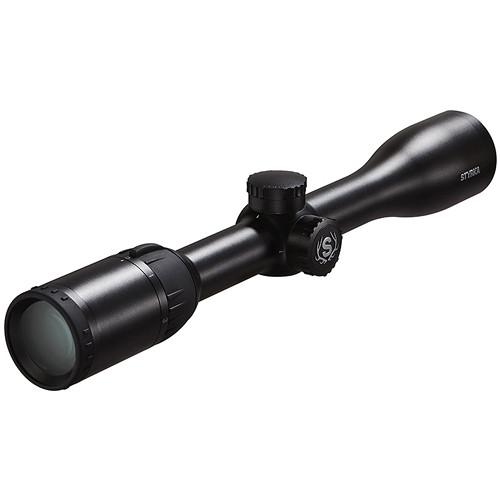

Product description The semi-gloss black S5 1.75-5x32 Riflescope from Styrka is designed for short-to-medium range shooting, and features fully multicoated optics and a Plex reticle. The proprietary SXL anti-glare coatings maximize light transmission and provide optimal color, sharpness and image contrast. In order to improve contrast and reduce stray light, the optical elements have their edges blackened. To help you compensate for wind drift and ballistic bullet drop, the scope offers 60 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction. Located in the second focal plane, the Plex reticle will remain the same in size as you change zoom factor.
The aluminum housing with semi-gloss finish is lightweight and durable, waterproof and fogproof> It features a 6061-T6 aluminum main tube and the erector system that is precision machined from premium brass to high level of maintain accuracy. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is purged with nitrogen gas and sealed. Also included with the riflescope are a lens cloth and a neoprene riflescope cover. Optical Performance -
- Fully multicoated elements
- SXL coatings improve transmission, optimize image color, sharpness, and contrast
- Magnification: 1.75-5x
- Objective lens: 32mm
- Linear field of view: 49-17' @ 100 yd
- Eye relief: 4.2"
- Blackened lens edges absorb stray light and improve contrast

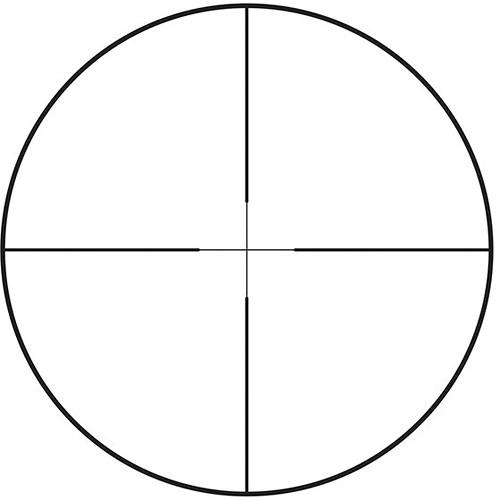

Plex Reticle -
- Second focal plane location allows keeping reticle size constant
- Width of center crosshair line: 19.5 MOA
- Thickness of fine center crosshair lines: 0.2 MOA
- Thickness of posts: 0.62 MOA
Use and Handling -
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
Construction Details -
- 1" 6061-T6 aluminum main tube with semi-gloss black finish
- Fast-focus eyepiece with low profile zoom lever allows a fast one-finger operation
- Rugged erector system provides more holding force to withstand recoil
- Fogproof, purged with nitrogen
- Waterproof, submersible to 3.3' for 30 minutes

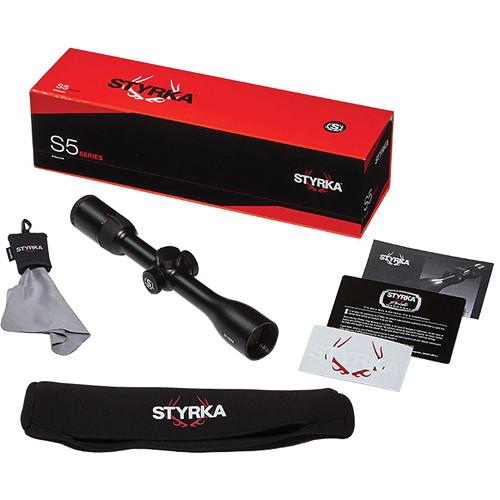

UPC: 889151930103 In the Box Styrka S5 1.75-5x32 Riflescope (Plex) - Protective Neoprene Scope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka S5 1.75-5x32 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-93010 Specs | | | Magnification | 1.75 to 5x | | Objective Lens Diameter | 32 mm | | Field of View | 1.8x: 49' @ 100 yd / 16 m @ 100 m
5x: 17' @ 100 yd / 5.6 m @ 100 m | | Exit Pupil Diameter | 1.75x: 15.7 mm
5x: 6 mm | | Eye Relief | 4.2" / 107 mm | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof to 3.3' / 1 m, IPX7 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 10.1" / 25.7 cm
Height: 2.1" / 5.3 cm
Width: 2" / 5.1 cm | | Weight | 15.7 oz / 445 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 16.5 x 4.7 x 4.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
