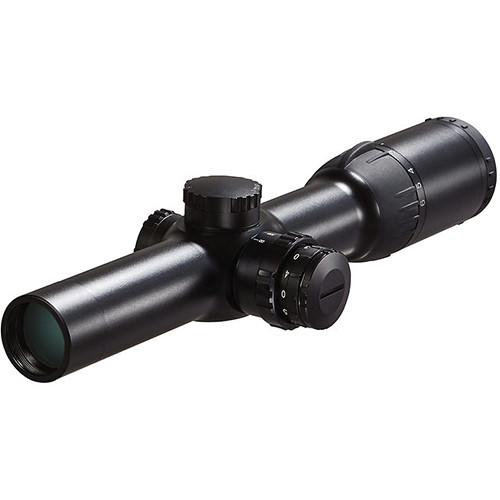

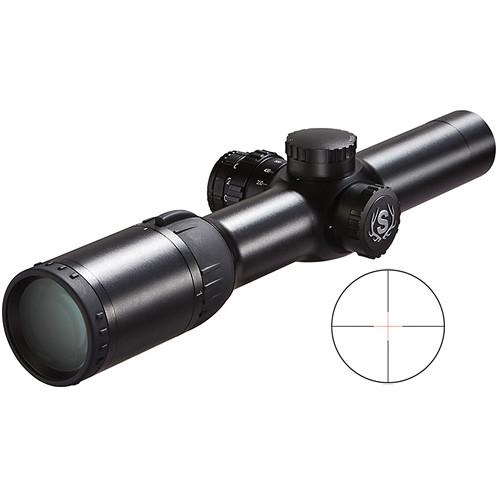

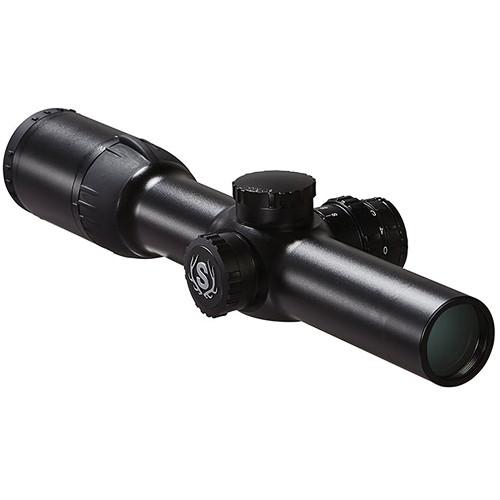

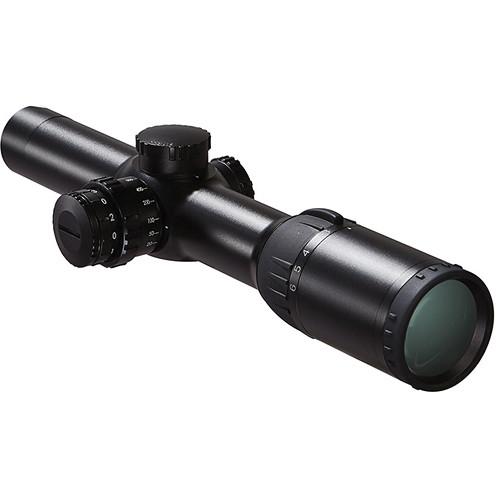

Product description The semi-gloss black S7 1-6x24 Side Focus Parallax Riflescope from Styrka is designed for short-to-medium range shooting, and features fully multicoated optics and an Illuminated Plex reticle. The proprietary SXL-MAX anti-glare coatings maximize light transmission and provide optimal color, sharpness and image contrast. In order to improve contrast and reduce stray light, the optical elements have their edges blackened. To help you compensate for wind drift and ballistic bullet drop, the scope offers 60 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction. Located in the second focal plane, the reticle will remain the same in size as you change zoom factor.

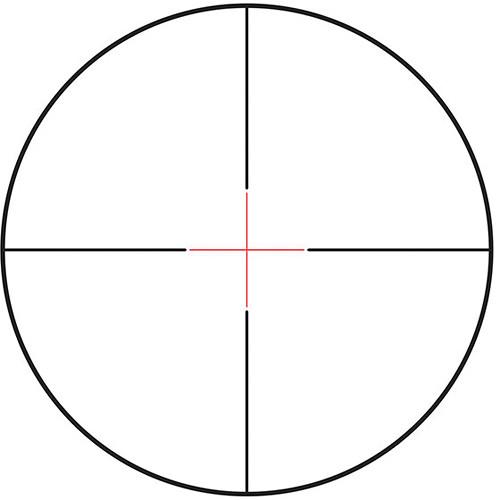

The aluminum housing is lightweight and durable, waterproof and fogproof. It features a 6061-T6 aluminum main tube and the erector system that is precision machined from premium brass to maintain accuracy. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is purged with nitrogen gas and sealed. Also included with the riflescope are a lens cloth, a neoprene riflescope cover, and a CR-2032 battery. Illuminated Plex Reticle -
- Second focal plane location allows keeping reticle size constant
- Width of center crosshair line: 48 MOA
- Thickness of fine center crosshair lines: 0.3 MOA
- Gaps between fine lines and four posts: 1.25 MOA
- Thickness of posts: 1.1 MOA
Optical Performance -
- Fully multicoated optics
- SXL-MAX coatings offer broadband transmission, true color, improve image sharpness and contrast
- Blackened lens edges absorb stray light and improve contrast
- Magnification: 1-6x
- Objective lens: 24mm
- Linear field of view: 107-18' @ 100 yd
- Main tube diameter: 1.18"
- Eye relief: 4"
Use and Handling -
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
Construction Details -
- 1.18" 6061-T6 aluminum main tube with semi-gloss black finish
- Fast-focus eyepiece with low-profile zoom lever allows a fast one-finger operation
- Rugged erector system provides more holding force to withstand recoil
- Fogproof, purged with nitrogen
- Waterproof, submersible to 3.3' for 30 minutes

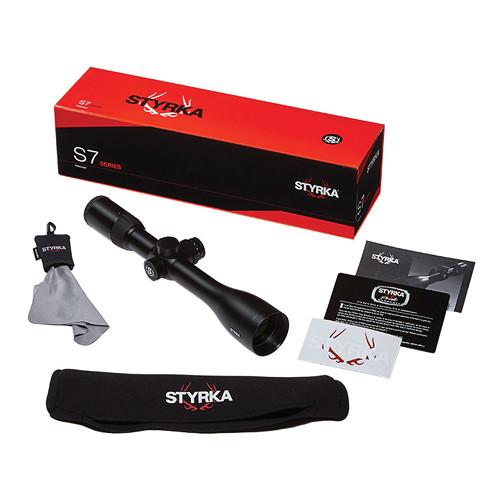

UPC: 889151950064 In the Box Styrka S7 1-6x24 Side Focus Parallax Riflescope (Illuminated Plex Reticle) - Protective Neoprene Scope Cover
- CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka S7 1-6x24 Side Focus Parallax Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-95006 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 107' @ 100 yd / 36 m @ 100 m
6x: 18' @ 100 yd / 6 m @ 100 m | | Exit Pupil Diameter | 1x: 12.5 mm
6x: 4 mm | | Eye Relief | 3.8" / 97 mm | | | | Reticle Type | Plex Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | IPX7 | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.3" / 26.2 cm
Height: 3.1" / 7.9 cm
Width: 2.1" / 5.3 cm | | Weight | 19.3 oz / 547 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 16.5 x 4.7 x 4.3" |
