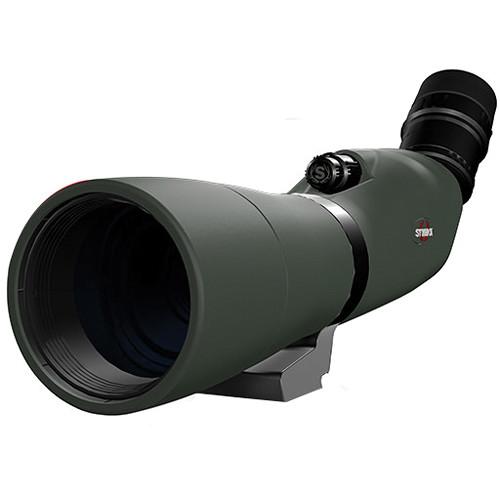

User Manual for Styrka S7-Series 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Styrka S7-Series 20-60x80 Spotting Scope
- Product category: Spotting Scopes Styrka
- Brand: Styrka
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Styrka Spotting Scopes
|
User manual for the Styrka S7-Series 20-60x80 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Styrka product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Styrka user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Styrka product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More tbryrswcweazyabbdfucvqtffxcaaq Styrka's S7-Series 20-60x80 Spotting Scope is designed for use at long distance, in challenging lighting conditions, and in extreme weather. Its large oversized 80mm objective not only increases image brightness under normal conditions, it also counteracts the image darkening that can occur when the magnification is dialed up and extends its usability from pre-dawn to dusk or in heavily canopied areas. It features extra-low dispersion (ED) glass elements to correct chromatic aberration for rich and true color rendition. To increase light transmission and enhance image brightness and contrast, the optics are fully multi-coated with proprietary SXL-MAX anti-reflection coatings. The optical coatings are engineered to maximize light transmission across the entire visible spectrum, which further increases the color accuracy and image resolution. Rounding out the optical performance features are BAK4 prisms that further enhance contrast and resolution. With all the optical elements working together, images appear crisp, bright, and clear with high contrast and true color representation.The eyepiece is set at a 45° angle, which makes viewing through the scope more comfortable whether you're standing, sitting, or lying down. Its rotating tripod collar gives you the ability to adjust the eyepiece orientation relative to the base for optimum viewing comfort. Complementing the optical performance are construction details that make it an ideal companion in all weather and conditions. The housing is nitrogen filled to make it fogproof with extreme changes in temperatures, and O-ring sealed to give it an IPX7 rating, allowing it to be submerged to a depth of 3.3' for up to 30 minutes. Rugged armoring protects the binocular from drops and impacts while providing a slip-resistant grip, especially in cold and wet weather. Large coarse and fine dual focusing knobs give you the ability to quickly focus on your subject, then fine-tune the details without excessive hand movement. - Optical Performance
-
- 20-60x zoom magnification
- 80mm objective lens
- BAK4 prisms
- Extra-low dispersion (ED) optical glass provides tack-sharp images and enhanced color correction while increasing clarity in low-light conditions
- Broadband fully multi-coated optics with SXL-MAX anti-reflective coatings to increase image brightness, sharpness, and contrast with true color rendition across the entire visible spectrum
- Use and Handling
-
- Dual-speed coarse- and fine-focusing knobs
- Angled eyepiece for more comfortable viewing whether standing, sitting or lying down
- Rotating tripod collar with 1/4"-20 mount
- Integrated sunshade
- Twist-up eyecup
- Construction Details
-
- Armoring provides external protection from drops and impacts
- IPX7-rated and nitrogen filled for water and fogproof performance
- Submersible to 3.3' for up to 30 minutes
UPC: 889151155124 In the Box Styrka S7-Series 20-60x80 Spotting Scope (Angled Viewing) View-Through Case Lens Cleaning Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Styrka S7-Series 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStyrka ST-15512 Specs | Magnification | 20 to 60x | Objective Lens Diameter | 80 mm | Angle of View | 20x: 2.0° (Actual) 60x: 0.9° (Actual) | Field of View | 20x: 105.0' @ 1000 yd / 35.0 m @ 1000 m 60x: 47.0' @ 1000 yd / 16.0 m @ 1000 m | Minimum Focus Distance | 22.9' / 7.0 m | Exit Pupil Diameter | 20x: 4 mm 60x: 1.3 mm | Eye Relief | 18.0 mm | | Fogproof | Yes, Nitrogen Filled | Water Resistance | Waterproof, IPX7 | | Tripod Mounting Thread | 1/4"-20 |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
