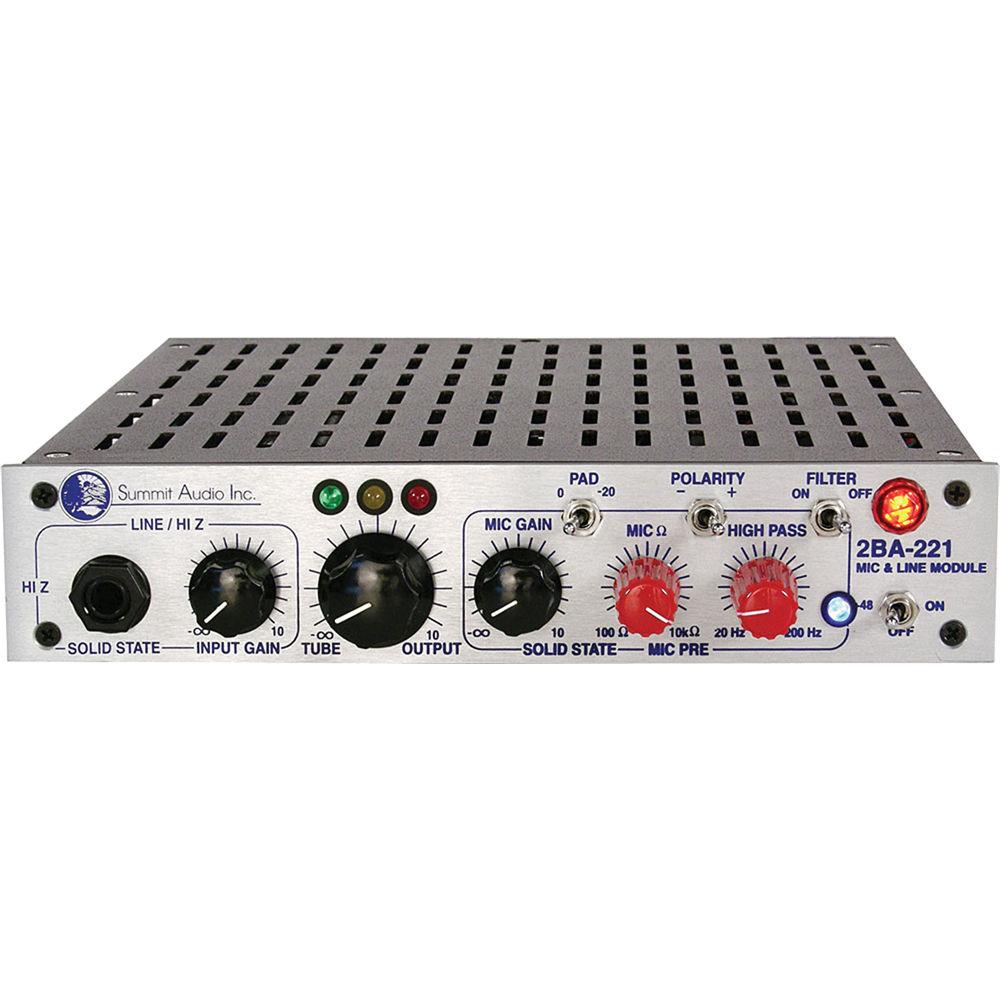

Product description The 2BA-221 from Summit Audio is a microphone/line preamplifier featuring continuously variable microphone impedance. The preamp utilizes separate and individually controlled solid state input controls to mix a microphone input with a Hi-Z or line input into a variable vacuum tube output. Using both the variable impedance and variable solid state and tube stages provides a high level of sonic control. But this is only half the story. Along with the required I/O, the unit features an insert before the tube stage, a variable 20Hz to 200Hz high-pass filter, 20dB pad, 48V phantom and polarity reverse. The 2BA-221 also features a stackable input design allowing multiple 2BA-221's to be linked together to form a modular mixing device with individual outs, inserts per channel and a final vacuum tube gain stage. The unit's versatility is further extended with the use of the multiple outputs. By plugging in a 1/4" cable into the insert jack and using the "stack output," the 2BA-221 can provide a total of four high quality outputs from one source. For example, the microphone source can be sent to a recorder from the +4dB balanced tube out, with a backup to another track from the -10dB tube output to avoid any "overs" and send the solid state '"stack" output to a compressor and then to yet another track. On the input side one could plug an acoustic electric guitar into the Hi-Z input and place a microphone in front of it and use the separate line and microphone input controls to mix the signals into the one, perfect blend. All of this functionality is packed into a very compact 1U half rack chassis with an internal power supply. The tube output utilizes a high voltage plate, not the starved plate compromises of lower cost units, but is still delivered at an exceeding favorable price considering the myriad features provided, along with the traditional sonic quality of a Summit Audio product. - Single channel microphone/line preamp with variable input impedance from 100Ω to 10kΩ
- Hi-Z instrument, line and microphone level input
- Microphone and Hi-Z input available simultaneously with separate gain controls
- Three variable, independent gain stages
- Separate solid state and tube outputs
- Variable high-pass filter, 20dB pad and polarity reverse switch
- Insert jack for inputting an external processor
- Stackable with more 2BA-221's to form a modular mixing device with individual outs, inserts per channel and a final vacuum tube gain stage
UPC: 836213010020 In the Box Summit Audio 2BA-221 - Single Channel Microphone and Line Preamplifier with Variable Microphone Impedance AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Audio 2BA-221 - Single Channel Microphone and Line Preamplifier with Variable Microphone Impedance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

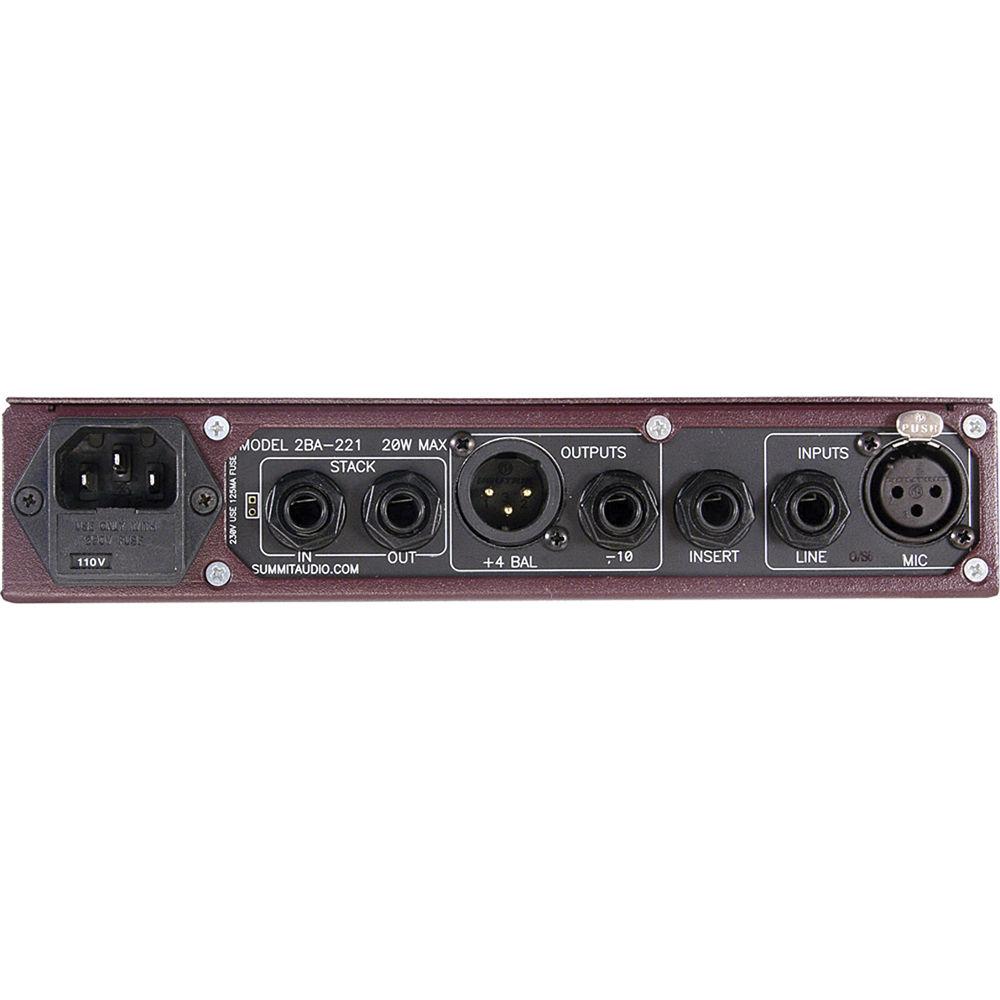

Technical parametersSummit Audio 2BA-221 Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x 1/4" TRS phone Line
1 x 1/4" TS phone Instrument (front panel)
1 x 1/4" TRS phone "Stacking Input"
1 x 1/4" TRS phone Insert | | Output | 1 x XLR
1 x 1/4" TRS phone
1 x 1/4" TRS phone "Stacking Output" | | Phantom Power | 48V | | Multi Function | No | | Gain Range | 0dB to 70dB | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 10Hz to 50kHz, -0.5dB unweighted | | Noise | -98dB | | Dimensions (WxDxH) | 9 1/2" x 8" x 1/3/4" | | Weight | Not specified by manufacturer | | Specialties | Multiple simultaneous outputs with variable tube output gain | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 13.9 x 9.75 x 2.05" |
