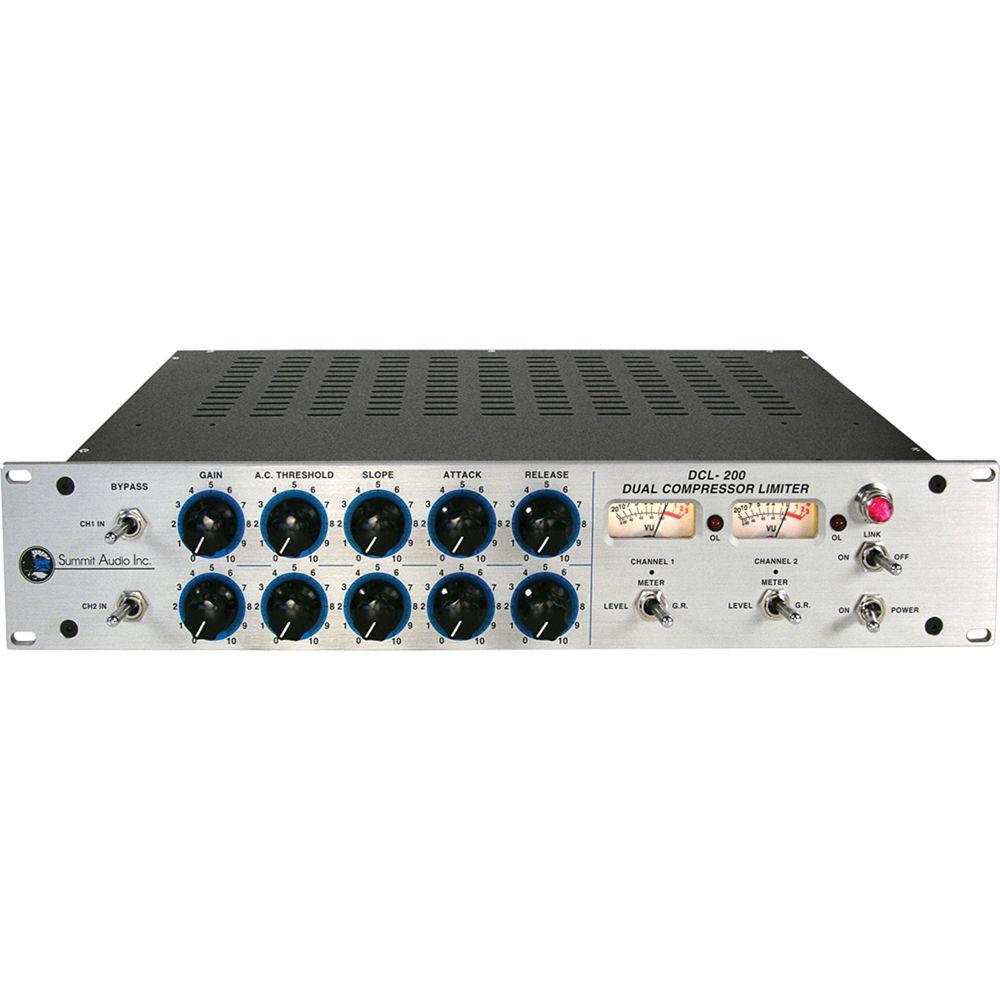

Product description The DCL-200 from Summit Audio is a dual channel compressor/limiter with stereo linking capabilities, suitable for both live sound and studio environments. The unit is a hybrid processor that uses solid state technology to provide reliability, while the vacuum tube amplifier delivers tube "warmth" and provides gain to overcome any loss of level during heavy compression. The DCL-200 imparts a soft-knee and program-dependent transition characteristic on the source audio, while providing variable threshold, attack and release controls. Selected 12AX7A vacuum tubes with high reliability 990 op-amps in a transformerless signal path deliver sound that is not sterile, muddy or pinched, but rather clean and precise, and rich in desirable overtones. - Dual channel compressor limiter with tube/solid state signal path
- Continuously variable attack and release times
- Adjustable threshold and variable ratio
- Soft-knee transition characteristic
- Sidechain insert for EQ dependent processing or ducking
- Stereo link switch links both channels for stereo operation with the AC Threshold, Slope, Attack and Release controls of the top channel controlling both channels
- Transformerless signal path
- 990 output stage (balanced or unbalanced)
- Universal internal power supply
In the Box Summit Audio DCL-200 - Compressor/Limiter AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Audio DCL-200 - Compressor Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

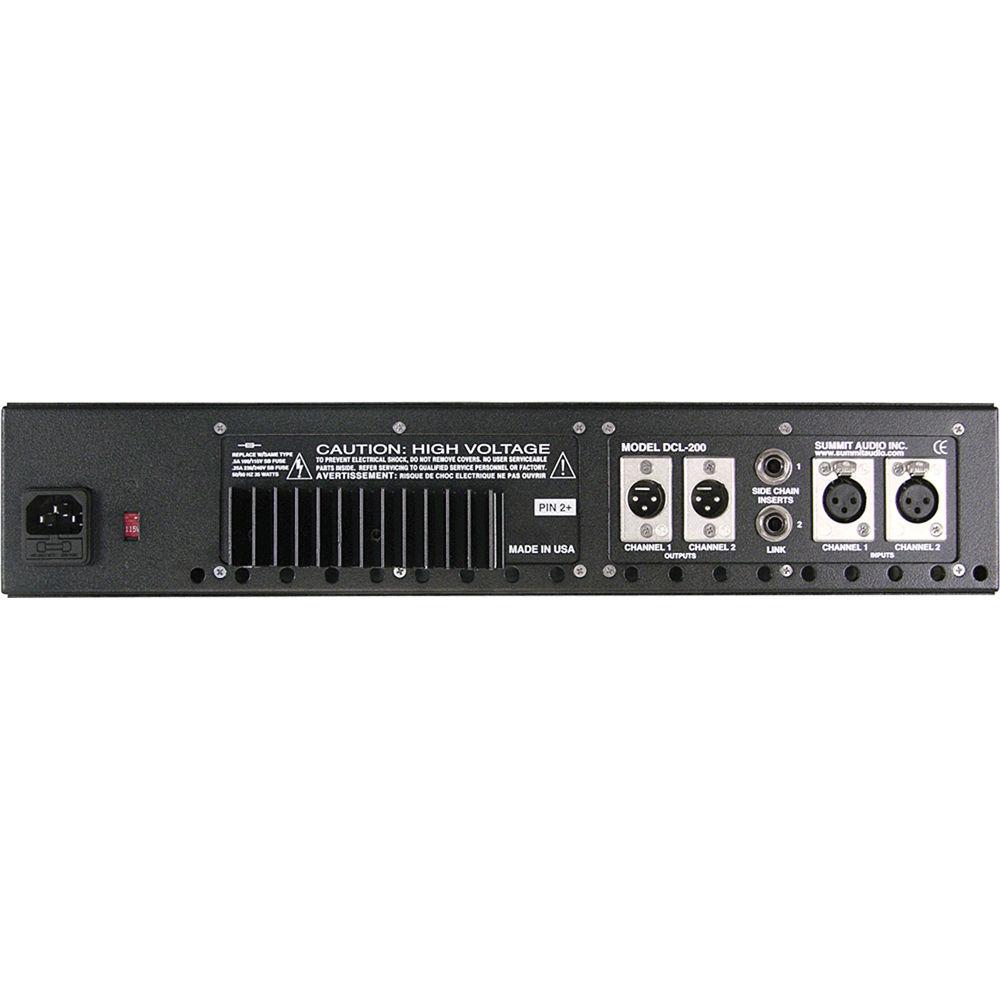

Technical parametersSummit Audio DCL-200 Specs | Function | Compressor/Limiter | | Number of Channels | 2 | | Inputs | 2 x XLR
2 x 1/4" TRS phone Inserts | | Outputs | 2 x XLR | | Maximum Input Level | +24dBu | | Compression Threshold | Variable | | Compression Ratio | 1.1:1 to 7:1 | | Attack Time | 0.1mS to 100mS | | Release Time | 45mS to 10S | | Maximum Output Level | +24dBu | | Make-up Gain | Yes | | Frequency Response | 5Hz to 70kHz, -3.0dB | | Dynamic Range | Not specified by manufacturer | | Noise | Less than -80dBu at unity, 10Hz to 80kHz | | Power Requirements | 115 or 230VAC, 50/60Hz | | Dimensions (WxDxH) | 19 x 10.5 x 3.5" (483 x 267 x 89mm) | | Weight | 17 lbs (7.7kg) shipping | | Specialties | The clip LED will light between 0.25 and 0.5dB before clipping
LED is always in the main signal path | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 23.5 x 19.0 x 7.5" |
