User Manual for Summit Audio TD-100 - Instrument Preamp and Tube Direct Box Click to enlarge the picture
Contents of the user manual for the Summit Audio TD-100 - Instrument Preamp
- Product category: Microphone Preamps Summit Audio
- Brand: Summit Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Summit Audio Microphone Preamps
 |
User manual for the Summit Audio TD-100 - Instrument Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Summit Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Summit Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Summit Audio product will considerably shorten its lifespan!
|

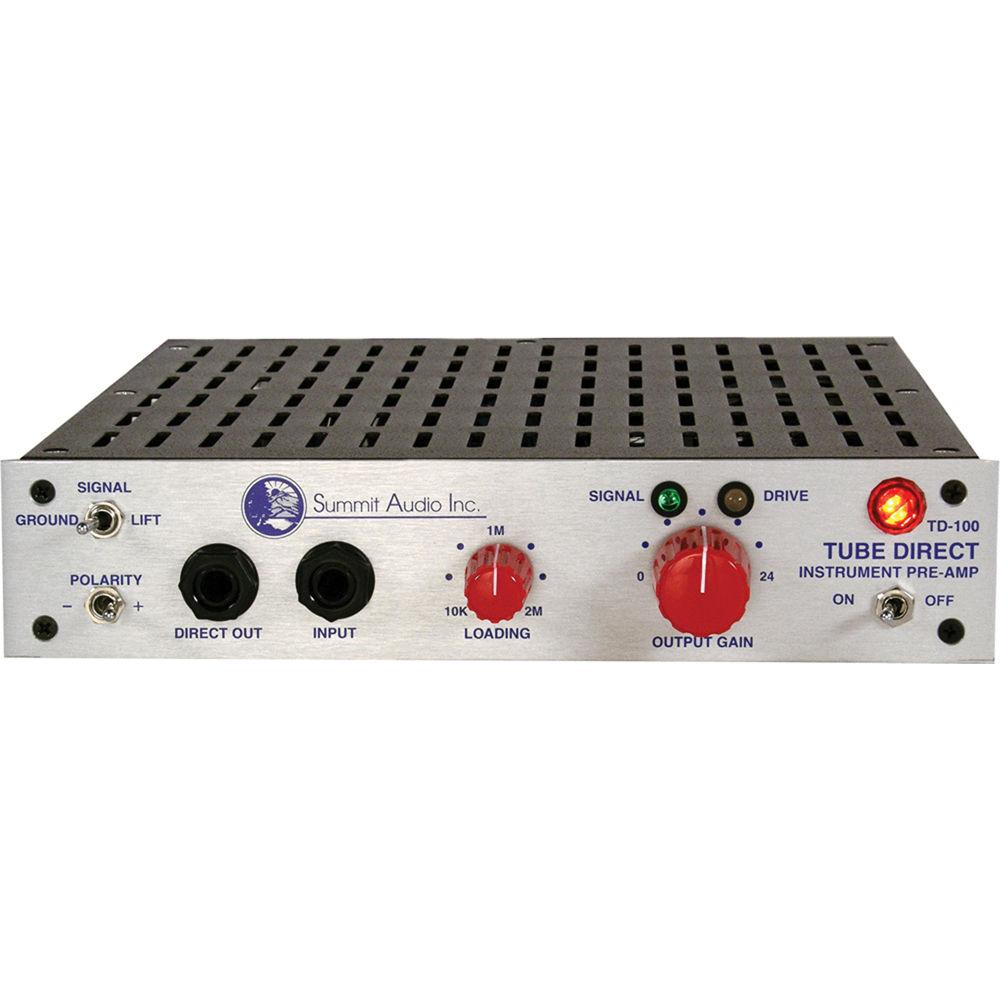

Product description The TD-100 instrument preamp and tube direct box from Summit Audio features a hybrid signal path utilizing both a discrete solid state output device and a 12AX7A/ECC83 vacuum tube. Musical instruments take on the clarity of class A sound with the richness and warmth of vacuum tubes. Perfect for both live and studio use, the unit offers XLR microphone level and 1/4" TRS line level outputs, plus variable input impedance, polarity switch, ground lift, signal and overdrive LEDs and a headphone output for use as a practice device. The variable input impedance control (loading) can dramatically alter the sound of an instrument. By lowering the impedance on the TD-100 the instrument's pickups get loaded down, changing their tone and the way they react to the string vibrations, generally making the tone darker and quieter. Raising the impedance allows the pickups to work without hindrance, opening up the sound with a slight increase in gain. The instrument can then sit properly in a mix without EQ or other tone shapers. This effect works best with passive pickups. The transformerless vacuum tube based circuitry isn't made to distort, rather it's used to add a subtle texture and smoothness, a professional sheen to an instrument. All of this functionality is packed into a very compact 1U half rack chassis with an internal power supply. - Instrument preamplifier and tube direct box
- Variable input impedance from 10kΩ to 2MΩ provides great variation to musical instruments
- Delivers smooth and subtle tube overtones
- XLR microphone level and 1/4" TRS line level outputs
- Ground lift and polarity switch
- One 12AX7A/ECC83 vacuum tube
- Internal, high voltage power supply
In the Box Summit Audio TD-100 - Instrument Preamp and Tube Direct Box AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Audio TD-100 - Instrument Preamp and Tube Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

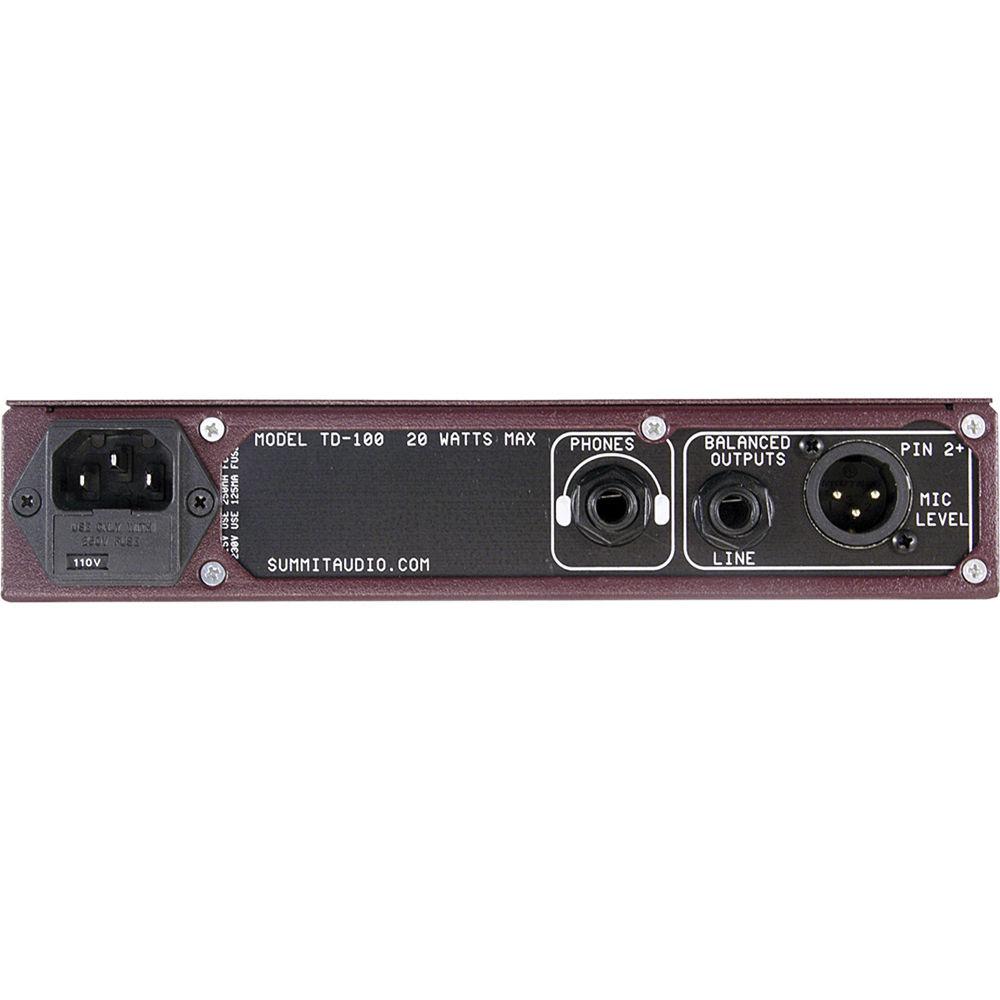

Technical parametersSummit Audio TD-100 Specs | Input Connections | 1 x 1/4" TS phone (front panel) | | Output Connectors | 1 x XLR Microphone Level
1 x 1/4" TRS phone Line Level
1 x 1/4" TS phone Direct Out (front panel)
1 x 1/4" TRS phone Headphone | | Input Level | Not specified by manufacturer | | Output Level | +24dB | | Controls | 1 x Rotary Control Variable Input Impedance (loading)
1 x Rotary Control Output Gain | | Frequency Response | 24Hz to 48kHz, -1.0dB | | Noise | THD+Noise: 0.07% @1kHz with 16dB gain, A weighted; 0.11% unweighted | | Power | 120V AC | | Dimensions (WxDxH) | 9 1/2" x 8" x 1 3/4" | | Weight | Not specified by manufacturer | | Specialties | Both a direct box for live use and instrument preamplifier for recording | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.8 x 9.5 x 2.1" |
