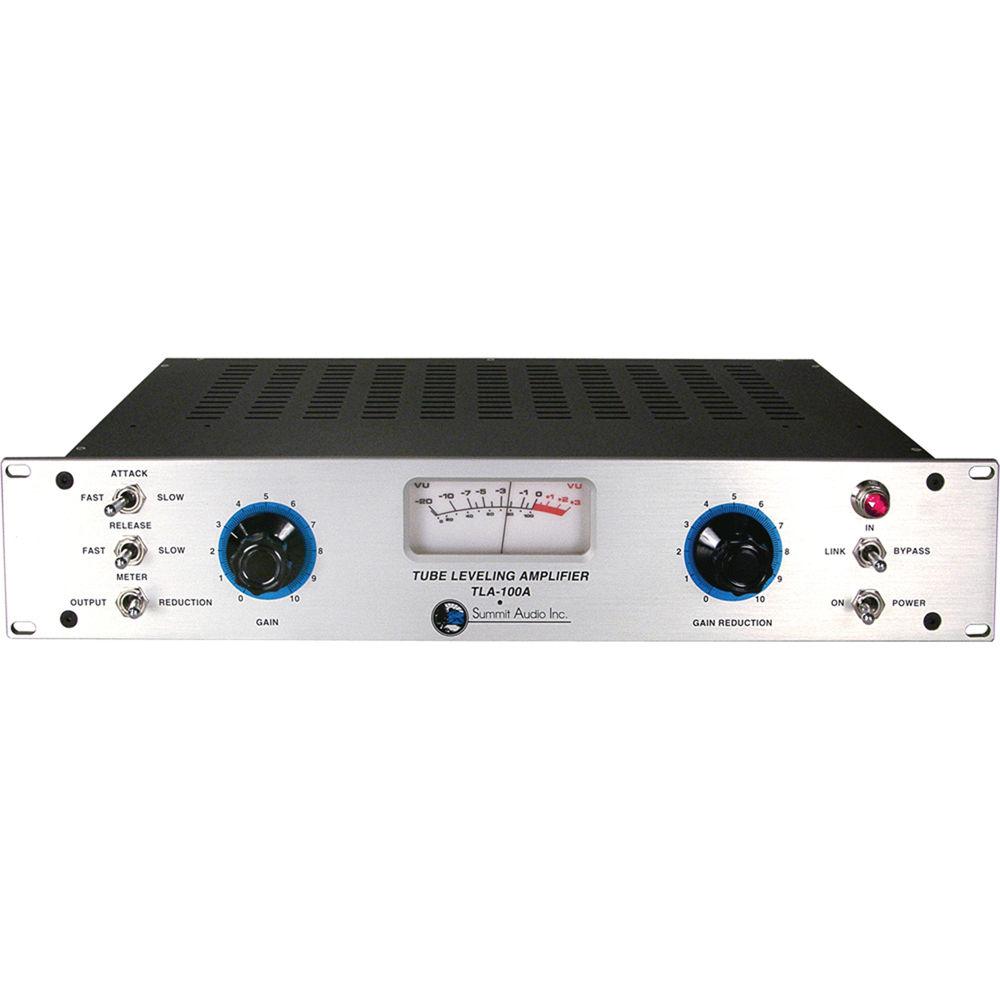

User Manual for Summit Audio TLA-100A - Leveling Amplifier Click to enlarge the picture
Contents of the user manual for the Summit Audio TLA-100A - Leveling Amplifier
- Product category: Dynamics Processors Summit Audio
- Brand: Summit Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Summit Audio Dynamics Processors
 |
User manual for the Summit Audio TLA-100A - Leveling Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Summit Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Summit Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Summit Audio product will considerably shorten its lifespan!
|
Product description The TLA-100A from Summit Audio is a single channel leveling amplifier/compressor, based on a classic design that produces a warm and smooth sounding output. The unit functions in a set-and-forget mode and delivers great sounding results without having to do a large amount of knob turning. The amplifier has a sidechain input and 2 TLA-100A units can be coupled together for stereo processing. The TLA-100A uses a soft-knee and program-dependent transition characteristic, and provides switch selectable attack and release settings. The unit is a hybrid processor that uses a selected 12AX7A vacuum tube with high reliability 990 op-amps in a transformerless signal path. The leveling amplifier is hand built in the USA to the most exacting standards. - Easy to set up single channel leveling amplifier with tube/solid state signal path
- Switch selectable attack and release times
- Soft-knee transition characteristic
- Sidechain insert for EQ dependent processing or ducking
- Transformerless signal path
- 990 output stage (balanced or unbalanced)
- Universal internal power supply
UPC: 836213010112 In the Box Summit Audio TLA-100A - Leveling Amplifier AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Audio TLA-100A - Leveling Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

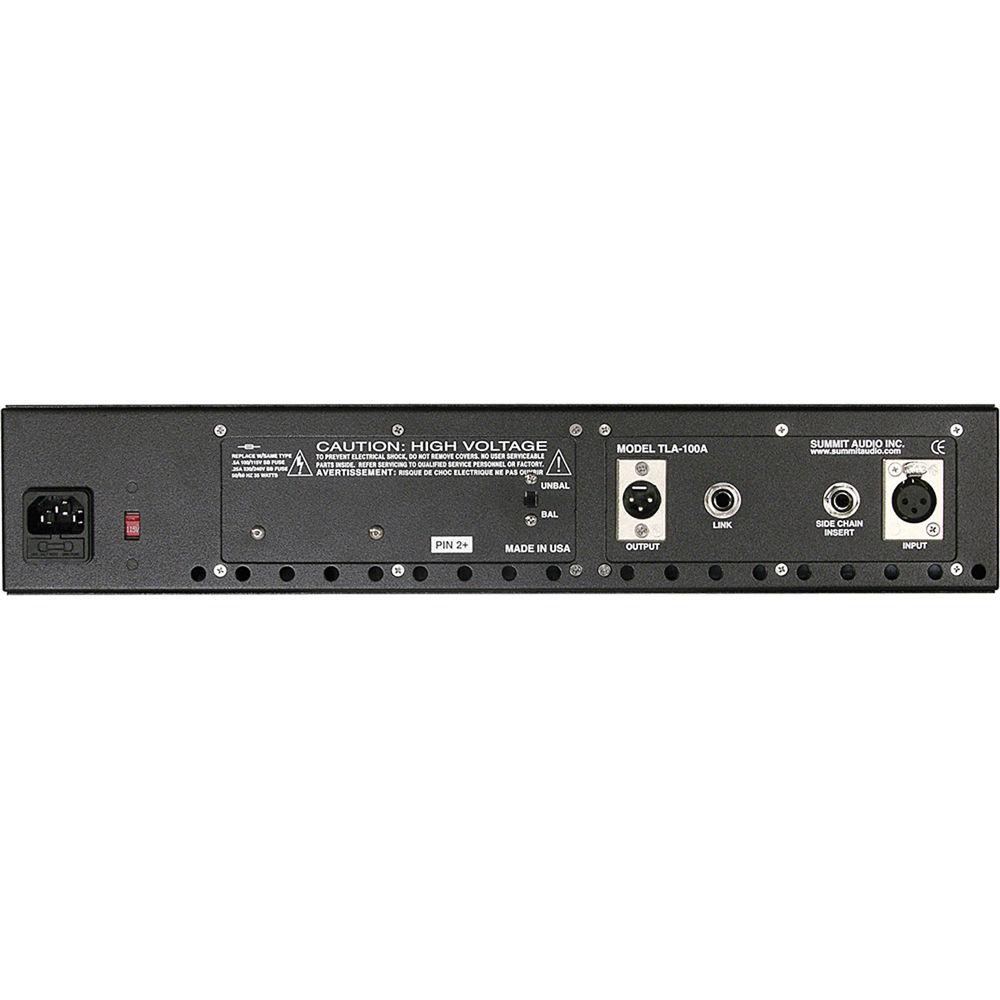

Technical parametersSummit Audio TLA-100A Specs | Function | Leveling amplifier | | Number of Channels | Single | | Inputs | 1 x XLR
1 x 1/4" TRS phone Insert | | Outputs | 1 x XLR
1 x 1/4" TS phone Stereo Link | | Maximum Input Level | +26dBu | | Compression Threshold | Program dependent | | Compression Ratio | Program dependent | | Attack Time | Fast/Medium/Slow, switchable | | Release Time | Fast/Medium/Slow, switchable | | Maximum Output Level | +26dBu | | Make-up Gain | +34dBu | | Frequency Response | 20Hz to 20kHz, +/-1.0dB with 5dB compression | | Dynamic Range | 60dB | | THD + Noise | 0.09% @ 1kHz, 0dB out | | Power Requirements | 115 or 230VAC, 50/60Hz | | Dimensions (WxDxH) | 19 x 10.5 x 3.5" (483 x 267 x 89mm) | | Weight | 17 lbs (7.7kg) shipping | | Specialties | VU meter monitors output level or gain reduction | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 23.4 x 19.4 x 7.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
