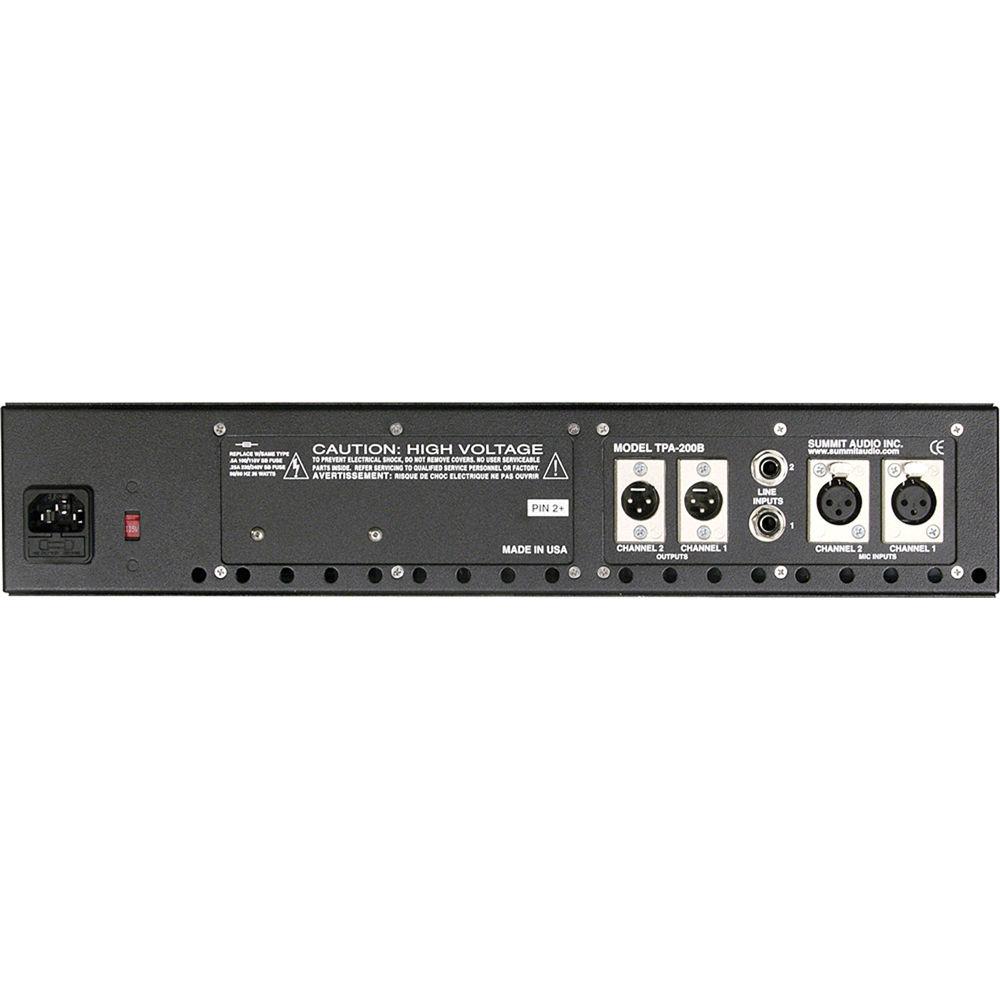

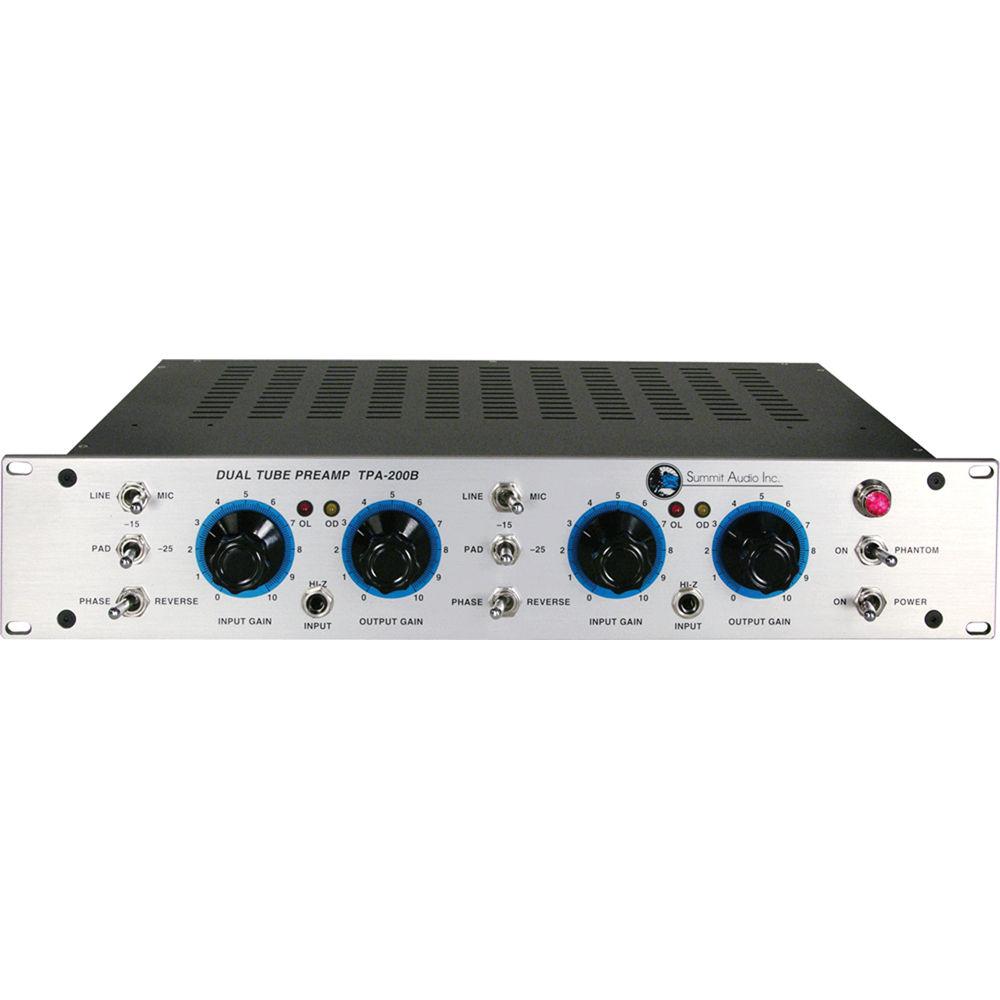

User Manual for Summit Audio TPA-200B - Microphone Line Preamp Click to enlarge the picture
Contents of the user manual for the Summit Audio TPA-200B - Microphone Line
- Product category: Microphone Preamps Summit Audio
- Brand: Summit Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Summit Audio Microphone Preamps
 |
User manual for the Summit Audio TPA-200B - Microphone Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Summit Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Summit Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Summit Audio product will considerably shorten its lifespan!
|
Product description The TPA-200B from Summit Audio is dual-channel, tube/solid state hybrid microphone preamp featuring 3 input types - microphone input, line level input and front panel Hi-Z input. The unit is equally suited for tracking and mixing duties due to the constantly variable input and output gain that can overdrive the tubes in any amount. The Jensen input transformers deliver an open and airy top end that enhances diverse signals, even those with dense frequency content such as voice and electric guitars. A 2 position pad switch allows for further signal enhancement and individual phase reverse switches help fix issues in multiple microphone setups. The TPA-200B is hand-crafted in the USA with exceptional attention to detail, while the circuit design of the unit is perfect for eradicating the sterility of any cold or hard digital signals. - Dual channel, tube/solid state hybrid microphone preamp with microphone, line and front-panel Hi-Z inputs
- Completely variable input and output allows for driving the tubes as hard or as lightly as desired, providing tones that vary from crystal clear and open, to full tube saturation, and any tone in between
- Other sonic options include the 2 position input pad that provides a choice as to how hard to drive the input Jensen microphone transformer
- Overload and Overdrive indicators
- Global switchable +48V phantom power
- Universal internal power supply
In the Box Summit Audio TPA-200B - Microphone/Line Preamp AC Power Cable Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Audio TPA-200B - Microphone Line Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSummit Audio TPA-200B Specs | Number of Channels | 2 | | Inputs | 2 x XLR Microphone
2 x 1/4" TRS phone Line
2 x 1/4" TS phone (front panel) | | Output | 2 x XLR | | Phantom Power | +48V | | Multi Function | No | | Gain Range | Maximum gain: 75dB | | Maximum Output Level | +25dBu | | Frequency Response | 10Hz to 50kHz, -1.0dB | | Noise | EIN: -135dB average (unweighted), 10Hz to 20kHz | | Power Requirements | 115V~230V, 50/60Hz
35W Fuse size: 0.5A for 115V, 0.25A for 230V | | Dimensions (WxDxH) | 19 x 10.5 x 3.5" (483 x 267 x 89mm) | | Weight | 17 lbs (7.7kg) shipping | | Specialties | 3 x 12AX7A vacuum tubes |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
