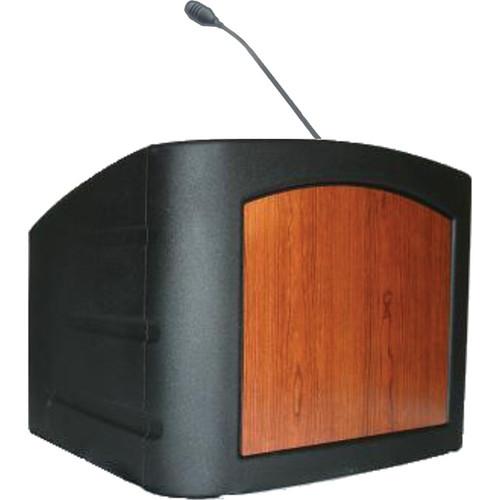

Product description The Integrator Desktop Lectern (Black) from Summit Lecterns is suitable for use in auditoriums, classrooms, meeting rooms, conference rooms, and multi-purpose rooms.
Featuring a molded single-piece construction, the ¼” (0.64 cm) thick shell of the Integrator Lectern is made of a tough polyethylene plastic and has a waxed finish. Anti-skid feet and recessed rubber bumpers with metal washers offer stability to the lectern. Even though the lectern appears to be heavy and cumbersome to move around, it is lightweight at 25 lb (11.3 kg) and portable.
The lectern can be easily connected to an in-house audio system via the XLR connectors at the top and bottom. It also includes a shock-mounted 18” (45.72 cm) flexible dynamic microphone and a double light system for the speaker’s convenience. Application - Suitable for use in auditoriums, classrooms, meeting rooms, conference rooms, and multi-purpose rooms
Shell - Molded, single-piece construction
- 0.25" (0.64 cm) thick shell is made of a tough polyethylene plastic
Anti-skid Feet & Recessed Bumpers - 7/8" (2.22 cm) diameter feet
- Recessed rubber bumpers with metal washers for stability
- Bulb-type aluminum pop rivets are used to attach the anti-skid feet to the shell
Accessories - 18" (45.72 cm) shock-mounted microphone provides over 20 dB of surface vibration noise isolation and windscreen
- Wired XLR connectors at the top and bottom for connecting the lectern to an in-house audio / video system
- 15' (457.2 cm) 18-gauge A/C power cable
In the Box Summit Lecterns Integrator Desktop Lectern (Black) 450 mA Double Light System with Rocker Switch 18" (45.72 cm) Flexible Microphone 15' (457.2 cm) 18 Gauge A/C Power Cable XLR Connector 12-Year Warranty on Shell 1-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Lecterns Integrator Desktop Lectern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSummit Lecterns SIDT11BK0 Specs | Construction | Molded single-piece | | Microphone | Length: 18" (46 cm) | | Material | Polyethylene plastic | | Connectors | Wired XLR connectors | | Finish | Waxed finish | | Color | Black | | Frequency Response | 100 to 12 kHz | | Impedance | 500 ohm + or -30% | | Sensitivity | -75 db + or -3 dB | | Anti-skid Feet | Diameter: 7/8" (2.22 cm)Height: 0.4" (1.02 cm) | | Pop Rivets | Diameter: 0.156" (0.4 cm)Material: Aluminum | | SPL | Maximum 130 dB | | Signal to Noise Ratio | 68 dB | | Dynamic Range | 115 dB | | Weight | 25 lb (11.34 kg) | | Dimensions (WxDxH) | 26 x 23 x 20" (66 x 58.42 x 50.8 cm) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 27.0 x 24.0 x 22.0" |
