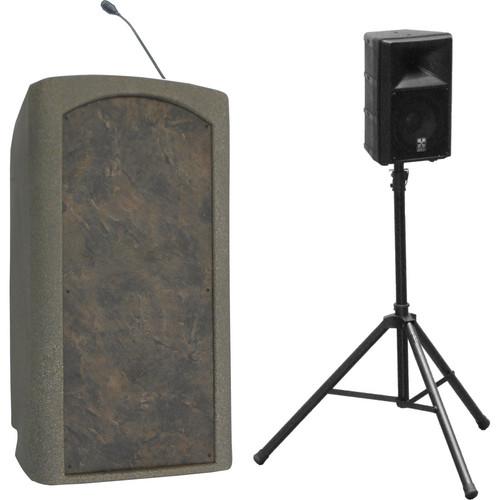

User Manual for Summit Lecterns Presenter Lectern Click to enlarge the picture
Contents of the user manual for the Summit Lecterns Presenter Lectern
- Product category: Lecterns & Podiums Summit Lecterns
- Brand: Summit Lecterns
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Summit Lecterns Lecterns & Podiums
|
User manual for the Summit Lecterns Presenter Lectern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Summit Lecterns product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Summit Lecterns user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Summit Lecterns product will considerably shorten its lifespan!
|
Product description The Presenter Lectern (Beige Granite) from Summit Lecterns is suitable for auditoriums, class rooms, meeting rooms, conference rooms, outdoor functions, and multi-purpose rooms.
Featuring a unique, molded and single-piece construction, the ¼” thick shell of the lectern is made of a tough polyethylene plastic and is waterproof, making it suitable for outdoor functions. Even though the Presenter weighs 68 lb (30.8 kg), the wheels attached to the rear of the shell allow for easy movement.Rounded corners minimize the damage caused to the wall or the lectern in case of a collision. Scratches are hardly noticeable as the color goes through the entire depth of the lectern. Additionally, the lectern is customizable with stereo sound, CD-cassette players etc.
An LED panel light with 7 shielded LEDs is included on the work surface to illuminate the speaker’s notes. The work surface also includes a shock-mounted 21” flexible microphone for the speaker’s convenience. An adjustable speaker stand is provided for better directional placement of the included 100 W speaker. The lectern can be easily connected to an in-house audio system via the XLR connectors at the top and bottom. Applications - Suitable for auditoriums, class rooms, meeting rooms, conference rooms, outdoor functions, and multi-purpose rooms
Shell Construction - Unique, molded and single-piece construction and is ¼" thick
- Made of a tough polyethylene plastic and is waterproof
- Rounded corners minimize the damage in case of collision
Mobility - Backward tilt activates the wheels, which help in moving the cart around
Sturdy Wheels - 3" (76 mm) diameter wheels
- 1.2 (31.7 mm) wide with a nylon bearing
- 5/16" (7.8 mm) diameter axle in a 14 gauge steel bracket
Customizable Inserts & Logos - Inserts made of 1/8" thick ABS plastic with aluminum laminates are available in various colors and patterns
- Customize the lectern depending on the environment in which it is to be used
- Mount the logos on the inserts or mould them into the lectern
Accessories - LED panel light with 7 shielded LEDs for illuminating the speaker's notes
- Shock-mounted 21" (0.53 m) flexible microphone
- 30' (9.1 m) speaker cable
- 1 Microphone & 2 CD/laptop/auxiliaries inputs
- 8" (20.3 cm) 100 W speaker with titanium horn
- Wired with XLR connectors on top and bottom
In the Box Summit Lecterns Presenter Lectern (Beige Granite) LED Panel Light with 7 Shielded LEDs Adjustable Speaker Stand 21" (0.53 m) Flexible Microphone 30' (9.1 m) Speaker Cable 40 W Mono Amplifier Microphone 2 x CD / Laptop / Auxiliaries Inputs 8" (20.3 cm) 100 W Speaker With Titanium Horn 12-Year Warranty on Shell 1-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Summit Lecterns Presenter Lectern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSummit Lecterns SPL102BG0 Specs | Shell | Thickness: 0.25" (0.6 cm) | | Material | Tough polyethylene plastic | | Color | Beige Granite | | Finish | Waxed | | Dimensions (W x H x D) | 26 x 47 x 25.5" (66 x 119.3 x 64.7 cm) | | Weight | 68 lb (30.8 kg) | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 48.0 x 32.0 x 31.0" |
