User Manual for SunBriteTV Pro 49" Class Full HD Outdoor LED TV Click to enlarge the picture
Contents of the user manual for the SunBriteTV Pro 49" Class Full HD
- Product category: Televisions SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Televisions
 |
User manual for the SunBriteTV Pro 49" Class Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|

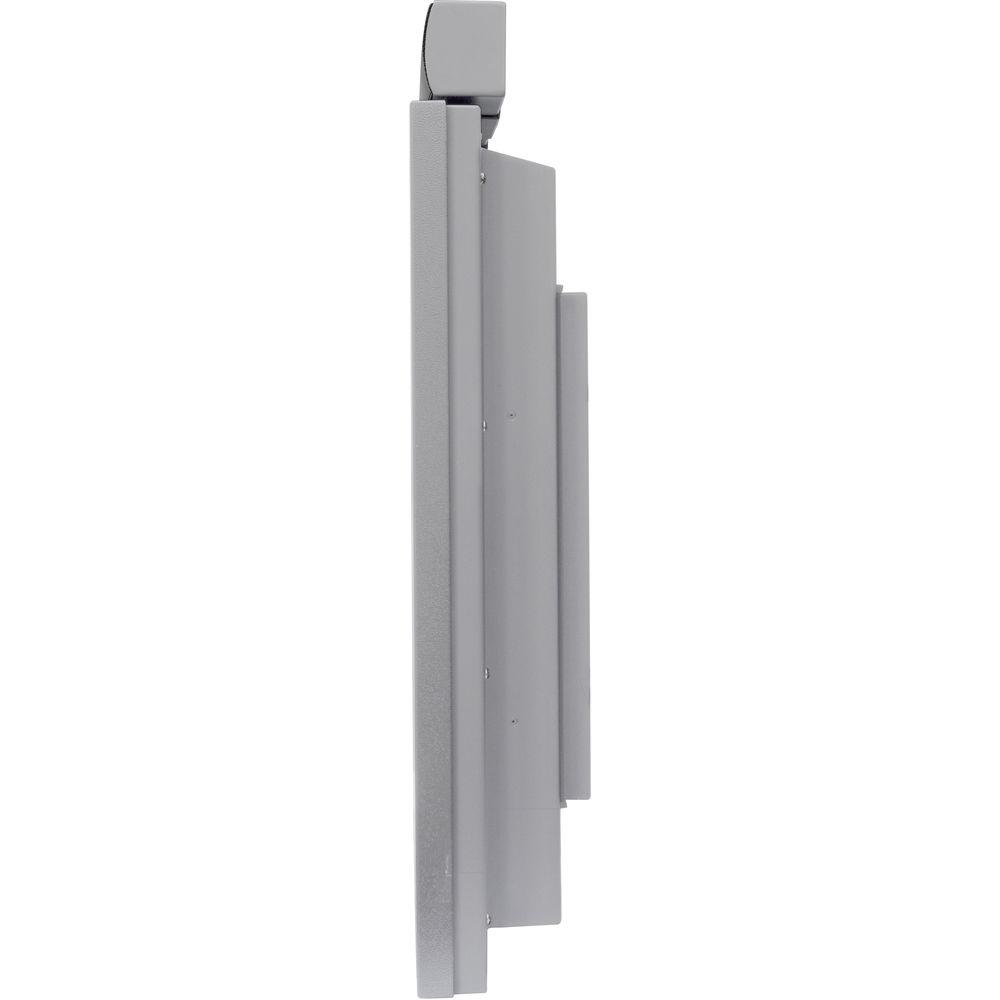

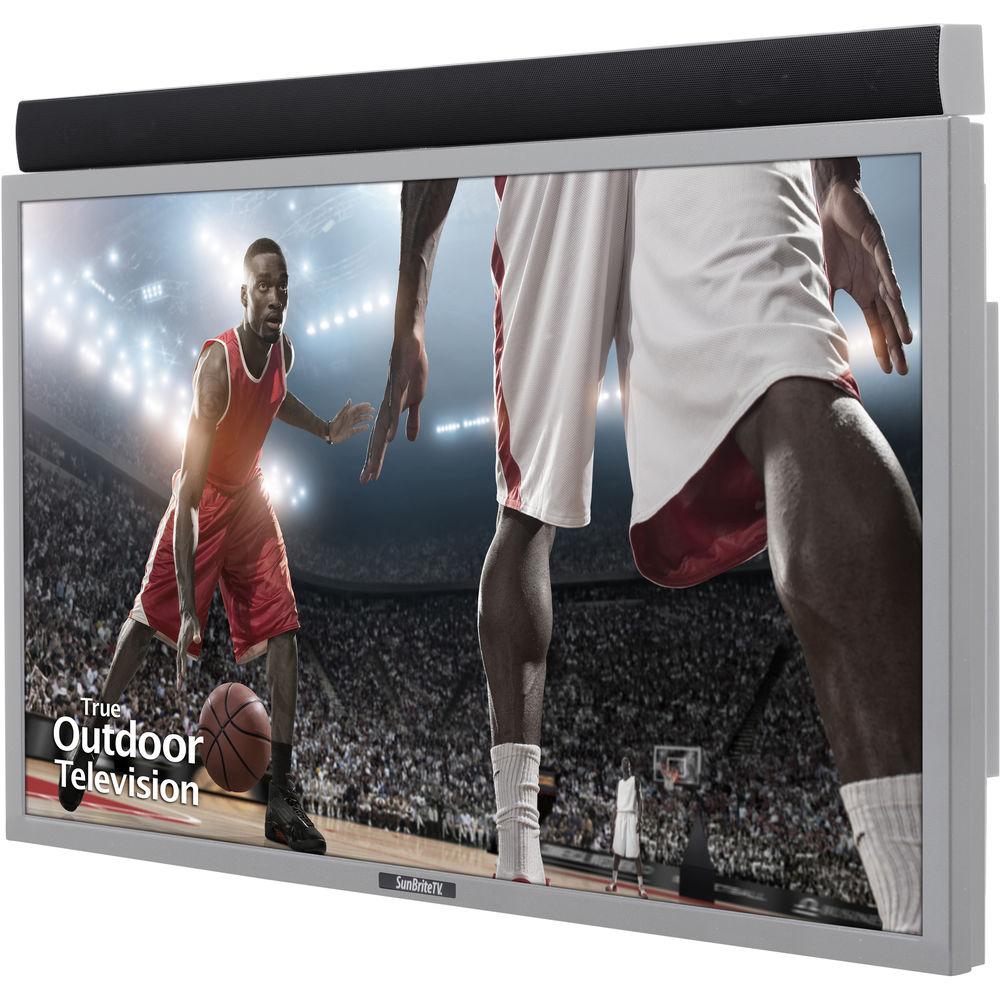

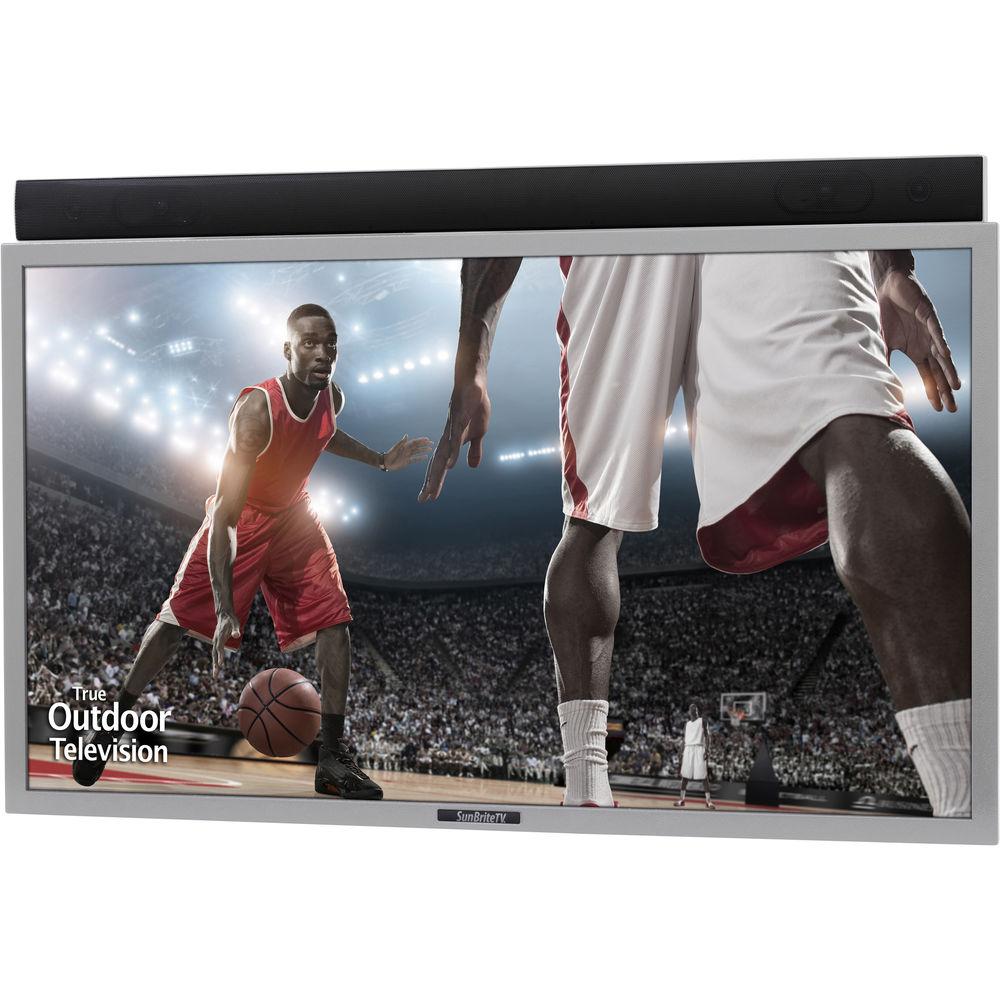

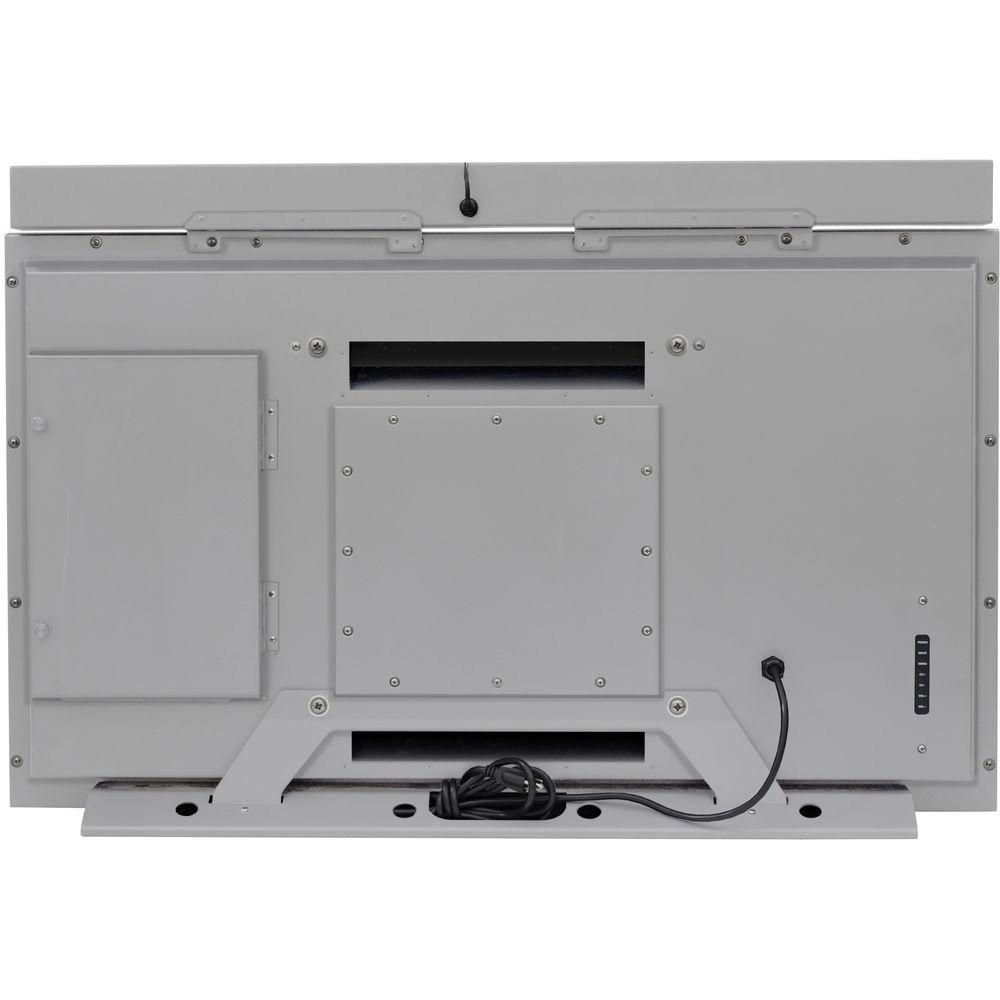

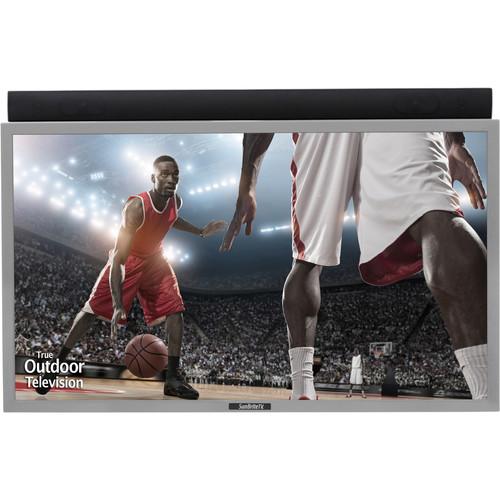

Product description The Big March TV Tournament Read More Enjoy HD TV outdoors with the silver SunBriteTV Pro 49" Class Full HD Outdoor LED TV. It features a 1920 x 1080 native resolution for viewing HD content and 700 cd/m² of brightness to ensure that images are visible even in direct sunlight. It will operate in extreme temperatures from -40 to 122°F and is designed to protect internal components from rain, snow, dust, insects, humidity, and salty air. The TV includes a weatherproof soundbar and IR remote control for convenient, safe use outdoors. - 700 cd/m² LED screen for enhanced outdoor viewing
- Anti-glare protective glass and removable front bezel to facilitate field servicing
- Side-opening cable/media bay provides easy, safe access (opening: 8.925 x 12.5 x 3"; interior: 10.5 x 18.3 x 2.1")
- Media bay power port (5V @ 3.5A / 12V @ 3A) powers media players without needing external cords
- Side-mounted cable ports for enhanced access and visibility
- High-temperature Enhanced Solar Tolerance (EST) technology helps prevent isotropic blackout
- Thermal-flow air ventilation system keeps the unit cool and dry in temperatures up to 122°F
- Ability to operate in weather as cold as -40°F
- Exterior designed to protect internal components from rain, snow, dust, insects, humidity, and salty air
- Powder-coated rust-proof aluminum exterior for augmented durability
- RS-232C serial control with discrete on, off, and input control located in the cable-entry compartment
- Rear IR receiver in the cable-entry compartment
- Water-tight Cable Entry System designed to keep out moisture while allowing for easy connections
- Included 20W weatherproof and detachable soundbar can be top- or bottom-mounted
- Weatherproof remote control included
- Weatherproof control buttons with tamper-proof plate
- Remote control lock-out prevents unauthorized users from changing the programming
UPC: 810347022074 In the Box SunBriteTV Pro 49" Class Full HD Outdoor LED TV (Silver) Weatherproof Remote Control Weatherproof Soundbar Limited 2-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV Pro 49" Class Full HD Outdoor LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV SB-4917HD Specs | | | Screen Size (Diagonal) | 49" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1920 x 1080 | | Brightness | 700 cd/m² | | HDR Compatibility | None | | Contrast Ratio | 1300:1 | | Response Time | 8 ms | | Refresh Rate | 60 Hz | | | | Video System | NTSC / | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 2 x HDMI – Audio, Video (Rear)
1 x RF Antenna – Audio, Video (Rear)
2 x RCA Component – Video (Rear)
1 x 15-Pin VGA – Video (Rear)
1 x S-Video – Video (Rear)
1 x RCA Composite – Video (Rear)
3 x RCA Stereo (L/R) – Audio (Rear)
1 x 1/8" / 3.5 mm – Audio (Rear) | | Output Ports | 1 x Digital Coaxial – Audio (Rear)
1 x 1/8" / 3.5 mm – Headphone (Rear) | | Control | RS-232C | | | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Channels | 2.0 | | Power Output | 20W (10W x 2) | | Weight | 5 lb / 2.27 kg | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Operating/Storage Temperature | Operating
-40 to 122°F (-40 to 50°C) | | Dimensions (W x H x D) | 44.6 x 26.1 x 5.6" / 113.3 x 66.3 x 14.2 cm Without soundbar
44.6 x 29.1 x 5.6" / 113.3 x 73.9 x 14.2 cm With soundbar | | Weight | 64.00 lb / 29.03 kg Without soundbar
69.00 lb / 31.30 kg With soundbar |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
