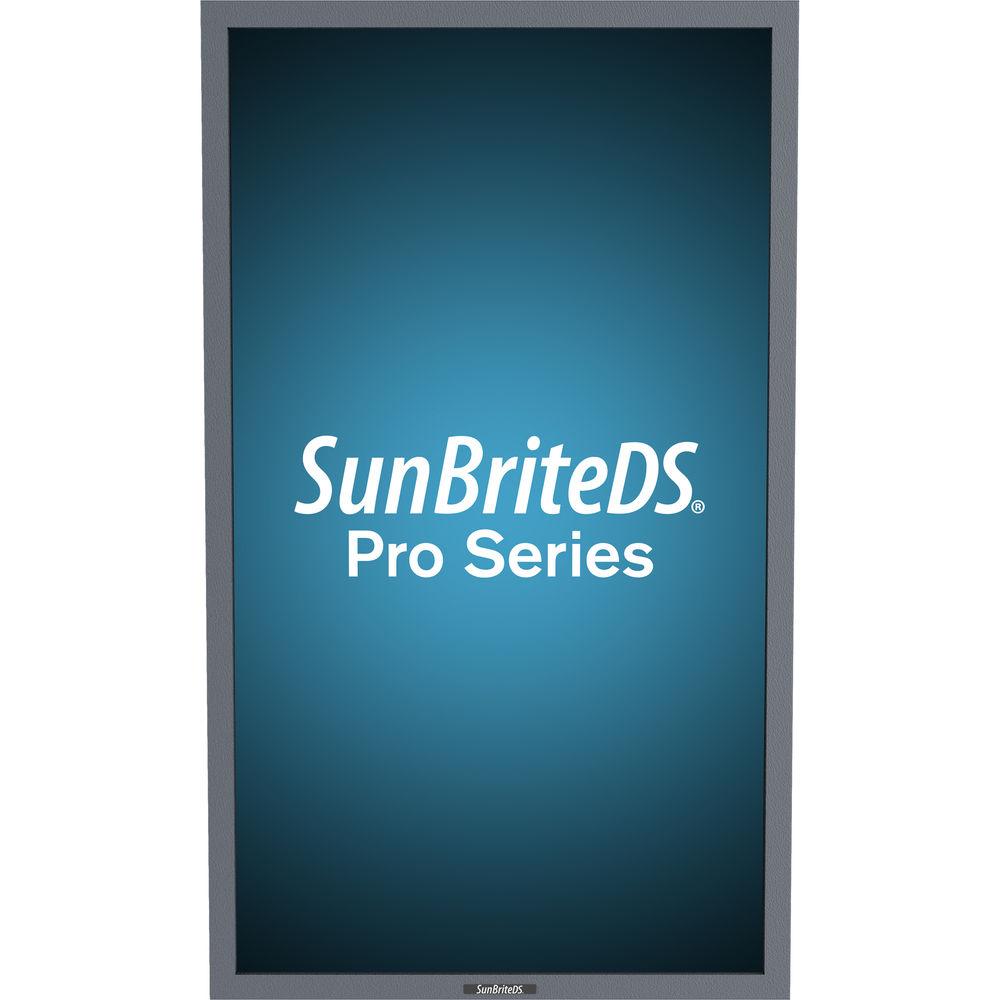

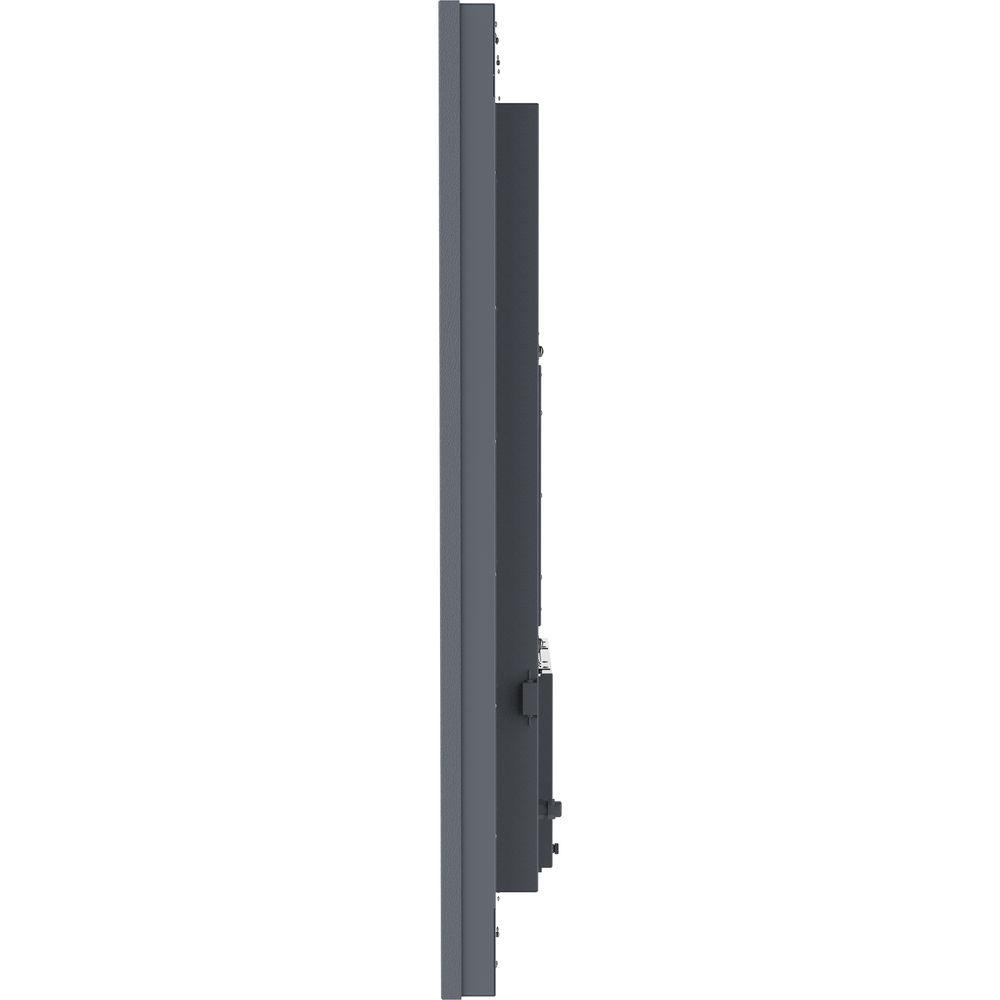

User Manual for SunBriteTV Pro Series 55" Outdoor Digital Signage Portrait Display Click to enlarge the picture
Contents of the user manual for the SunBriteTV Pro Series 55" Outdoor Digital
- Product category: Commercial Monitors SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Commercial Monitors
 |
User manual for the SunBriteTV Pro Series 55" Outdoor Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|

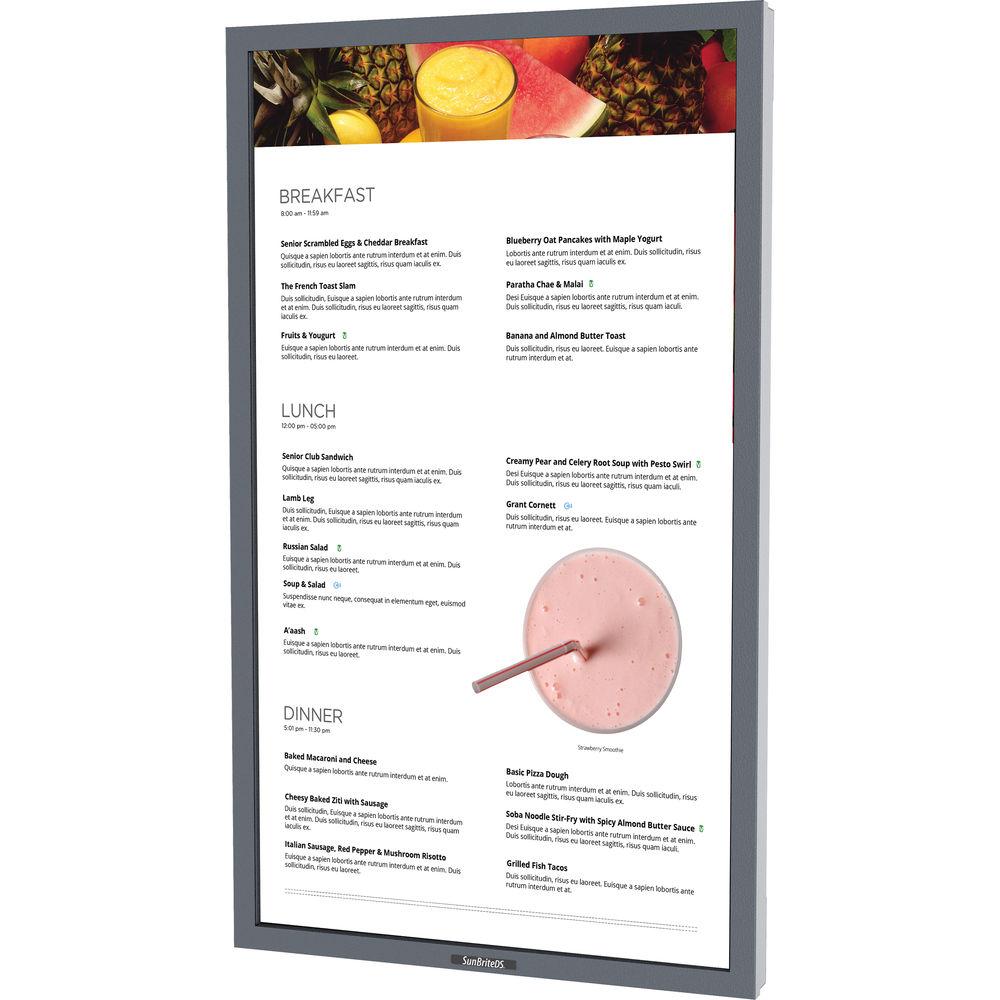

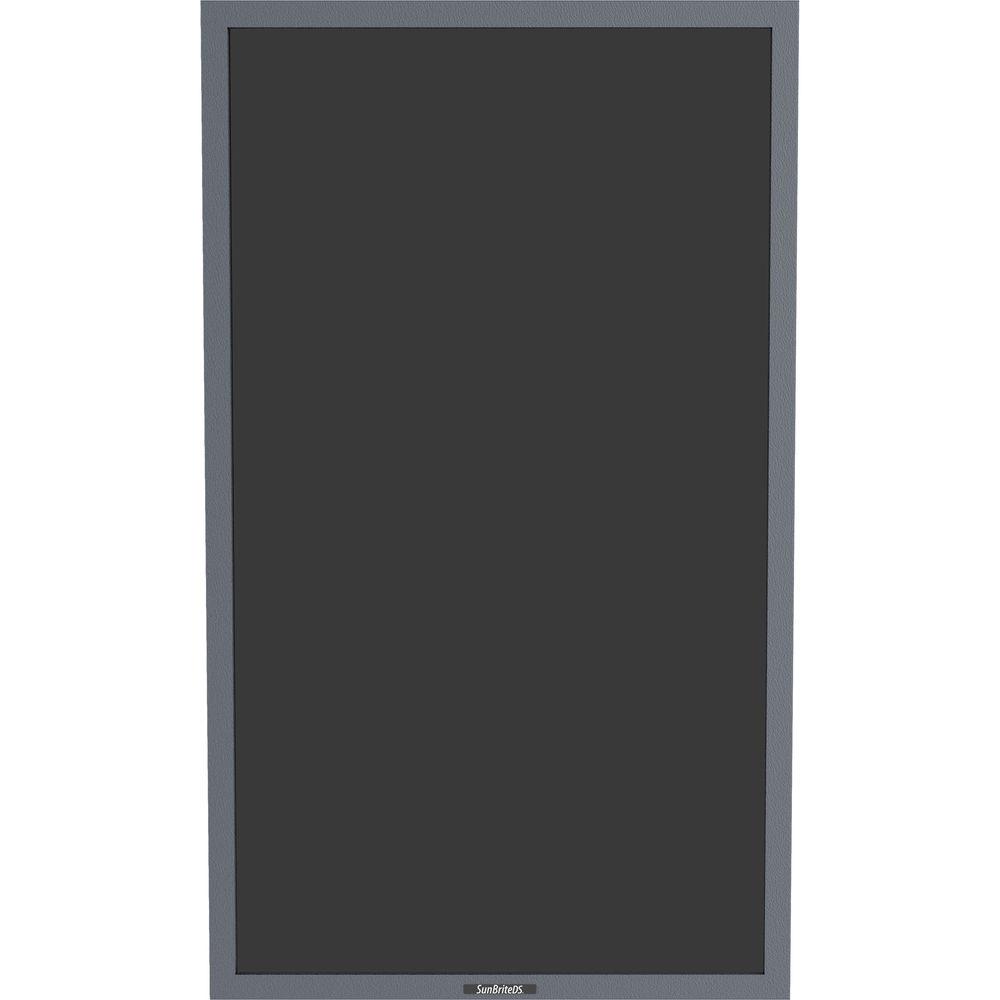

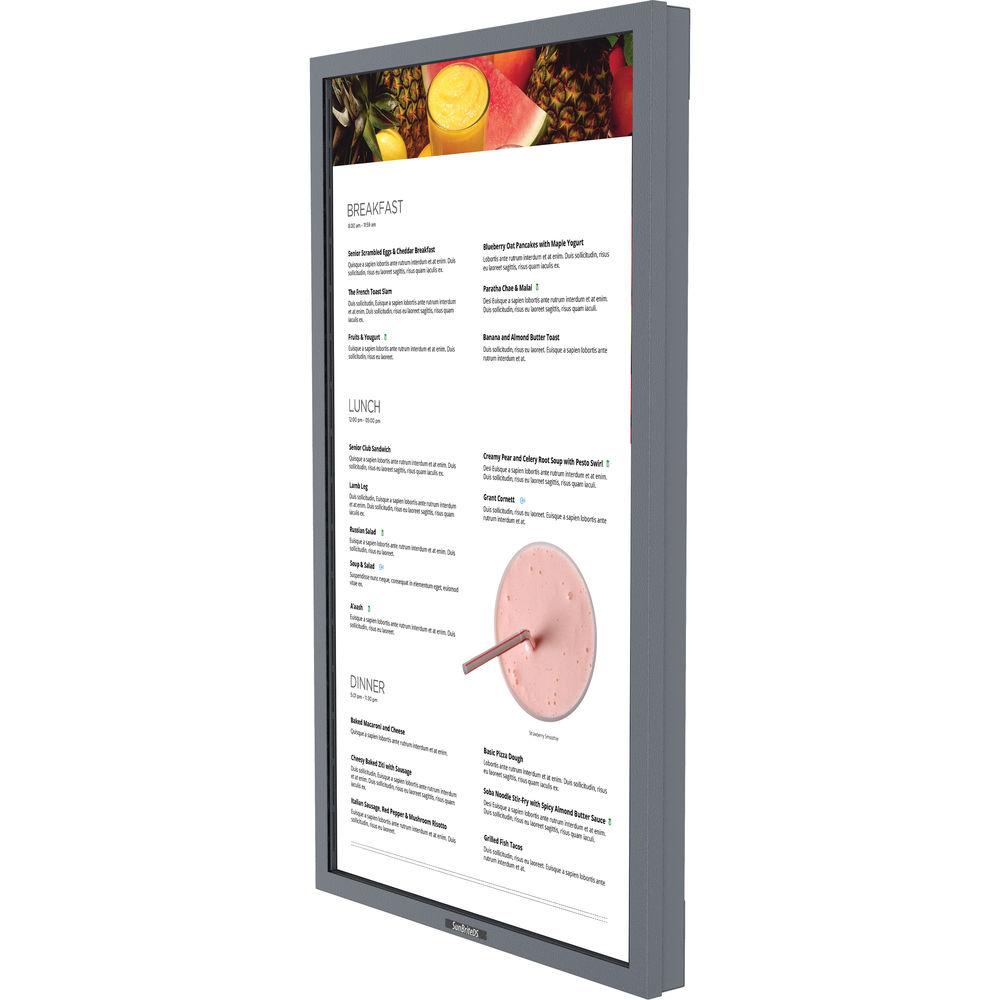

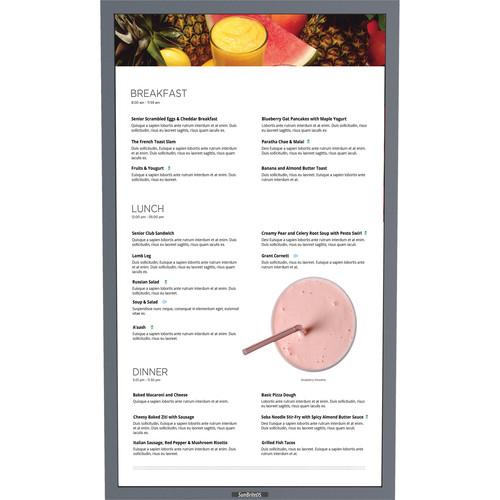

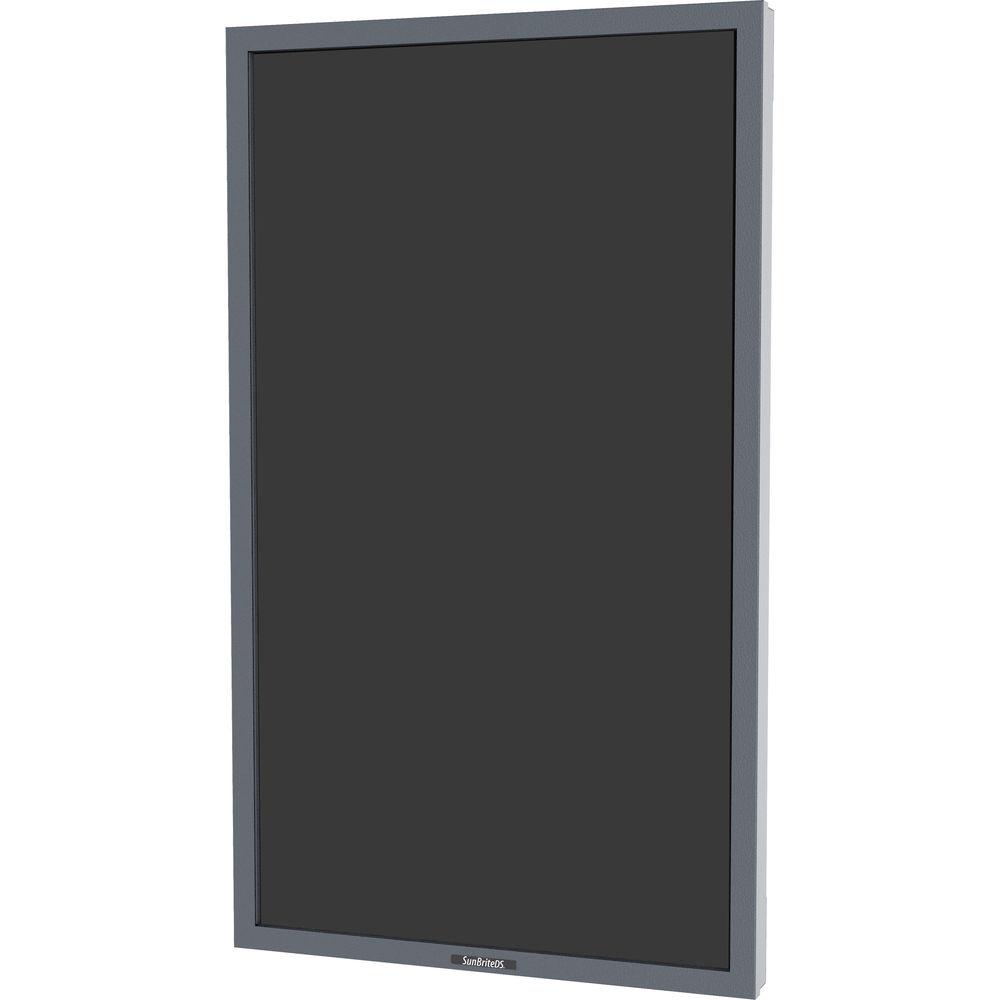

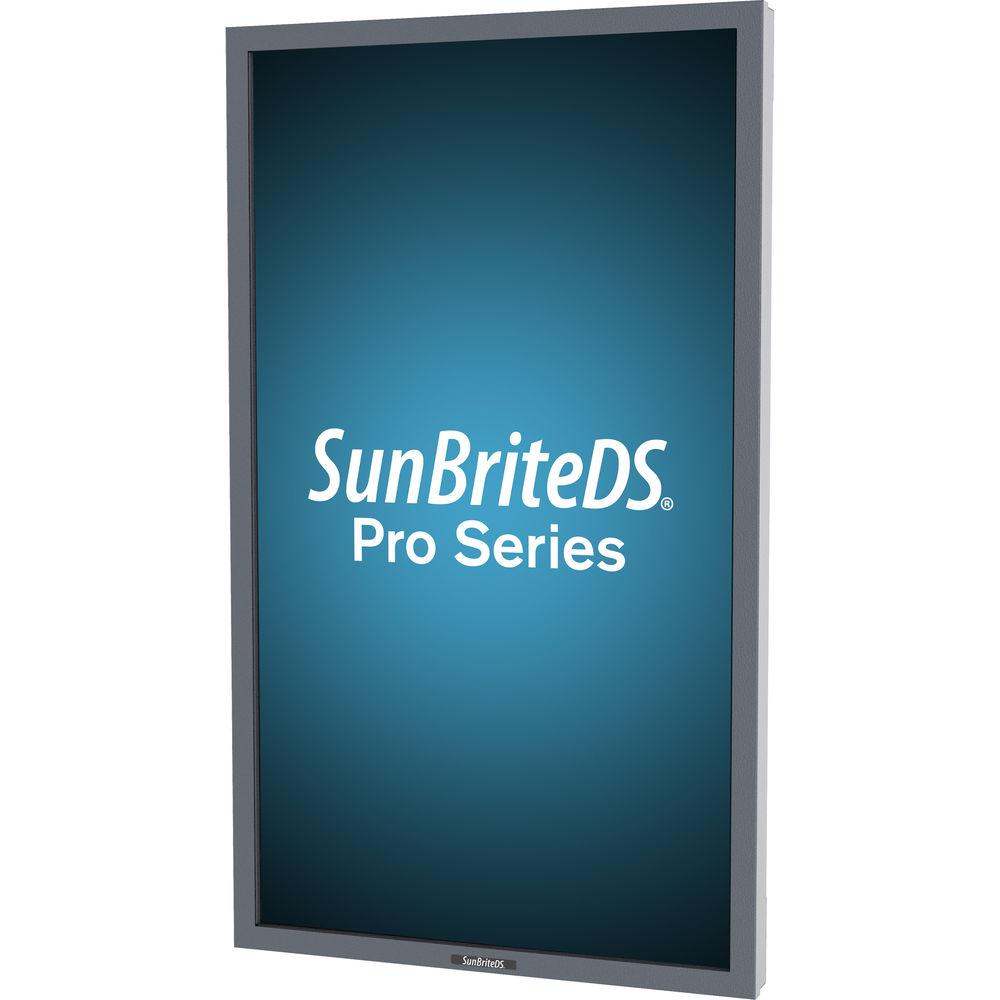

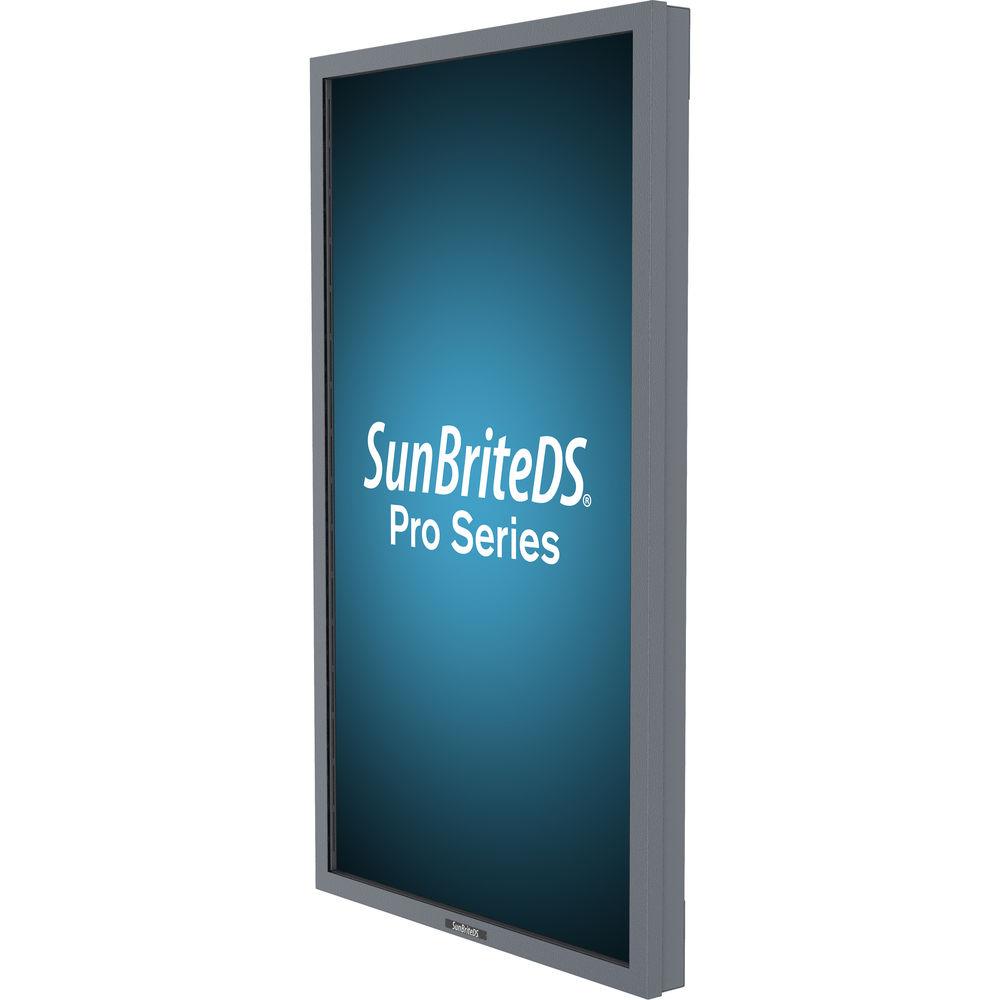

Product description View 1080p content outdoors with the portrait-oriented, silver Pro Series 55" Outdoor Digital Signage Display from SunBriteTV. This 55" LED screen features a 700 cd/m2 brightness rating, allowing you to view content in direct sunlight. In additional to the anti-reflective protective glass, this display uses high-temperature Enhanced Solar Tolerance (EST) technology that prevents isotropic blackout. The exterior is designed to protect internal components from rain, insects, dust, humidity, and salt air. This display comes with a thermal-flow air ventilation system that will allow the display to function in temperatures up to 122°F. It is suitable for installation in areas including college campuses, theme parks, sports stadiums, resorts, or any high-traffic outdoor venues. A weatherproof, detachable 20W speaker bar (available separately) can be top or bottom mounted on the display. - All-weather digital signage for permanent outdoor installation
- Ultra-bright (700 cd/m2) 55" full HD, 1080p LED screen for improved outdoor viewing
- High-temperature Enhanced Solar Tolerance (EST) technology prevents isotropic blackout
- Anti-glare protective glass and removable front bezel for easy field servicing
- Exterior designed to protect internal components from rain, snow, dust, insects, humidity, and salt air
- Powder-coated rust-proof aluminum exterior for strength and durability

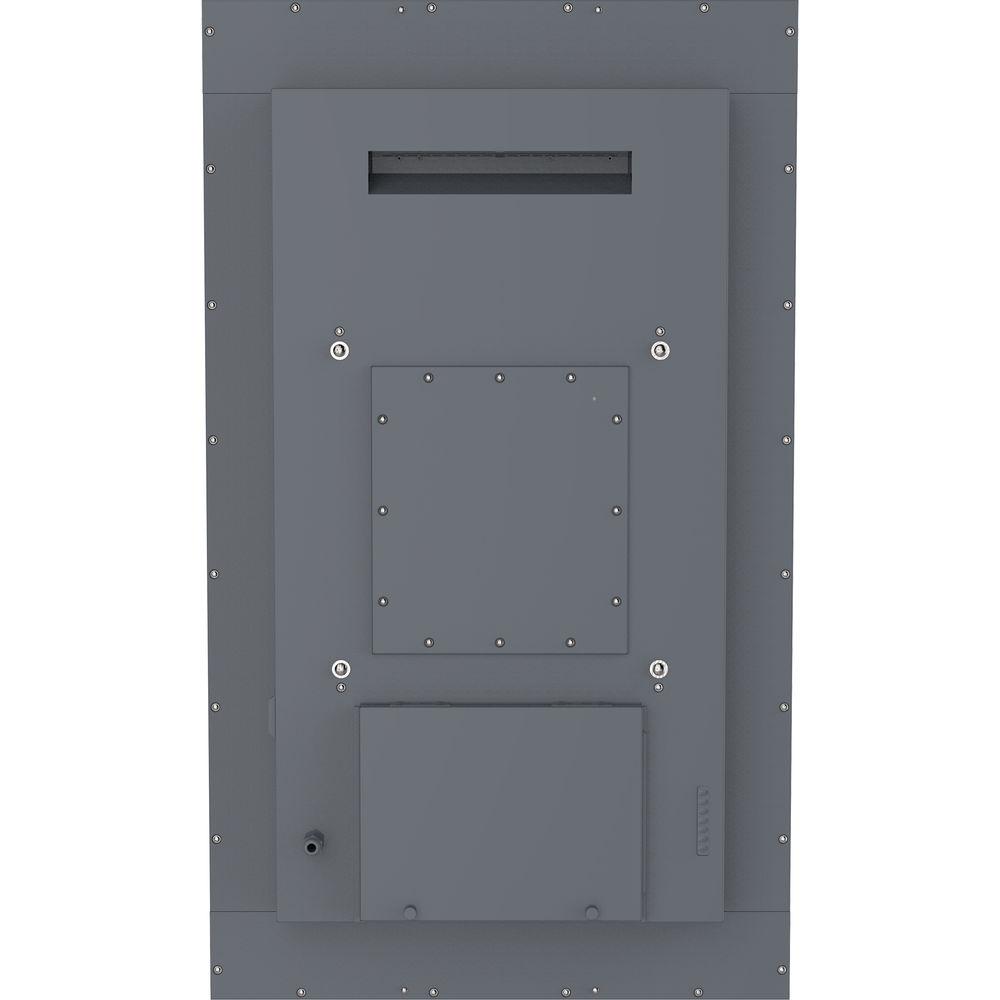

- Bottom opening cable/media bay provides easy access (Opening: 8.925 x 12.5 x 3.0" deep / Interior: 9.5 x 16.2 x 2.1" deep)
- Media bay power port powers media players without the need for external cords (5V @ 3.5A / 12V @ 3A)
- Thermal-flow air ventilation system keeps the unit cool & dry in temperatures up to 122°F
- Ability to operate in cold weather with temperature down to -40°F
- RS232 serial control with discrete on, off, and input control (located in the cable-entry compartment)
- Rear IR receiver (located in the cable-entry compartment)
- Water-tight cable entry system seals out moisture and allows for easy hook-ups
- Quick-change filtration cartridges
- Weather-resistant remote control included
- Remote control lock-out prevents unauthorized users from changing the programming
- Weather-resistant control buttons with optional tamper-proof plate
UPC: 810347022418 In the Box SunBriteTV Pro Series 55" Outdoor Digital Signage Portrait Display (Silver) Water-Resistant Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV Pro Series 55" Outdoor Digital Signage Portrait Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV DS-5518P Specs | | | Screen Size (Diagonal) | 55" | | Native Resolution | 1920 x 1080 | | Brightness | 700 cd/m
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
