User Manual for SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor LED TV Click to enlarge the picture
Contents of the user manual for the SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor
- Product category: Televisions SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Televisions
 |
User manual for the SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|

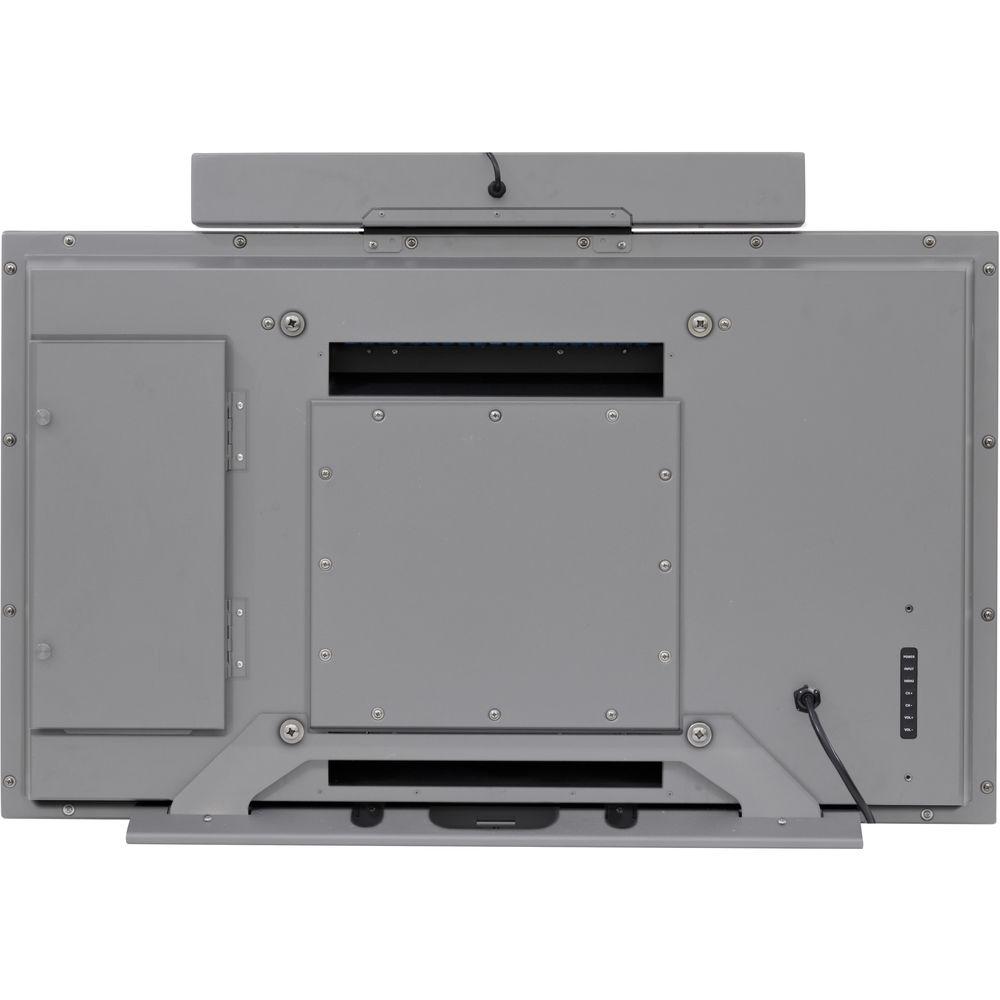

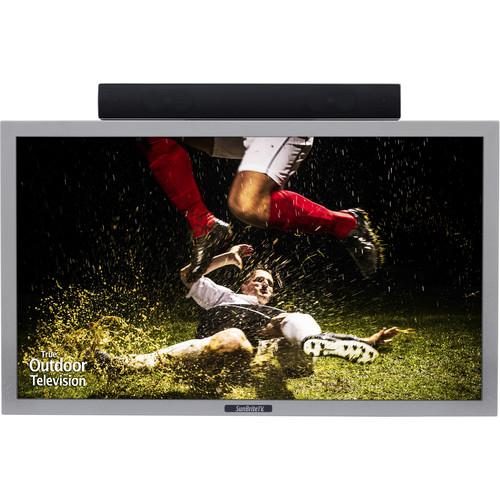

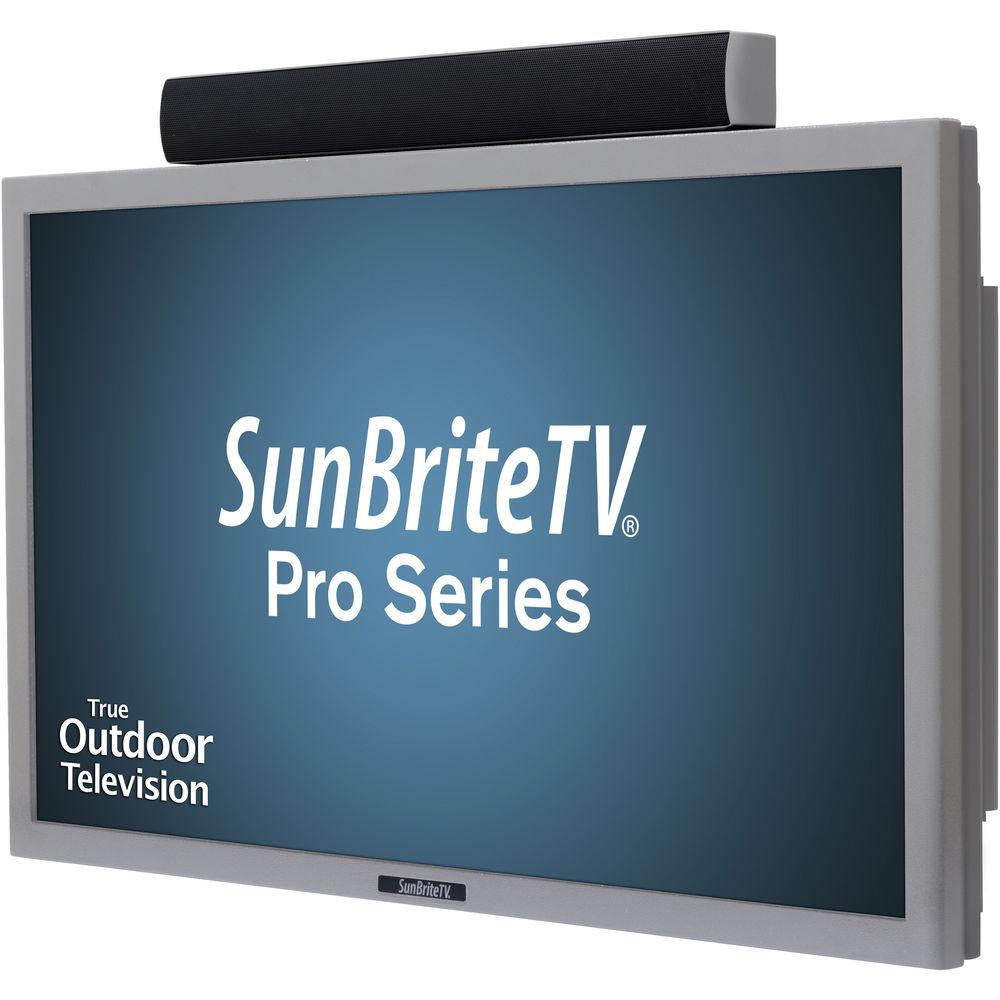

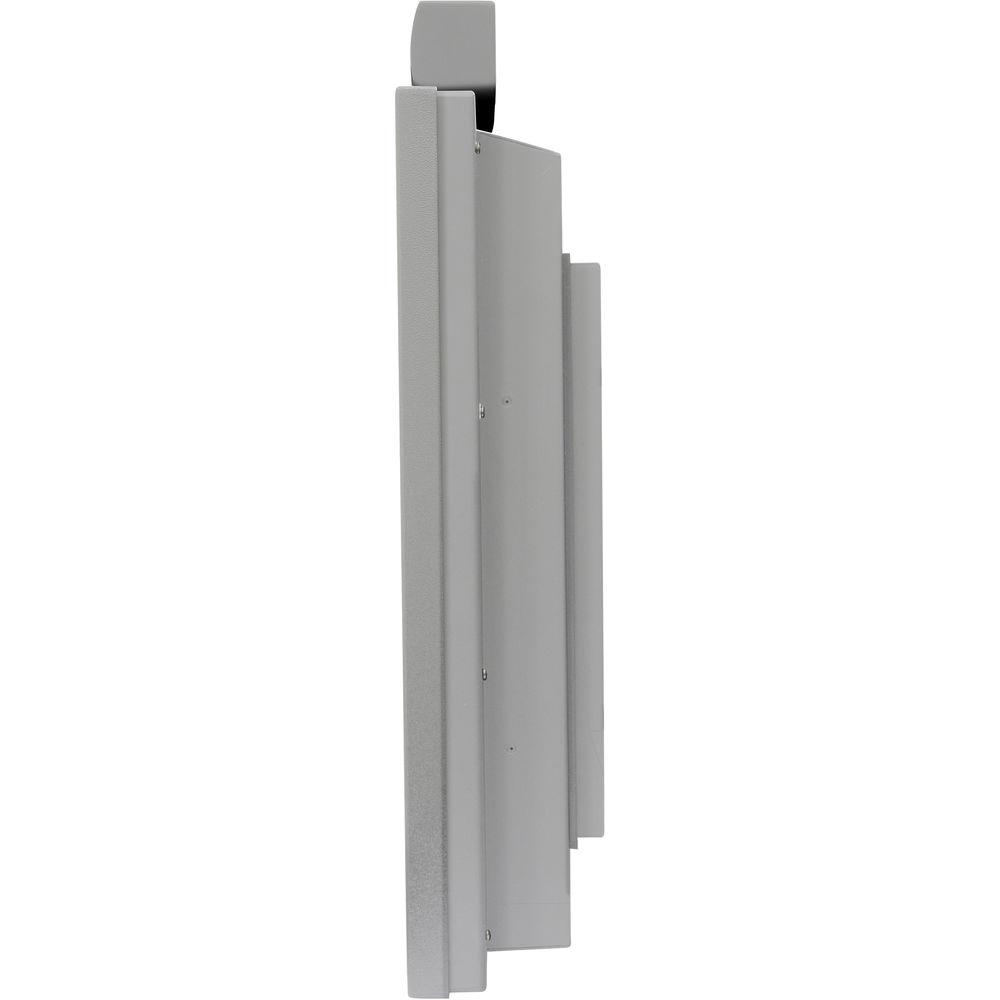

Product description The Big March TV Tournament Read More The silver SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor TV is a 1080p TV with 700 cd/m2 of brightness and anti-glare protective glass to enhance outdoor visibility. It will operate in extreme temperatures from -40 to 122°F and is designed to protect internal components from rain, snow, dust, insects, humidity, and salty air. The TV includes an all-weather speaker bar and a weatherproof remote control. - Anti-glare protective glass
- Removable front bezel for easy field servicing
- Easy-access side-opening cable/media bay with integrated power port to provide power to media players without the need for external cords (5 V @ 3.5 A, 12 V @ 3 A)
- Side-mounted cable ports for ease of access and visibility
- High temperature Enhanced Solar Tolerance (EST) technology prevents isotropic blackout
- Thermal-flow air ventilation system keeps the unit cool & dry in temperatures up to 122°F
- Ability to operate in cold weather, at temperatures as low as -40°F
- Exterior designed to protect internal components from rain, snow, dust, insects, humidity, and salt air
- Powder-coated, rust-proof aluminum exterior for strength and durability
- RS232 serial control with discrete on, off, and input control, located in the cable-entry compartment
- Rear IR receiver located in the cable-entry compartment
- Water-tight Cable Entry System seals out moisture and allows for easy hook-ups
- Quick-change filtration cartridges
- Weatherproof control buttons with optional tamper-proof plate
- Remote control lock-out prevents unauthorized users from changing the programming
- Speaker can be top- or bottom-mounted, in either landscape or portrait mode
UPC: 810347021961 In the Box SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor LED TV (Silver) Weatherproof Remote Control All-Weather Speaker Bar Limited 2-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV SB-4217HD 42" Pro Direct-Sun Outdoor LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV SB-4217HD Specs | | | Screen Size (Diagonal) | 42" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 1920 x 1080 | | Brightness | 700 cd/m² | | Contrast Ratio | 1300:1 | | Response Time | 12 ms | | Refresh Rate | 120 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | HDTV Compatibility | 1080 p
1080 i
720 p
720 i
480 p
480 i | | TV Tuner | Yes | | 3D | No | | | | Primary Connectivity Location | Display | | Input Ports | 1 x RF Antenna – Audio, Video
4 x RCA Stereo (L/R) – Audio
1 x 15-Pin VGA – Video
1 x S-Video – Video
2 x HDMI – Audio, Video
1 x RCA Composite – Video
2 x RCA Component – Video | | Output Ports | 1 x 1/8" / 3.5 mm – Headphone
1 x Digital Coaxial – Audio
1 x 1/8" / 3.5 mm – Audio | | Ethernet | None | | Control | RS-232C | | | | Picture Modes | 16:9 | | Remote Control | Yes | | Wall Mounting | 400 x 400mm | | | | Channels | 2.0 | | Power Output | 20W | | Weight | 4.0 lb / 1.81 kg | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Operating/Storage Temperature | Operating
-40 to 122°F (-40 to 50°C)
Storage
-40 to 140°F (-40 to 60°C) Storage temperature feature requires standby mode. | | Dimensions (W x H x D) | 39.4 x 26.4 x 5.6" / 100.1 x 67.1 x 14.2 cm With speaker
39.4 x 23.4 x 5.5" / 100.1 x 59.4 x 14.0 cm Without speaker | | Weight | 59.0 lb / 26.8 kg With speaker
55.0 lb / 24.9 kg Without speaker |
