User Manual for SunBriteTV SB-AW-6 Surface-Mount Outdoor Speakers Click to enlarge the picture
Contents of the user manual for the SunBriteTV SB-AW-6 Surface-Mount Outdoor Speakers
- Product category: Outdoor Speakers SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Outdoor Speakers
 |
User manual for the SunBriteTV SB-AW-6 Surface-Mount Outdoor Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|

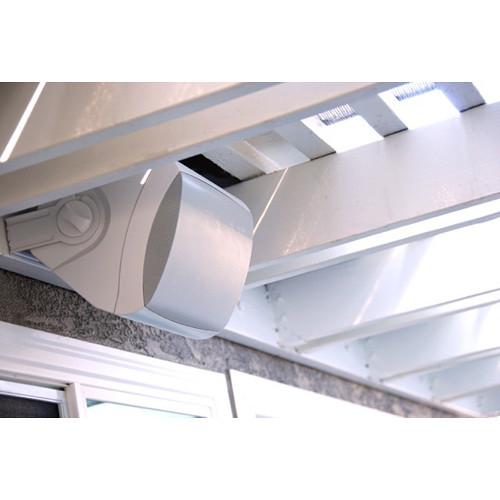

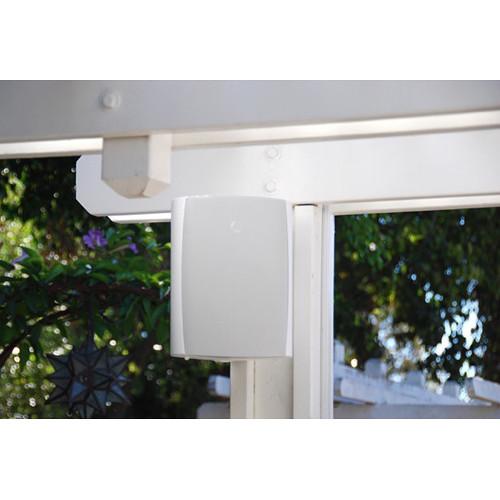

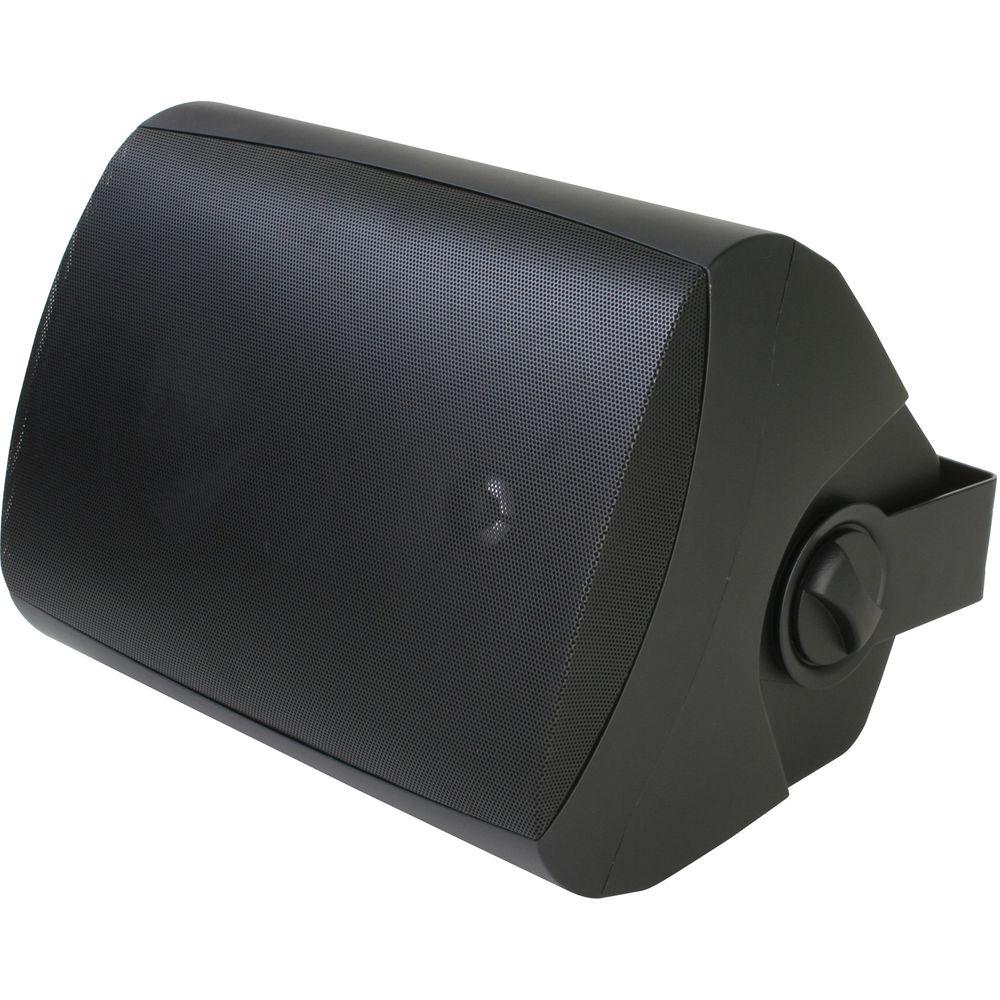

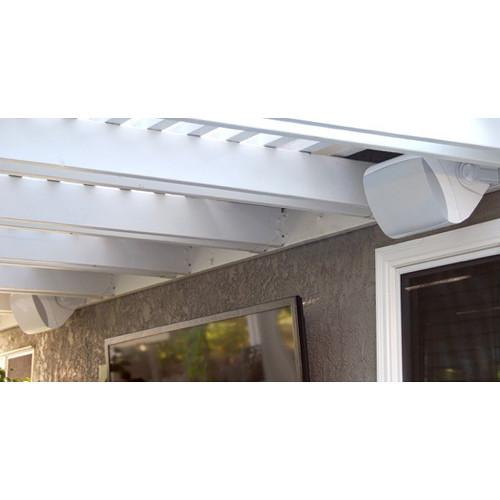

Product description This pair of black SB-AW-6 Surface-Mount Outdoor Speakers from SunBriteTV features a 6.5" high-temperature polypropylene cone, Nomex spider, and a 1" aluminum dome tweeter inside a rugged, weather-resistant housing. These speakers are suitable for use in wide dispersion distributed audio systems and can be mounted vertically or horizontally. Thanks to handy slots on either end, installation is as easy as mounting the bracket, loosening the knobs on the speaker, and sliding the speaker on. Included rubber gaskets attach to the slots to hold the speaker tight once it's mounted, and ribs along the edge increase stiffness to resist sagging. The speaker also features standard M6 threaded inserts for mounting versatility. - A rugged build, UV-treated and mineral-filled casing, stainless steel hardware, and weatherproofed adhesives allow for optimal performance in any weather
- Solid construction eliminates resonance and minimizes vibrations, while a high-gloss finish complements any décor
- Designed for optimal audio quality in wide dispersion distributed audio systems
- 6.5" polypropylene cone with Nomex spider for a deep, full sound
- 1" aluminum tweeter for crisp, clear highs

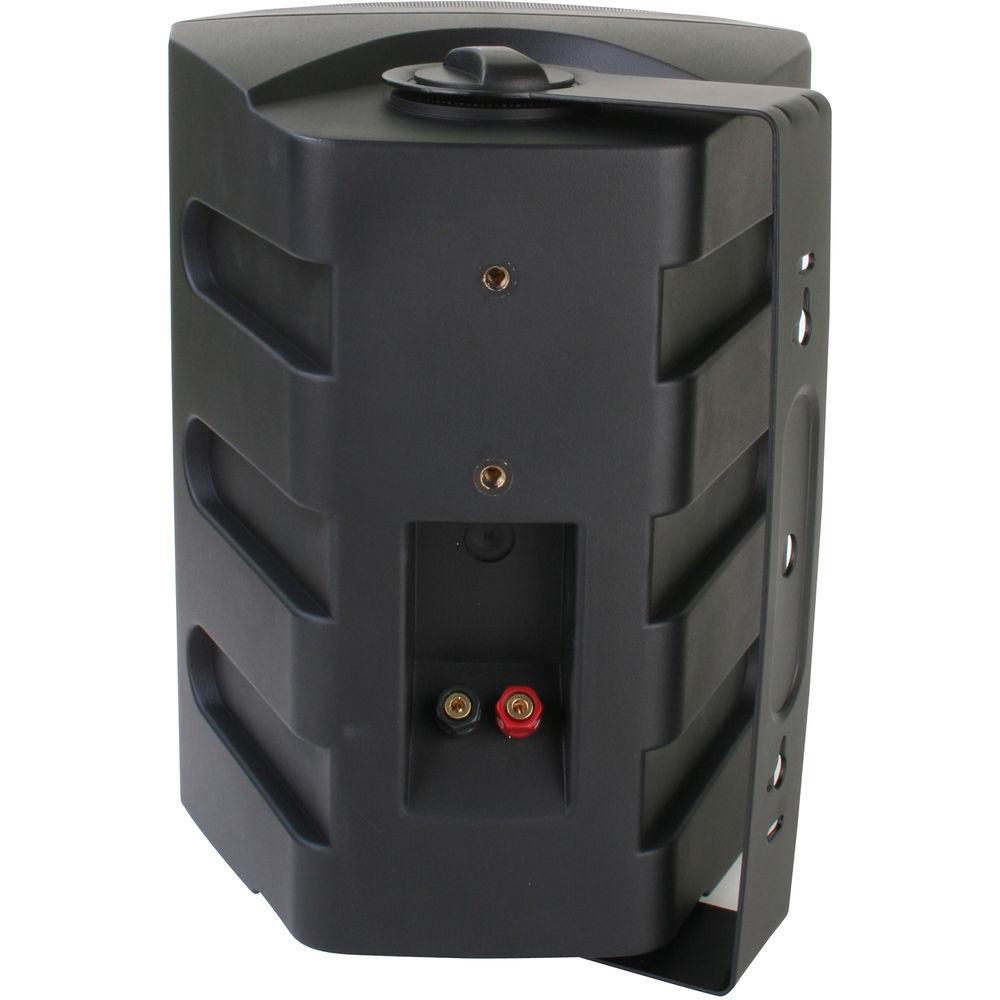

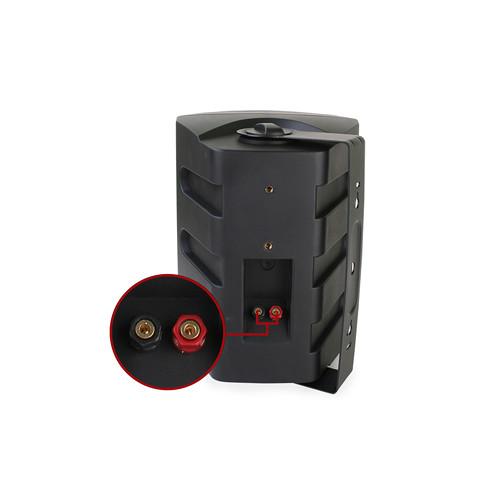

- Gold-plated, 5-way binding posts are easy to use and provide secure connection to your amplifier

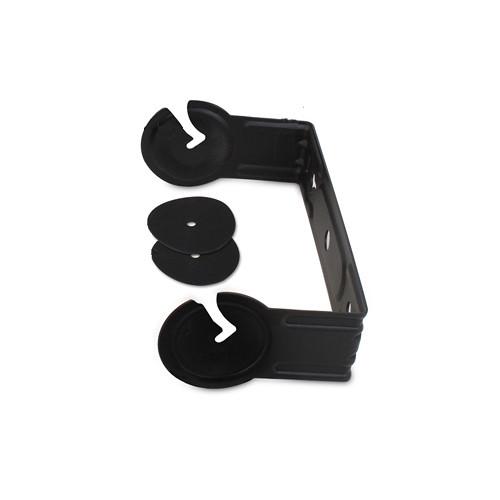

UPC: 842822038126 In the Box SunBriteTV SB-AW-6 Surface-Mount Outdoor Speakers (Pair, Black) 2 x Mounting Brackets Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV SB-AW-6 Surface-Mount Outdoor Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV SB-AW-6 Specs | Tweeter | 1" (2.5 cm) aluminum dome, neodymium motor, ferrofluid cooled | | Woofer | 6.5" (16.5 cm) polypropylene injection cone | | Voice Coil | Nomex spider and high temp voice coil | | Frequency Response | 65 Hz to 20 kHz | | Crossover Frequency | 2 kHz | | Recommended Amplifier Power | 20-130 W RMS | | Nominal Impedance | 6 Ohms | | Output Power | Peak: 325 W
RMS: 130 W | | Sensitivity | 86 dB | | Connectors | 5-way binding posts | | Dimensions | 11.4 x 9 x 8.85" (30 x 22.9 x 22.5 cm) each | | Weight | 8.8 lb (4 kg) each |
