User Manual for SunBriteTV Signature 43" Class UHD Outdoor LED TV Click to enlarge the picture
Contents of the user manual for the SunBriteTV Signature 43" Class UHD Outdoor
- Product category: Televisions SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Televisions
 |
User manual for the SunBriteTV Signature 43" Class UHD Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|

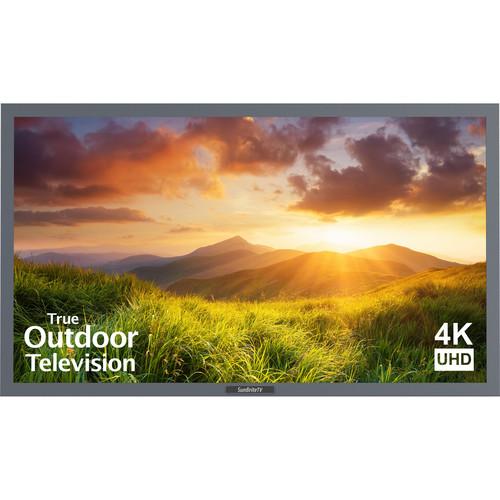

Product description The Big March TV Tournament Read More Enjoy your favorite 4K content in partial-sun outdoor areas with the silver SunBriteTV Signature 43" Class UHD Outdoor LED TV. It supports HDMI 2.0 and HDCP 2.2 for 4K compatibility and has two HDMI inputs and an HDBaseT input for connecting your compatible sources. The Signature also has a USB port that supports playback of BMP, JPEG, MP3, and WAV files.
As an outdoor TV, the Signature features a weatherproof design to protect its internal components from most weather events and can function in extreme temperatures. For daytime viewing, its direct LED backlight with 700 nits of brightness along with the OptiView pre-configured daylight/nighttime outdoor settings will help ensure that ambient light won't wash out the color from what you're watching. Note: The Signature Series is designed specifically for installation in partial-sun outdoor areas. A stand or wall mount is required and not included. Speakers are not built-in or included. - 4K UHD High-Brightness (700 nit) Anti-Glare Screen
- At up to three times the brightness of typical indoor televisions, the Signature series offers an enhanced viewing experience in the indirect sunlight and high ambient light conditions often encountered outdoors.
- OptiViewTechnology
- Preconfigured settings optimized for brighter daytime or darker nighttime outdoor viewing environments.
- Built-In HDBaseT Receiver
- An integrated HDBaseT receiver is built into the SunBriteTV Signature series, allowing transmission of ultra-high-definition video, audio, and control over a single, long-distance category cable.
- Safe for Outdoor Use
- Outdoor-safe, built for permanent outdoor installation in partial-sun spaces.
- Extreme Temperature Functionality
- Dispersive temperature regulation system allows operation in low temperatures from -24°F and high temperatures up to 122°F.
- Additional Features
-
- Powder-coated, rust-proof aluminum exterior for enhanced strength and durability.
- Weather-tight cable entry system seals out moisture and allows for easy hook-ups.
- Weatherproof remote control.
- Remote Control Lock-Out prevents unauthorized users from changing the programming.
- Supports HDMI 2.0 and HDCP 2.2 to ensure compatibility with 4K sources and streaming services.
- Media bay with room for many popular media players, cables, baluns, and extenders.
- Media bay power ports power media players without the need for external cords (5V @ 3.5 A / 12V @ 3 A).
- Rear IR receiver in media bay keeps IR emitter hidden & protected.
- RS232 serial control with discrete on, off, and input control for additional control integration.
- Two HDMI inputs provide connectivity options.
UPC: 810347023118 In the Box SunBriteTV Signature 43" Class UHD Outdoor LED TV (Silver) Weatherproof Remote Control Limited 2-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV Signature 43" Class UHD Outdoor LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV SB-S-43-4K Specs | | | Screen Size (Diagonal) | 43" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | Brightness | 700 cd/m² | | Contrast Ratio | 3000:1 | | Response Time | 8 ms | | Refresh Rate | 60 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | HDTV Compatibility | 2160 p (HDMI only)
1080 p
1080 i
720 p
720 i
480 p
480 i | | TV Tuner | Yes | | | | Primary Connectivity Location | Display | | Input Ports | 1 x 15-Pin VGA – Video
1 x RF Antenna – Audio, Video
2 x RCA Stereo (L/R) – Audio
2 x HDMI – Audio, Video
2 x RCA Component – Video
1 x RCA Composite – Video | | Output Ports | 1 x 1/8" / 3.5 mm – Headphone
1 x TOSLINK Optical – Audio | | USB Ports | 1 x USB (Version Unspecified) – Audio, Photo, Video (Rear) | | Ethernet | HDBaseT | | Control | RS-232C | | | | Media Player | BMP
JPEG
MP3
WAV | | Supported Languages | English
French
Spanish | | Remote Control | Yes | | Wall Mounting | 200 x 200mm | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 206.0 W | | Operating/Storage Temperature | Operating
-24 to 122°F (-31 to 50°C) | | Dimensions (W x H x D) | 39.0 x 23.0 x 2.7" / 99.1 x 58.4 x 6.9 cm | | Weight | 41.5 lb / 18.8 kg |
