User Manual for SunBriteTV Veranda 43" Class HDR 4K UHD Outdoor LED TV Click to enlarge the picture
Contents of the user manual for the SunBriteTV Veranda 43" Class HDR 4K
- Product category: Televisions SunBriteTV
- Brand: SunBriteTV
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SunBriteTV Televisions
 |
User manual for the SunBriteTV Veranda 43" Class HDR 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SunBriteTV product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SunBriteTV user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SunBriteTV product will considerably shorten its lifespan!
|
Product description The Big March TV Tournament Read More Enjoy your favorite HDR 4K UHD content in outdoor shaded areas with the SunBriteTV Veranda 43" Class HDR 4K UHD Outdoor LED TV. It supports HDMI 2.0 and HDCP 2.2 for HDR 4K UHD compatibility and has four HDMI inputs for connecting your compatible sources. It features a weatherproof design to protect its internal components from rain, snow, dust, insects, humidity, and salty air, and can be used in temperatures ranging from -24 to 104°F. It includes a weatherproof IR remote control for added convenience. Note: The Veranda Series is designed specifically for installation in covered outdoor areas. A tabletop stand or wall mount is required and not included. - Weatherproof Design for Covered Outdoor Installations

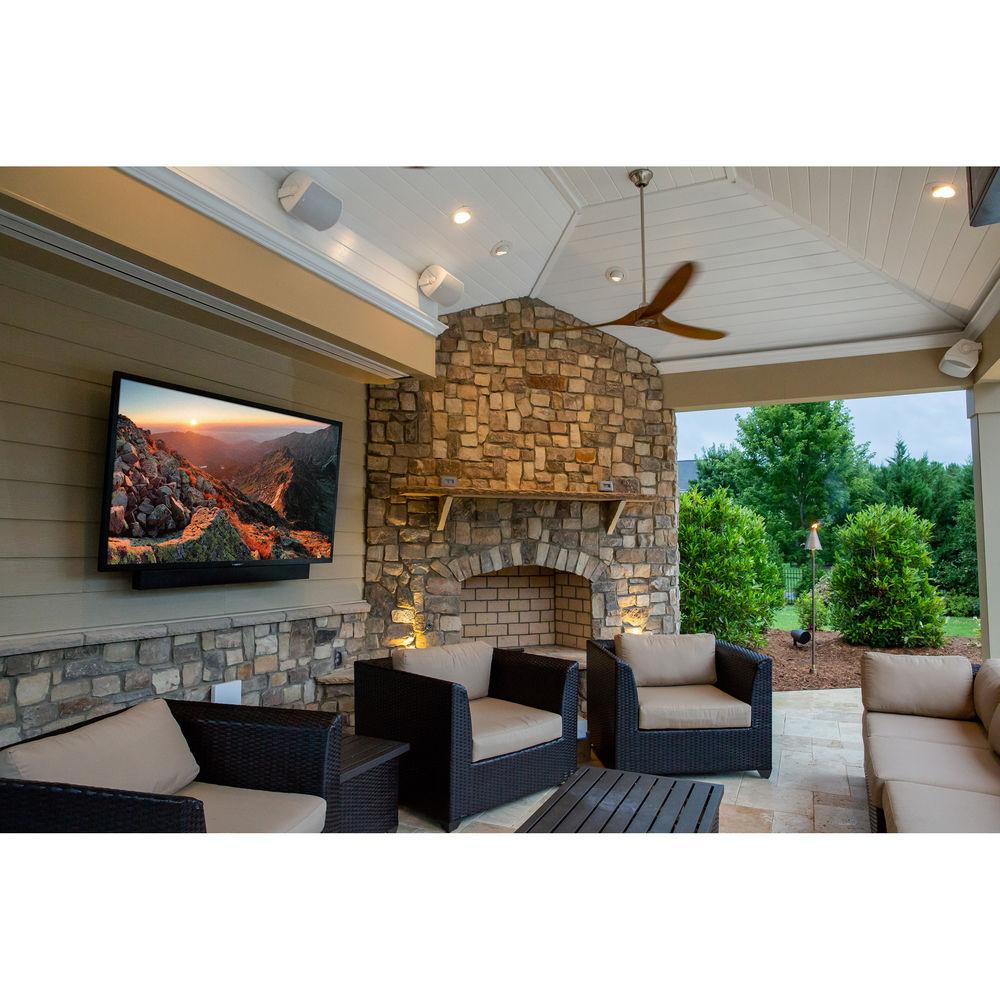

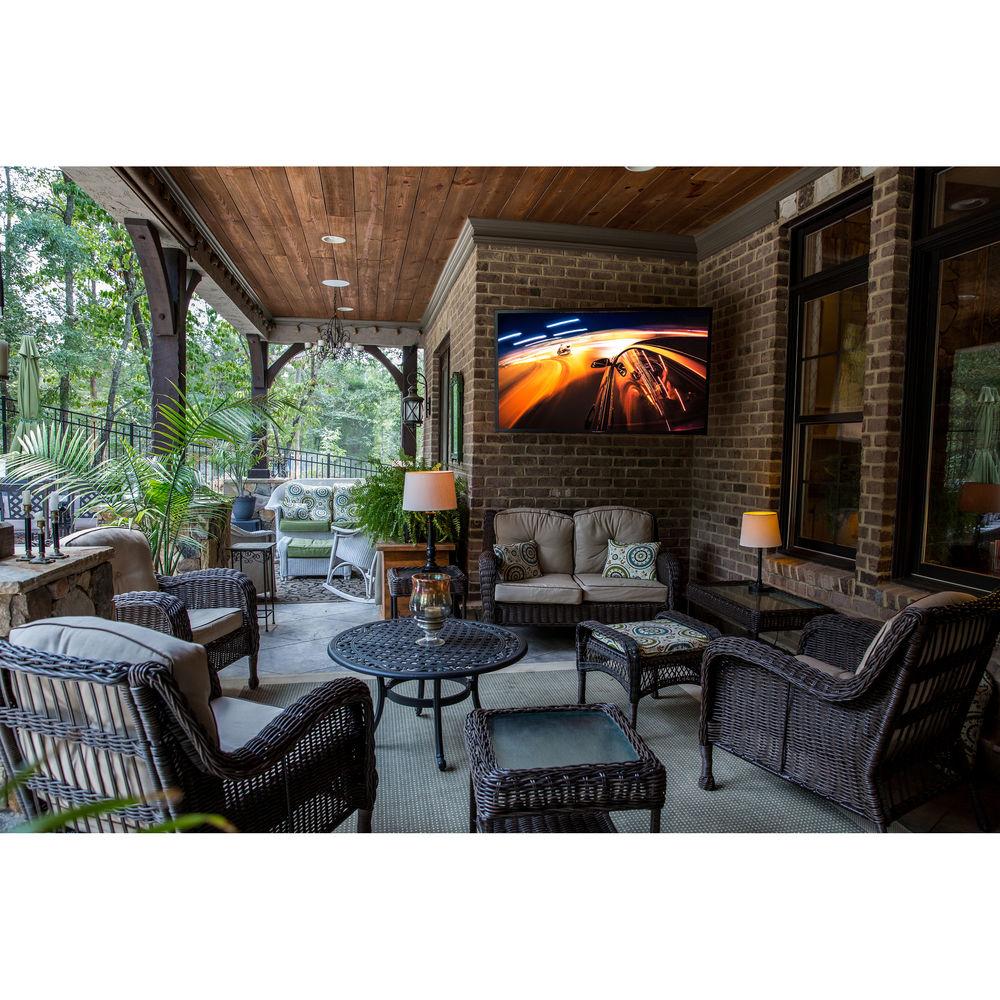

- The Veranda series is designed for use in fully shaded areas like patios, covered decks, or screened-in porches. The powder-coated, rust-proof aluminum exterior helps protect internal components from rain, snow, dust, insects, humidity, and salty air. The direct LED backlight helps provide a bright image for enhanced detail in covered outdoor areas.
- HDR Support
- HDR offers a wide color gamut, helping to represent colors more realistically with enhanced brightness and contrast.
- Bright Screen with 4000:1 Contrast
- The Veranda series features a bright screen with a 4000:1 contrast ratio to help improve viewing in bright outdoor environments.
- Enhanced Compatibility with HDMI 2.0 and HDCP 2.2 Support

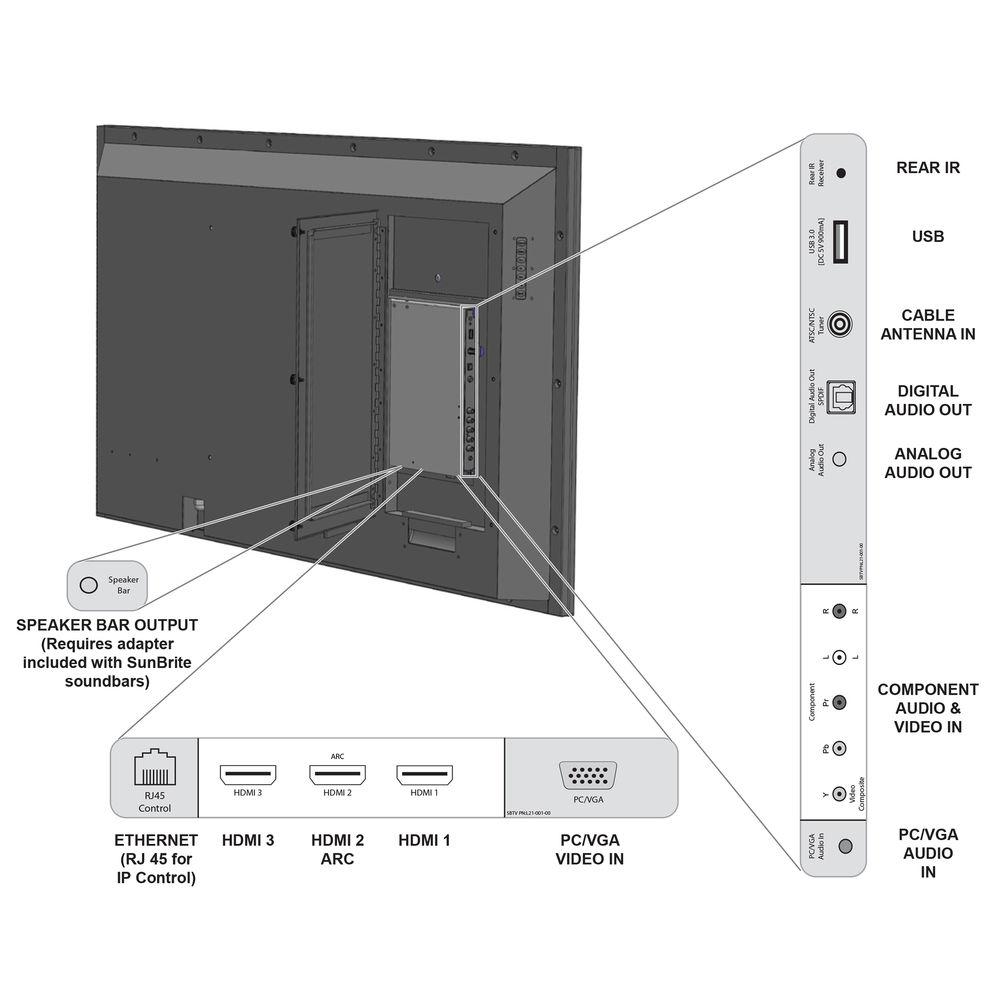

- This TV supports HDMI 2.0 and HDCP 2.2 to help ensure compatibility with 4K sources and streaming services. Three HDMI ports and one USB input are onboard, and one HDMI input is ARC-compatible for simple connectivity to your compatible sound system. An Ethernet port enables IP control, and a rear IR receiver inside the cable compartment keeps the IR emitter hidden and protected. The included remote control is also weatherproof as an added convenience.
- Weatherproof Media Bay
- The weatherproof media bay helps make connectivity easy and safe. Gaskets seal out moisture, and there's room inside the storage area for your media players and cables.
- Built-In Speakers
- Built-in 20W down-firing speakers provide an all-in-one sound solution, or you can add an external audio system or optional weatherproof soundbar.
- Designed for Use in Various Climates
- The Veranda series is safe to operate at temperatures as low as -24°F and up to 104°F, and for storage from -24 to 140°F.
- Sleek, Thin-Bezel Design
- The thin-bezel design helps add a sleek appearance to your outdoor space.
UPC: 842822039475 In the Box SunBriteTV Veranda 43" Class HDR 4K UHD Outdoor LED TV Weatherproof Remote Control Limited 1-Year Warranty The Top 8 TVs of 2018 Richard Risitano 12/20/2018 The B&H Television Buying Guide Lawrence Neves 01/31/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the SunBriteTV Veranda 43" Class HDR 4K UHD Outdoor LED TV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunBriteTV SB-V-43-4KHDR Specs | | | Screen Size (Diagonal) | 43" | | Panel Type | LCD | | Aspect Ratio | 16:9 | | Pixel Resolution | 3840 x 2160 | | HDR Compatibility | HDR10 | | Contrast Ratio | 4000:1 | | Response Time | 8 ms | | Refresh Rate | 60 Hz | | Viewing Angle (H x V) | 178 x 178° | | | | Video System | NTSC / | | TV Tuner | Yes - ATSC, QAM | | | | Primary Connectivity Location | Display | | Input Ports | 3 x HDMI – Audio, Video
1 x RF Antenna – Audio, Video
1 x 15-Pin VGA – Video
1 x RCA Component – Video
1 x RCA Composite – Video
1 x RCA Stereo (L/R) – Audio
1 x 1/8" / 3.5 mm – Audio | | Output Ports | 1 x TOSLINK Optical – Audio
1 x 1/8" / 3.5 mm – Audio | | USB Ports | 1 x USB 3.1 Gen 1 – Audio, Photo, Video | | Control | IP via RJ45 | | | | Sound | Stereo | | Subwoofer | None | | Power | 20 W | | | | Virtual Assistant Support | None | | Wi-Fi | None | | Remote Control | Yes | | Wall Mounting | 200 x 200mm | | | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Maximum: 75.0 W | | Operating/Storage Temperature | Operating
-24 to 104°F (-31 to 40°C)
Storage
-24 to 140°F (-31 to 60°C) | | Dimensions (W x H x D) | 38.7 x 22.8 x 3.4" / 98.2 x 57.8 x 8.6 cm | | Weight | 30.00 lb / 13.61 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
