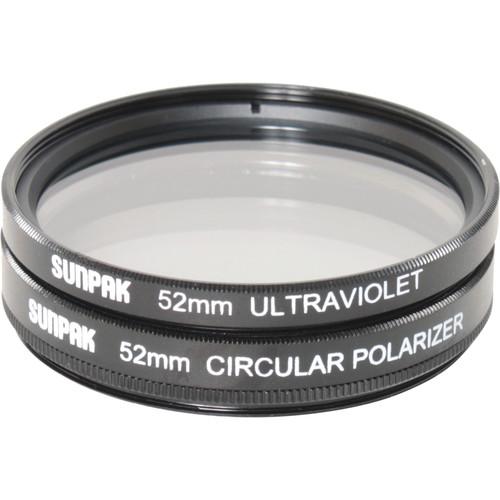

User Manual for Sunpak 52mm UV and Circular Polarizer Filter Kit Click to enlarge the picture
Contents of the user manual for the Sunpak 52mm UV and Circular Polarizer
- Product category: Filter Kits Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Filter Kits
|
User manual for the Sunpak 52mm UV and Circular Polarizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|
Product description This Sunpak 52mm Filter Kit includes a 52mm UV Filter and a 52mm Circular Polarizer Filter. Each filter in this kit fits a lens with 52mm front filter threads and can provide one of two enhancements to your imagery. Additionally, these filters are constructed from optical glass within an aluminum-alloy frame, which protect the front element of a lens from scratches, bumps, or impacts. A filter case that can accommodate both filters is included for storage and transport.
The Sunpak 52mm UV Filter is a general use, clear filter designed to absorb ultraviolet light and reduce the bluish cast of daylight. Aside from the reduction of unwanted blue casts, no additional coloration or contrast is created, and adjustments to exposure are not required while using this filter.
This UV filter is also useful as a general protective filter to leave on lenses at all times. Such filters help to reduce dust and moisture from reaching your front lens element and provide additional protection in case of drops or situations where scratching could occur.
The Sunpak 52mm Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.
The Sunpak 52mm UV Filter and Sunpak 52mm Circular Polarizer Filter are both non-coated and are constructed from optical glass for clarity and color fidelity. Additionally, they each feature an aluminum-alloy filter ring for durability while remaining lightweight. - Sunpak 52mm UV Filter
-
- Absorbs UV light and reduces bluish cast of daylight
- Does not require adjustments to exposure while in use
- Creates no additional coloration or contrast
- Non-coated
- General protection filter reduces dust, moisture, and scratches from reaching lens elements
- Sunpak 52mm Circular Polarizer Filter
-
- Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
- Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
- Clears up haze in distant landscapes and provides more saturated, vivid colors
- Strongest effect when used at a 90° angle from the sun
- Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features
- Non-coated
- 2x filter factor reduces exposure by 1 stop
UPC: 090729609844 In the Box Sunpak 52mm UV and Circular Polarizer Filter Kit Plastic Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak 52mm UV and Circular Polarizer Filter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak CF-7078-TW-MW Specs | Type | UV Filter: UV/Haze
Circular Polarizing Filter: Circular Polarizer | | Size | UV Filter: 52 mm
Circular Polarizing Filter:52 mm | | Filter Factor | UV Filter: 1 (0 stop)
Circular Polarizing Filter: 2 (1 stop) | | Multi-Coated | UV Filter: No
Circular Polarizing Filter: No | | Effect | UV Filter: Absorbs UV rays and reduces bluish cast from daylight
Circular Polarizing Filter: Eliminates reflections and haze and improves color and tonal saturation | | Construction | Optical glass | | Front Filter Thread Size | 52 mm | | Front Lens Cap Size | 52 mm | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.1 x 3.8 x 0.8" |
