User Manual for Sunpak 5400DLX Tripod with 3-Way, Pan-and-Tilt Head, Smartphone Mount, and Mount for GoPro Camera Click to enlarge the picture
Contents of the user manual for the Sunpak 5400DLX Tripod with 3-Way, Pan-and-Tilt
- Product category: Tripods with Heads Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Tripods with Heads
 |
User manual for the Sunpak 5400DLX Tripod with 3-Way, Pan-and-Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|

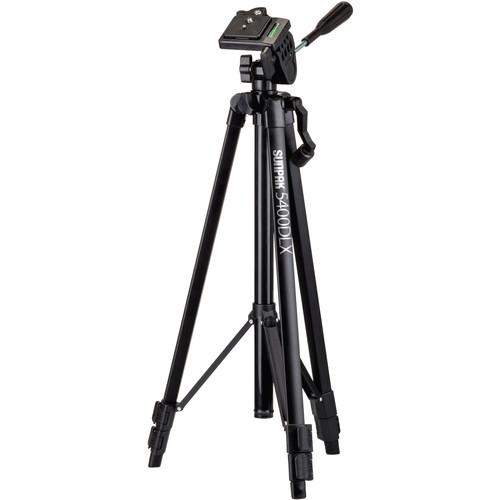

Product description Time-Lapse Tips and Tools Read More This Sunpak 5400DLX Tripod supports up to 4.0 lb, measures 20.5" when folded, and includes a three-way, pan-and-tilt head. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 19.7" to a maximum height of 42.5", or 54.0" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which include rubber feet to further enhance stability on a wide variety of surfaces.

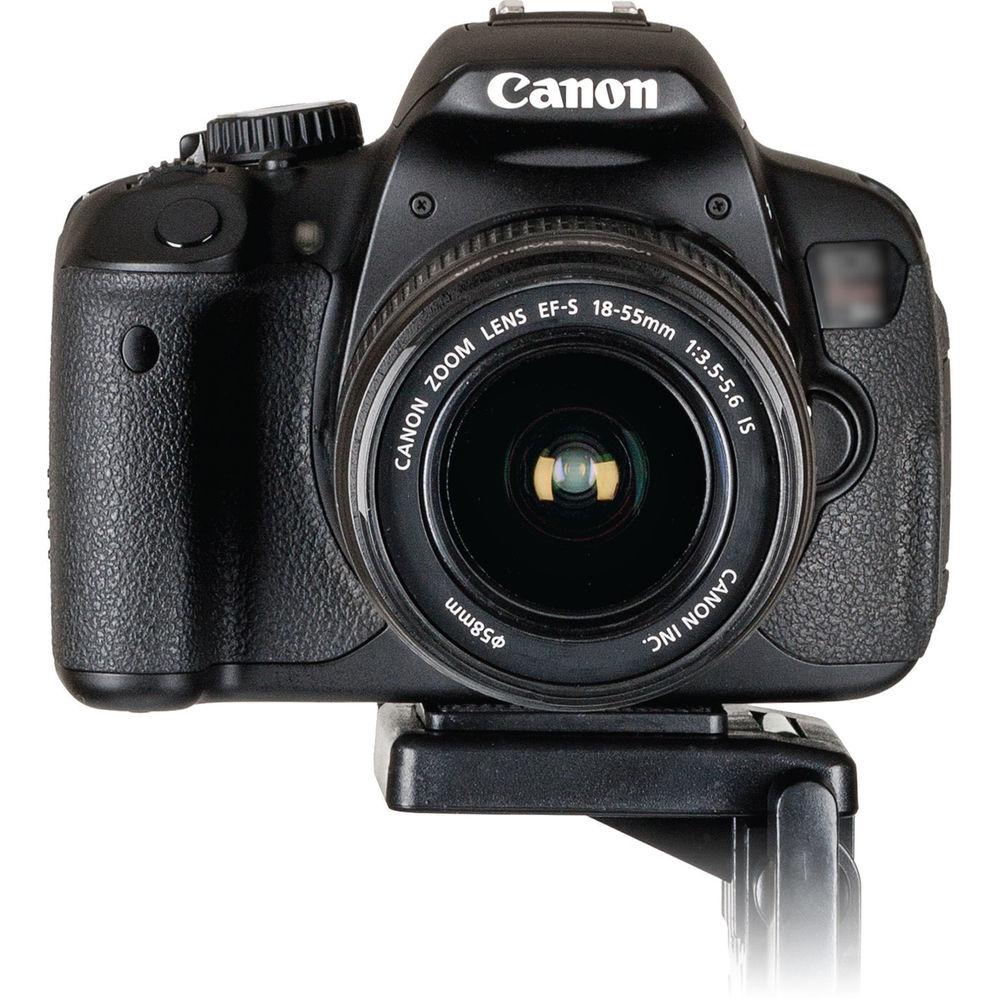

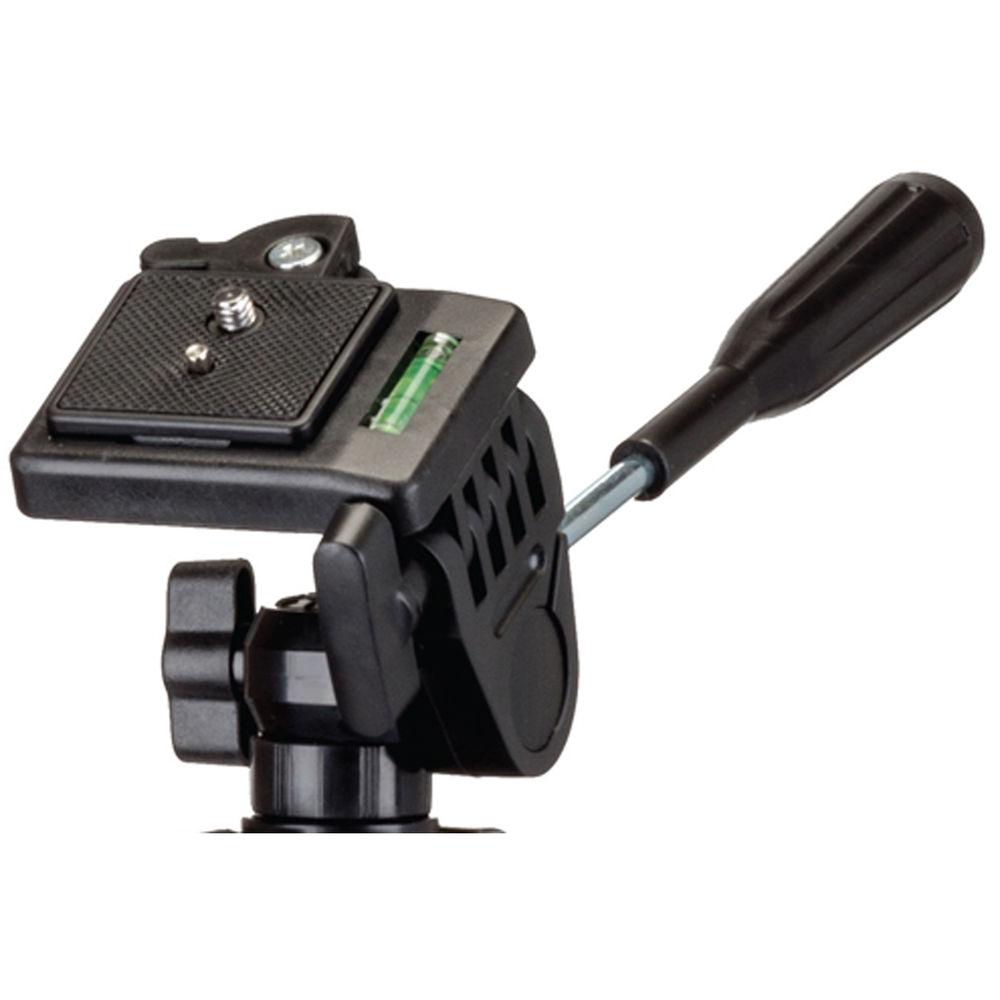

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place.

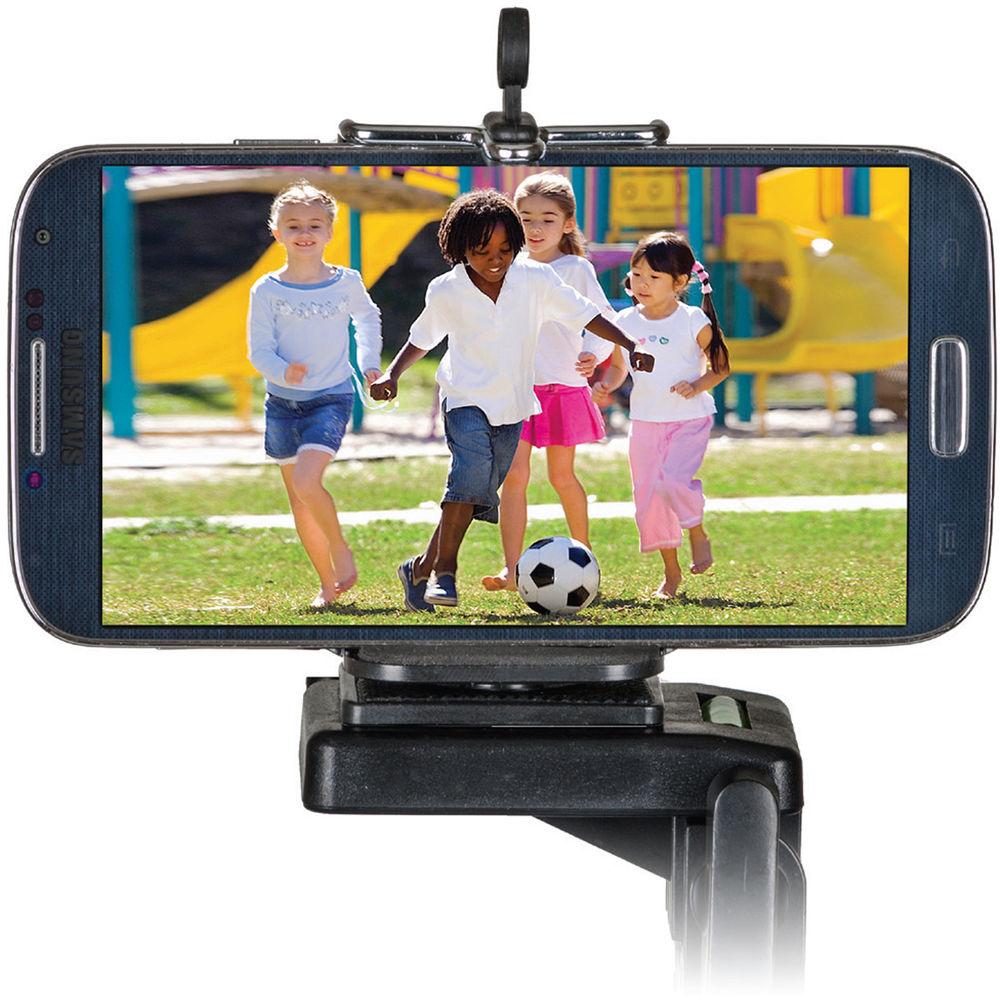

Mobile devices with or without a case measuring 2.5 to 3.3" wide can fit in the provided smartphone mount, which attaches to the tripod head's quick release plate. The mount clamps onto a compatible device and features a secure, rubberized grip. Featuring a spring-loaded design, the clamp can be instantly unfastened, allowing easy access to an installed smartphone whenever needed.

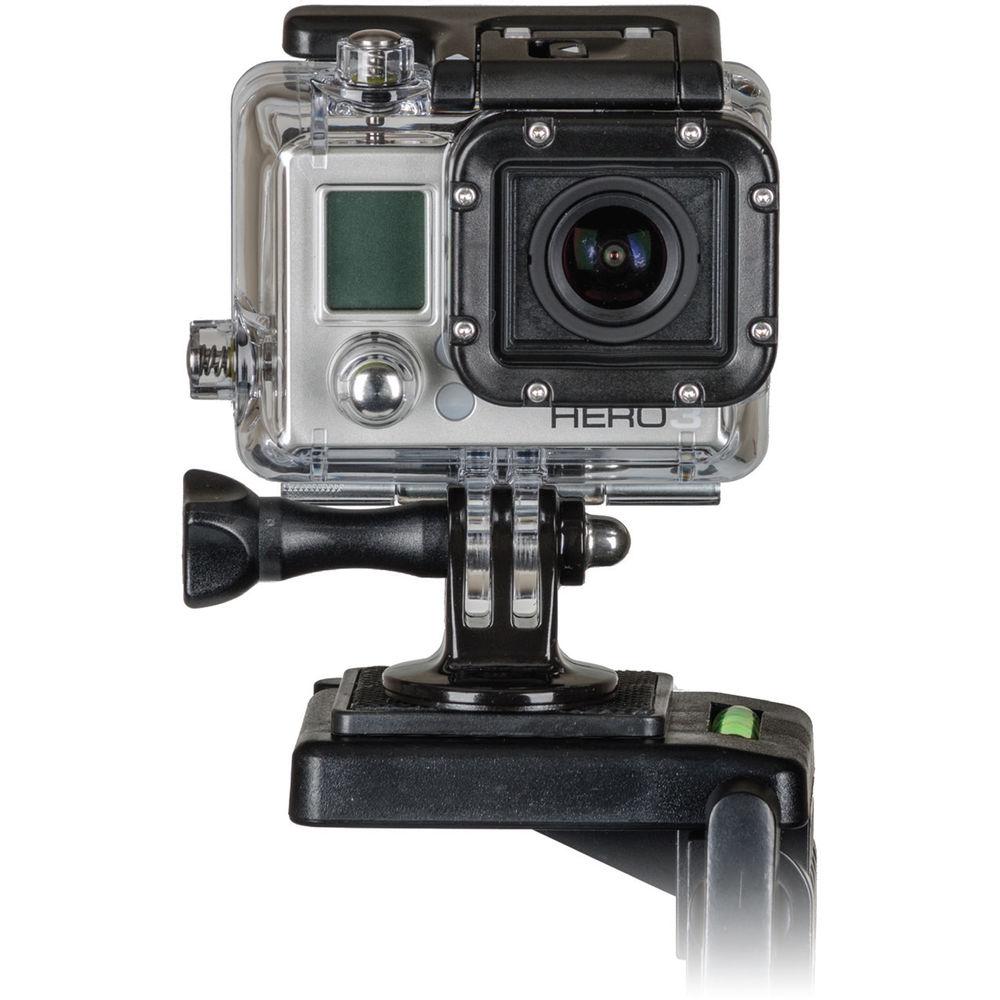

Also included is a mount for any GoPro camera housing. It can be attached to the tripod quick release plate's 1/4"-20 mount as well. - Use and Handling
-
- Supports up to 4.0 lb
- Geared center column with rotating handle for precise positioning
- Can be set for a minimum height of 19.7" to a maximum height of 42.5", or 54.0" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment

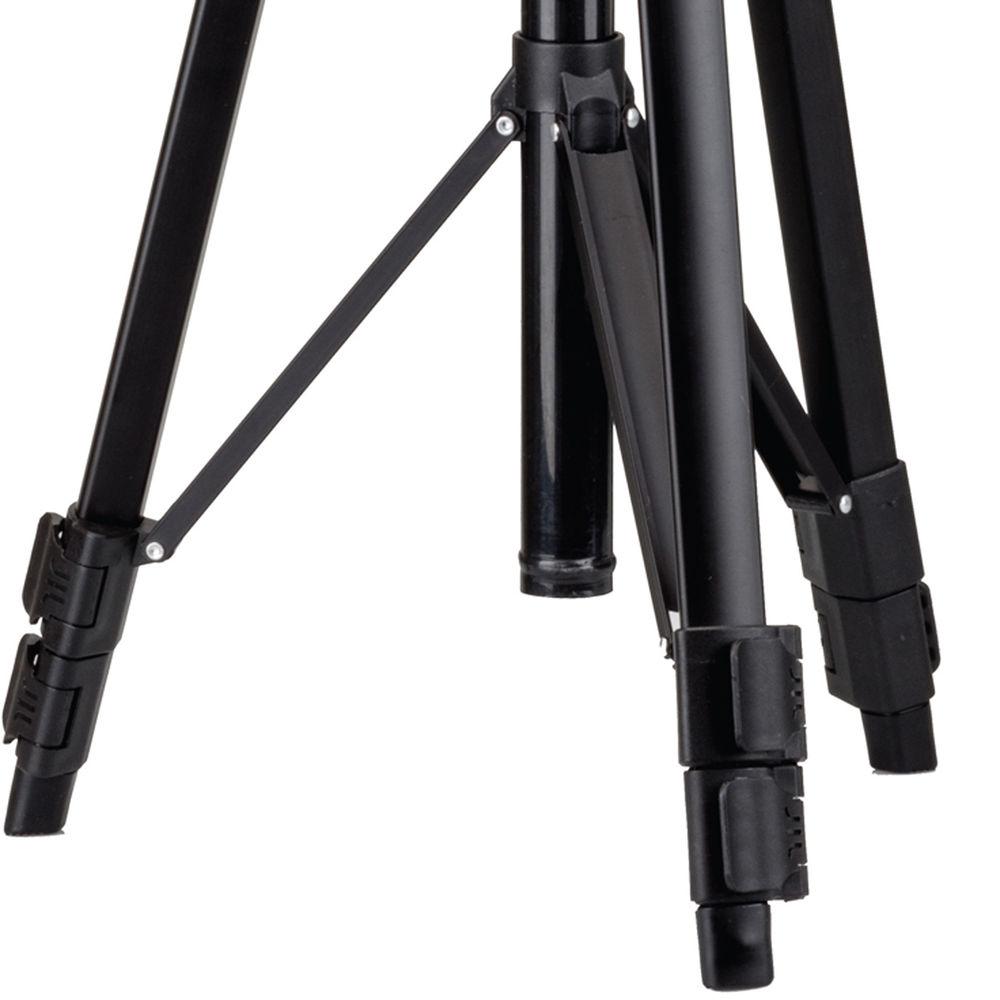

- Center brace allows legs to be spread simultaneously as well as uniformly and provides additional support
- Rubber feet for stability
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
- Built-in tripod bubble level
- Weighs 1.5 lb, measures 20.5" when folded
- Mount for smartphones screws onto quick release plate and fits mobile devices 2.5" to 3.3" wide
- Mount for any GoPro camera housing screws onto quick release plate
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount, anti-twist index pin, and rubberized, anti-slip surface
UPC: 090729613049 In the Box Sunpak 5400DLX Tripod with 3-Way, Pan-and-Tilt Head, Smartphone Mount, and Mount for GoPro Camera Sunpak 620-766 Quick Release Plate Mount for Smartphone Mount for GoPro Camera Housing Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak 5400DLX Tripod with 3-Way, Pan-and-Tilt Head, Smartphone Mount, and Mount for GoPro Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak 5400DLX Specs | | | Head Type | Pan & Tilt Head | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 4 lb / 1.8 kg | | Maximum Working Height | 54" / 137.2 cm | | Max Height without Center Column | 42.5" / 108 cm | | Minimum Working Height | 19.7" / 50 cm | | Folded Length | 20.5" / 52.1 cm | | Materials | Aluminum Alloy | | Weight | 1.5 lb / 0.7 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 21.1 x 4.5 x 4.1" |
