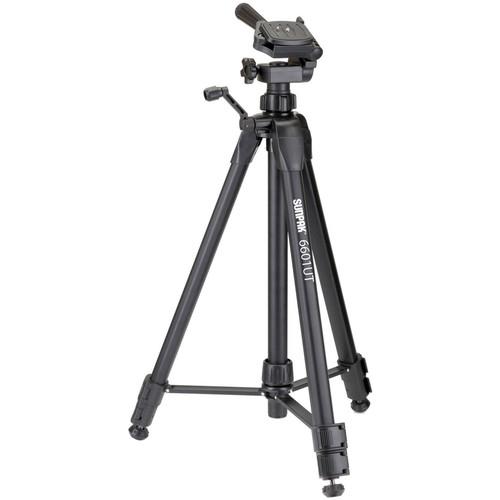

User Manual for Sunpak 6601UT Tripod with 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Sunpak 6601UT Tripod with 3-Way, Pan-and-Tilt
- Product category: Tripods with Heads Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Tripods with Heads
|
User manual for the Sunpak 6601UT Tripod with 3-Way, Pan-and-Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More eqstcbvytyvadewavaauwxrr This Sunpak 6601UT Tripod supports up to 8.0 lb, measures 22.5" when folded, and includes a three-way, pan-and-tilt head. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 23.8" to a maximum height of 46.8", or 59.0" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which include rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place. - Use and Handling
-
- Supports up to 8.0 lb
- Geared center column with rotating handle for precise positioning
- Can be set for a minimum height of 23.8" to a maximum height of 46.8", or 59.0" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment
- Center brace allows legs to be spread simultaneously as well as uniformly and provides additional support
- Rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Built-in tripod bubble level
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
- Weighs 2.4 lb, measures 22.5" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount, anti-twist index pin, and rubberized, anti-slip surface
UPC: 090729600605 In the Box Sunpak 6601UT Tripod with 3-Way, Pan-and-Tilt Head Quick Release Plate for Select Sunpak Tripods Limited Lifetime Warranty
Includes Free - 620-760 Medium Tripod Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak 6601UT Tripod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak 6601UT Specs | | | Head Type | Pan & Tilt Head | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 8 lb / 3.6 kg | | Maximum Working Height | 59" / 149.9 cm | | Max Height without Center Column | 46.8" / 118.9 cm | | Minimum Working Height | 23.8" / 60.5 cm | | Folded Length | 22.5" / 57.2 cm | | Materials | Aluminum Alloy | | Weight | 2.4 lb / 1.1 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Bubble Level | Yes | | Feet Features | Retractable, Spiked | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 24.0 x 5.0 x 5.0" |
