User Manual for Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt Head and FlexPodDX Tabletop Tripod Click to enlarge the picture
Contents of the user manual for the Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt
- Product category: Tripods with Heads Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Tripods with Heads
 |
User manual for the Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|

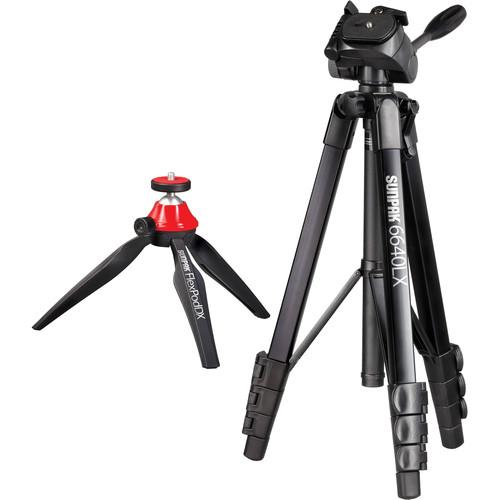

Product description Time-Lapse Tips and Tools Read More This Sunpak Tripod Kit includes a 6640LX tripod with a three-way, pan-and-tilt head, plus a FlexPodDX tabletop tripod. With the FlexPodDX tabletop tripod, small cameras or accessories can be quickly positioned while the 6640LX tripod provides the ability to more precisely angle larger cameras, lenses, or sport optics toward your subject.

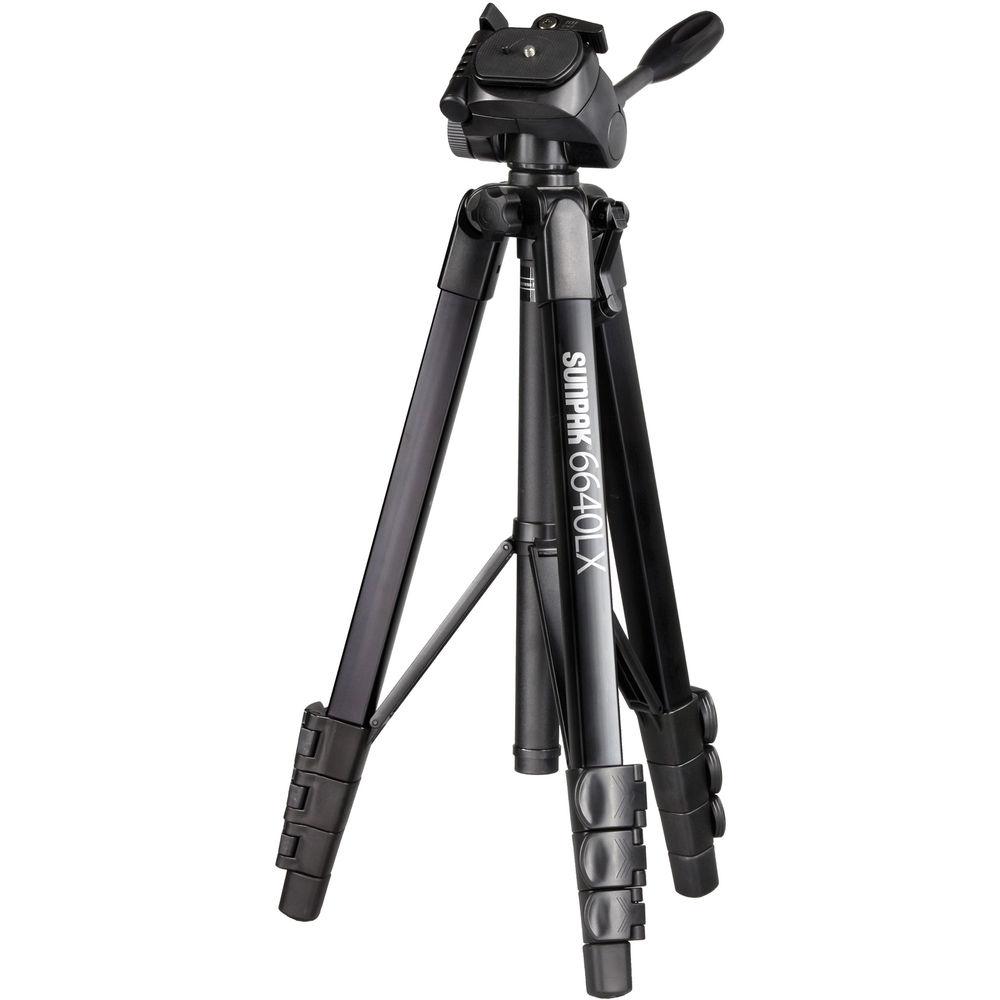

The Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt Head supports up to 10 lb and measures 21" when folded. Its 4-section legs each feature flip locks for fast deployment and can be positioned for a minimum height of 19.5" to a maximum height of 56", or 66" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which include rubber feet to further enhance stability on a wide variety of surfaces.

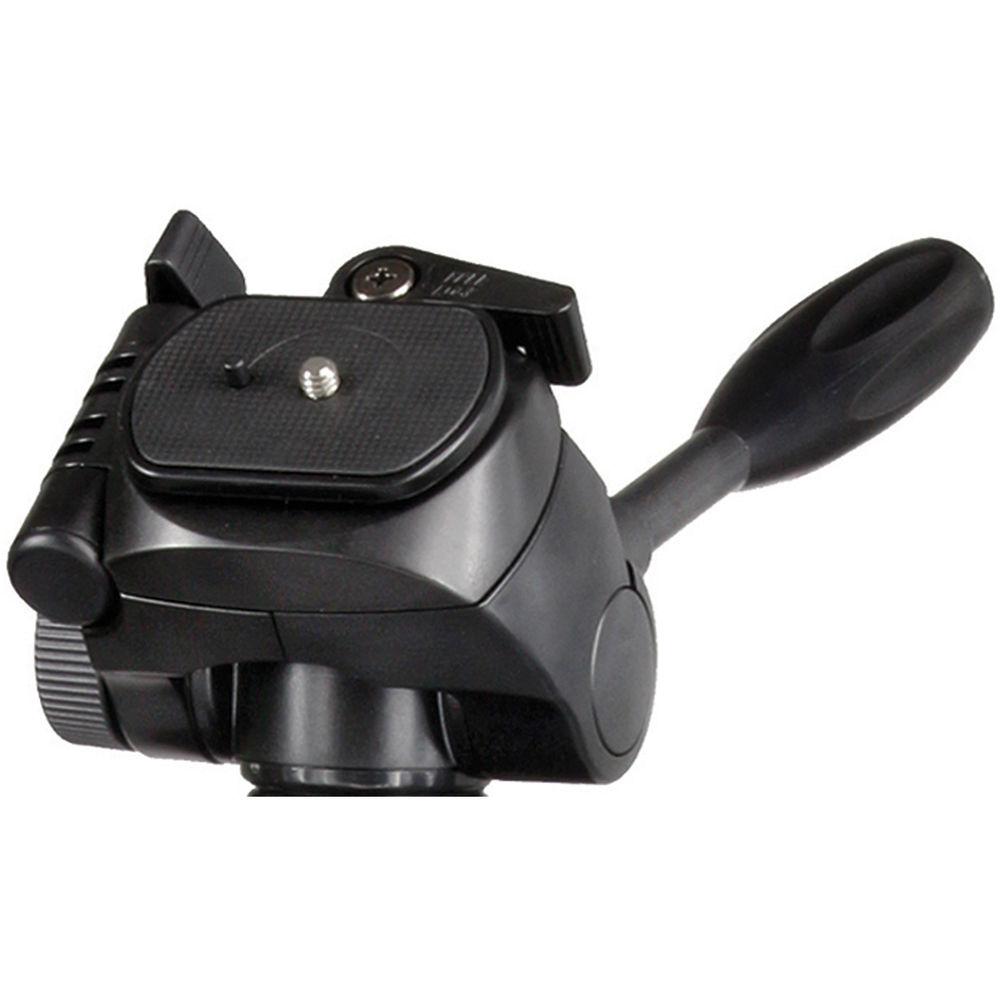

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place.

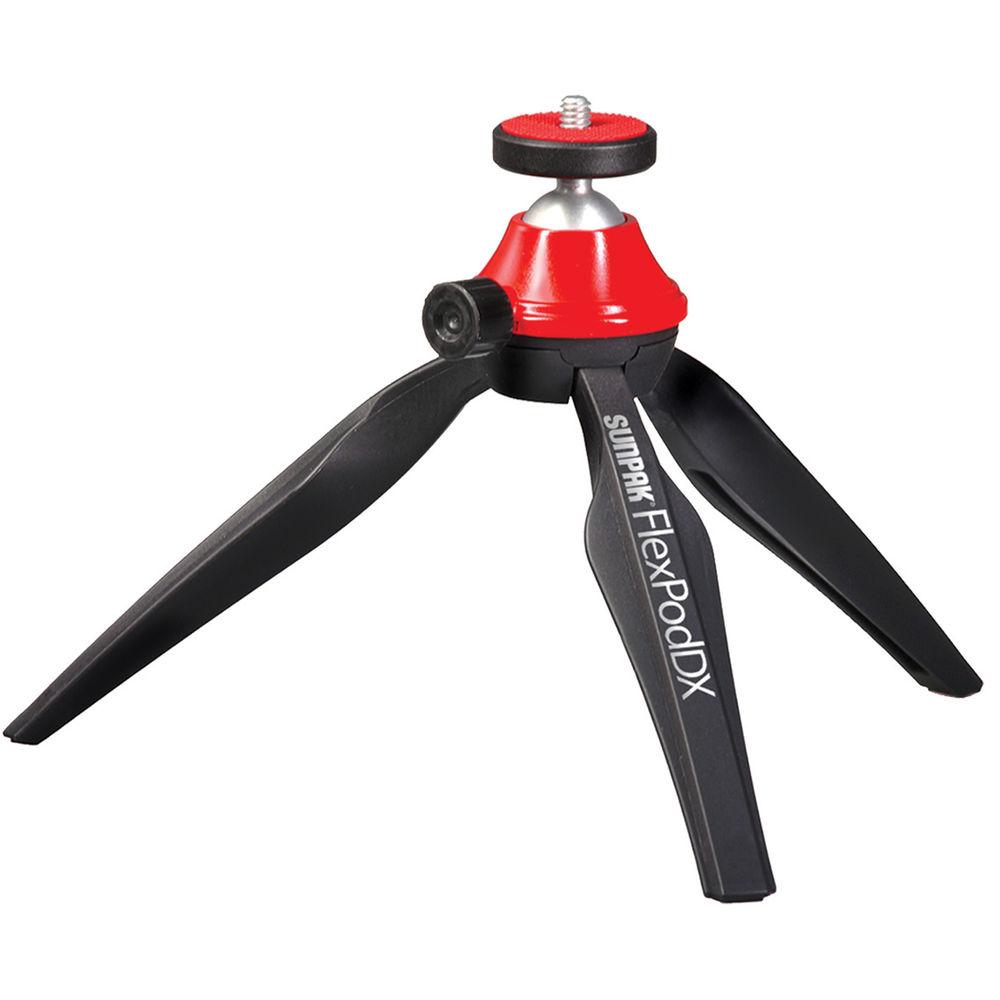

The included FlexPodDX Tabletop Tripod supports up to 2.2 lb, and measures 6.9" when folded. Its legs each feature an independent spread and when fully splayed, provide a height of 5.3". To enhance stability on a wide variety of surfaces, rubber feet are included at the end of each leg.
A 1/4"-20 screw can be found atop the tripod's built-in ball head. The ball head rotates 360°, provides up to a 90° tilt for portrait orientation, and can be locked into place along its range of movement. 6640LX Tripod with 3-Way, Pan-and-Tilt Head - Use and Handling
-
- Supports up to 10 lb
- Geared center column with fold-away, rotating handle for precise positioning
- Can be set for a minimum height of 19.5" to a maximum height of 56", or 66" with column fully raised
- Legs each feature 4 sections, flip locks for fast deployment
- Center brace allows legs to be spread simultaneously as well as uniformly and provides additional support
- Rubber feet for stability
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
- Weighs 3.2 lb, measures 21" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount, anti-twist index pin, and rubberized, anti-slip surface
FlexPodDX Tabletop Tripod - Use and Handling
-
- Supports up to 2.2 lb
- Legs each feature 1 section and a rubber foot for stability
- Weighs 4.8 oz, measures 6.9" when folded
- Construction Details
-
- Lightweight, plastic construction
- Built-in ball head with 1/4"-20 mount
UPC: 090729612929 In the Box Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt Head and FlexPodDX Tabletop Tripod Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak 6640LX Tripod with 3-Way, Pan-and-Tilt Head and FlexPodDX Tabletop Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak 620-664LX-COS Specs | | | Head Type | Pan & Tilt Head | | | | Load Capacity | 2.2 lb / 1 kg | | Maximum Working Height | 66" / 167.6 cm | | Folded Length | 21" / 53.3 cm | | Materials | Aluminum Alloy, Plastic | | | | Leg Sections | 4 | | Bubble Level | No | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 25.276 x 5.433 x 4.882" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
