User Manual for Sunpak Compact Pistol Grip Ball Head w Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Sunpak Compact Pistol Grip Ball Head
- Product category: Tripod Heads Sunpak
- Brand: Sunpak
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sunpak Tripod Heads
 |
User manual for the Sunpak Compact Pistol Grip Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sunpak product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sunpak user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sunpak product will considerably shorten its lifespan!
|

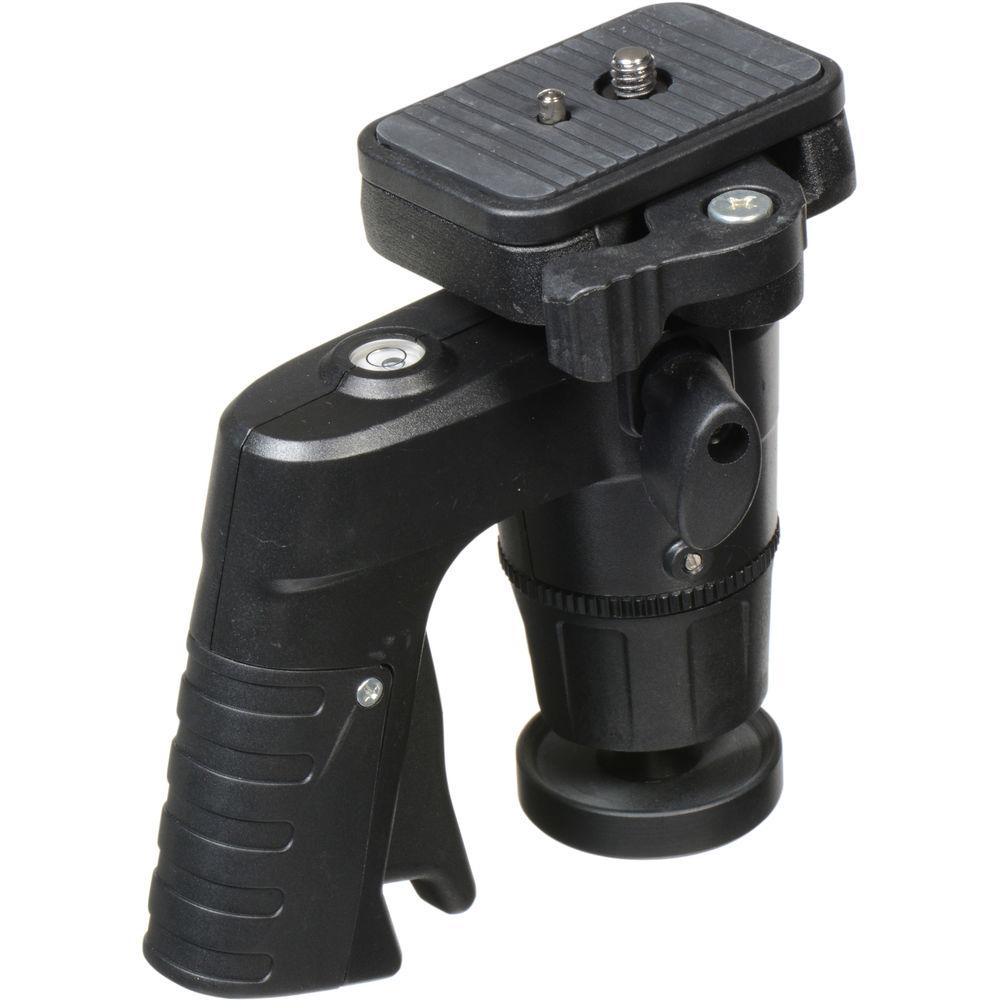

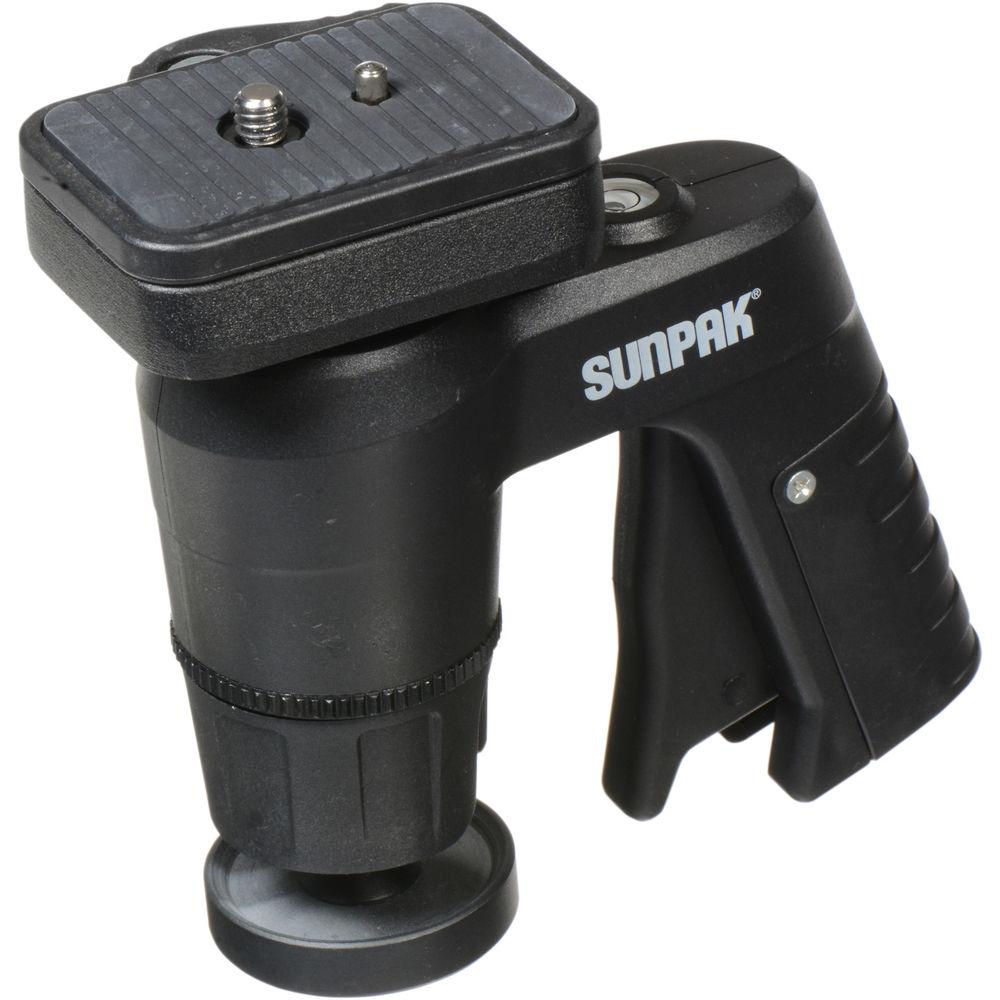

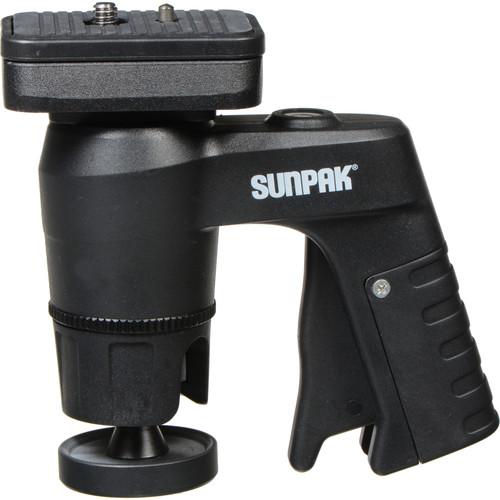

Product description The Sunpak Compact Pistol Grip Ball Head w/ Quick Release Plate facilitates smooth, single-action camera positioning in any direction by simply pulling and releasing the trigger. One-handed operation of the head means your remaining hand is free to press the other trigger – the one on your DSLR camera. The head's pistol grip facilitates an extremely quick and easy way to set your shooting angle: just squeeze the trigger, position with the rubberized handgrip, and release, and the camera's position is locked. This single-handed operation enables you to set forward/backward and side-to-side tilt as well as panning around a full 360°. The included quick-release plate enables fast camera mounting (via a standard 1/4"-20 camera screw) and allows you to switch to handheld shooting in seconds. Featuring both 1/4"-20 and 3/8"-16 mounts, the Compact Pistol Grip head mounts to virtually all tripods. With four built-in bubble levels around the head, you'll always have instantaneous feedback as to whether your shot hews to the horizon. With a heavy load capacity and an integrated spring-loaded video pin on its quick-release plate, the Compact Pistol Grip head also supports compact camcorders. An ideal application might be a rapid-fire video production that involves a series of static shots. - Smooth, single-action movement in any direction
- Quick-release lever with locking mechanism
- Limited lifetime warranty
UPC: 090729609707 In the Box Sunpak Compact Pistol Grip Ball Head w/ Quick Release Plate 620-754 Quick Release Plate for UltraPRO 423 Tripod Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sunpak Compact Pistol Grip Ball Head w Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSunpak 620-CPG Specs | | | Head Type | Pistol Grip Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 15.4 lb / 7 kg | | Number of Bubble Levels | 4 | | Friction Control | No | | Independent Pan Lock | No | | Material | Aluminum | | | | Dimensions | H: 4.0 x W: 2.5 x L: 4.0" / H: 10.2 x W: 6.4 x L: 10.2 cm | | Weight | 0.8 lb / 0.3 kg | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 6.5 x 4.5 x 3.3" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
